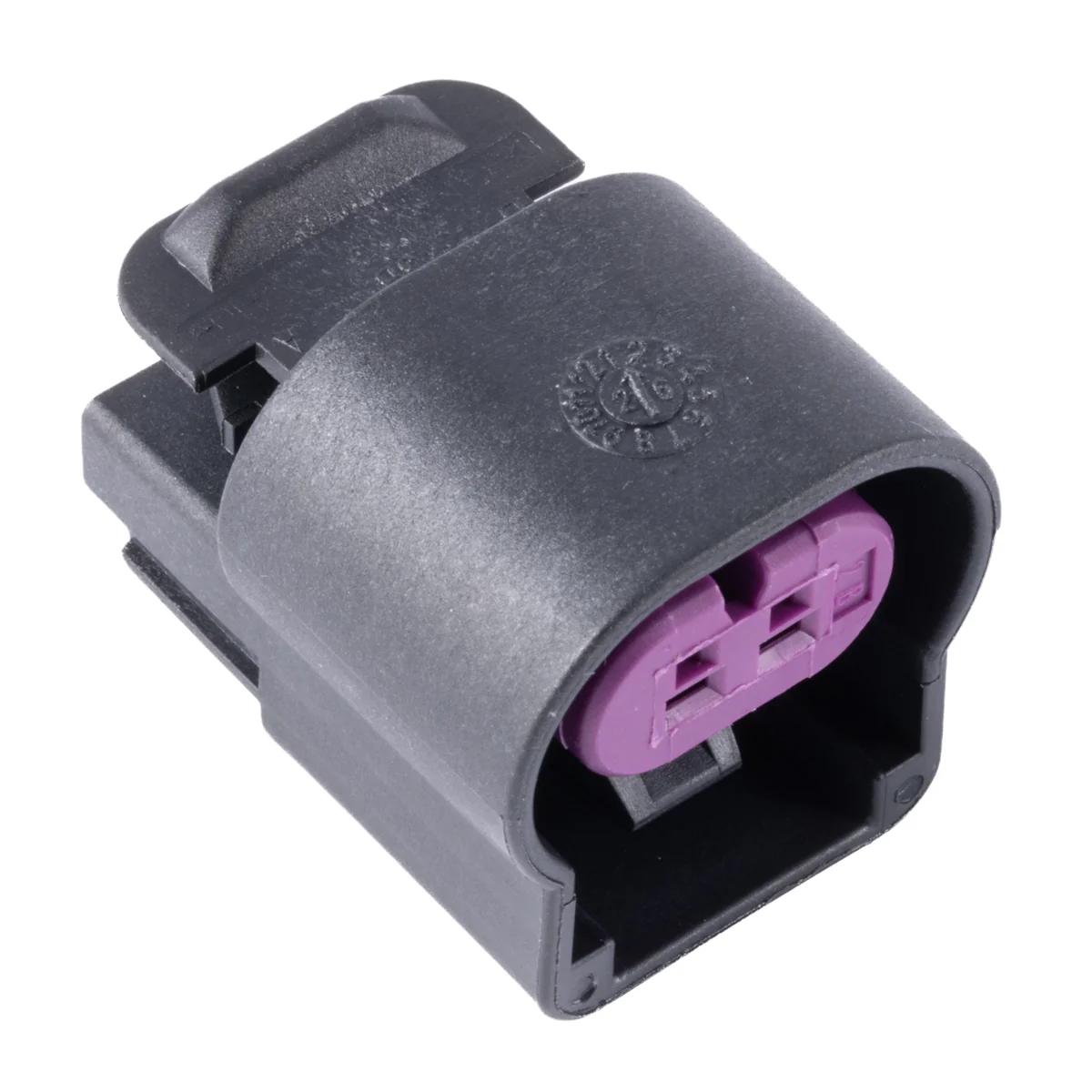

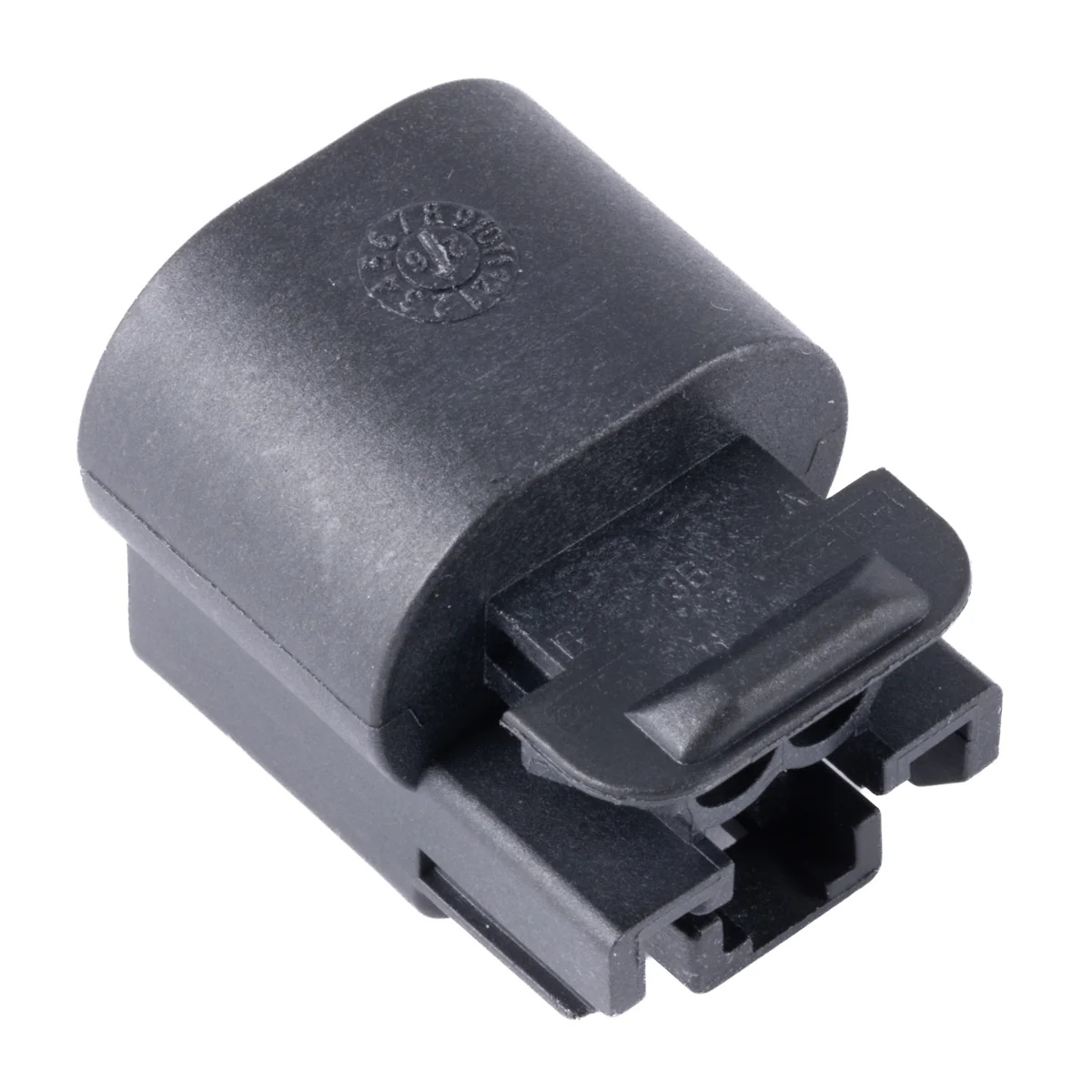

Aptiv 13510085 2-Way GT150 Sealed Connector

Name: GT150,2 WAY, FEMALE,SEALED
SKU: 13510085
Price: 1.03 USD
Availability: InStock

Delphi

Item No. 13510085

$1.029 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save

Quantity / EA	Price / EA	Ext. Price
1	$1.029	$1.03
10	$0.943	$9.43
50	$0.909	$45.45
100	$0.858	$85.80
250	$0.823	$205.75
500	$0.772	$386.00
1,000	$0.686	$686.00

Features & details

13510085 2-way female plug housing. 13510085 is compatible with all GT150 Series sealed female terminals. This connector housing requires female terminals, wire seals, and a TPA (all listed below).

You can now configure GT150 Series connectors using our GT150 Series Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

13510085 Details

Wire Range: 22–16 AWG (0.35–1.0 mm²)
Number of Cavities: 2
Gender: female (plug with female terminals)
Housing Color: Black
Terminals are rated for 15 amps each
RoHS Compliant
Certified to J2030 and USCAR
Temperature Range: -40°C ~ +125°C
Overall Width: .933 (23.70)
Overall Length: 1.240 (31.50)
Overall Height: .909 (23.10)
Superseded #: 15326801

Mating Connector(s)

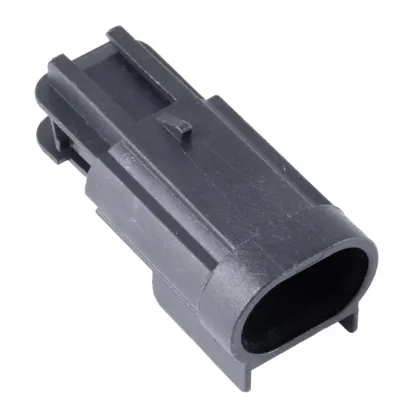

13510099

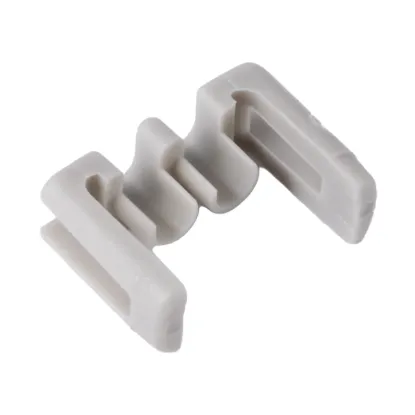

Required TPA

15355128

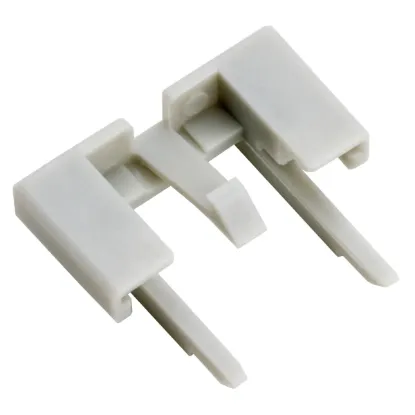

- Optional CPA15317832 ⓘ

Terminals

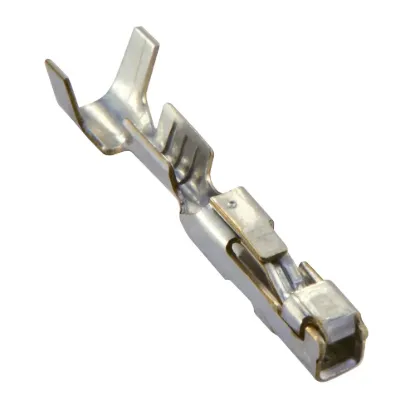

22-20 AWG (0.35 mm²)12191818

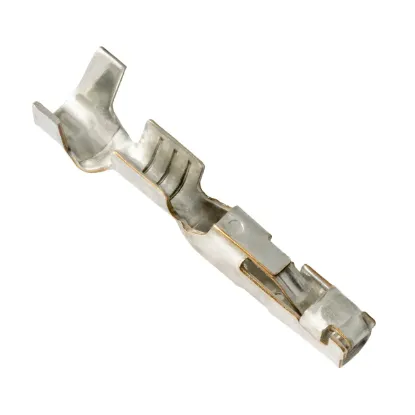

18–16 AWG (1.0 mm²)12191819

Wire Seals

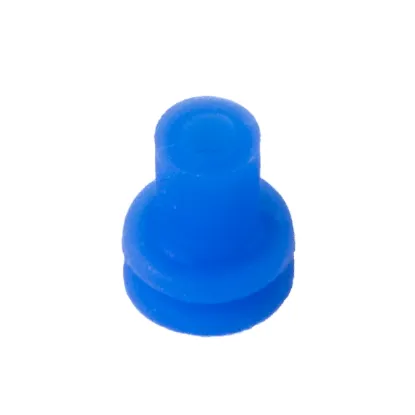

Blue15366060 — Cable Diameter 1.86–2.40 mm

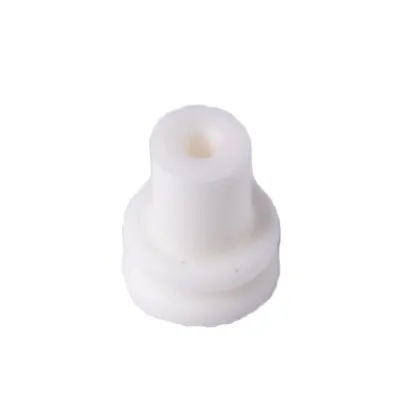

White15366021 — Cable Diameter 1.20–1.90 mm

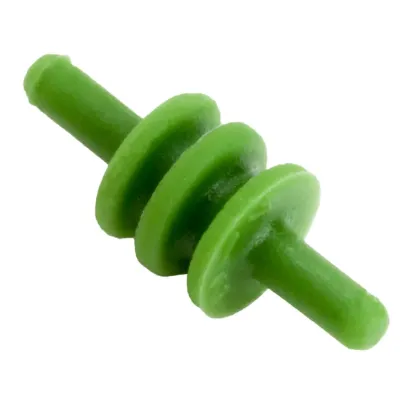

Cavity Sealing Plug15305171 ⓘ

Tools

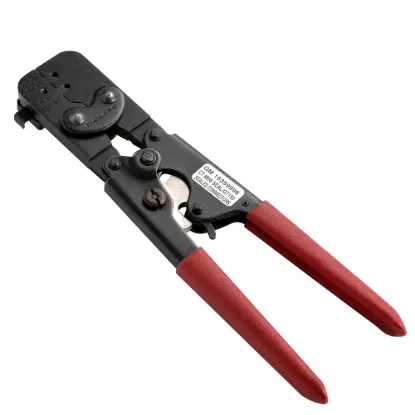

OEM Crimp Tool15359996

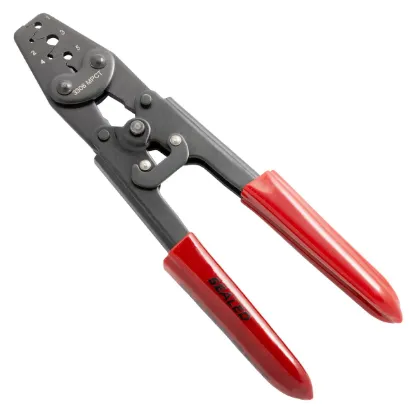

Econo Crimp Tool3306-MPCT

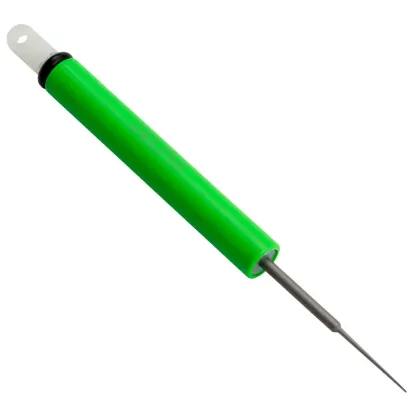

Terminal Release Tool12094429

Notes

Please refer to the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Price $1.029 / EA

Shipping details

Availability: 1,100 Each In Stock, ready to be shipped

Quantity:

Documents

13510085 DATASHEET

13510085 CAD FILE
