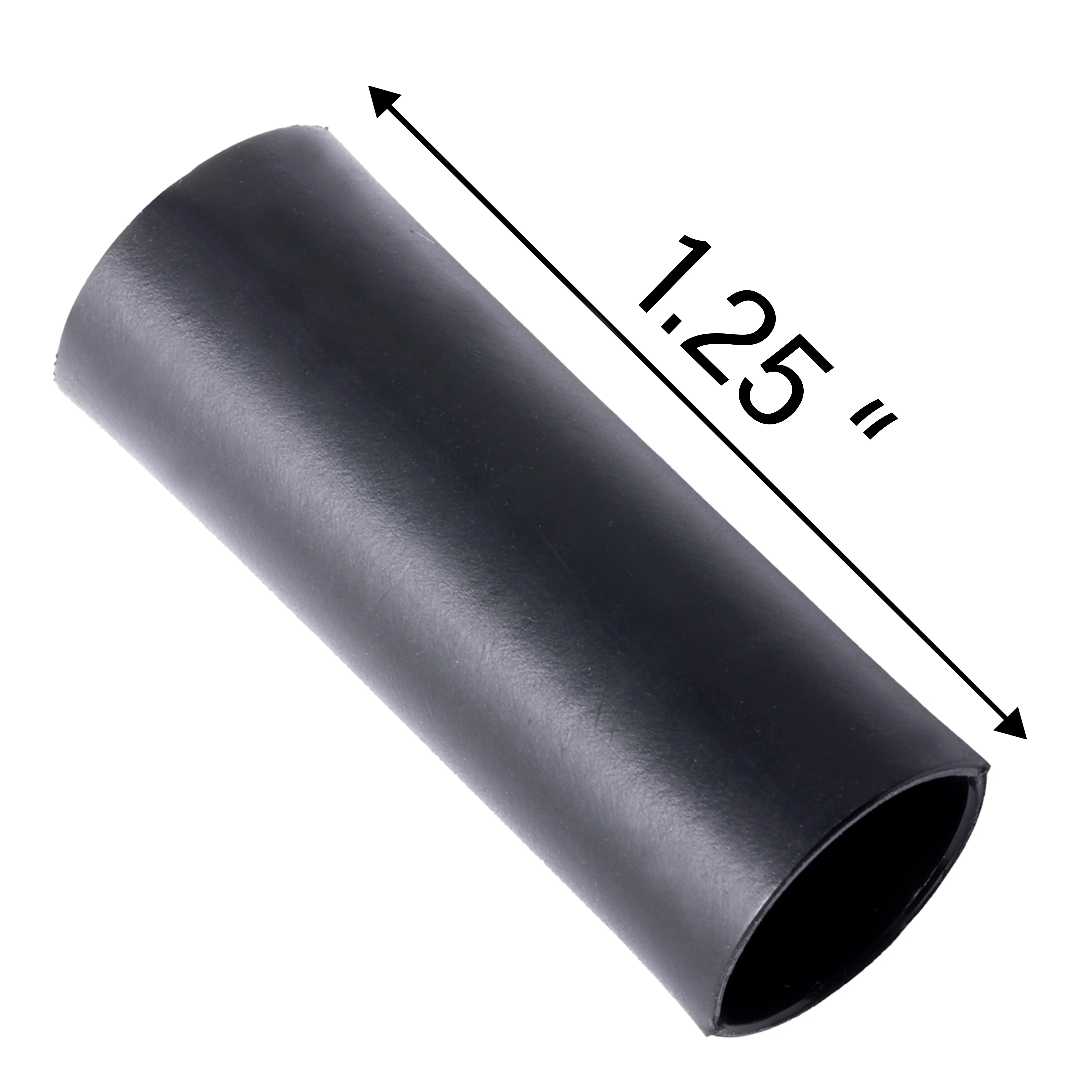

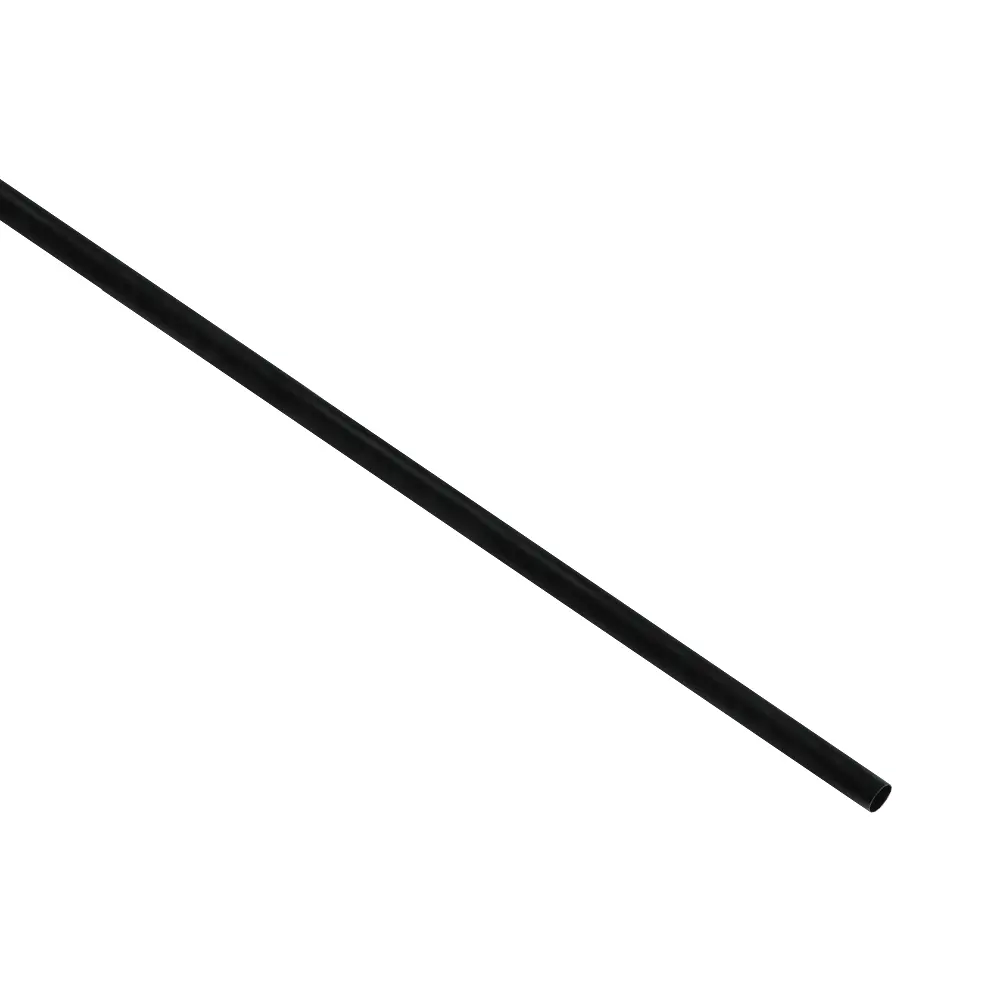

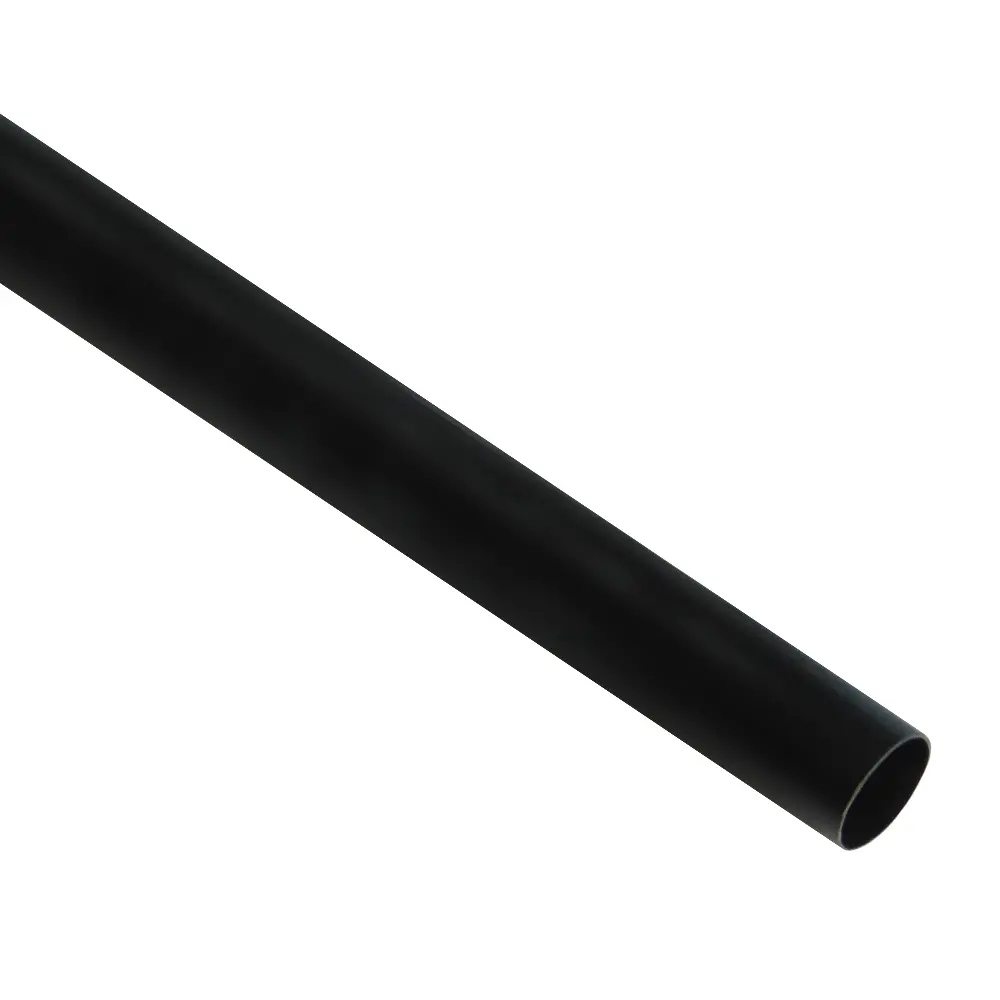

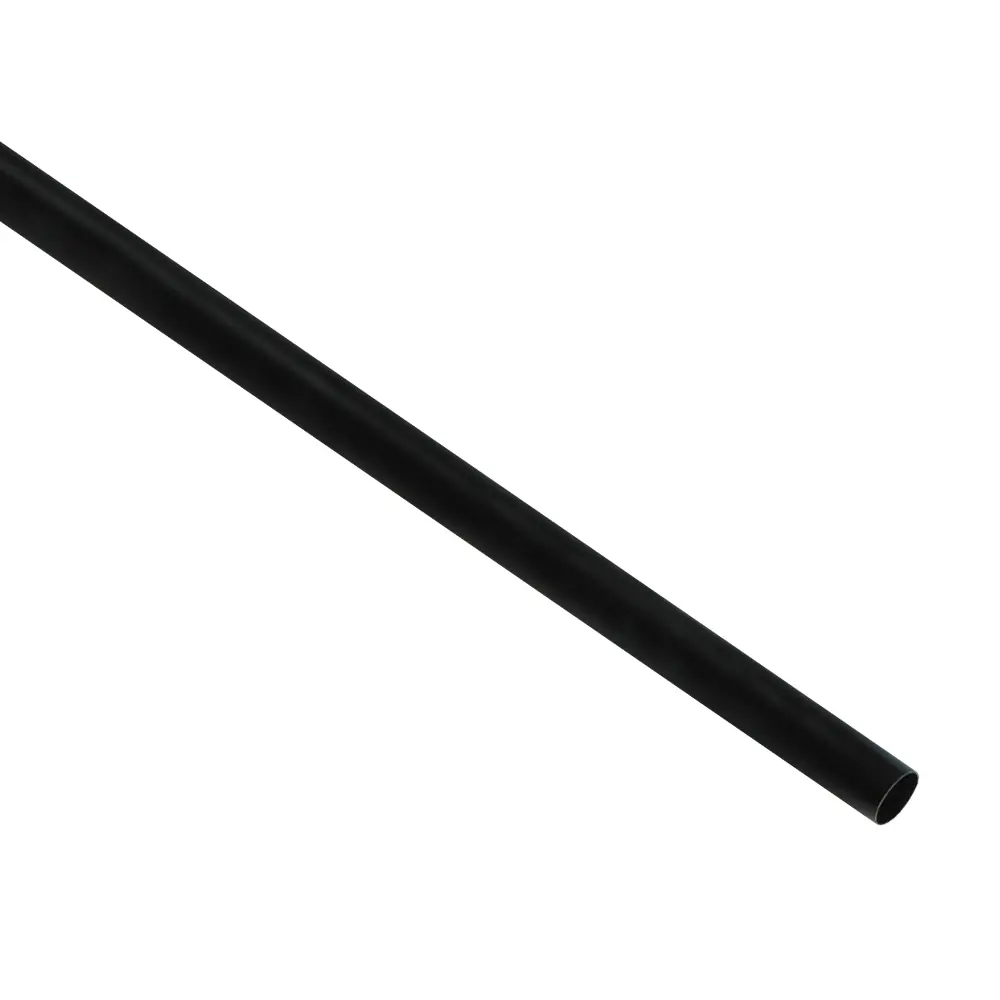

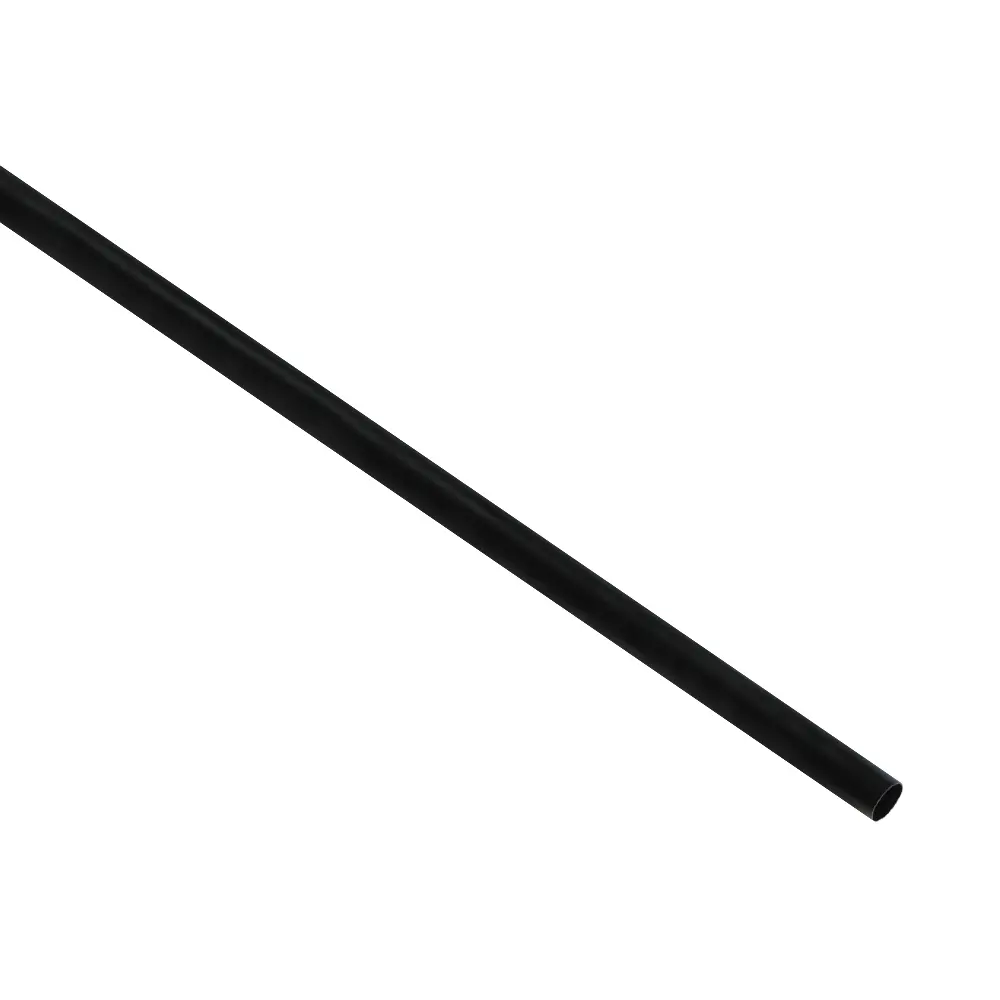

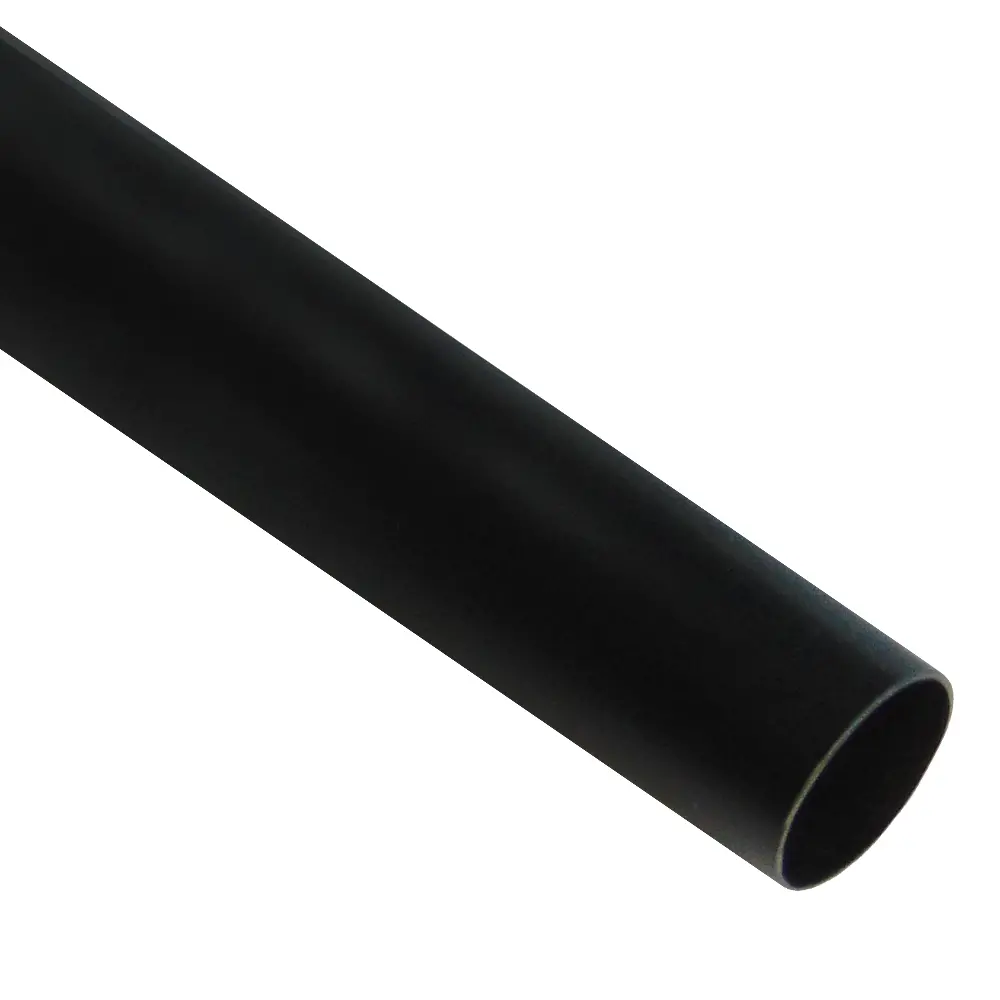

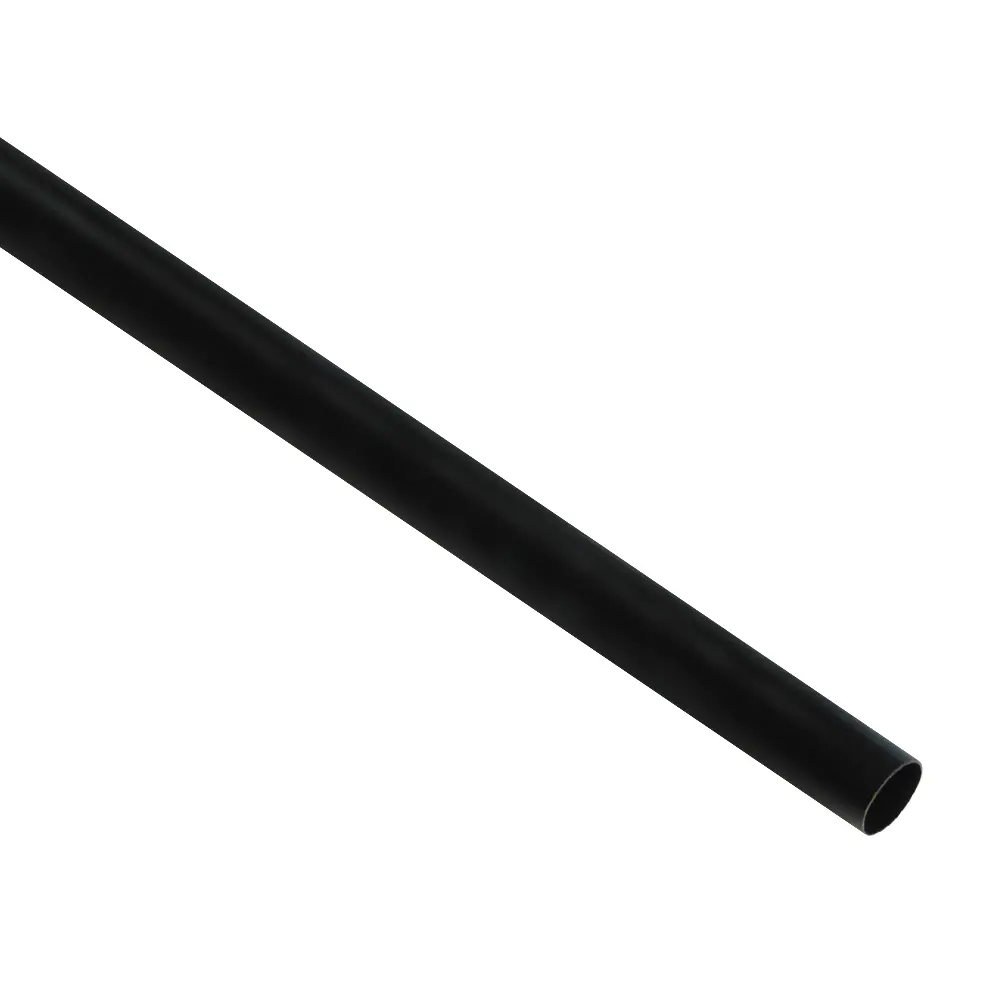

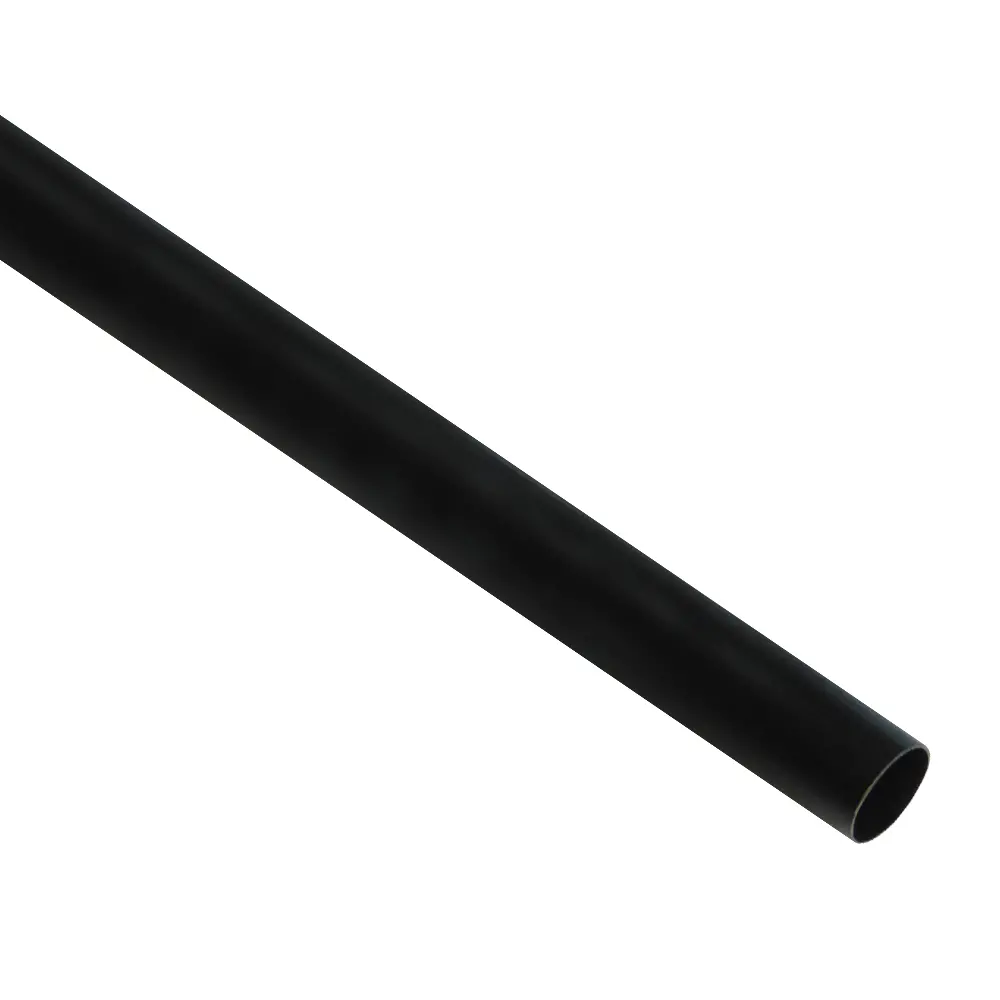

Raychem SCL Tubing 3:1

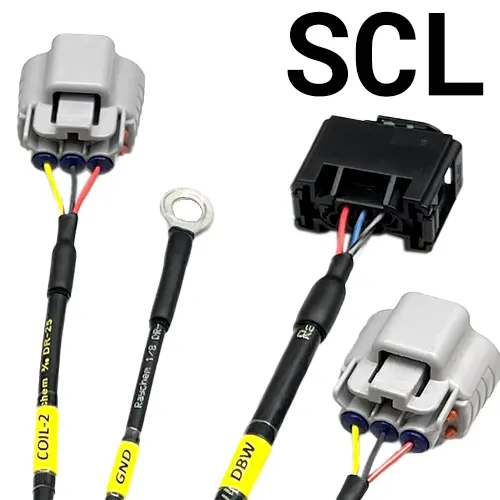

Raychem SCL is a Semi-Rigid 3:1 encapsulant-lined, heat-shrinkable tubing SCL is encapsulant-lined, heat-shrinkable tubing that provides moisture resistance, strain relief, and electrical insulation for electrical splices, terminations, breakouts, and mechanical connections. SCL is constructed as a dual-wall tubing. The outer wall is a semi-rigid, crosslinked polyolefin, while the inner wall is a meltable polyolefin that flows with the application of heat.

Heating SCL shrinks the outer jacket and melts the inner encapsulant wall to flow and fill surface irregularities. While hot, the tubing can be pinched and blocked to form a wire breakout. SCL provides a splash-resistant, moisture-resistant covering suitable for many applications. SCL also performs satisfactorily if briefly exposed to common solvents or chemicals. The installed tubing provides rugged protection against abrasion, vibration, and flexing. A wide range of applications can be accommodated with only a few sizes of SCL tubing.

The installed tubing provides rugged protection against abrasion, vibration, and flexing. A wide range of applications can be accommodated with only a few sizes of SCL tubing.

If any size of SCL is out of stock, Sumitomo W5DL can be used as an alternative. Both products share the same Mil-Spec, shrink ratio, and UL ratings.

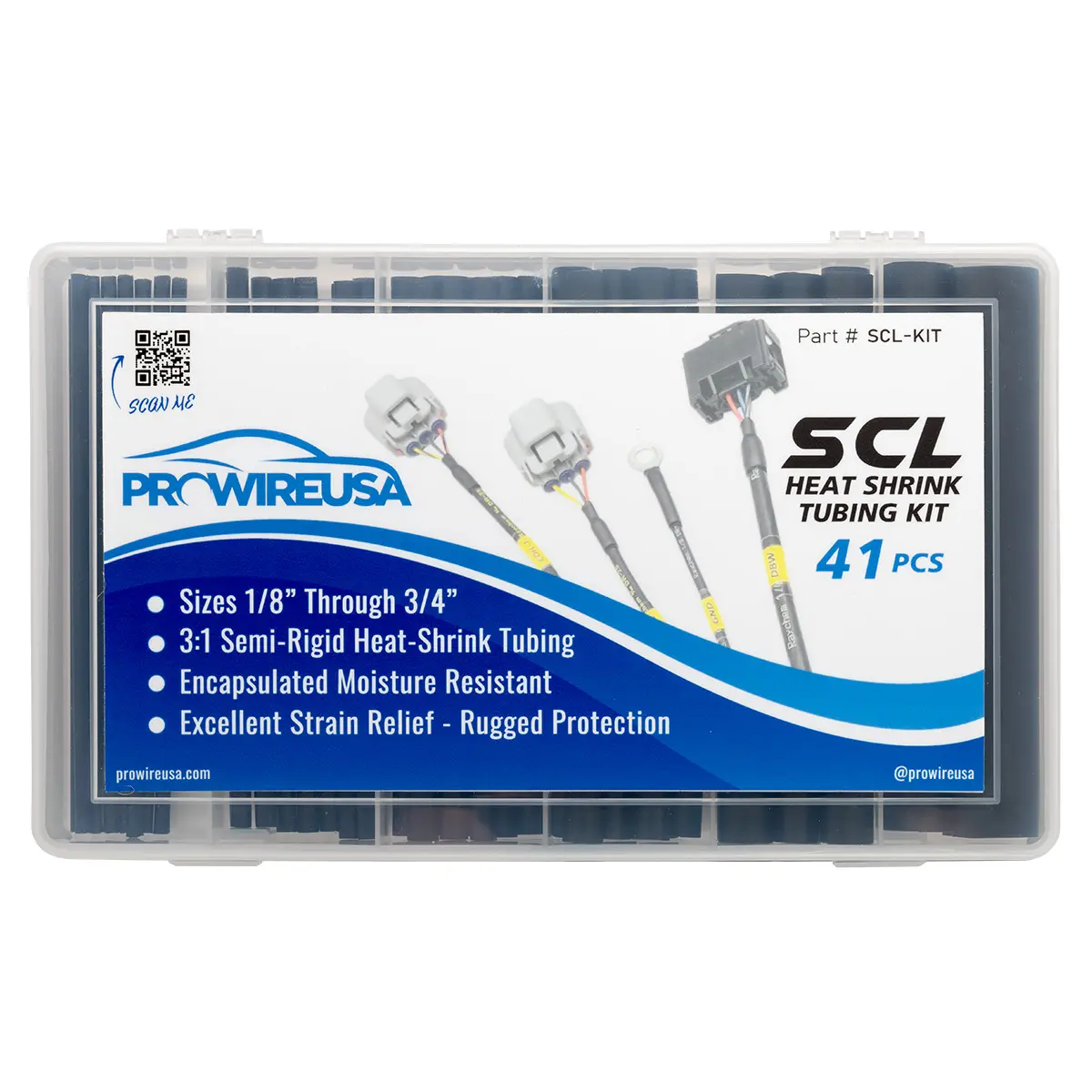

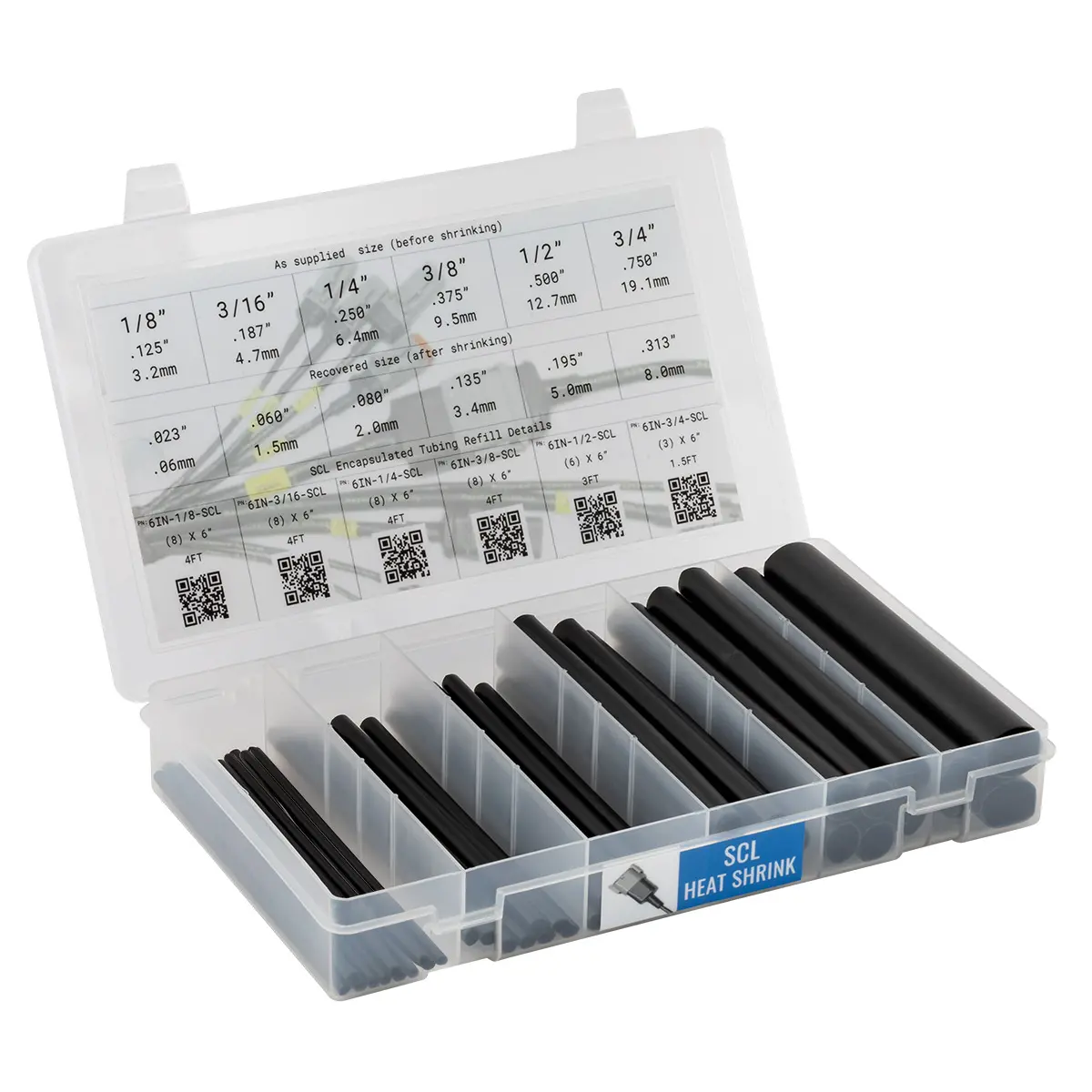

 Looking for a great starter kit. Look no further than the SCL-KIT packed neatly in a durable plastic box loaded with all the commonly used sizes.

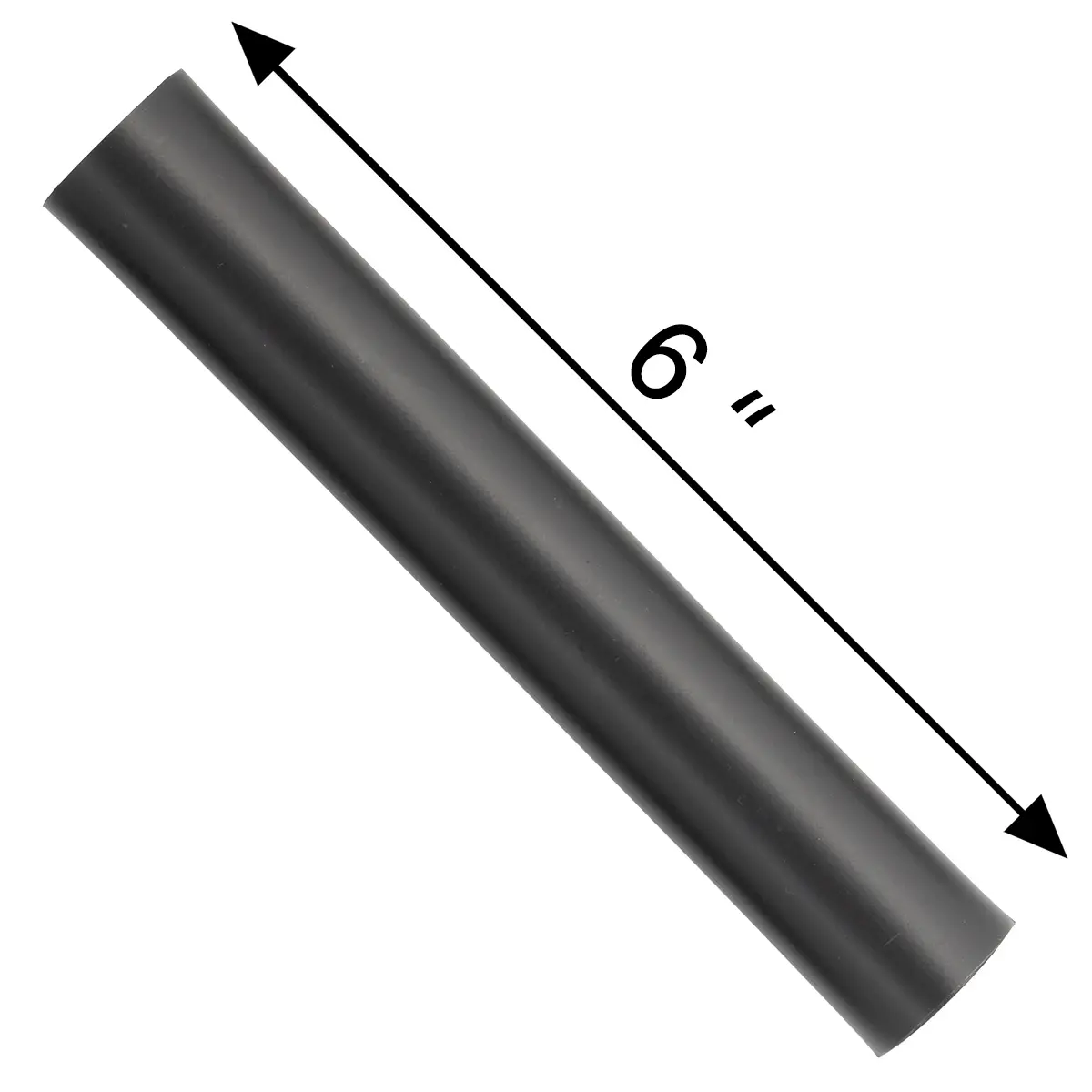

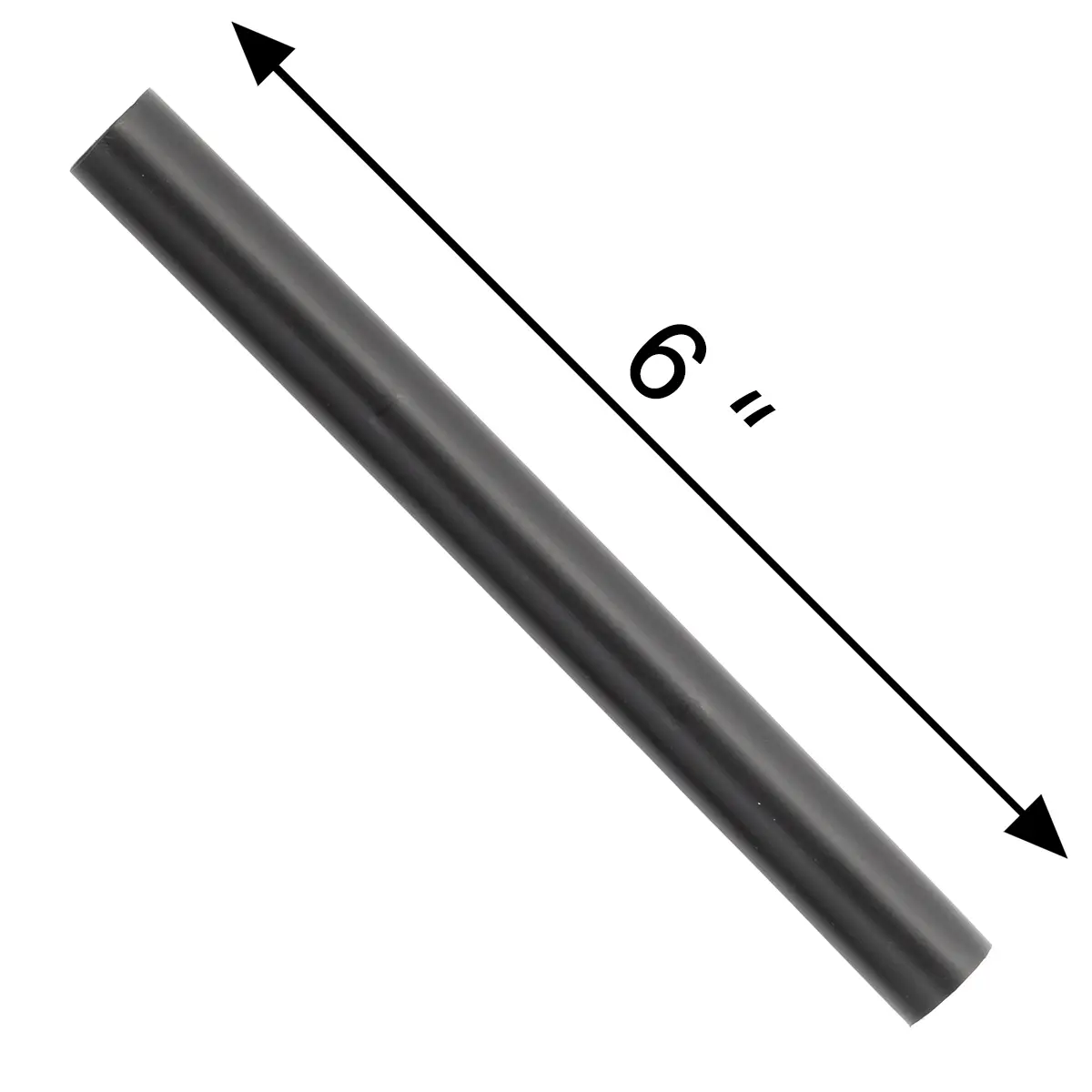

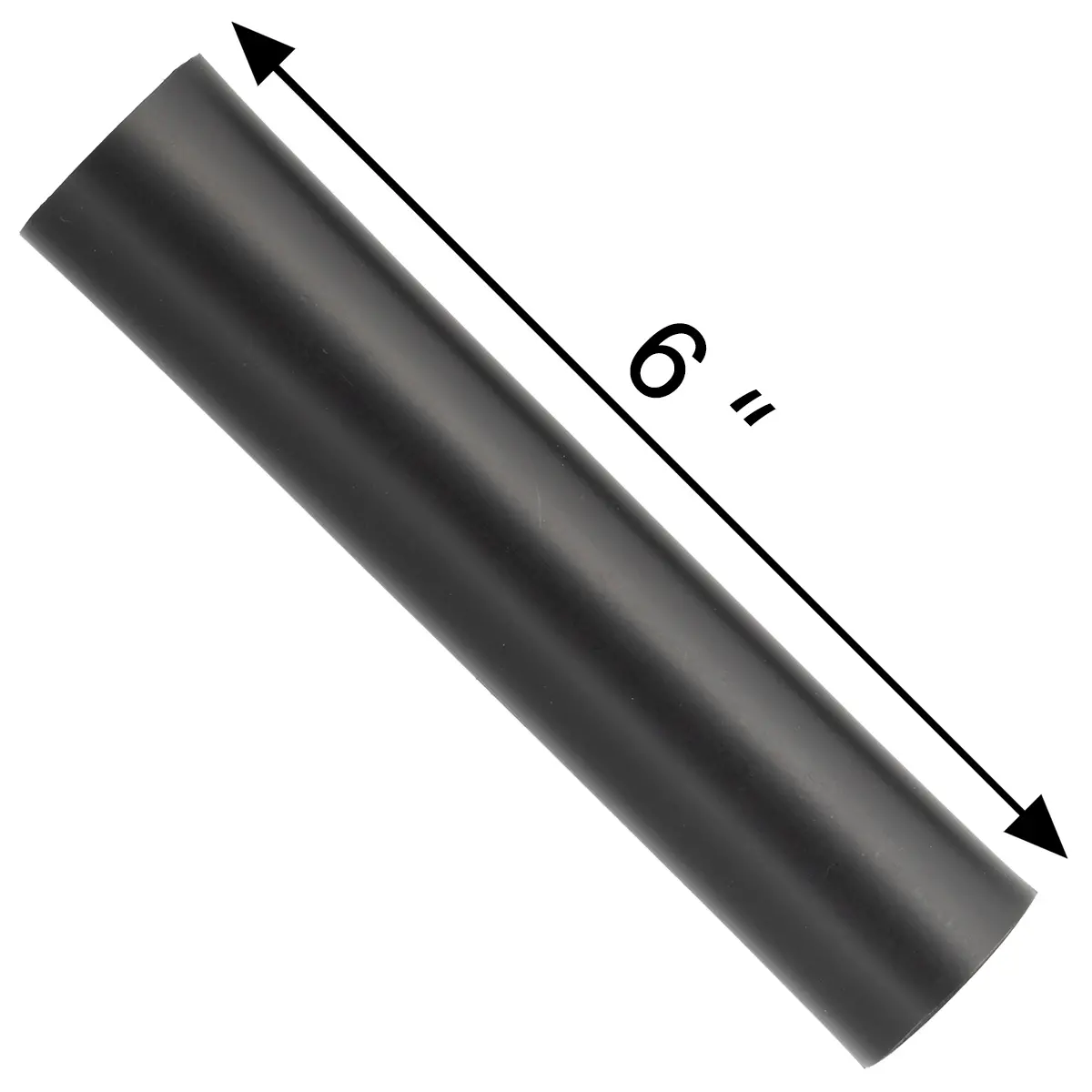

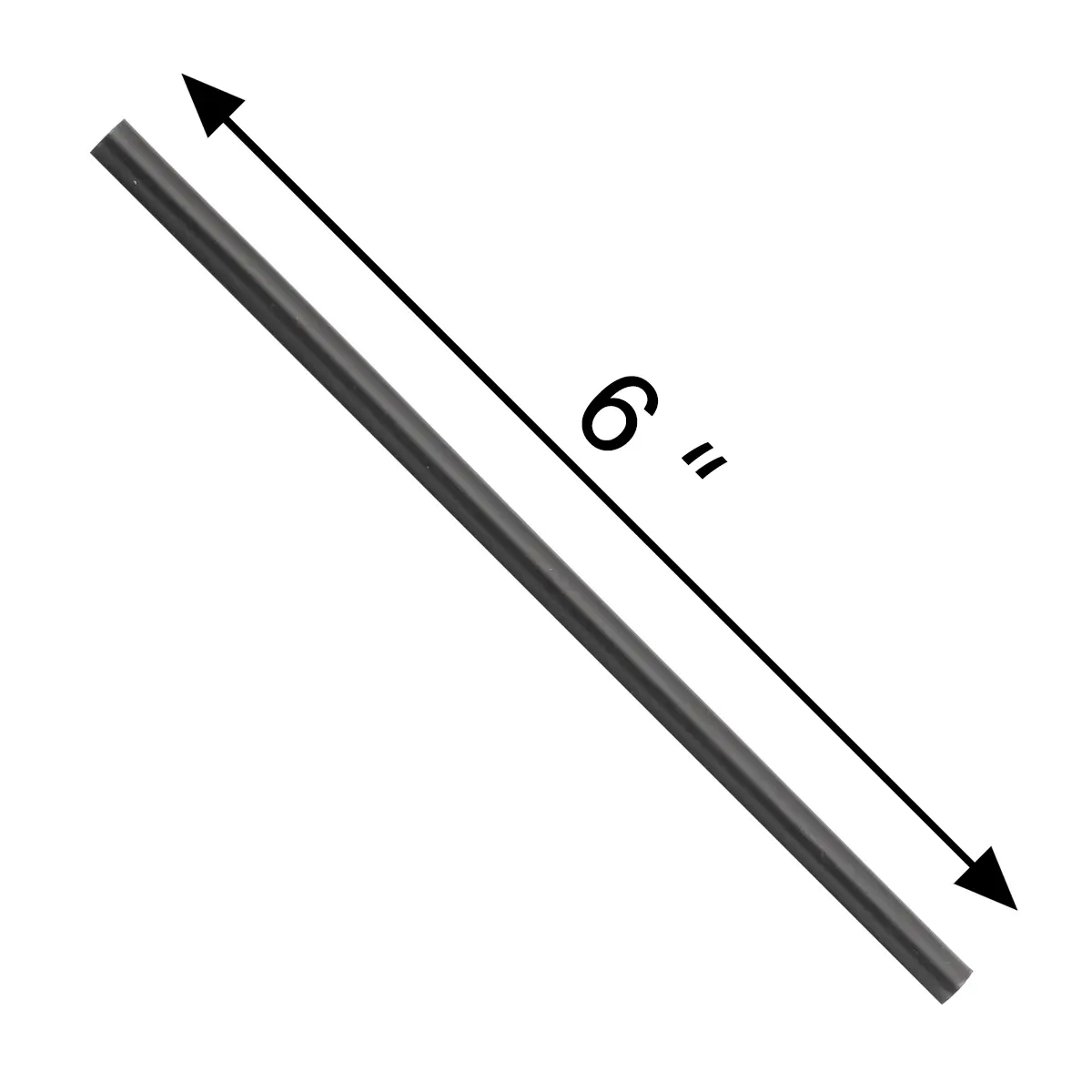

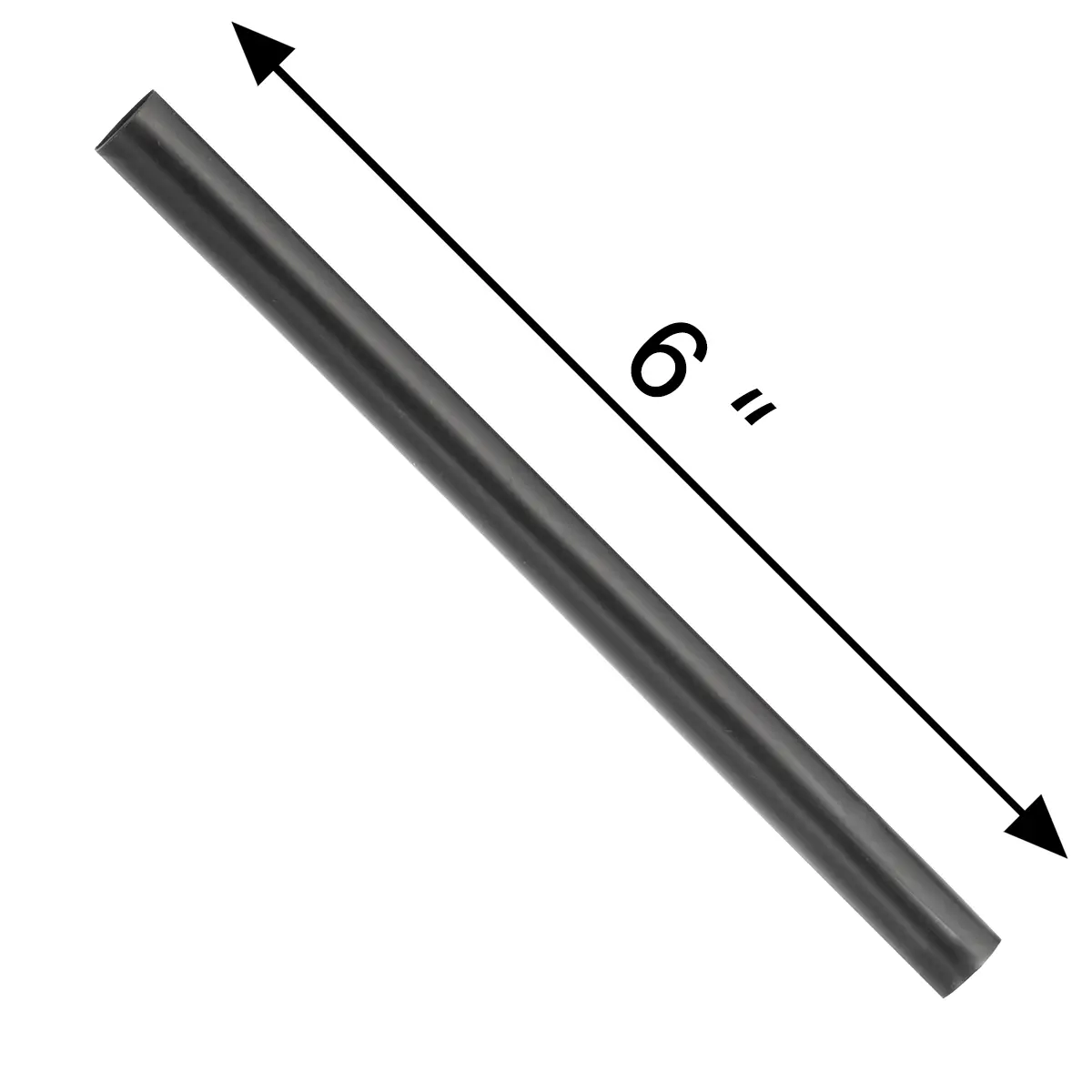

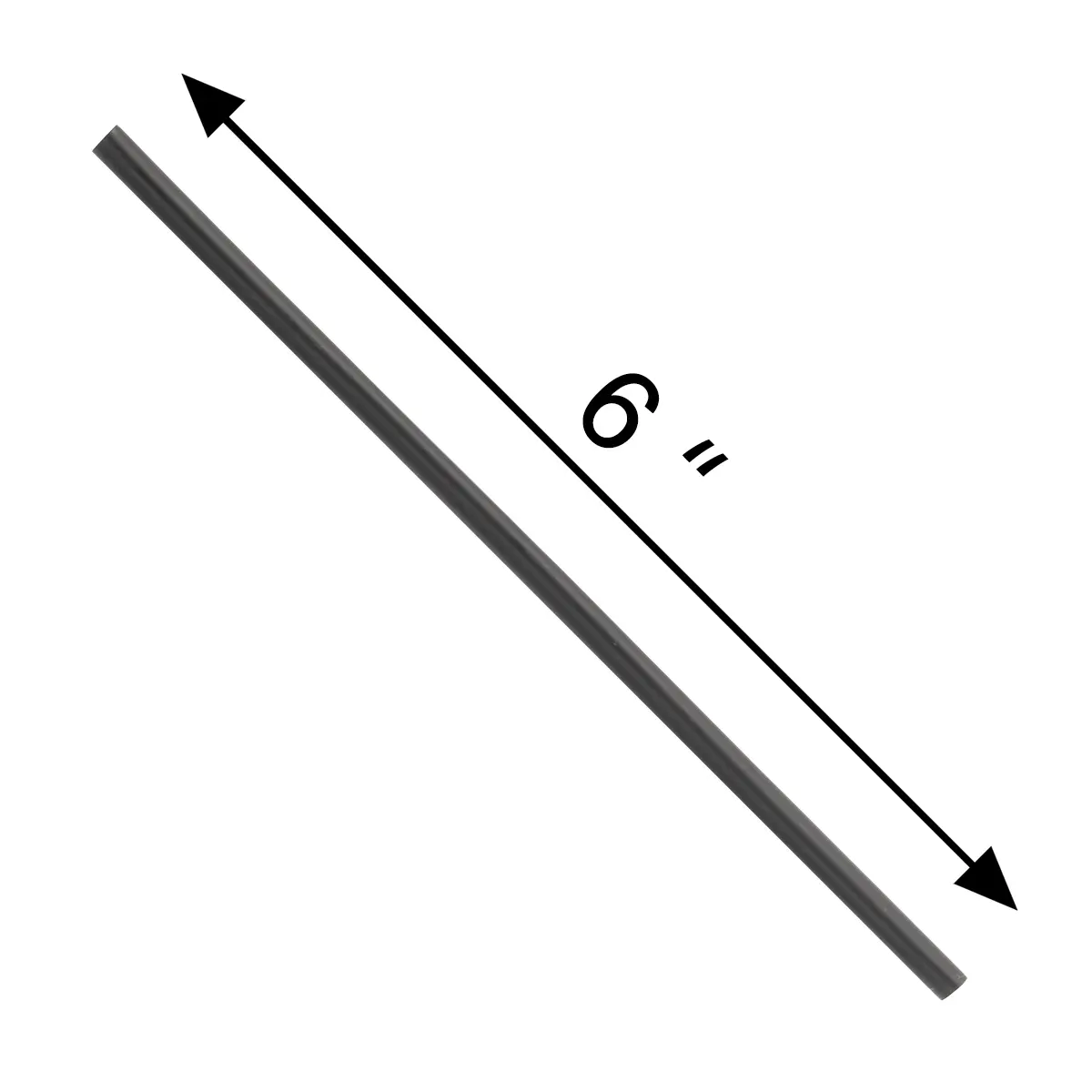

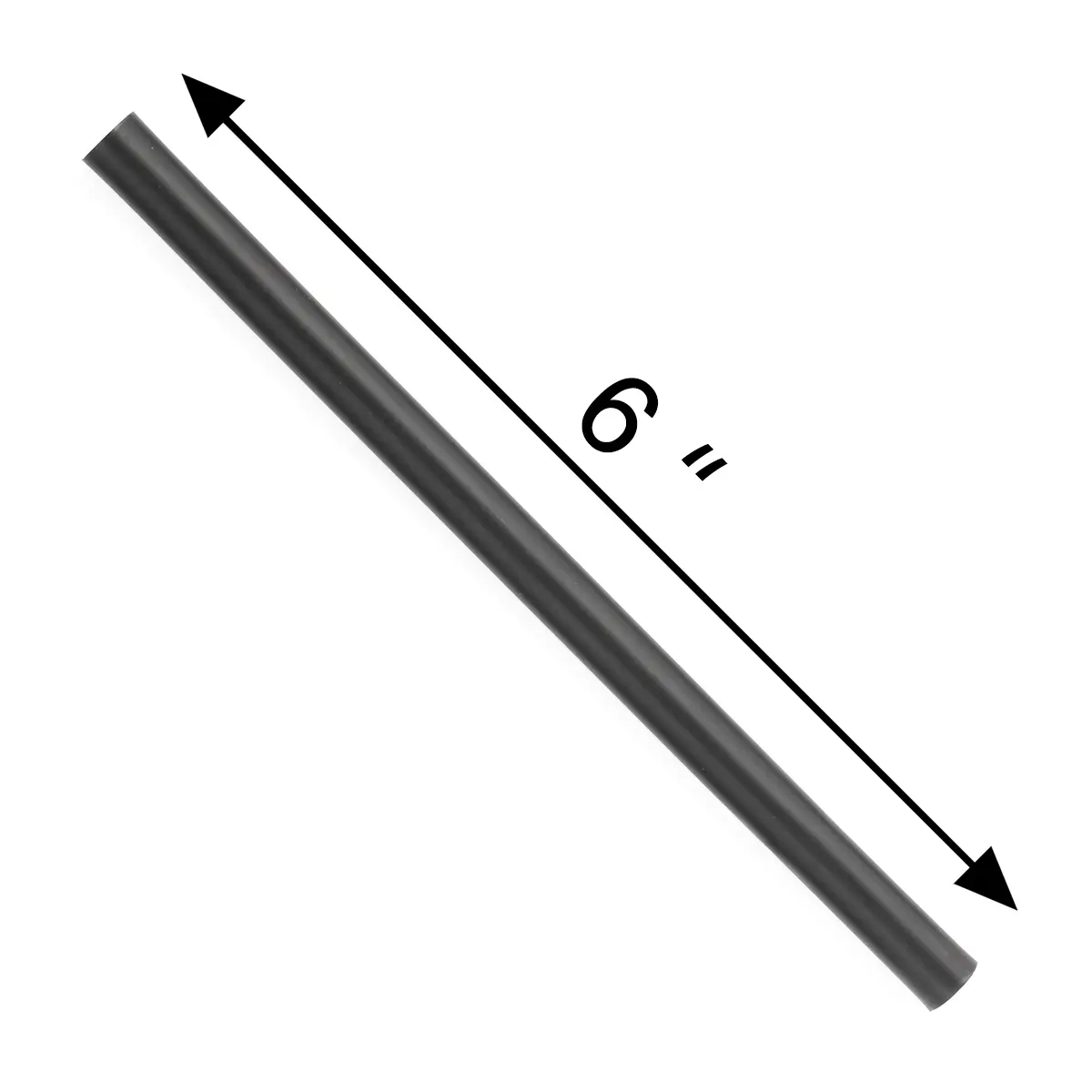

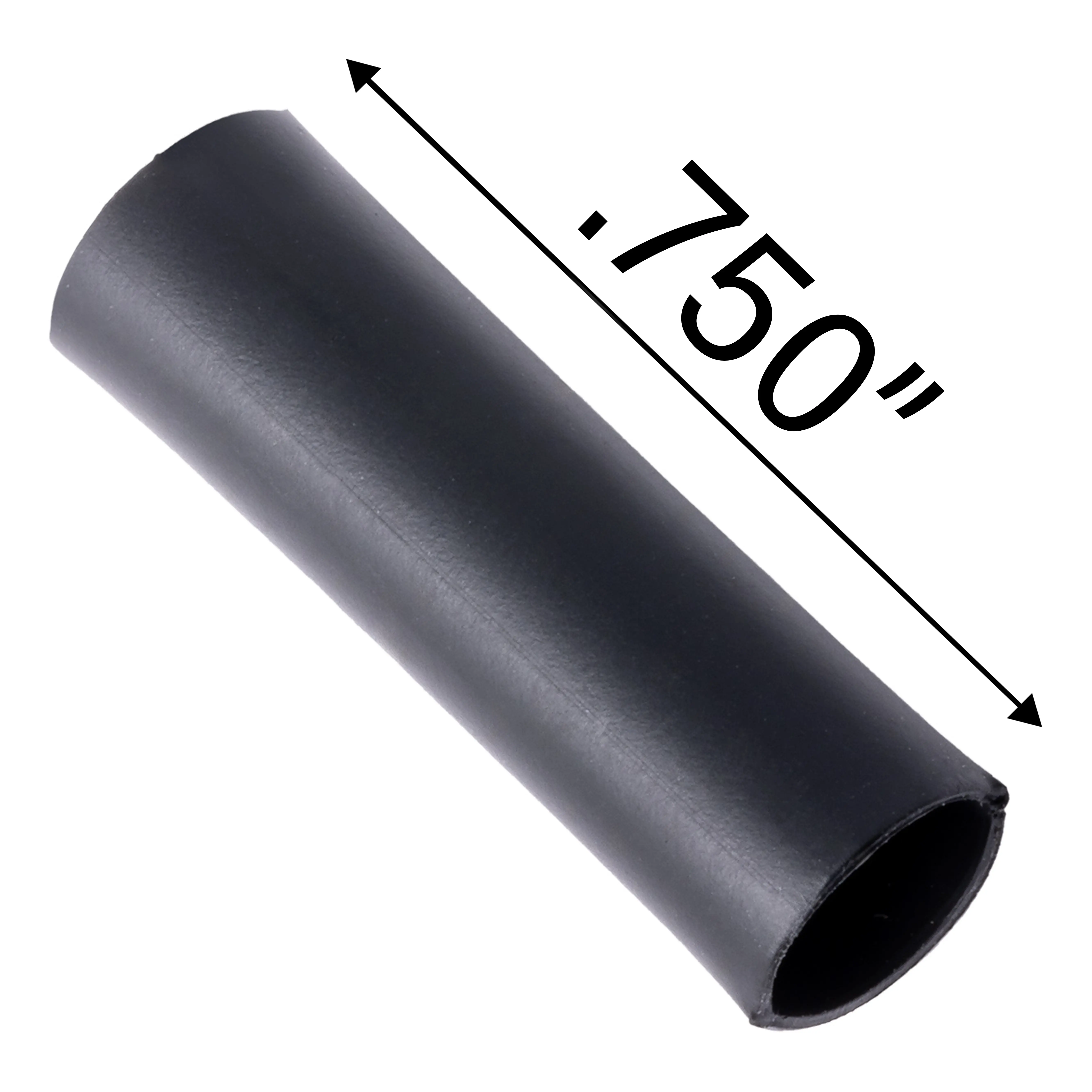

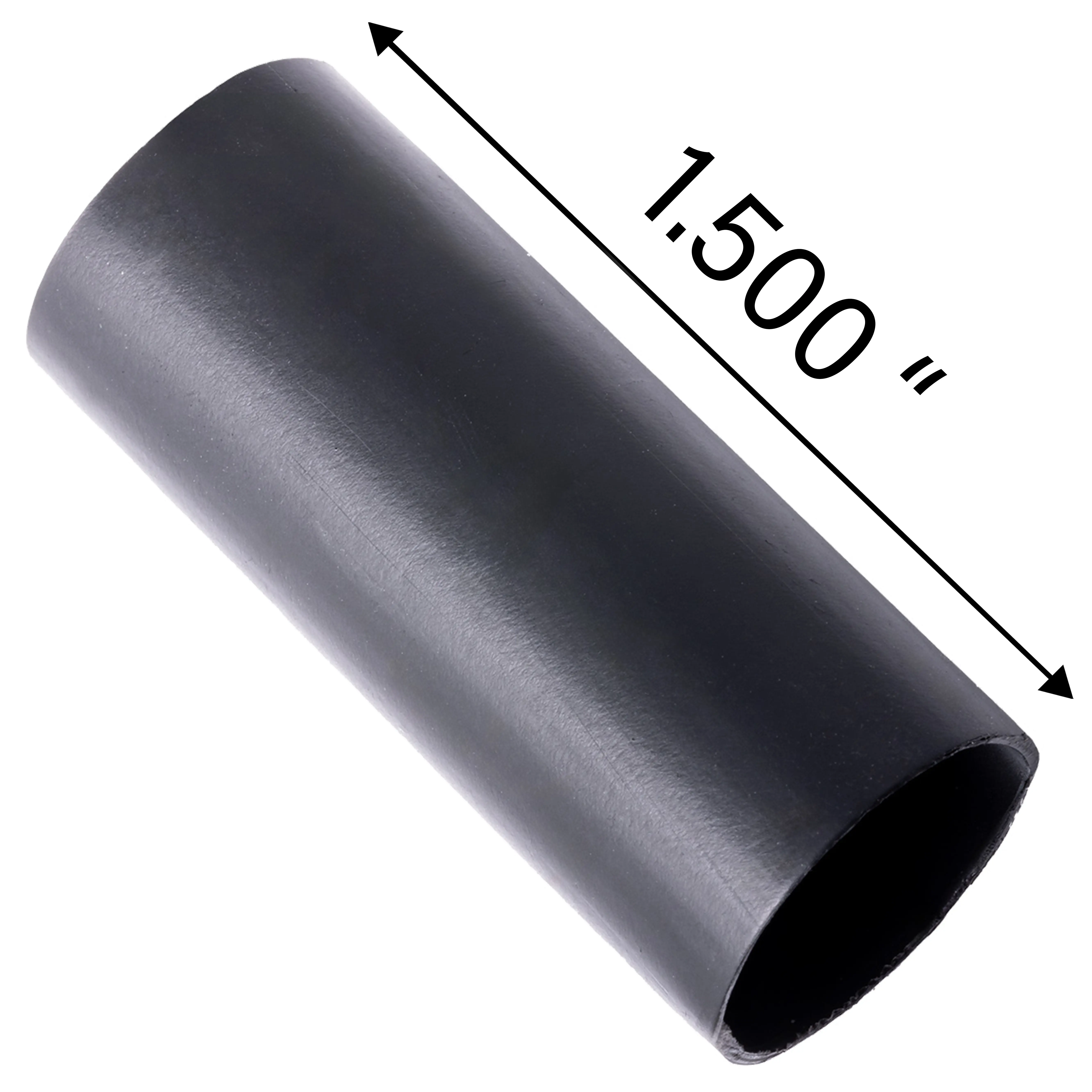

SAVE 10% when purchasing our precut 6" cuts

Raychem SCL Datasheet (PDF, 26 KB)

 Temperature Rating:

• Full recovery temperature: 135ºC
• Continuous operating temperature: 55ºC to 110ºC

Specifications:

• UL: E85381
• Military: AMS-DTL-23053/4 Class 1
• Shrink Ratio: 3:1
• Voltage Rating: 600V
