RAYCHEM 202K LIPPED SHRINK BOOT -01

Raychem 202K (-01) boots are modified versions of the 202K series of lipped boots. The 202K boot with a -01 on the part number means the main body section of the boot has been shortened. .
ResinTech RT125 Adhesive is used to glue and seal the shrink boot to either a connector backshell or a harness transition leg.

202K (-01) Heat Shrink Boots Datasheet (PDF, 238 KB)

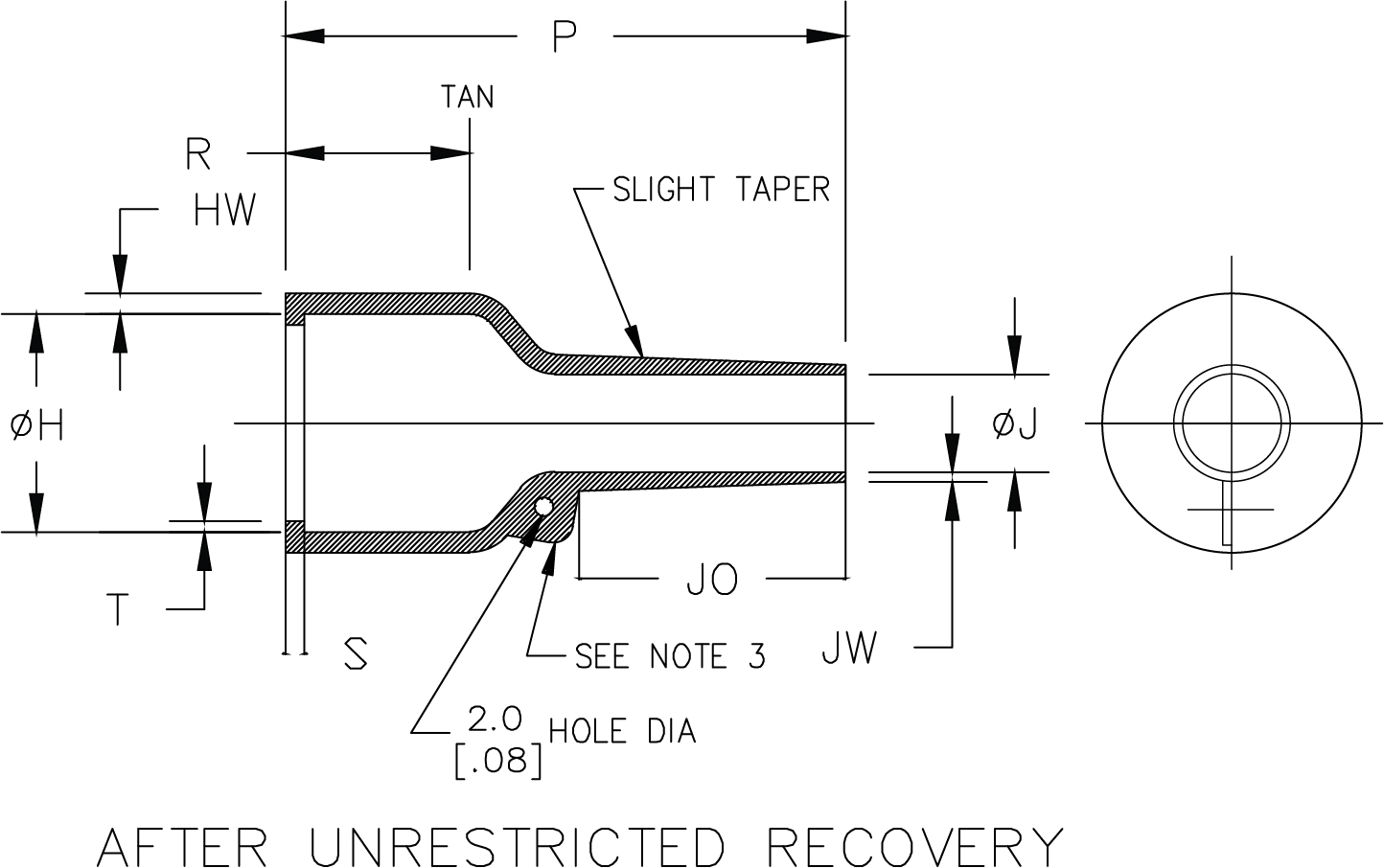

Raychem 202K (-01) Boot Dimensions
Part Number	(H) Big End		( J) Small End		P
	UN SHRUNK	SHRUNK	UN SHRUNK	SHRUNK	Total  Length

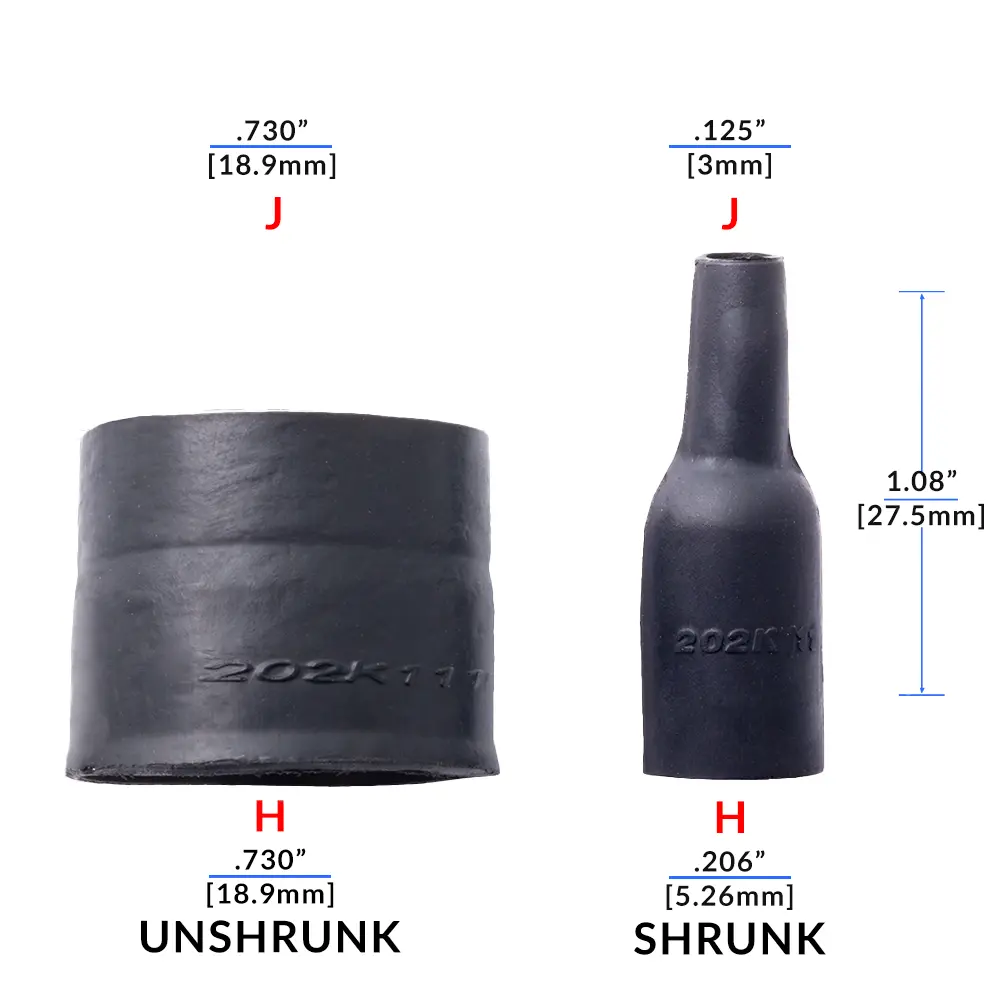

202K111-25-01-0*	17mm [.67"]	6.9mm [.27"]	17mm [.67"]	3mm [12"]	29mm [1.14"]

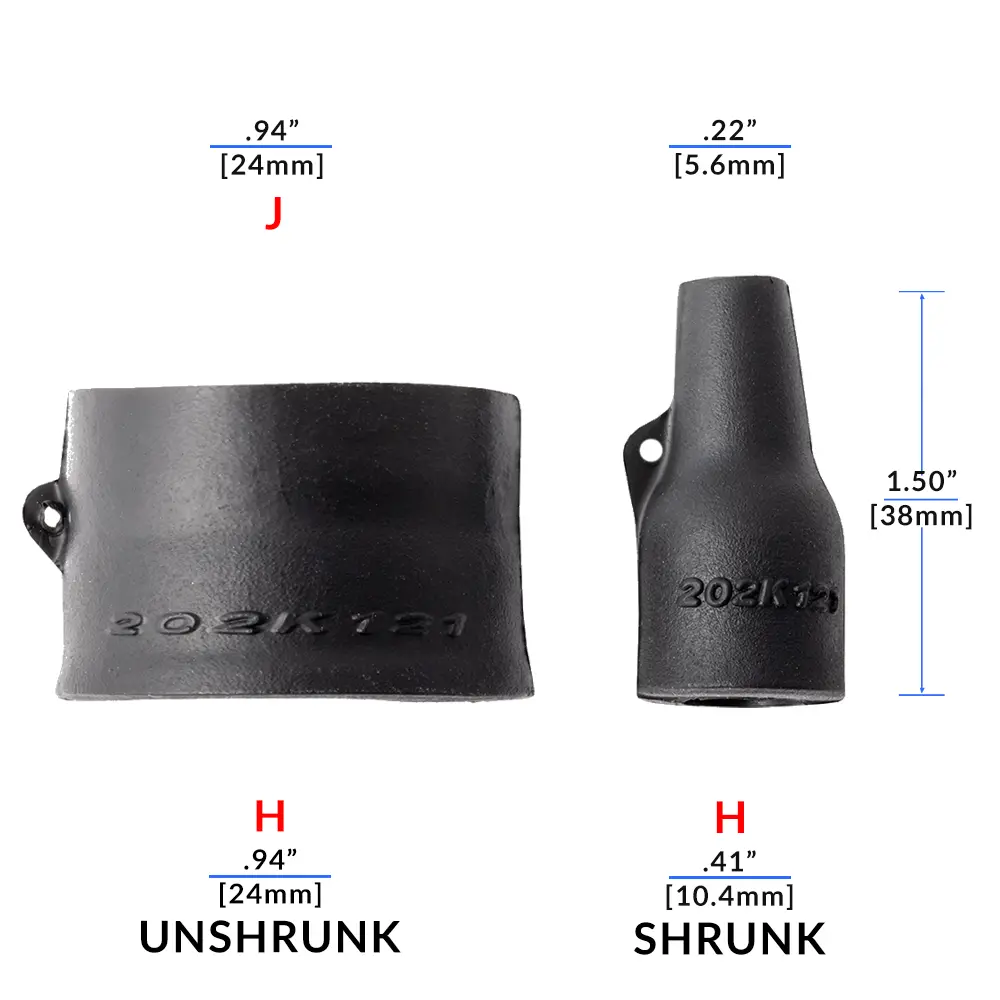

202K121-25-01-0	24mm [.94"]	10.4mm [.41"]	24mm [.94"]	5.6mm [.22"]	38mm [1.50"]

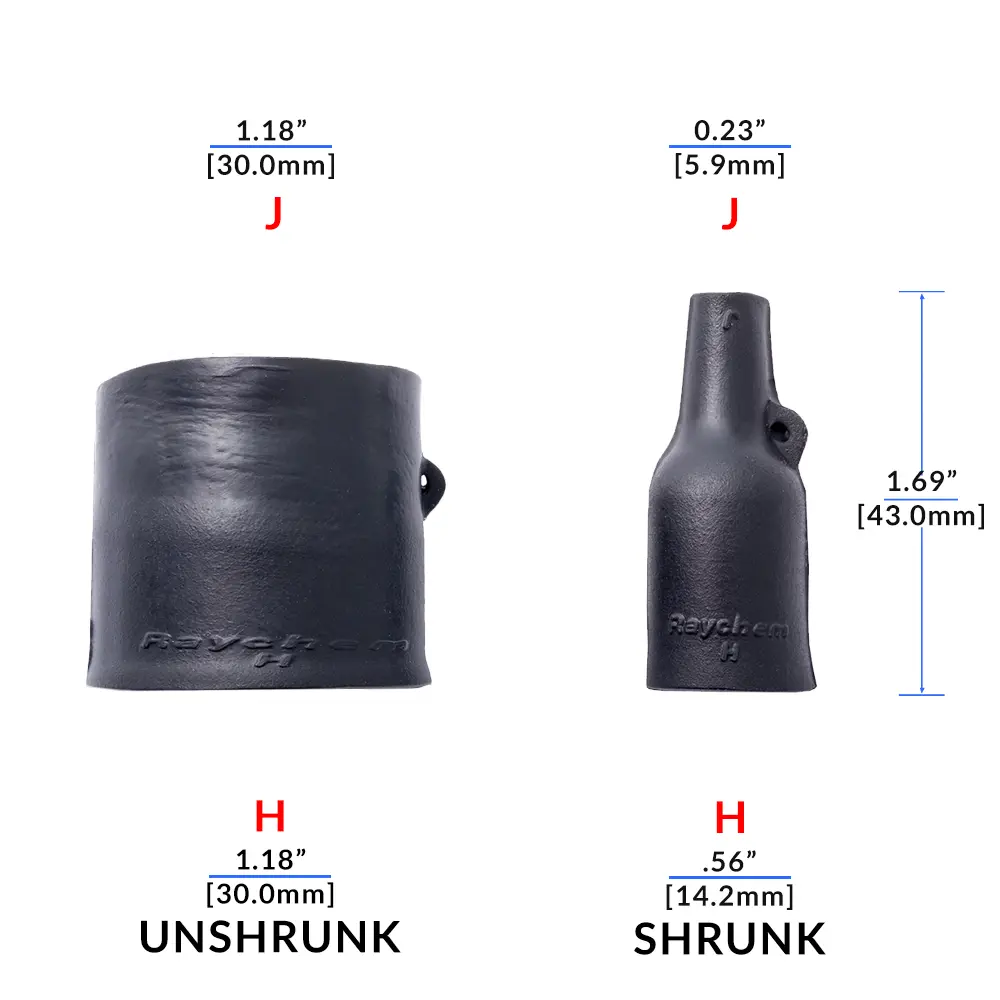

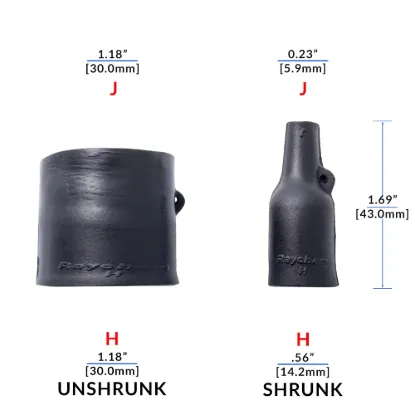

202K132-25-01-0	30mm [1.18"]	14.2mm [.56"]	30mm [1.18"]	5.9mm [.23"]	55mm [2.17"]

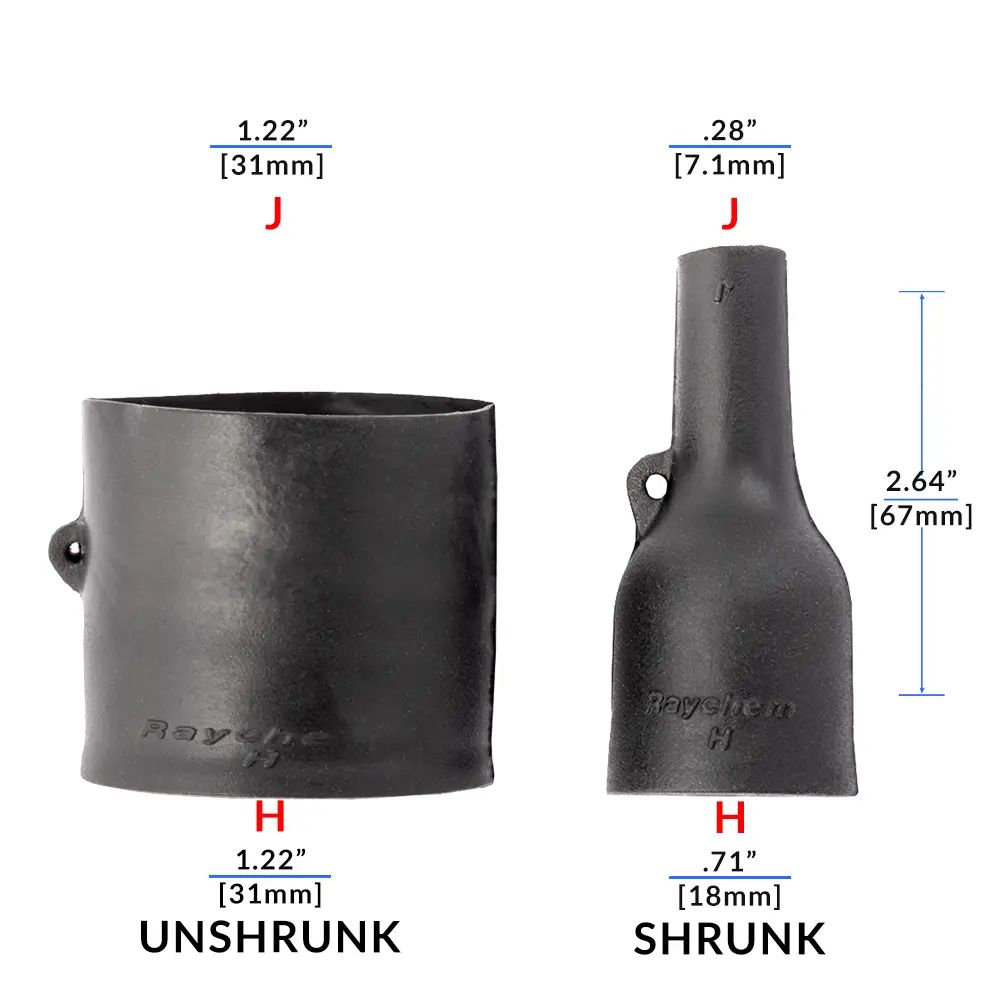

202K142-25-01-0	31mm [1.22"]	18mm [.71]	31mm [1.22"]	7.1mm [.28"]	67mm [2.64"]

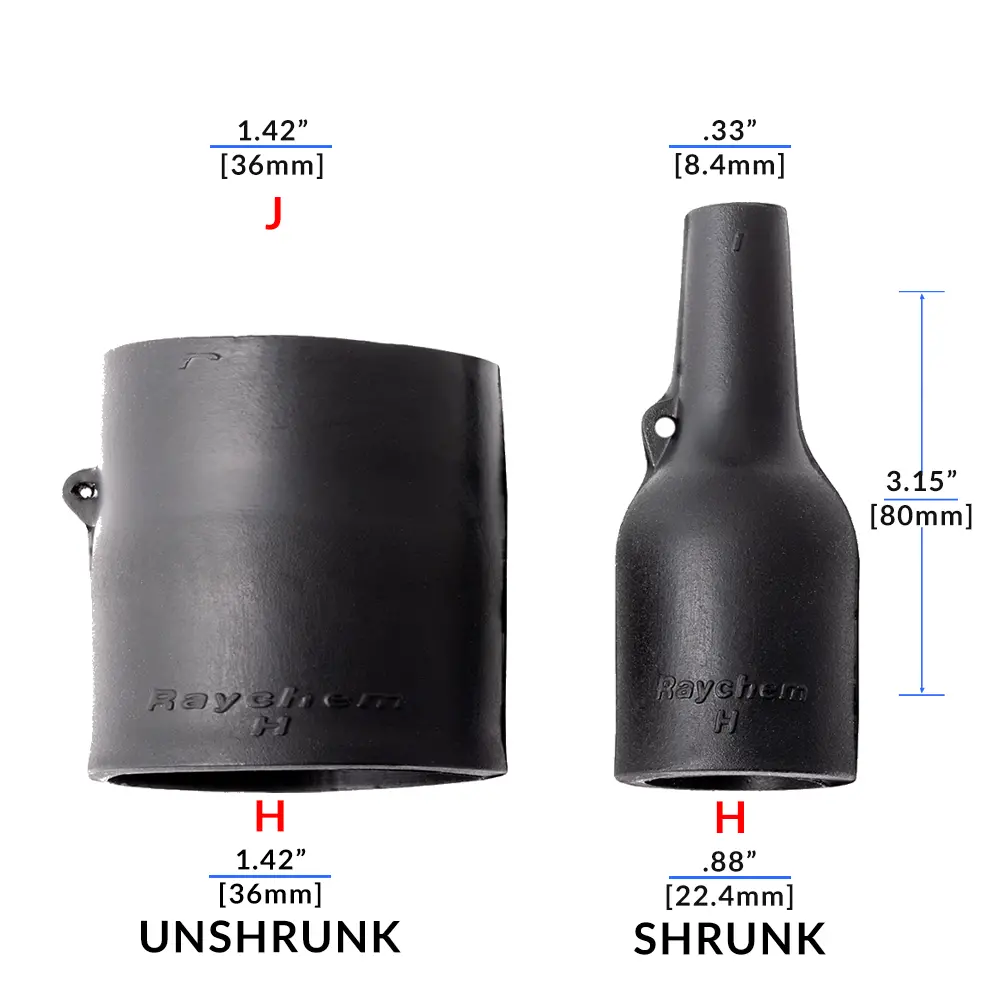

202K153-25-01-0	36mm [1.42"]	22.4mm [.88"]	36mm [1.42"]	8.4mm [.33"]	80mm [3.15"]
* Not included in datasheet
