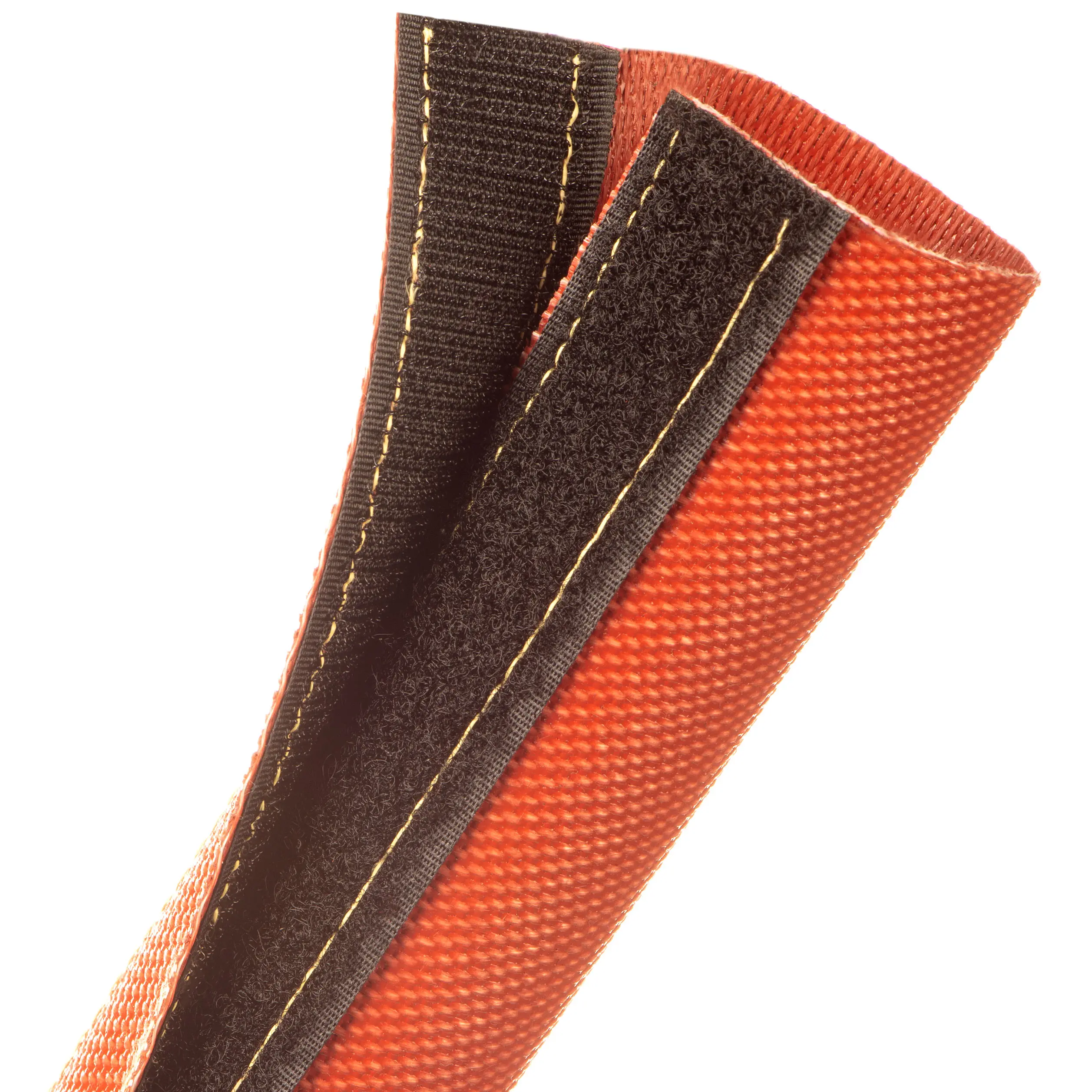

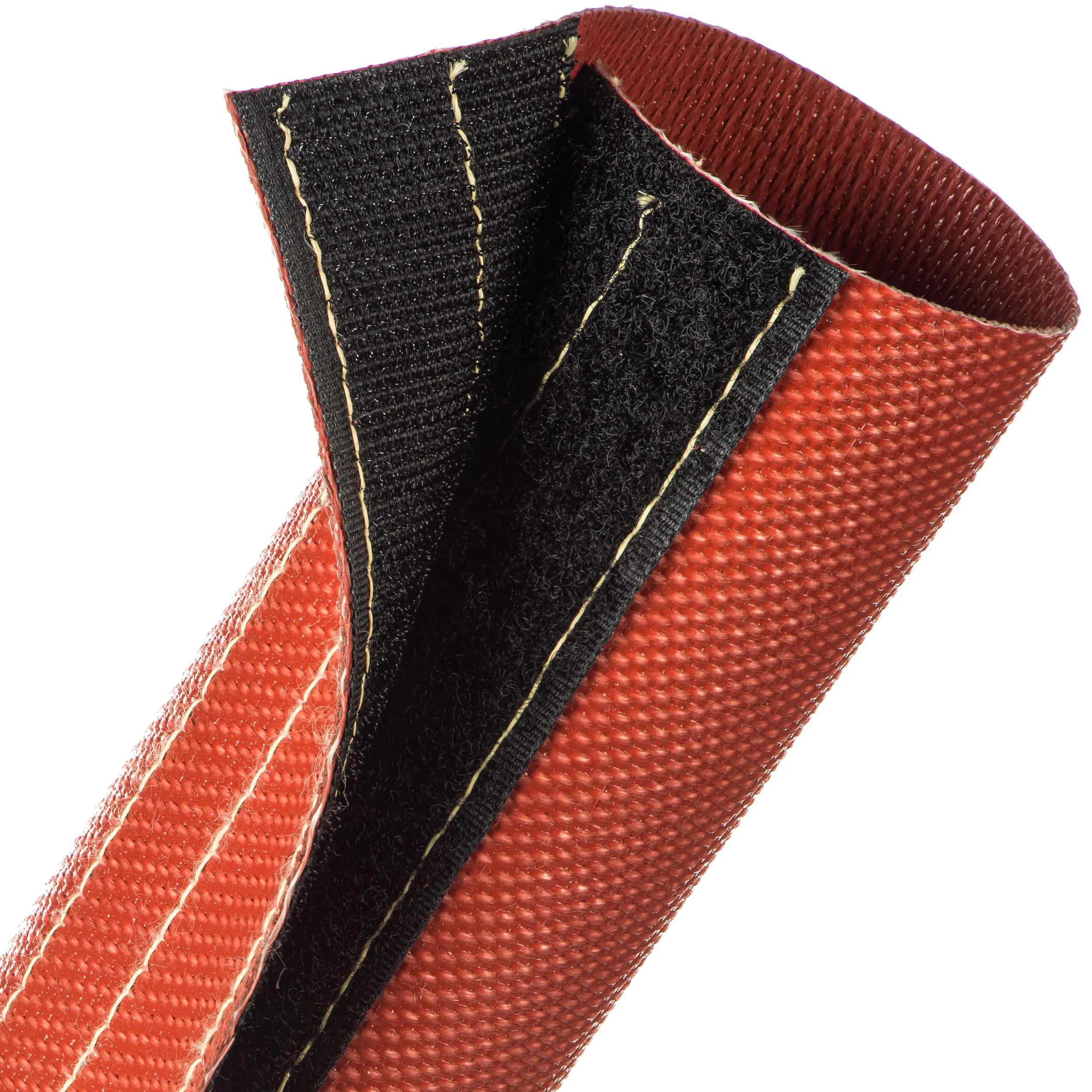

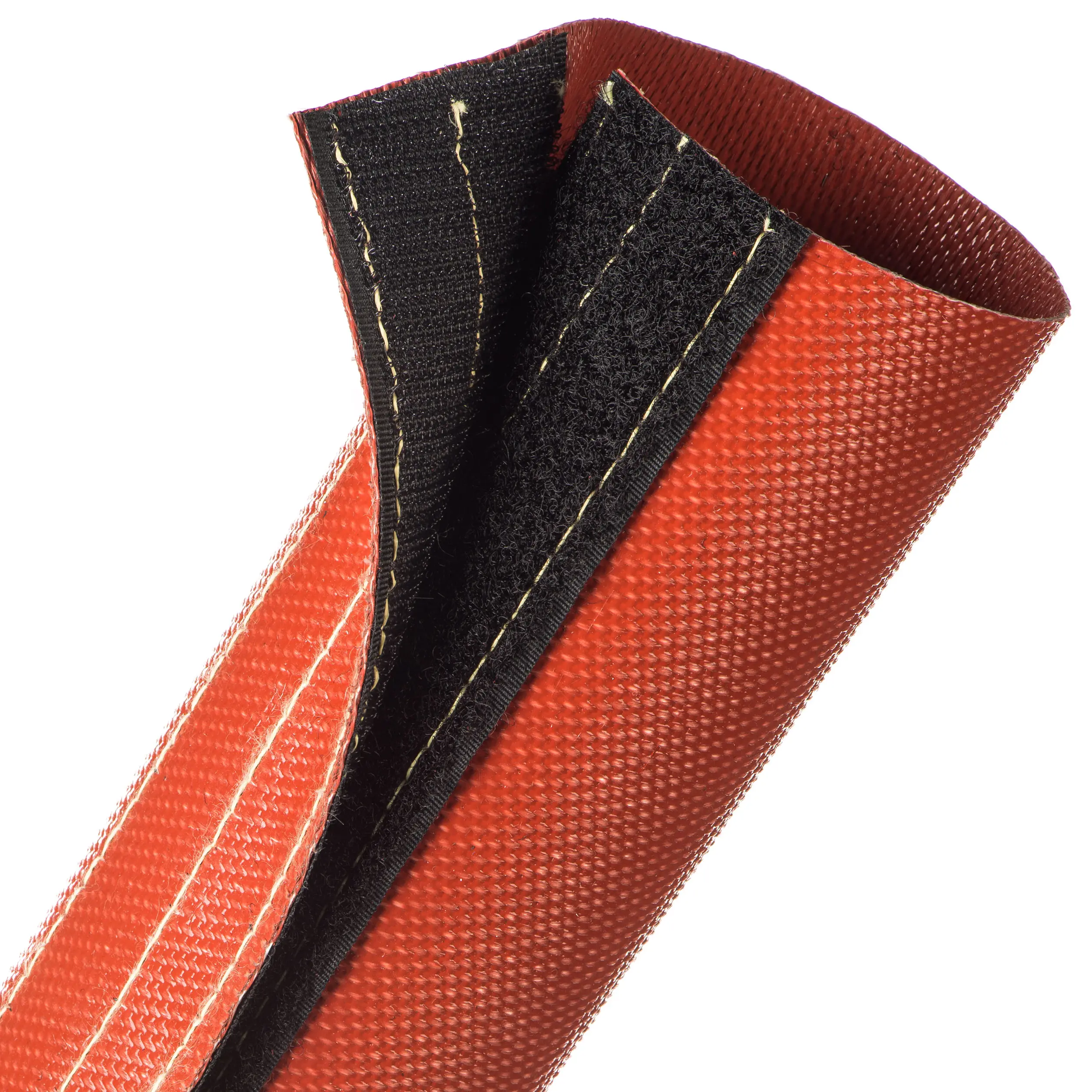

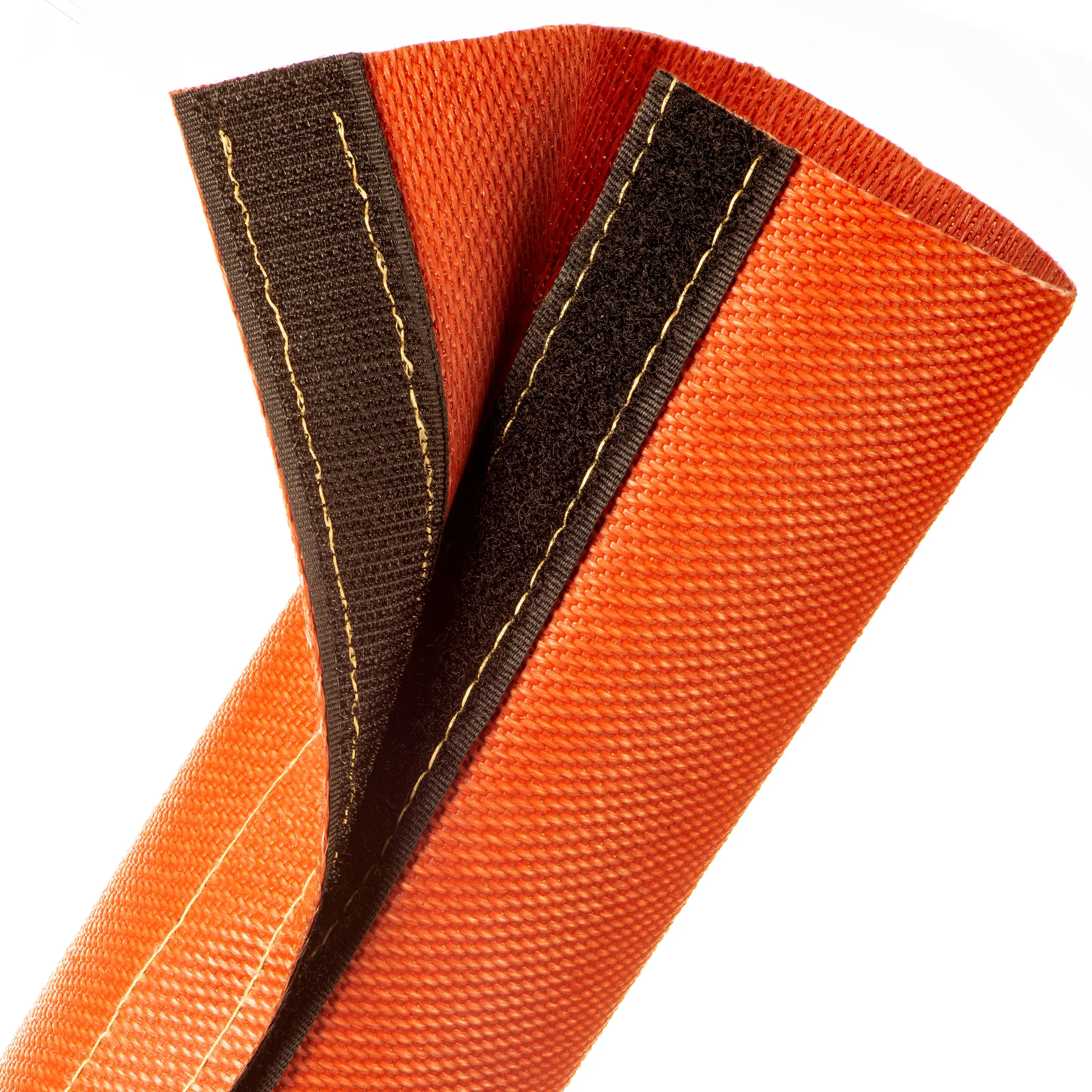

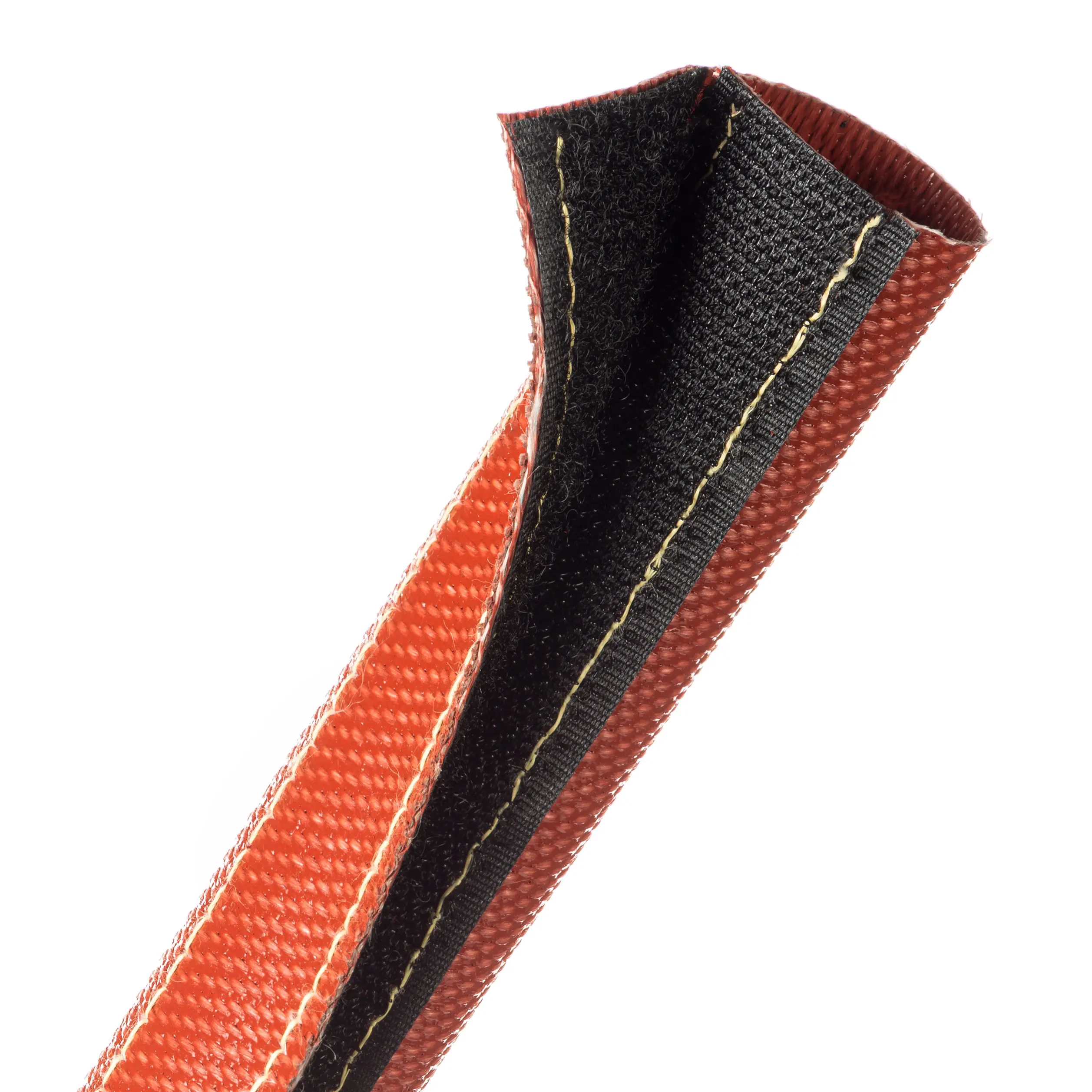

FIREFLEX® WRAP

FIREFLEX® WRAP (FIW) protects and shields important hoses and cables from extreme heat and catastrophic flame outbreaks. It protects continuously to 500°F and will withstand a molten splash at 2,200°F. Its unique hook and loop closure system allow for installation without the need to remove and reconnect fittings and terminations. The reusable closure additionally allows for easy repair, minimizing labor and costly downtime.

• Resists Molten Splash Up To 2000º F
• Strong Hook And Loop Closure
• Wrap Around Fire Protection
•


  Techflex Fireflex Wrap Datasheet (PDF, 2,083 KB)




  Nominal Size	Part Nbr.	Hook Loop Width	Wall Thickness Max	Lbs/ 100'
  1"	FIW1.00RD	5/8"	.037"	9.16
  1 1/2"	FIW1.50RD	5/8"	.037"	12.98
  2"	FIW2.00RD	5/8"	.037"	16.8
  2 1/2"	FIW2.50RD	5/8"	.037"	20.61
  3"	FIW3.00RD	5/8"	.037"	24.43
  3 1/2"	FIW3.50RD	5/8"	.037"	28.25
  3 3/4"	FIW3.75RD	5/4"	.037"	30
  4"	FIW4.00RD	5/8"	.037"	32.07
