342A 45 Degree Boots

342A012 to 058

45° Side-Breakout Transition


As Supplied (a)

After Unrestricted Recovery (b)

For eyelet clip, order CS-1858 option.

Application

Provides strain relief and mechanical protection on cable harness assemblies.

Materials Available

Material* Material Description Precoating No. Adhesive Part No.**
-3 Semirigid polyolefin /42 or /86 S-1017 or S-1048
-4 Flexible polyolefin /42 or /86 S-1017 or S-1048
-12 Viton® N/A S-1255-04
-25 Fluid-resistant elastomer /42 or /86 or /225 S-1017 or S-1048 or S-1125
-100 Polyolefin, Zerohal /86 or /180 S-1048 or S-1030
*For more information, please see the appropriate material page in this section.
**For more information, please see section 5.

Product Dimensions

Part no. H & J K P T U HW & JW KW
Min. Max Min. Max ±10% ±10% ±10% ±20% ±20%
a b a b b b b b b
342A012 13.2 [.52] 6.9 [.27] 6.6 [.26] 3.6 [.14] 49.3 [1.94] 19.6 [.77] 19.6 [.77] 1.52 [.06] 1.02 [.04]
342A024 26.9 [1.06] 12.7 [.50] 6.6 [.26] 3.6 [.14] 92.5 [3.64] 31.8 [1.25] 39.6 [1.56] 2.54 [.10] 1.02 [.04]
342A034 26.9 [1.06] 13.7 [.54] 13.2 [.52] 6.1 [.24] 144.8 [5.70] 50.8 [2.00] 50.8 [2.00] 2.54 [.10] 1.52 [.06]
342A048 55.6 [2.19] 26.9 [1.06] 13.2 [.52] 6.9 [.27] 184.9 [7.28] 63.5 [2.50] 63.5 [2.50] 4.57 [.18] 1.52 [.06]
342A058 55.6 [2.19] 26.9 [1.06] 26.9 [1.06] 13.7 [.54] 203.5 [8.01] 66.0 [2.60] 66.0 [2.60] 4.57 [.18] 2.54 [.10]
Note: Coating is optional. As supplied dimensions appearing in table are for uncoated parts. When coating is added, entry diameters will be reduced by 1.5 [.06] max.
Set Ascending Direction
View as Grid List

5 Items

per page

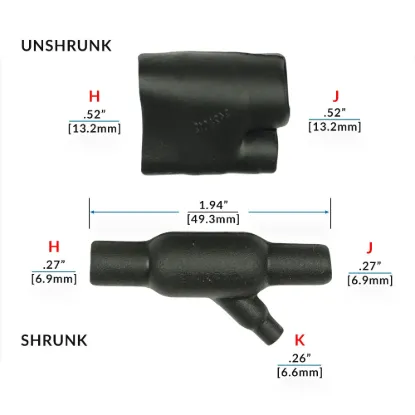

  1. 342A012-25-0 45° SHRINK BOOT
    Part Number : 342A012-25-0
    was $34.000 Special Price $12.700
    In stock
    Quantity:
    EA
    Add to Wishlist

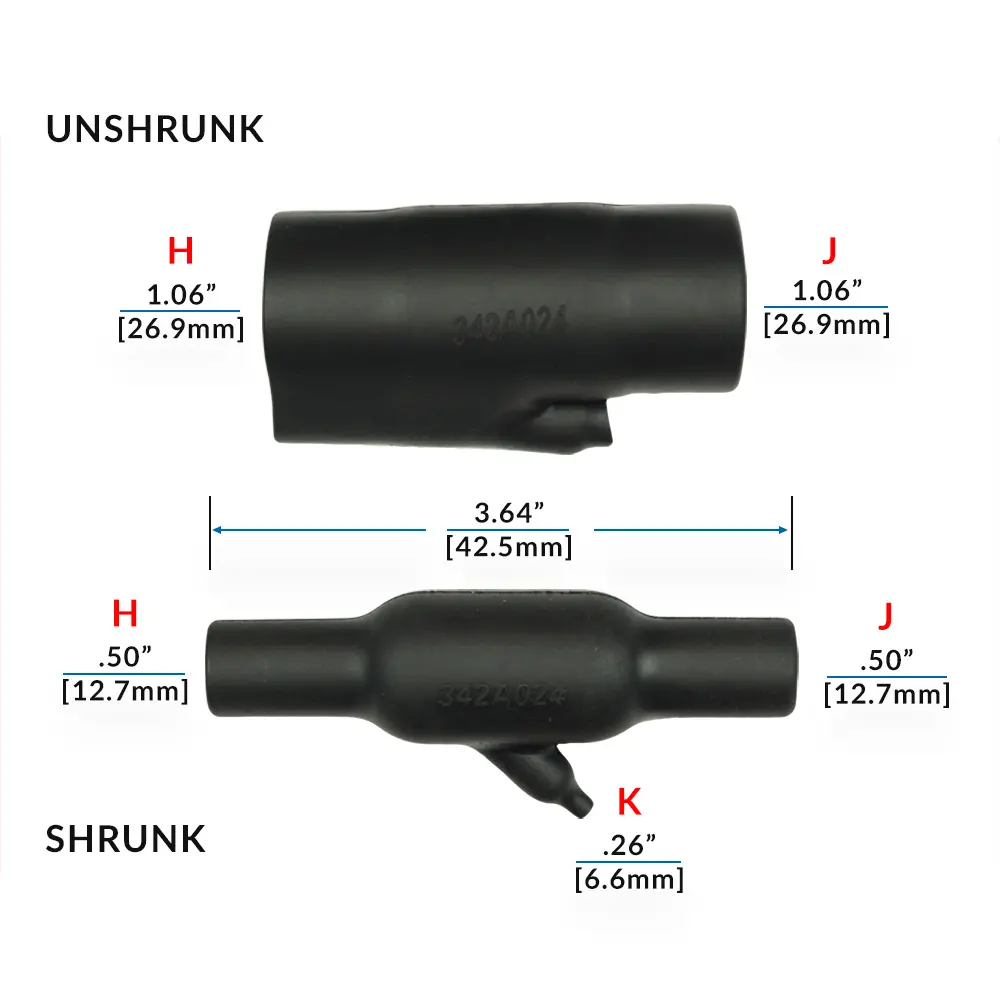

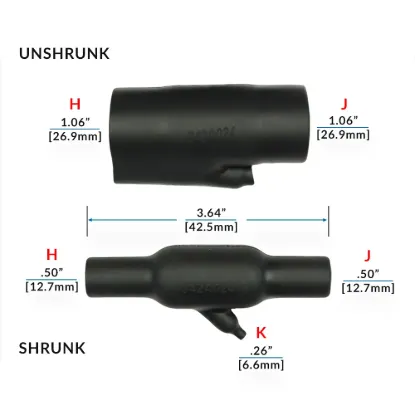

  2. 342A024-25-0 45° SHRINK BOOT
    Part Number : 342A024-25-0
    was $46.000 Special Price $23.000
    In stock
    Quantity:
    EA
    Add to Wishlist

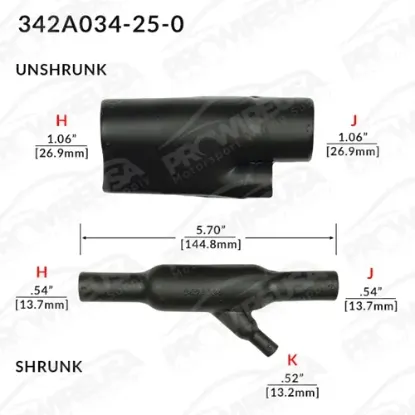

  3. 342A034-25-0 45° SHRINK BOOT
    Part Number : 342A034-25-0
    was $64.152 Special Price $23.076
    In stock
    Quantity:
    EA
    Add to Wishlist

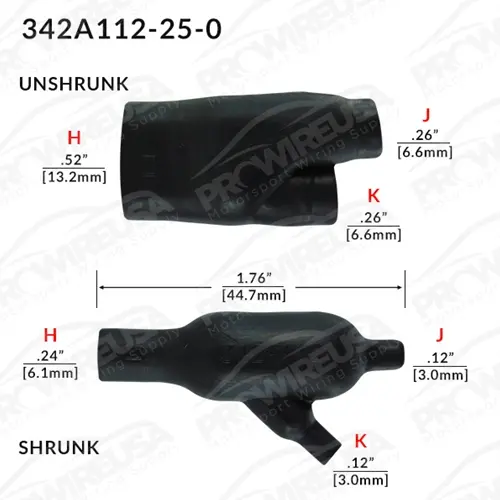

  4. RAYCHEM /TE 45º HEAT SHRINKABLE BOOT
    Part Number : 342A112-25-0
    was $52.000 Special Price $26.000
    In stock
    Quantity:
    EA
    Add to Wishlist

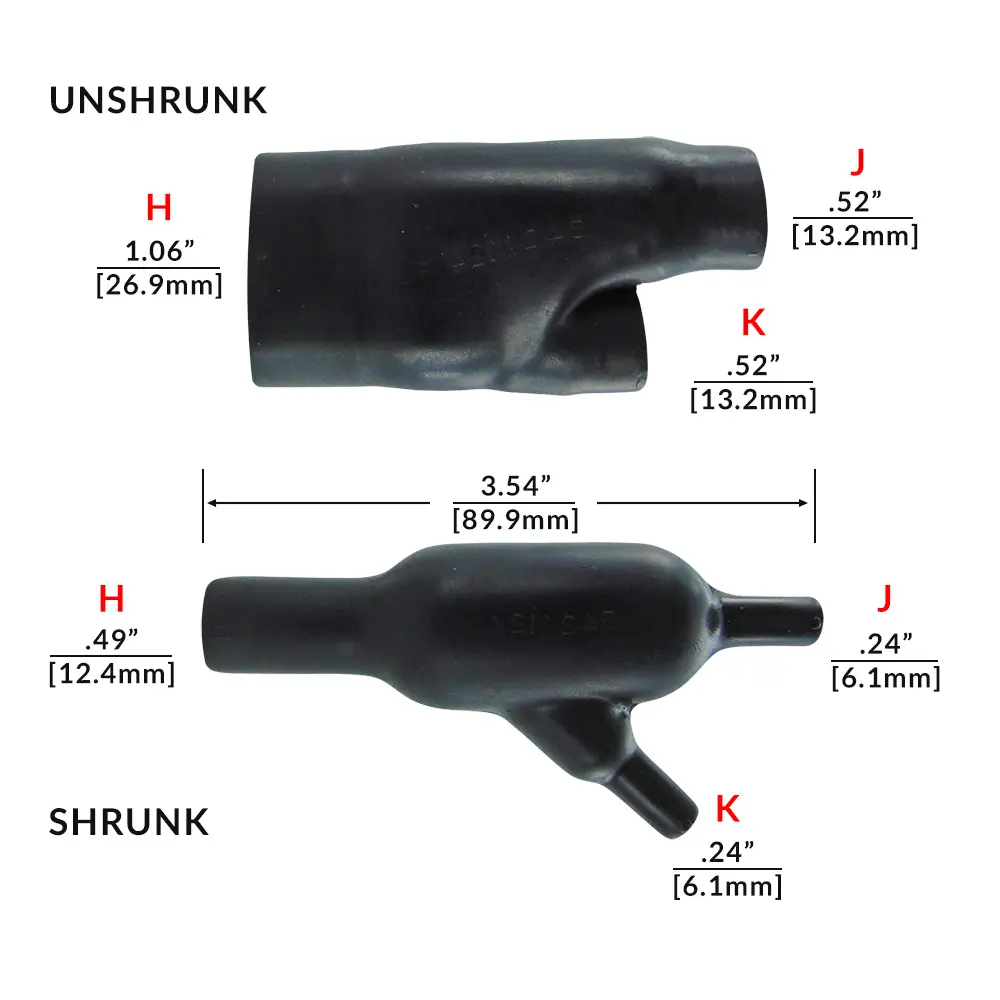

  5. RAYCHEM /TE 45º HEAT SHRINKABLE BOOT
    Part Number : 342A124-25-0
    was $64.000 Special Price $45.660
    In stock
    Quantity:
    EA
    Add to Wishlist
