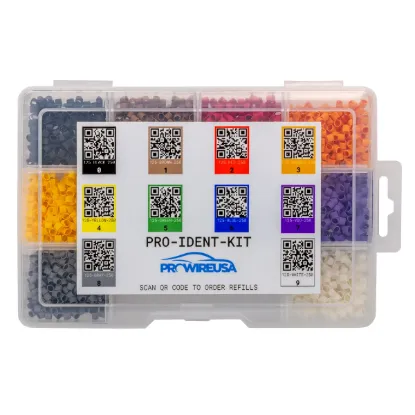

Our Pro-Ident-Kit is useful when you have many of the same color wires in the same loom. Typically you would want to identify a circuit number or cavity/ terminal position. All our marker kits are built in-house, using our automated CNC cutting machines to cut each marker to length. We use only the highest quality 3:1 heat shrink tubing in our kits.
Each colored marker has a numeric value assigned to it. For instance, if you wanted to identify a circuit number of 386 (installed left to right), you would use the following combination of markers:
Color | Numeric Value |
6 | |
8 | |
3 |
You can find all the color code references on page 8 of the MIL-STD-681F Rev. F Color Code Designators For Wire (PDF, 204 KB)
Pro-Ident-Kit uses 1/8" (3:1) heat shrink tubing to suit the following wire sizes and types:
Each kit comes with 250 pcs of all 10 colors totaling 2500 markers, and we even have low-cost refills available in 250 PC bags. See below for refills.
