202K Straight

202K121 to 185

Straight, Lipped Boot


Application

Use in conjunction with Raychem adapters to provide strain relief for harness systems using circular connectors.

As Supplied (a)

After Unrestricted Recovery (b)

202K121 - 153 = 2 lips
202K163 - 185 = 3 lips

Boot is compatible with all Raychem grooved adapters of the appropriate shell size.

Materials Available

Material* Material Description Precoating No. Adhesive Part No.**
-25 Fluid-resistant elastomer /42 or /86 or /225 S-1017 or S-1048 or S-1125

Product Dimensions

Part no. H J P R U JO HW JW X Y
Min. Max Min. Max ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
-3,-4,-12,-25
a
b -3, -4, -25
a
-12
a
-100
a
b b b b b b b b b
202K121 24.0 [.95] 10.4 [.41] 24.0 [.95] 13.0 [.51] 14.0 [.55] 5.6 [.22] 38.0 [1.50] 21.0 [.83] 12.0 [.47] 8.5 [.33] 1.6 [.06] .41 [.016] 24.0 [.94] 13.0 [.51]
202K132 30.0 [1.18] 14.2 [.56] 30.0 [1.18] 14.0 [.55] 15.0 [.59] 5.9 [.23] 55.0 [2.17] 32.0 [1.26] 12.0 [.47] 11.5 [.45] 1.8 [.07] .81 [.032] 24.0 [.94] 18.0 [.71]
202K142 31.0 [1.22] 18.0 [.71] 31.0 [1.22] 16.0 [.63] 18.0 [.71] 7.1 [.28] 67.0 [2.64] 35.0 [1.38] 20.0 [.79] 17.0 [.67] 1.8 [.07] .81 [.032] 32.0 [1.26] 25.0 [.98]
202K153 36.0 [1.42] 22.4 [.88] 36.0 [1.42] 19.0 [.75] 21.0 [.83] 8.4 [.33] 80.0 [3.15] 42.0 [1.65] 20.0 [.79] 19.5 [.76] 2.0 [.08] .81 [.032] 32.0 [1.26] 30.0 [1.18]
202K163 43.0[1.69] 28.2 [1.11] 43.0 [1.69] 22.0 [.87] 25.0 [.98] 9.9 [.39] 99.0 [3.90] 61.0 [2.40] 20.0 [.79] 21.0 [.82] 2.2 [.08] .81 [.032] 52.0 [2.05] 30.0 [1.18]
202K174 60.0 [2.36] 35.1 [1.38] 60.0 [2.36] 35.0 [1.38] 39.0 [1.54] 15.7 [.62] 130.0 [5.12] 72.0 [2.83] 20.0 [.79] 39.0 [1.53] 3.3 [.13] 1.02 [.040] 52.0 [2.05] 50.0 [1.97]
202K185 66.0 [2.60] 44.5 [1.75] 42.0 [1.65] 38.0 [1.50] 16.8 [.66] 170.0 [6.69] 38.0 [1.50] 90.0 [3.54] 20.0 [.79] 51.5 [2.02] 3.8 [.15] 1.63 [.064] 52.0 [2.05] 70.0 [2.76]
Note: Coating is optional. As supplied dimensions appearing in table are for uncoated parts. When coating is added, entry diameters will be reduced by 1.5 [.06] max.
Set Ascending Direction
View as Grid List

9 Items

per page
  1. In stock
    LIPPED STRAIGHT BOOT
    Part Number : 202K121-25-0
    was $22.000 Special Price $8.175
    EA
    Add to Wishlist
  2. In stock
    LIPPED STRAIGHT BOOT
    Part Number : 202K132-25-0
    was $20.000 Special Price $8.550
    EA
    Add to Wishlist
  3. In stock
    DOUBLE REDUCTION LIPPED STRAIGHT BOOT
    Part Number : 202K232-25-0
    was $23.000 Special Price $10.350
    EA
    Add to Wishlist
  4. In stock
    LIPPED STRAIGHT BOOT
    Part Number : 202K142-25-0
    was $24.000 Special Price $11.225
    EA
    Add to Wishlist
  5. In stock

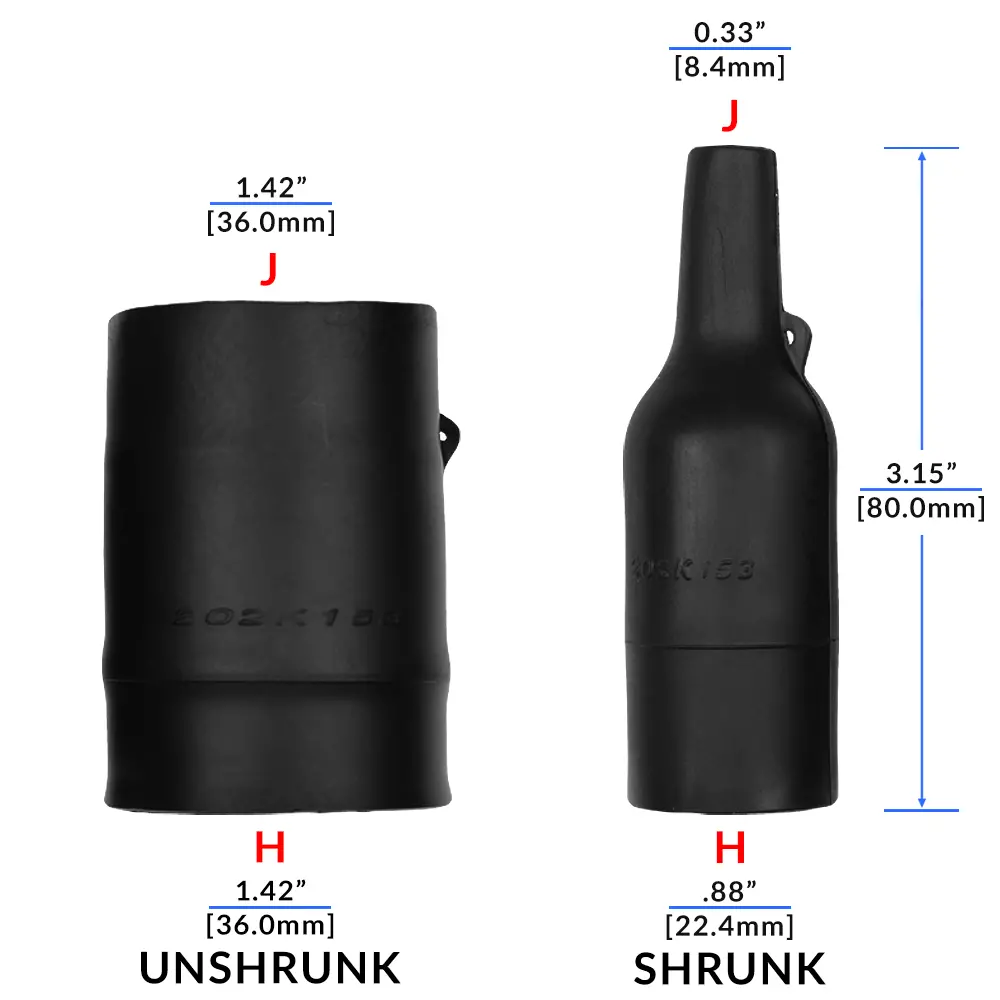

    LIPPED STRAIGHT BOOT
    Part Number : 202K153-25-0
    was $27.000 Special Price $12.600
    EA
    Add to Wishlist
  6. In stock
    LIPPED STRAIGHT BOOT
    Part Number : 202K163-25-0
    was $33.000 Special Price $13.050
    EA
    Add to Wishlist
  7. In stock

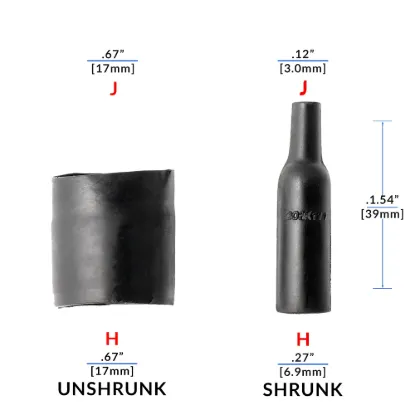

    202K111-25-0 RAYCHEM SHRINK BOOT
    Part Number : 202K111-25-0
    Quantity Ea. Price Ext. Price
    5 $10.075 $50.375
    10 $9.269 $92.690
    25 $9.068 $226.688
    50 $8.463 $423.150
    100 $7.254 $725.400
    250 $6.045 $1,511.250
    EA
    Add to Wishlist
  8. In stock

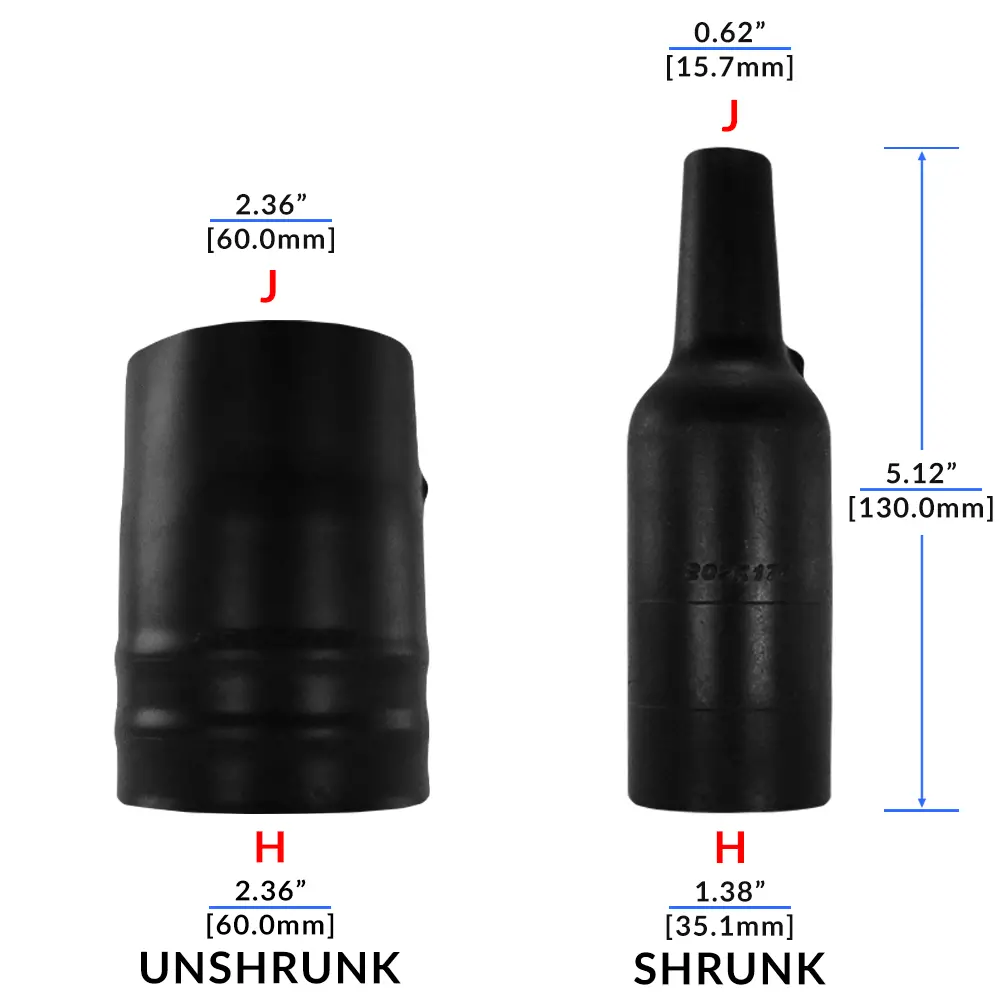

    LIPPED STRAIGHT BOOT
    Part Number : 202K174-25-0
    was $50.150 Special Price $26.550
    EA
    Add to Wishlist
  9. In stock

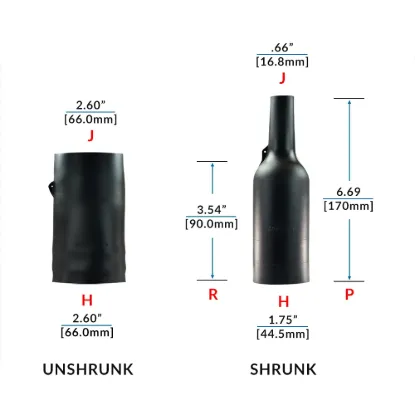

    202K185-25-0 LIPPED STRAIGHT BOOT
