Adhesive Lined Cross-linked Polyolefin
Adhesive-lined heat shrink tubing with environmental sealing capability is ideal for various applications, including automotive and marine wire harness bundles, industrial splices, breakouts, and connector-to-cable transitions. CPA 100 is an excellent economical alternative to Raychem ATUM 3:1 Adhesive Lined Tubing
 CPA 100 Thin Wall Adhesive Lined Shrink Tubing Datasheet (PDF, 580 KB) |
Sold in 4FT sticks
Features and Benefits
- 3:1 shrink ratio
- Flame retardant
- Superior sealing against water, moisture, or other contaminants
- A high shrink ratio allows for coverage of irregularly shaped connectors and components
- Inner adhesive bonds to plastics, rubber, neoprene, steel, and polyethylene
- Continuous operating temperature: -55°C to 110°C
- Shrink temperature: 120°C
Standards
- Industrial, electronic, and automotive OEM approvals
Typical Applications
- Environmental sealing and strain relief of connectors and
terminals - Moisture sealing and electrical insulation of simple in-line
splices - Abrasion resistance for tubes and pipes
- Repair of damaged wire harnesses
| Size | As Supplied | After Recovery | Lengths(Sticks) | ||||
| Min ID (in) | Nominal Wall (in) | Max ID (in) | Total Wall (in) | Nominal Adhesive Wall (in) | MM | IN | |
| 1/8 | .142±.016 | .0157±.0060 | .039 | .0335±.0098 | .0138±.0039 | 1.2 | 48 |
| 3/16 | .201±.016 | .0157±.0060 | .059 | .0413±.0098 | .0177±.0039 | 1.2 | 48 |
| 1/4 | .272±.020 | .0177±.0060 | .079 | .0433±.0098 | .0177±.0039 | 1.2 | 48 |
| 5/16 | .331±.020 | .0217±.0079 | .098 | .0571±.0098 | .0177±.0039 | 1.2 | 48 |
| 3/8 | .390±.020 | .0236±.0079 | .118 | .0571±.0098 | .0177±.0039 | 1.2 | 48 |
| 1/2 | .524±.024 | .0236±.0079 | .157 | .0591±.0138 | .0177±.0039 | 1.2 | 48 |
| 3/4 | .776±.028 | .0295±.0098 | .236 | .0787±.0177 | .0256±.0079 | 1.2 | 48 |
| 1 | 1.020±.028 | .0295±.0098 | .331 | .0787±.0217 | .0256±.0079 | 1.2 | 48 |
| 1 1/2 | 1.614±.039 | .0335±.0138 | .539 | .0984±.0217 | .0394±.0098 | 1.2 | 48 |
As low as $1.573 / 4FT

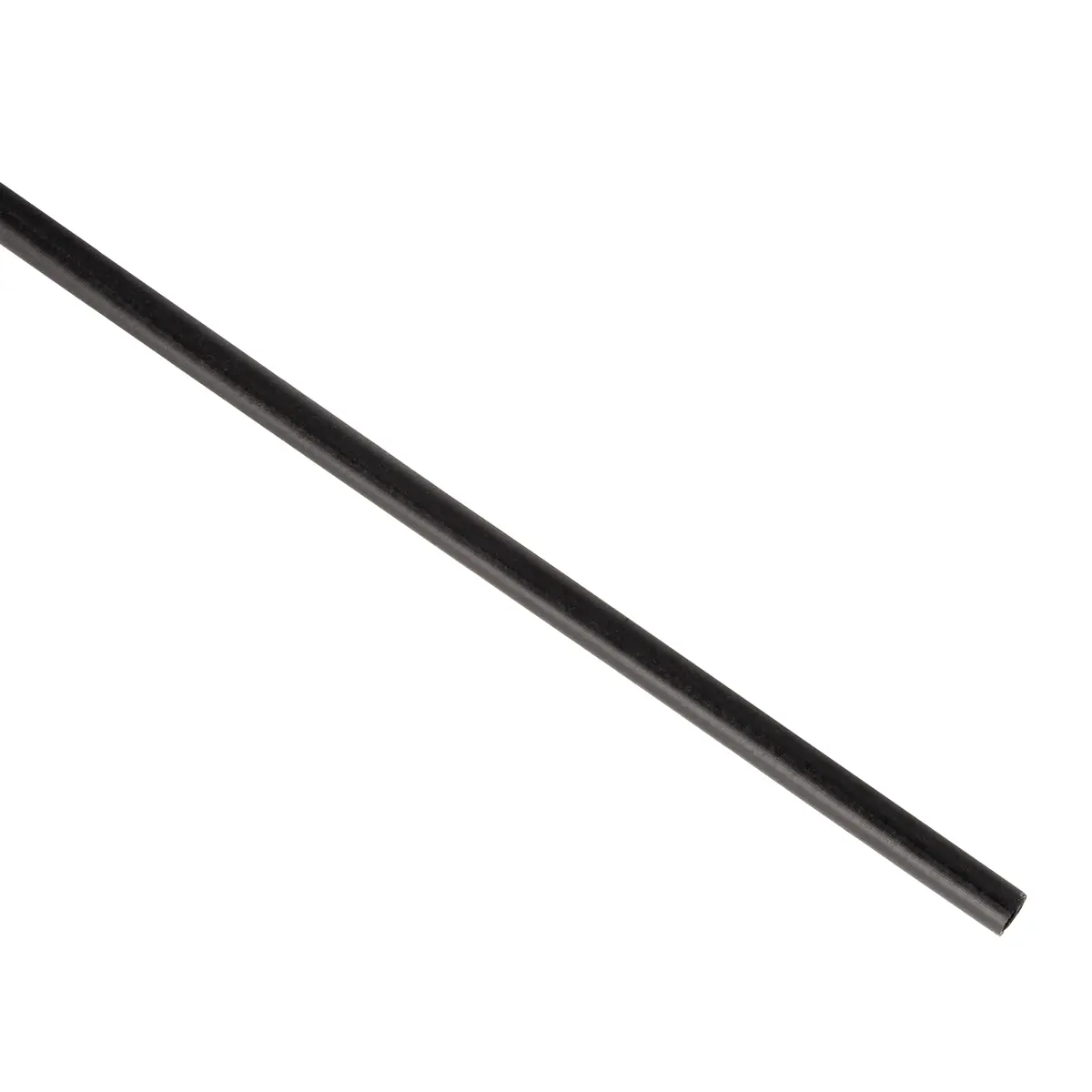

1/8", 3:1, ADHESIVE LINED HEAT SHRINK TUBING, BLACKDSG
Item No. CPA-100-1/8-BK
50 4FT In Stock
As low as $1.625 / 4FT

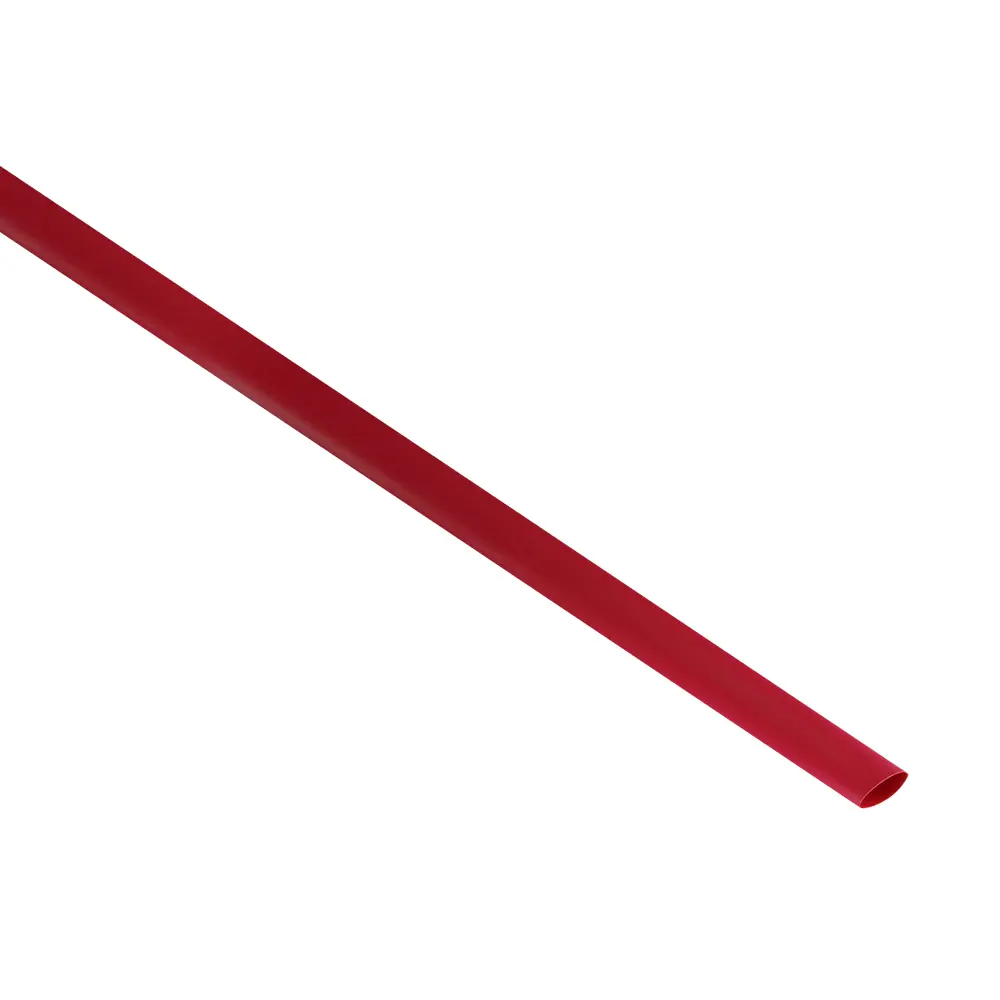

1/8",3:1, ADHESIVE LINED HEAT SHRINK TUBING,REDDSG
Item No. CPA-100-1/8-RED
84 4FT In Stock
As low as $1.794 / 4FT

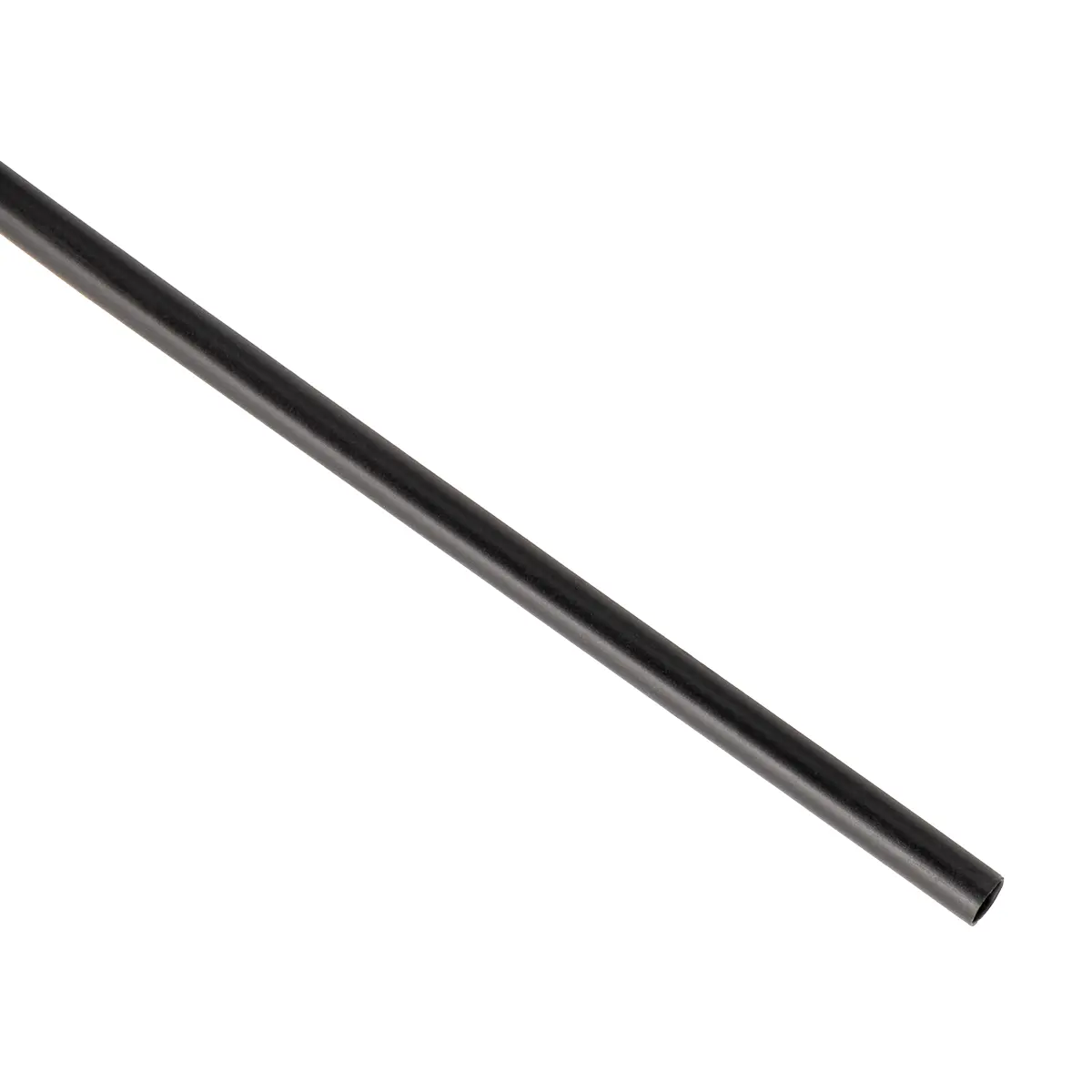

3/16", 3:1, ADHESIVE LINED HEAT SHRINK TUBING, BLACKDSG
Item No. CPA-100-3/16-BK
61 4FT In Stock
As low as $1.846 / 4FT

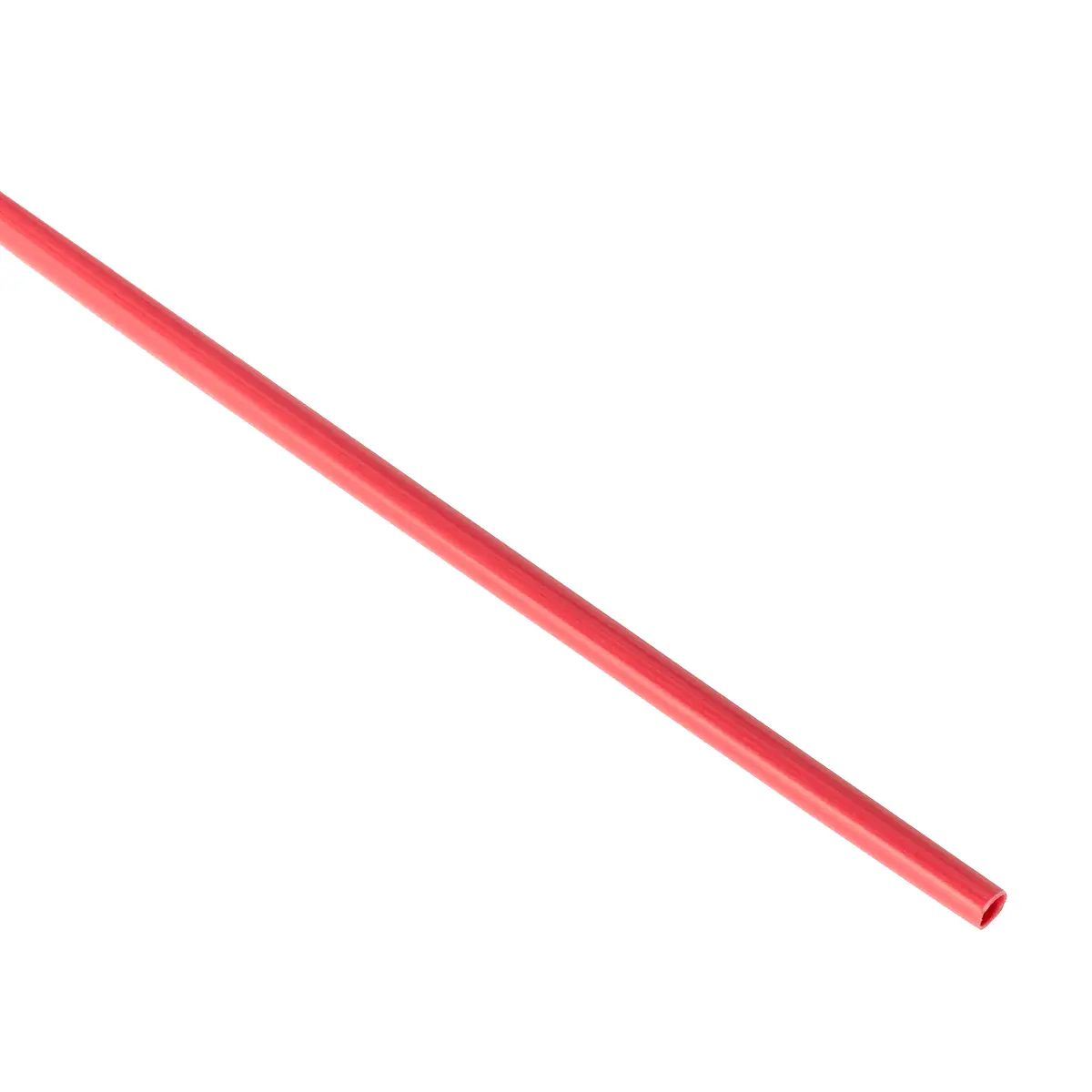

3/16", 3:1, ADHESIVE LINED HEAT SHRINK TUBING, REDDSG
Item No. CPA-100-3/16-RED
197 4FT In Stock
As low as $2.314 / 4FT

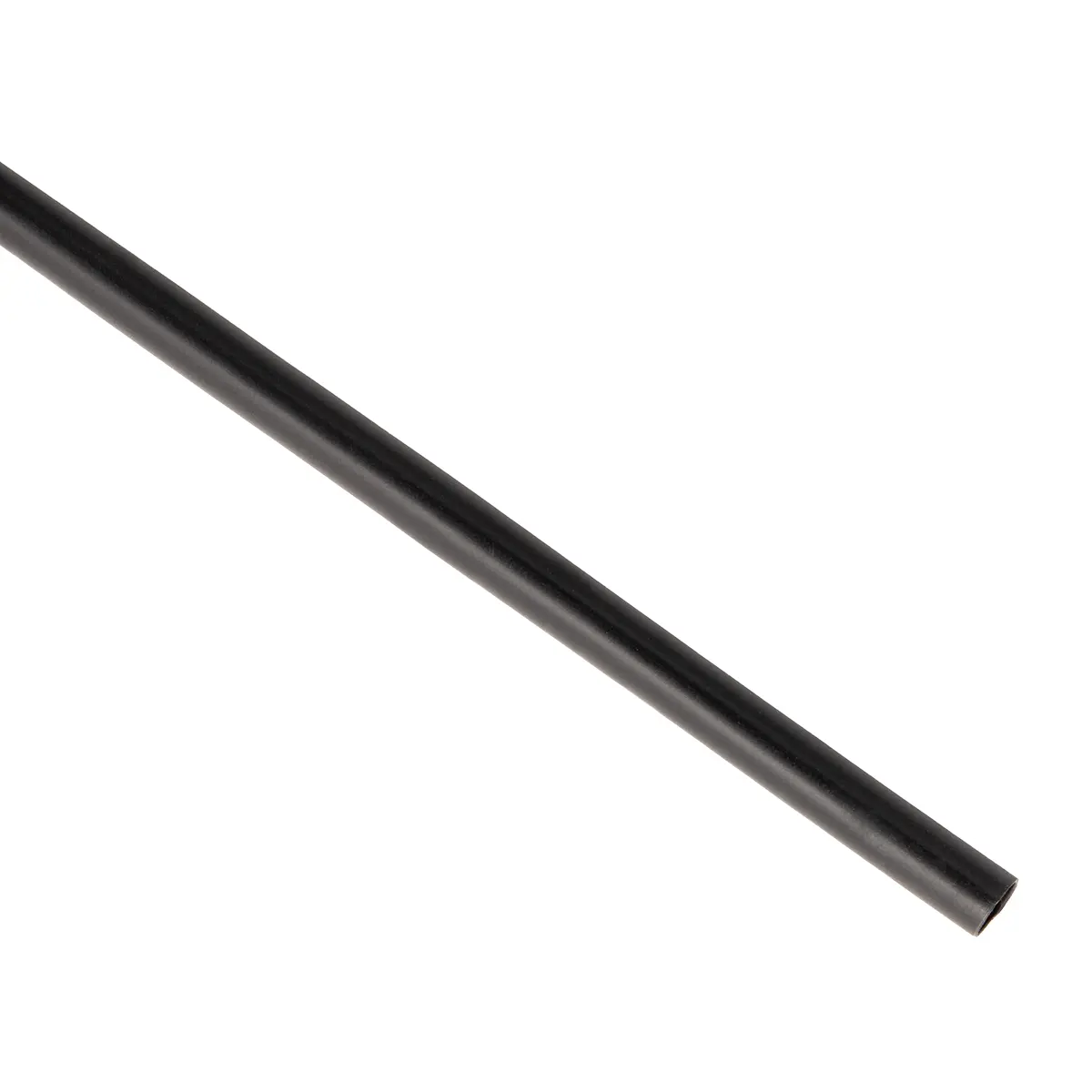

1/4",3:1, ADHESIVE LINED HEAT SHRINK TUBING, BLACKDSG
Item No. CPA-100-1/4-BK
39 4FT In Stock
As low as $2.379 / 4FT

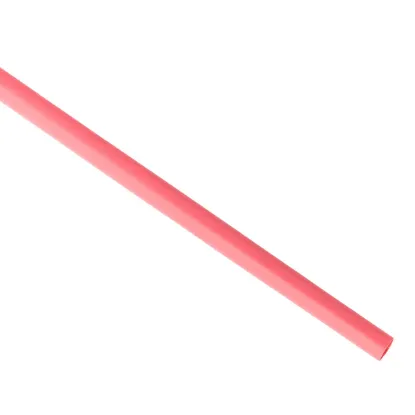

1/4",3:1, ADHESIVE LINED HEAT SHRINK TUBING, REDDSG
Item No. CPA-100-1/4-RED
208 4FT In Stock
As low as $2.535 / 4FT

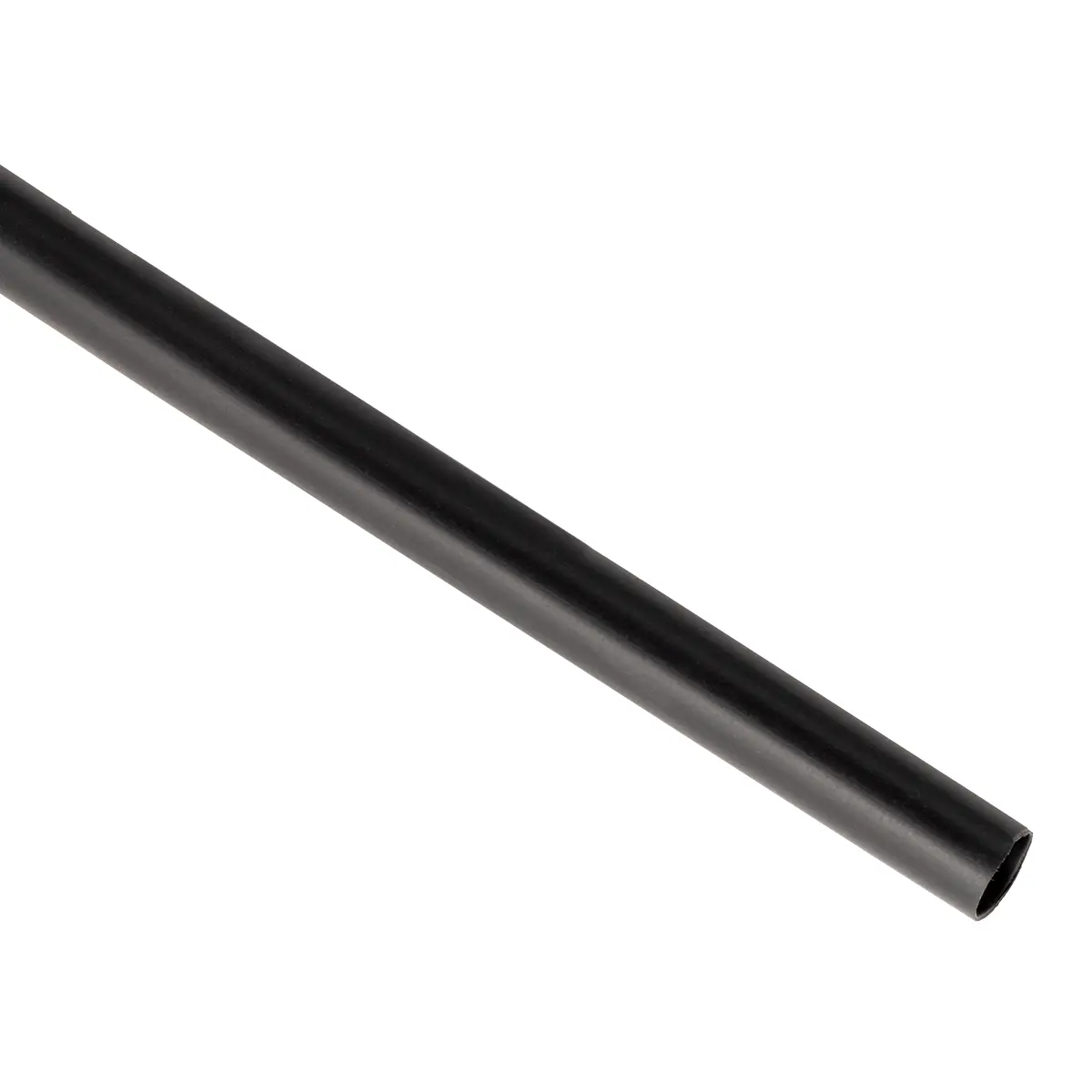

3/8",3:1, ADHESIVE LINED HEAT SHRINK TUBING, BLACKDSG
Item No. CPA-100-3/8-BK
84 4FT In Stock
As low as $2.613 / 4FT
3/8",3:1, ADHESIVE LINED HEAT SHRINK TUBING, REDDSG
Item No. CPA-100-3/8-RED
115 4FT In Stock
As low as $2.938 / 4FT
1/2",3:1, ADHESIVE LINED HEAT SHRINK TUBING, BLACKDSG
Item No. CPA-100-1/2-BK
84 4FT In Stock
As low as $3.016 / 4FT

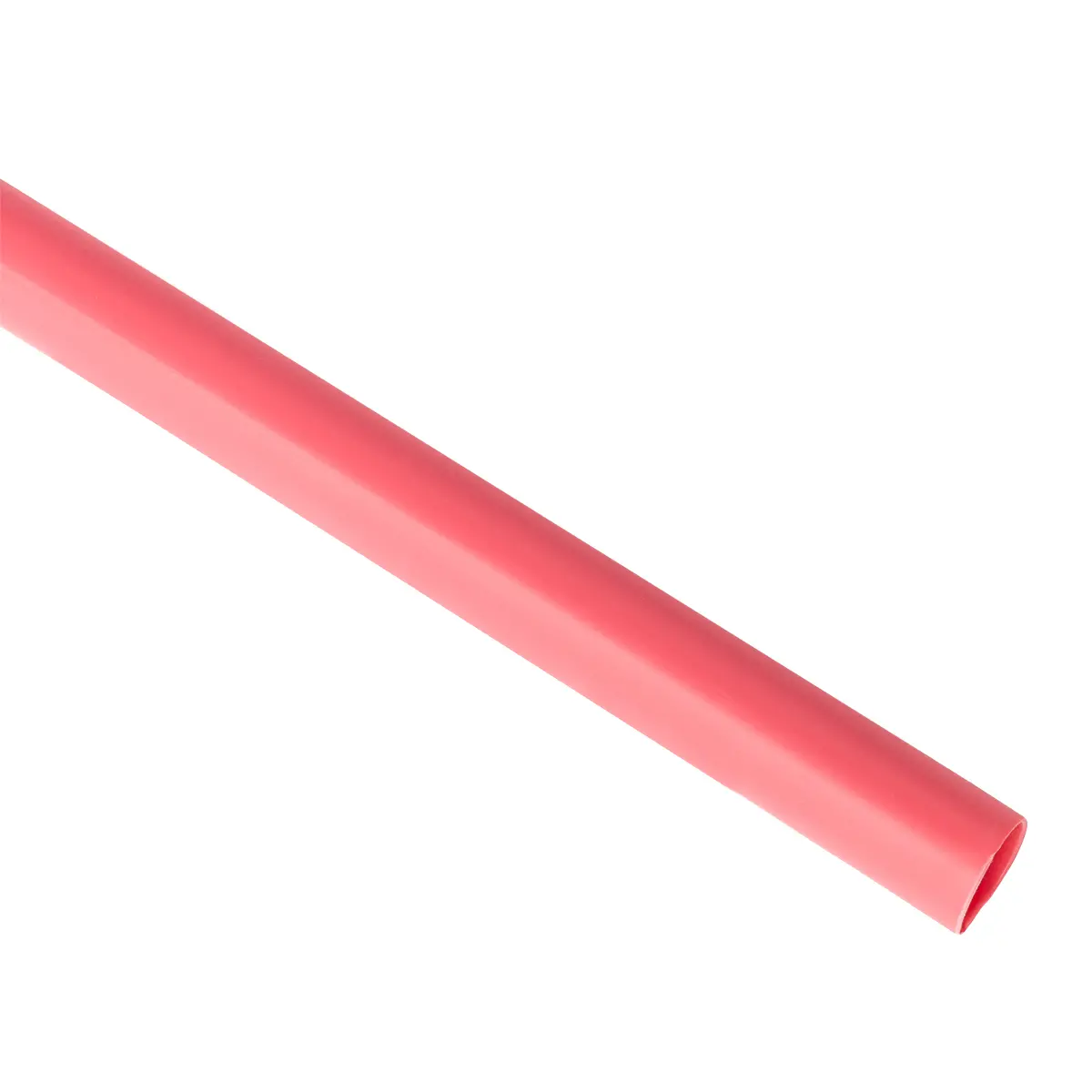

1/2", 3:1, ADHESIVE LINED HEAT SHRINK TUBING, REDDSG
Item No. CPA-100-1/2-RED
109 4FT In Stock
As low as $4.433 / 4FT

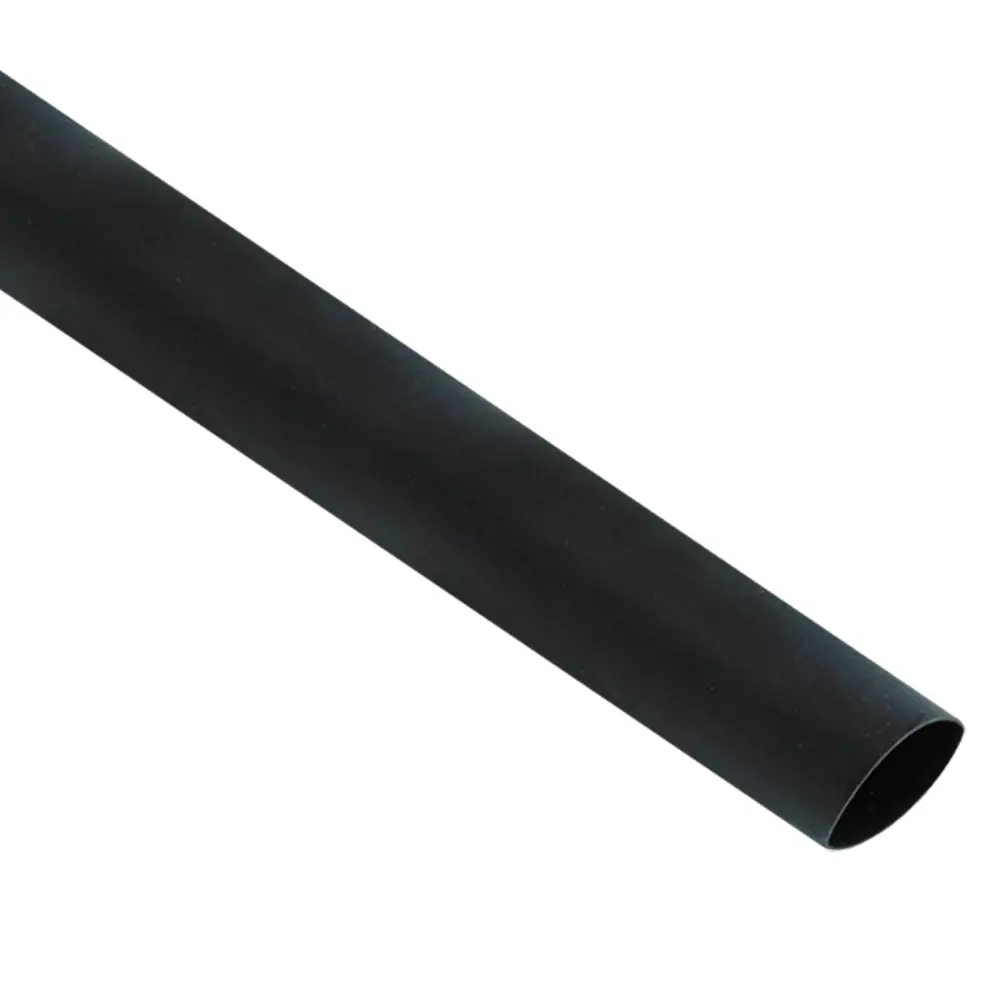

3/4", 3:1, ADHESIVE LINED HEAT SHRINK TUBING, BLACKDSG
Item No. CPA-100-3/4-BK
64 4FT In Stock
As low as $4.563 / 4FT

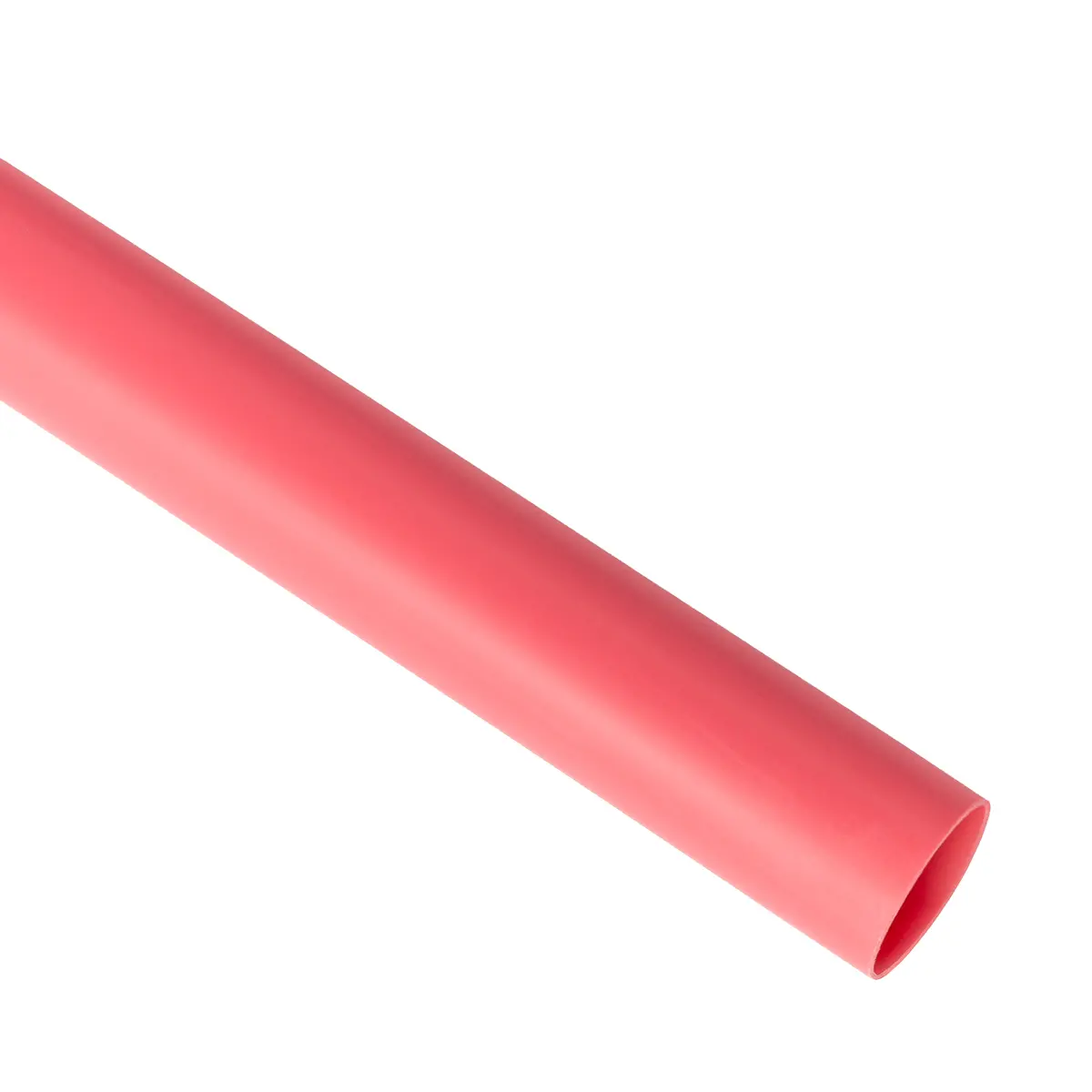

3/4",3:1, ADHESIVE LINED HEAT SHRINK TUBING, REDDSG
Item No. CPA-100-3/4-RED
78 4FT In Stock
As low as $6.092 / 4FT

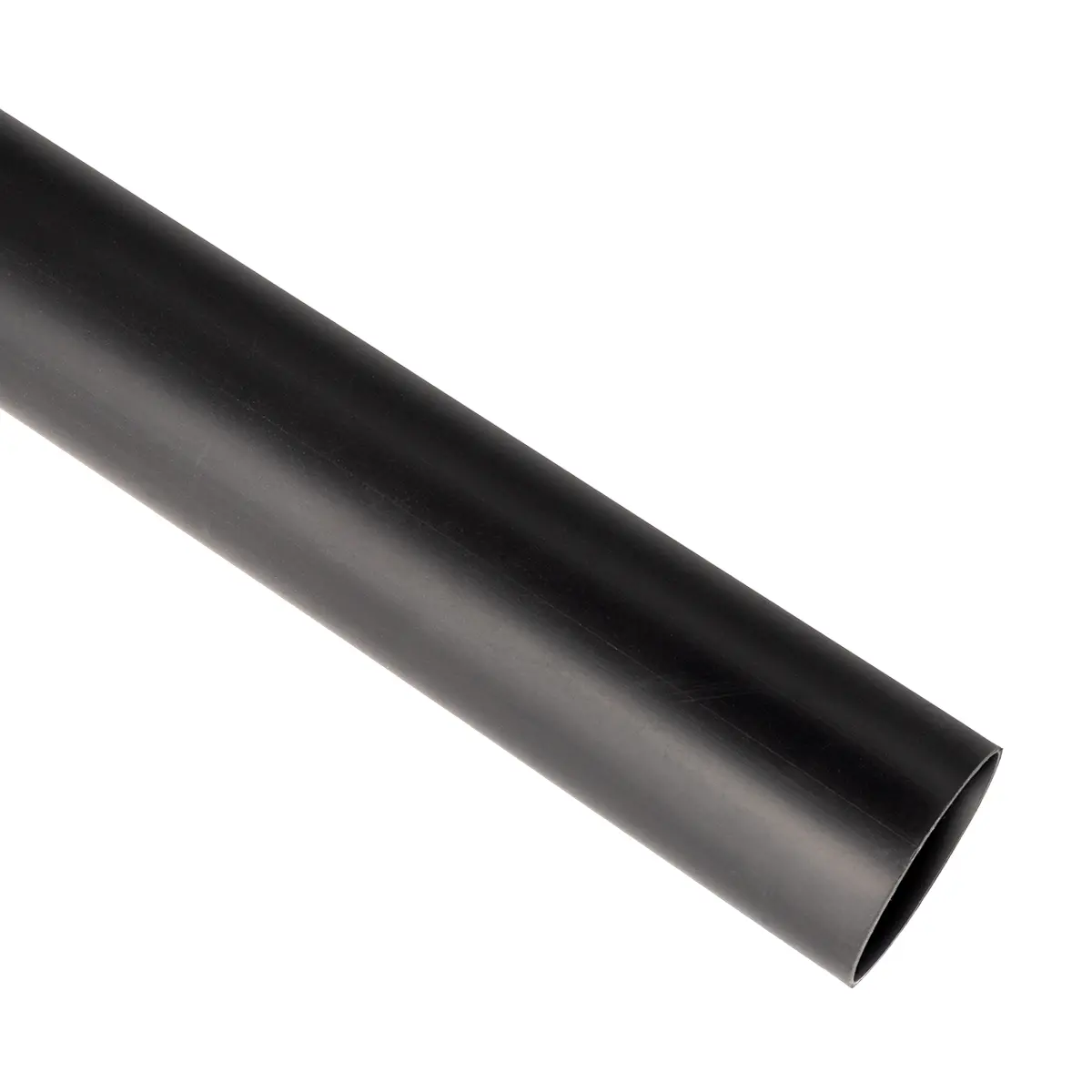

1", 3:1, ADHESIVE LINED HEAT SHRINK TUBING, BLACKDSG
Item No. CPA-100-1-BK
40 4FT In Stock
As low as $6.266 / 4FT

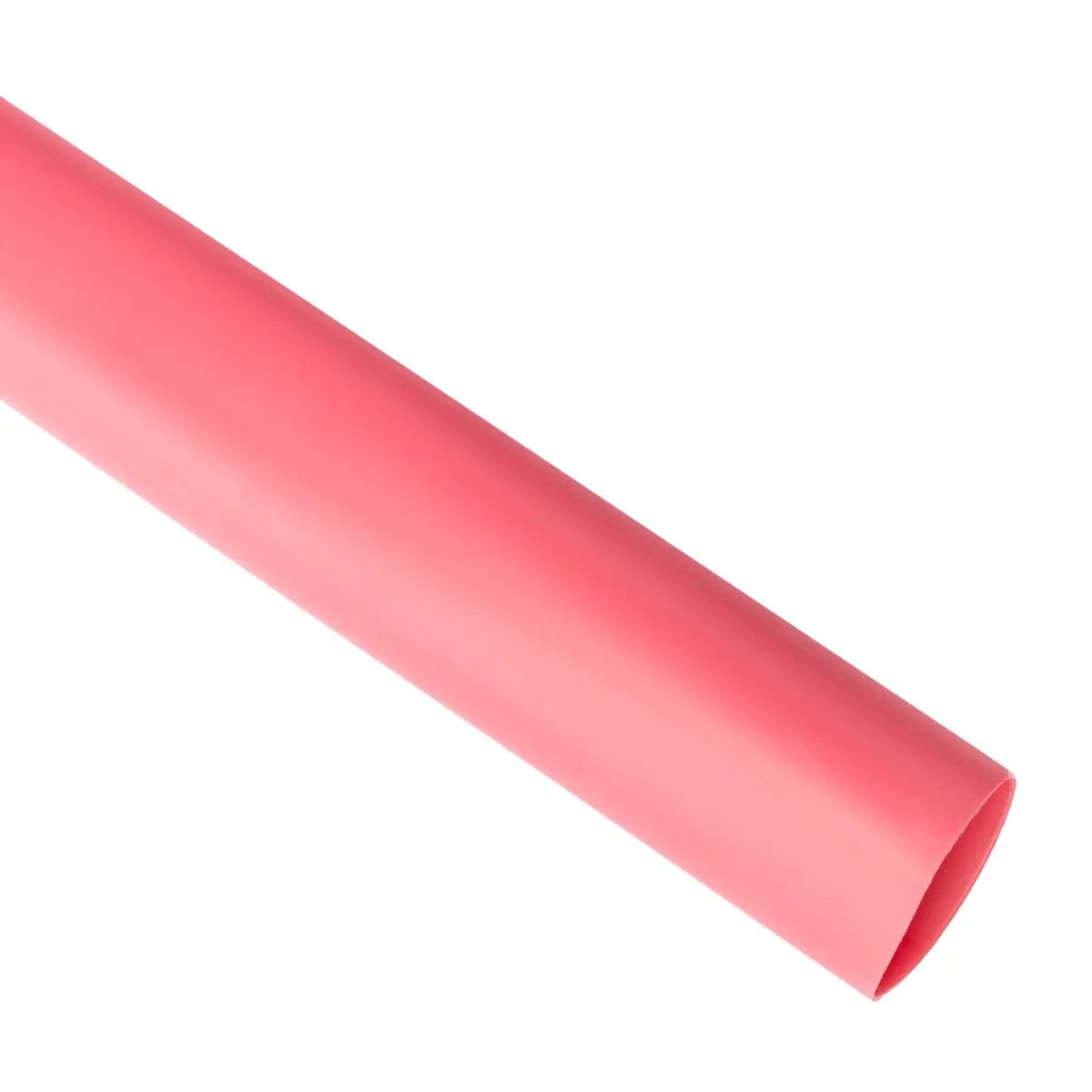

1", 3:1, ADHESIVE LINED HEAT SHRINK TUBING, REDDSG
Item No. CPA-100-1-RED
94 4FT In Stock
As low as $10.387 / 4FT

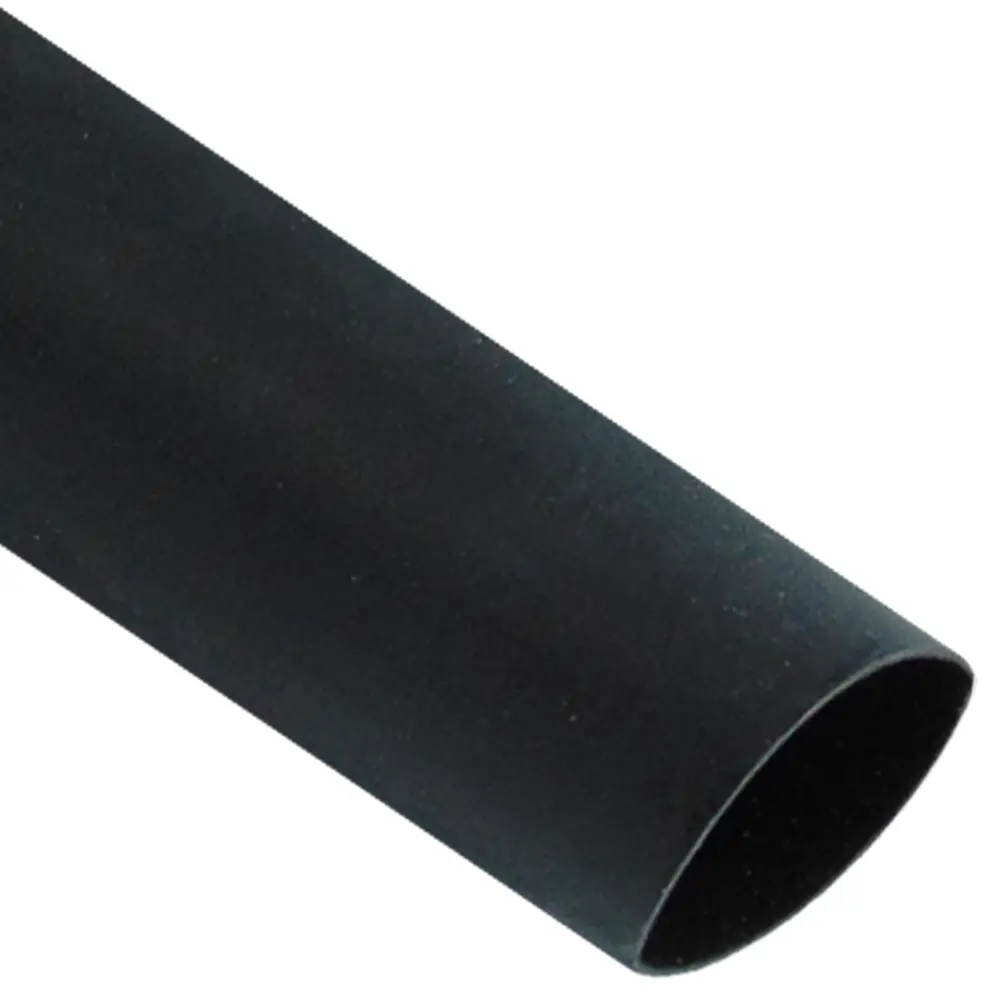

1 1/2",3:1, ADHESIVE LINED HEAT SHRINK TUBING, BLACKDSG
Item No. CPA-100-1-1/2-BK
45 4FT In Stock
As low as $10.686 / 4FT

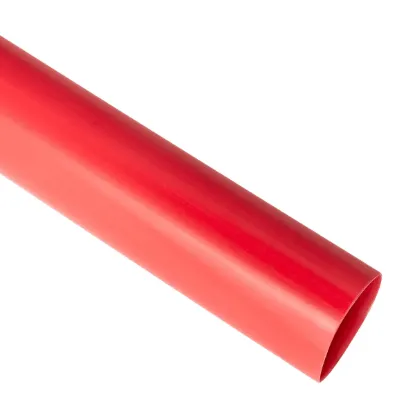

1 1/2",3:1, ADHESIVE LINED HEAT SHRINK TUBING, REDDSG
Item No. CPA-100-1-1/2-RED
64 4FT In Stock
