Techflex Dragon Sleeve
Techflex® Dragon Sleeve® (DGN) is a non-flammable product created for use in extreme environments. If your application comes in contact with flames, molten metal, sparks, or any high-temperature hazards, Dragon products are available to take the abuse. Industries like motorsports, welding, fabrication, and fire safety will appreciate the versatility of Dragon Sleeve®. The high flexibility braided construction is a one-of-a-kind solution for covering hoses and wires with a fire prevention jacket. Unlike other “non-flammable” fibers such as para-aramids, Dragon fiber maintains 100% of its strength longer and at higher temperatures. Dragon Sleeve® is available in 8 standard sizes.
- Lightweight
- Flame Resistant
- Resists Sparks
- Tear Resistant
- Double Wall Construction
Techflex Dragon Sleeve Datasheet (PDF, 1,843 KB)
Nominal Size | Part Nbr. | Expansion Range | Lbs/ 100' | |
Min. | Max. | |||

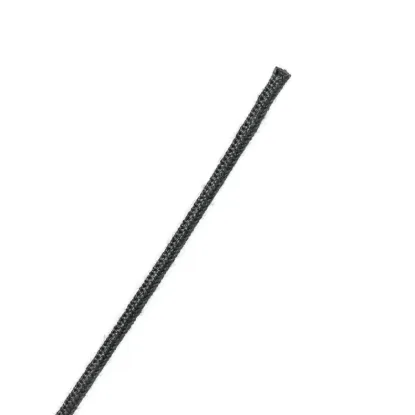

1/8" | DGN0.13BK | 1/16" | 3/16" | .20 |

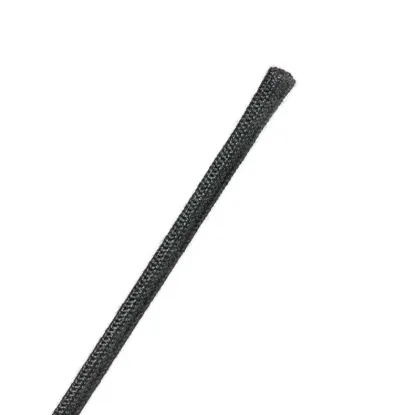

1/4" | DGN0.25BK | 1/8" | 5/16" | .42 |
3/8" | DGN0.38BK | 3/16" | 9/16 | .61 |

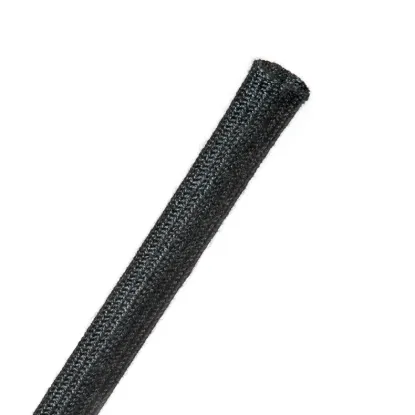

1/2" | DGN0.50BK | 5/16" | 7/8" | .80 |

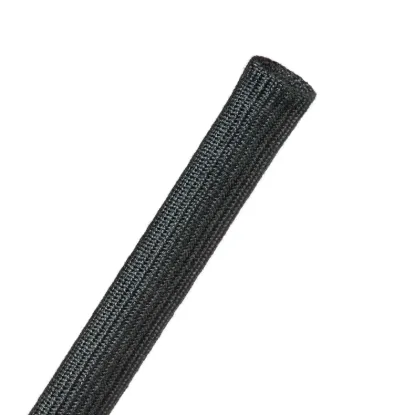

3/4" | DGN0.75BK | 3/8" | 1" | 1.24 |

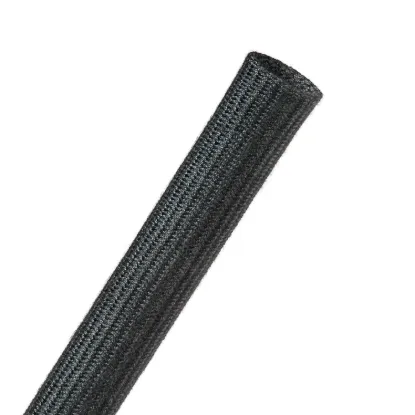

1 1/4" | DGN1.25BK | 5/8" | 3/4" | 2.03 |

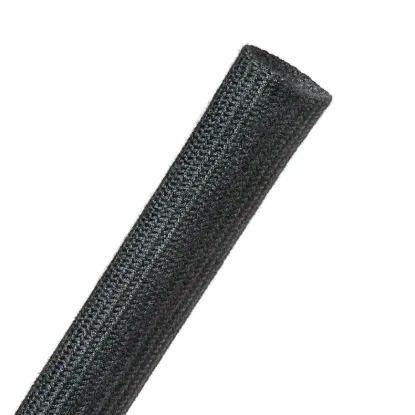

1 3/4" | DGN1.75BK | 3/4" | 2 1/8" | 2.57 |

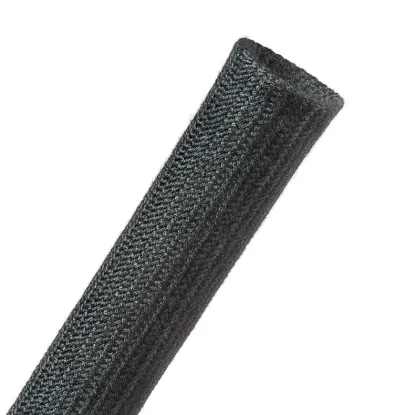

2" | DGN2.00BK | 1" | 2 3/4" | 3.17 |
