RT-375 Clear

RAYCHEM Tubing Products

RT-375

Clear, Flame-Resistant, Flexible, Fluoropolymer Tubing


Product Facts

  • 2:1 shrink ratio
  • Exceptional clarity and clarity stability
  • Toughness, chemical resistance, and high-temperature performance
  • High flame-resistance
  • Approximately 40 percent thinner walls than most general purpose polyolefin tubings
  • Recommended maximum temperature for use as a primary insulator: 135°C [275°F]
  • RoHS compliant
Applications Installation Operating Temperature Range
Protects wire and cable markers subject to extreme abuse, while permitting full inspectability of each item covered. Provides bundling and jacketing of wires and cables, protecting them from mechanical and chemical abuse. Protects electronic components while permitting their identification and inspection. Minimum shrink temperature: 125°C [257°F] Minimum full recovery temperature: 150°C [302°F]
-55°C to 150°C
[-67°F to 302°F]
Specifications/ Approvals:
Series UL CSA Military Raychem
RT-375
E35586 VW-1
600 V, 150°C
LR31929 VW-1
600 V, 150°C
AMS-DTL-23053/18*, Class 2 RT-375
*Formerly MIL-I-23053/18 and MIL-DTL-23053/18.
Product Dimensions:
Inside diameter RecoveredWall Thickness**
Size Minimum Expanded as Supplied Maximum Recovered After Heating After Heating
3/64
1.2 [0.046)
0.6 [0.023]
0.25 ± 0.05 [0.010 ± 0.002]
1/16
1.6 [0.063]
0.8 [0.031]
0.25 ± 0.05 [0.010 ± 0.002]
3/32
2.4 [0.093]
1.2 [0.046]
0.25 ± 0.05 [0.010 ± 0.002]
1/8
3.2 [0.125]
1.6 [0.062]
0.25 ± 0.05 [0.010 ± 0.002]
3/16
4.8 [0.187]
2.4 [0.093]
0.25 ± 0.05 [0.010 ± 0.002]
1/4
6.4 [0.250]
3.2 [0.125]
0.30 ± 0.08 [0.012 ± 0.003]
3/8
9.5 [0.375]
4.8 [0.187]
0.30 ± 0.08 [0.012 ± 0.003]
1/2
12.7 [0.500]
6.4 [0.250]
0.30 ± 0.08 [0.012 ± 0.003]
3/4
19.1 [0.750]
9.5 [0.375]
0.43 ± 0.08 [0.017 ± 0.003]
1
25.4 [1.000]
12.7 [0.500]
0.48 ± 0.08 [0.019 ± 0.003]
**Wall thickness will be less if tubing recovery is restricted during shrinkage.
Ordering Information:
Color Standard Clear (-X)
Size selection Always order the largest size that will shrink snugly over the component to be covered. Special order sizes are available upon request.
Standard packaging On spools.
Ordering description*** Specify product name, size and color (for example, RT-375 1/4-X).
***Europe only. For supply to MIL, Def Stan and BS add -MS, -DS or -BS to ordering description.
Set Ascending Direction
View as Grid List

8 Items

per page
  1. In stock

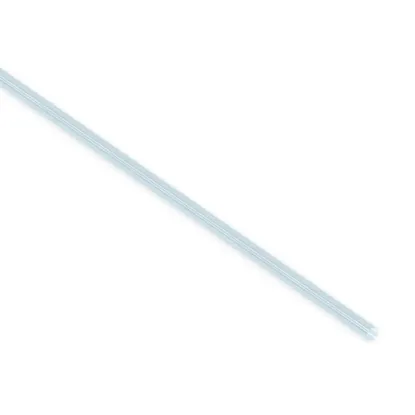

    1/8" CLEAR SHRINK TUBING
    Part Number : RT-375-1/8
    was $2.520 Special Price $0.900
    Foot
    Add to Wishlist
  2. In stock
    3/16" CLEAR SHRINK TUBING
    Part Number : RT-375-3/16
    was $2.025 Special Price $1.013
    Foot
    Add to Wishlist
  3. In stock

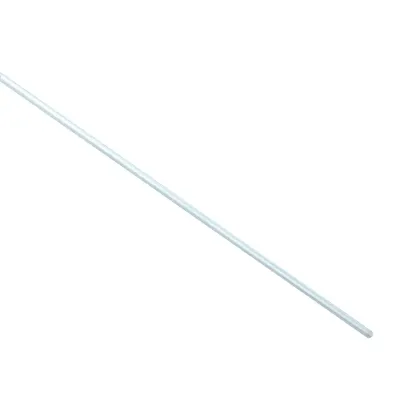

    1/16" CLEAR SHRINK TUBING
    Part Number : RT-375-1/16
    was $2.025 Special Price $1.013
    Foot
    Add to Wishlist
  4. In stock

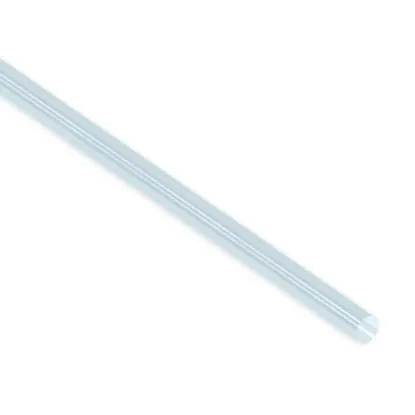

    1/4" CLEAR SHRINK TUBING
    Part Number : RT-375-1/4
    was $2.432 Special Price $1.045
    Foot
    Add to Wishlist
  5. In stock

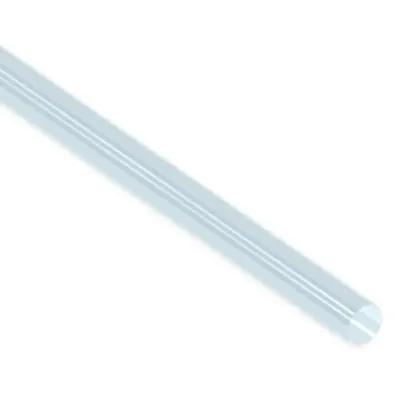

    3/8" CLEAR SHRINK TUBING
    Part Number : RT-375-3/8
    was $3.330 Special Price $1.652
    Foot
    Add to Wishlist
  6. Out of stock
    1/2" CLEAR SHRINK TUBING
    Part Number : RT-375-1/2
    was $3.915 Special Price $1.958
    Out of stock
    Add to Wishlist
  7. In stock

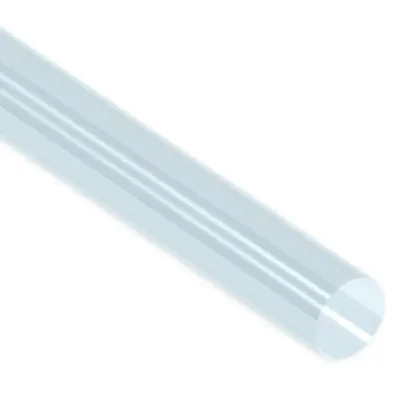

    3/4" CLEAR SHRINK TUBING
    Part Number : RT-375-3/4
    was $5.265 Special Price $2.475
    Foot
    Add to Wishlist
  8. In stock

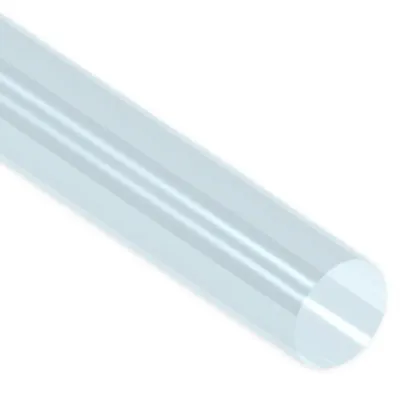

    1" CLEAR SHRINK TUBING
    Part Number : RT-375-1
    was $7.560 Special Price $3.860
    Foot
    Add to Wishlist
