Raychem ATUM 3:1

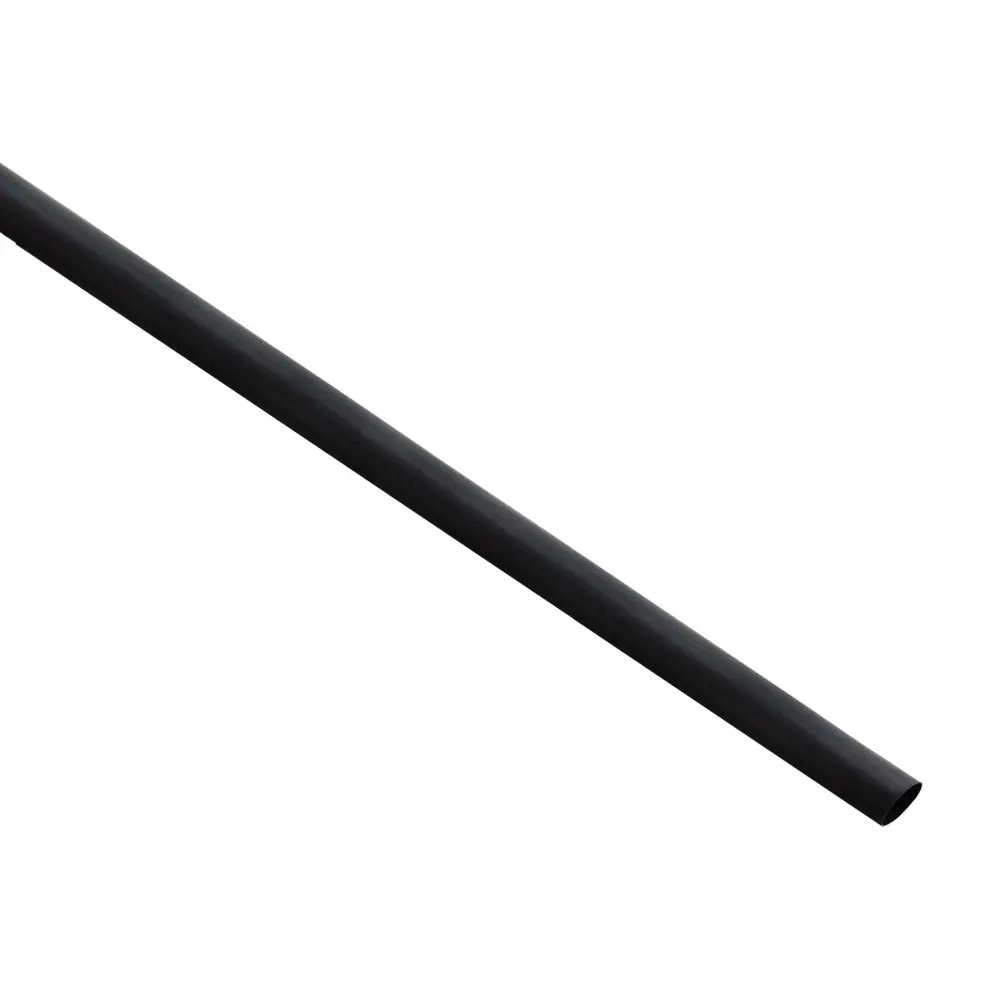

5/16" ADHESIVE LINED 3:1 SHRINK RATIO

ATUM-6/2-0-STK

Raychem

$9.86

57 4 ft Length In Stock

5/16" ADHESIVE LINED 3:1 SHRINK RATIO

Ship this tubing folded?

This tubing ships folded to save on shipping cost. In hot weather, the tubing can melt together at the folds.

Yes, ship folded No, ship in a long box without folding. Extra shipping costs (typically around $20 to cover oversized box fees). Shipping costs are calculated at checkout.

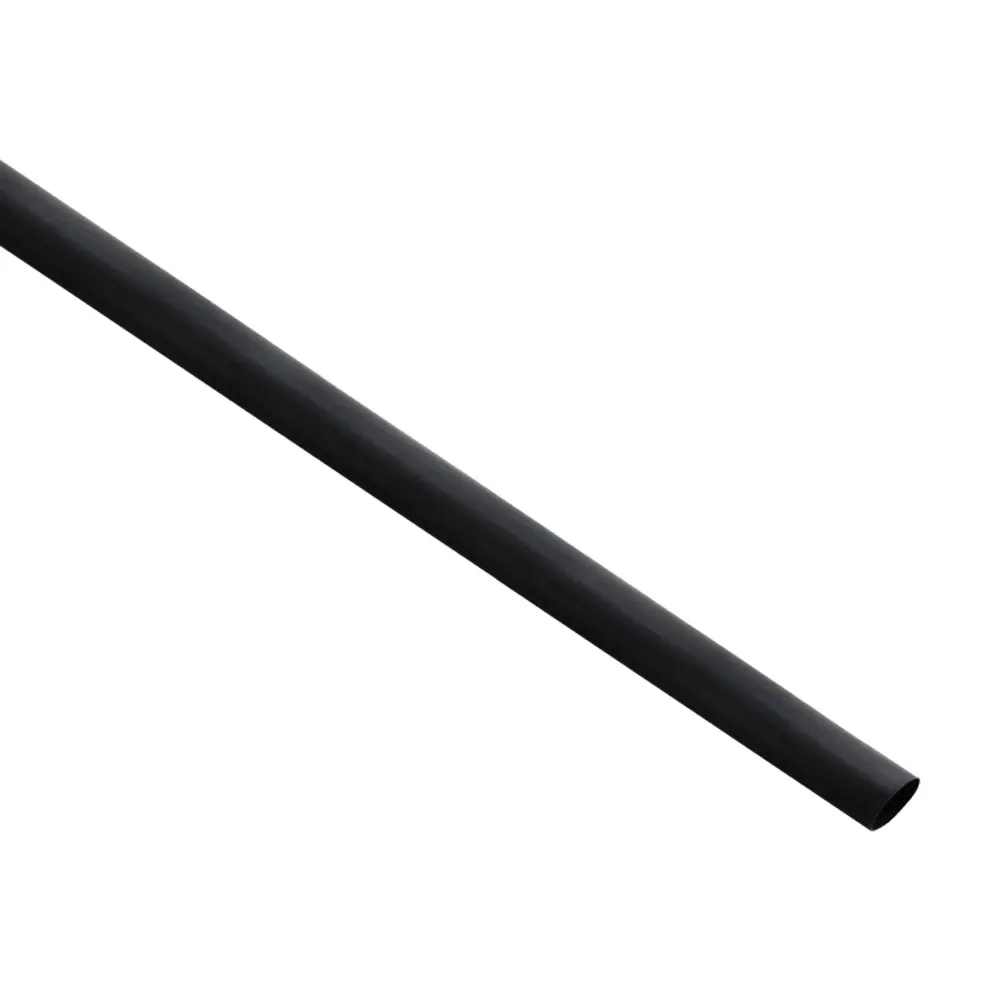

3/8" ADHESIVE LINED 3:1 SHRINK RATIO

ATUM-9/3-0-STK

Raychem

$9.24

41 4 ft Length In Stock

3/8" ADHESIVE LINED 3:1 SHRINK RATIO

Ship this tubing folded?

This tubing ships folded to save on shipping cost. In hot weather, the tubing can melt together at the folds.

Yes, ship folded No, ship in a long box without folding. Extra shipping costs (typically around $20 to cover oversized box fees). Shipping costs are calculated at checkout.

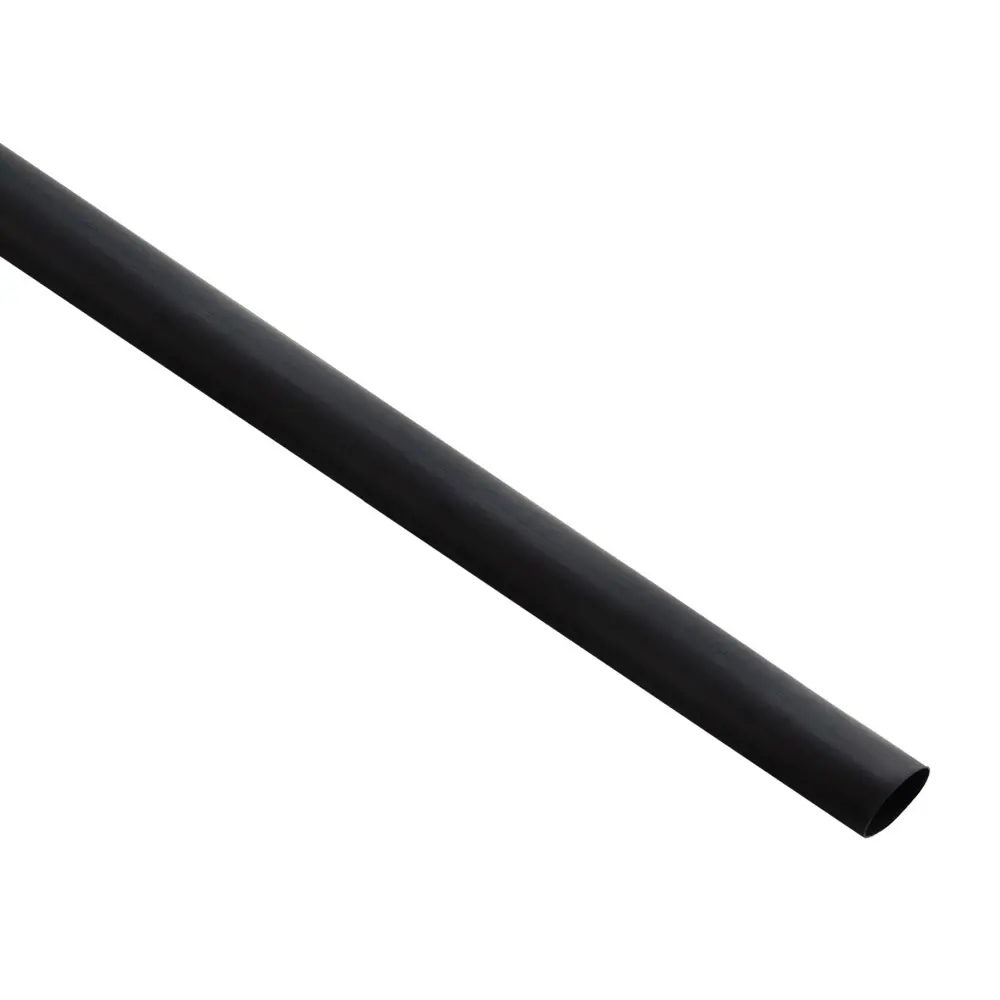

1/2" ADHESIVE LINED 3:1 SHRINK RATIO

ATUM-12/4-0-STK

Raychem

$7.403

58 4 ft Length In Stock

1/2" ADHESIVE LINED 3:1 SHRINK RATIO

Ship this tubing folded?

This tubing ships folded to save on shipping cost. In hot weather, the tubing can melt together at the folds.

Yes, ship folded No, ship in a long box without folding. Extra shipping costs (typically around $20 to cover oversized box fees). Shipping costs are calculated at checkout.

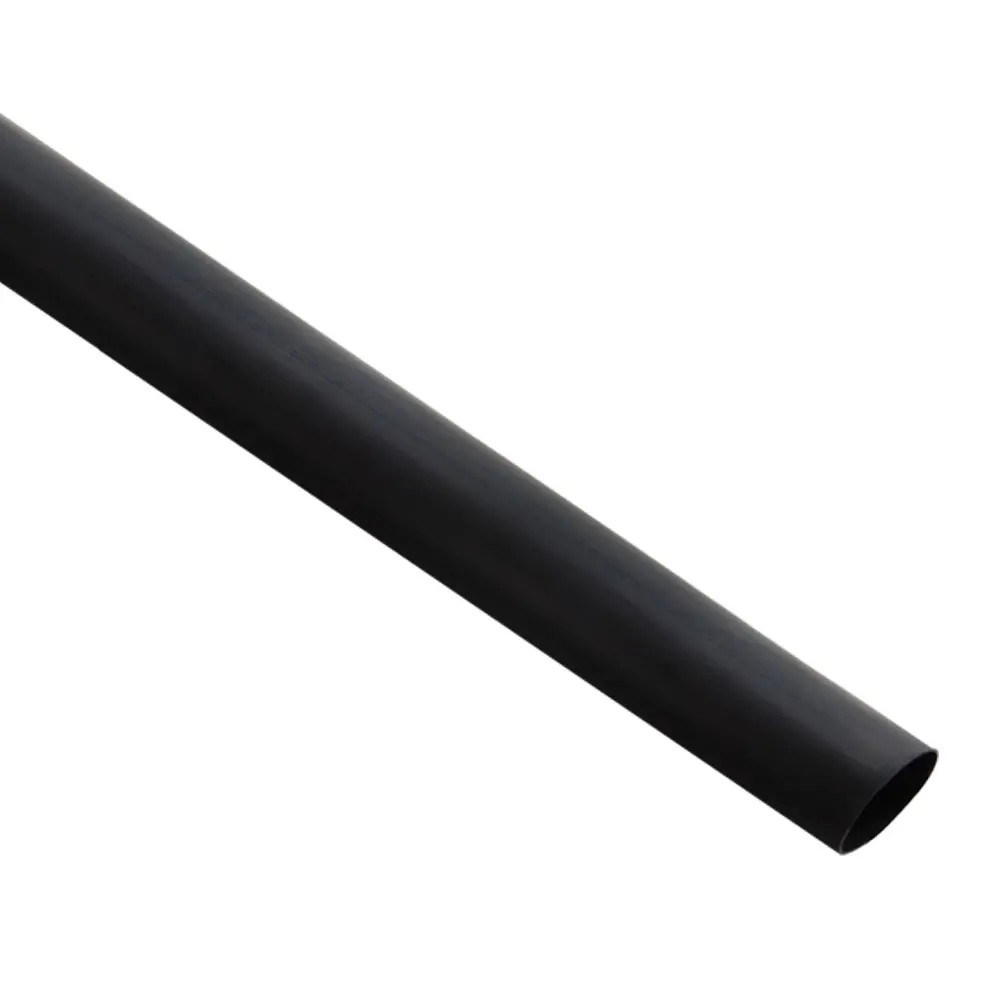

3/4" ADHESIVE LINED 3:1 SHRINK RATIO

ATUM-19/6-0-STK

Raychem

$11.426

53 4 ft Length In Stock

3/4" ADHESIVE LINED 3:1 SHRINK RATIO

Ship this tubing folded?

This tubing ships folded to save on shipping cost. In hot weather, the tubing can melt together at the folds.

Yes, ship folded No, ship in a long box without folding. Extra shipping costs (typically around $20 to cover oversized box fees). Shipping costs are calculated at checkout.

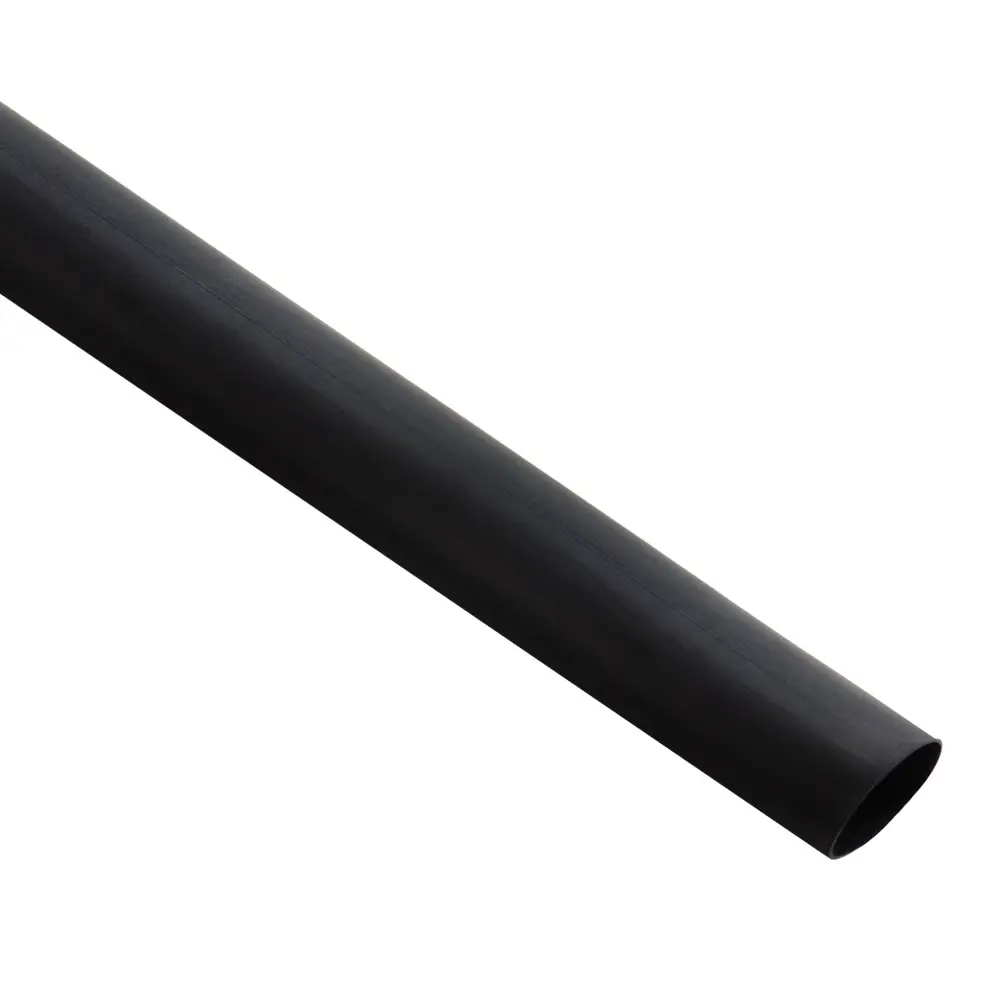

1" ADHESIVE LINED 3:1 SHRINK RATIO

ATUM-24/8-0-STK

Raychem

$18.192

18 4 ft Length In Stock

1" ADHESIVE LINED 3:1 SHRINK RATIO

Ship this tubing folded?

This tubing ships folded to save on shipping cost. In hot weather, the tubing can melt together at the folds.

Yes, ship folded No, ship in a long box without folding. Extra shipping costs (typically around $20 to cover oversized box fees). Shipping costs are calculated at checkout.

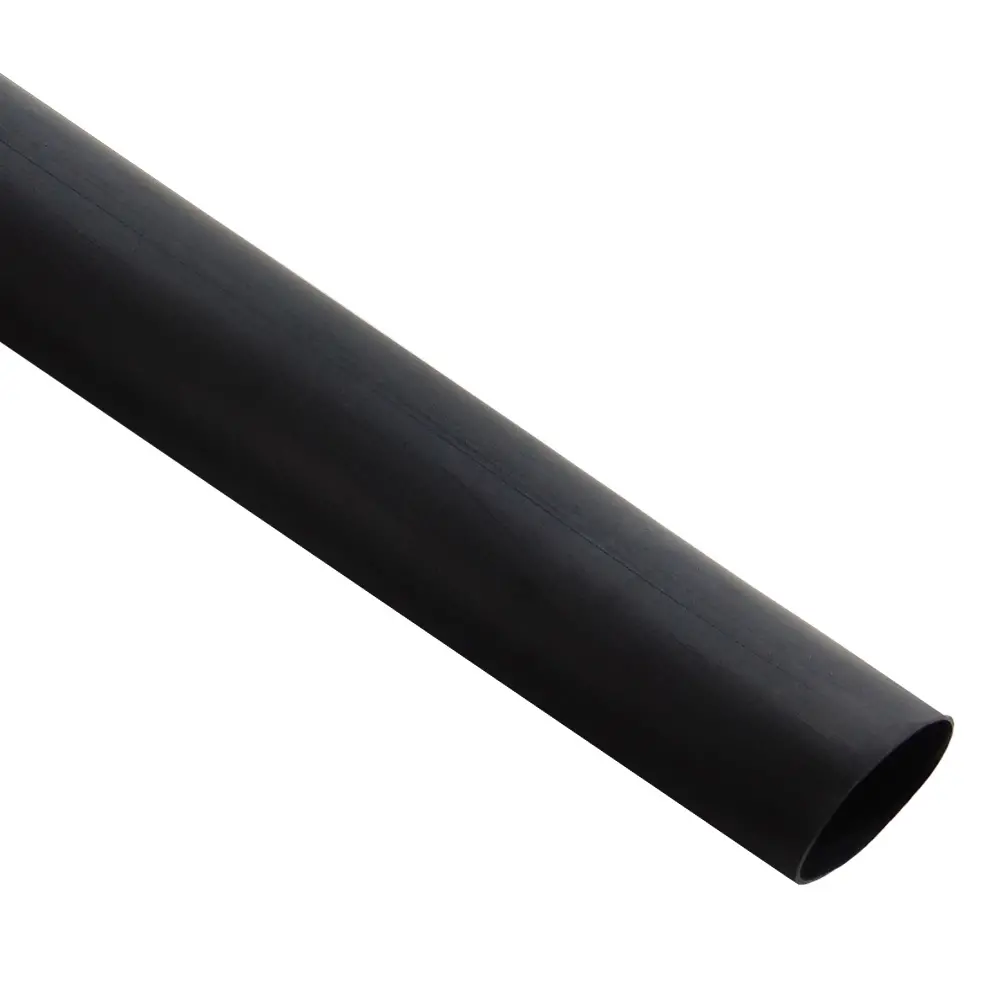

1 1/2" ADHESIVE LINED 3:1 SHRINK RATIO

ATUM-40/13-STK

Raychem

$27.216

7 4 ft Length In Stock

1 1/2" ADHESIVE LINED 3:1 SHRINK RATIO

Ship this tubing folded?

This tubing ships folded to save on shipping cost. In hot weather, the tubing can melt together at the folds.

Yes, ship folded No, ship in a long box without folding. Extra shipping costs (typically around $20 to cover oversized box fees). Shipping costs are calculated at checkout.

Raychem ATUM Tubing 3:1

3:1 High-Shrink-Ratio, Adhesive-Lined Polyolefin Tubing

Environmentally seals and protects a wide variety of electrical applications, including back-end connector sealing, breakouts, and connector-to-cable transitions. In addition, a high expansion ratio makes it possible to repair most damaged cable jackets without removing connectors.

The installed tubing provides rugged protection against abrasion, vibration, and flexing. A wide range of applications can be accommodated with only a few sizes of ATUM tubing.

Temperature Rating:

Full recovery temperature: 110ºC

Continuous operating temperature: 55ºC to 110ºC

Specifications:

UL: E85381

Military: AMS-DTL-23053/4 Class 3

Shrink Ratio: 3:1

Voltage Rating: 600V

Size	Expanded as supplied	Recovered after heating	Total wall**	(nom.) Meltable wall
Inside diameter			Recovered wall thickness
6/2	6.0 [0.236]	2.0 [0.079]	1.00mm ± 0.28mm [0.039" ± 0.010"]	0.50mm [0.020"]
9/3	9.0 [0.354]	3.0 [0.118]	1.00mm ± 0.28mm [0.039" ± 0.010"]	0.50mm [0.025"]
12/4	12.0 [0.472]	4.0 [0.157]	1.40mm ± 0.28mm [0.055" ± 0.010"]	0.61mm [0.024"]
19/6	19.0 [0.748]	6.0 [0.236]	1.78mm ± 0.38mm [0.070" ± 0.015"]	.76mm [0.030"]
24/8	24.0 [0.940]	8.0 [0.315]	2.54mm ± 0.55mm [0.100" ± 0.022"]	1.02mm [0.040"]
40/13	40.0 [1.570]	13.0 [0.512]	2.54mm ± 0.55mm [0.100" ± 0.022"]	1.02mm [0.040"]
**Wall thickness will be less if tubing recovery is restricted during shrinkage.
