301A

301A011 to 048

T Transition


As Supplied (a)

After Unrestricted Recovery (b)

Application

Provides strain relief and mechanical protection on cable harness assemblies.

Materials Available

Material* Material Description Precoating No. Adhesive Part No.**
-3 Semirigid polyolefin /42 or /86 S-1017 or S-1048
-4 Flexible polyolefin /42 or /86 S-1017 or S-1048
-12 Viton® N/A S-1255-04
-25 Fluid-resistant elastomer /42 or /86 or /225 S-1017 or S-1048 or S-1125
-100 Polyolefin, Zerohal /86 or /180 S-1048 or S-1030
*For more information, please see the appropriate material page in this section.
**For more information, please see section 5.

Product Dimensions

Part no. H, J & K P S T W
Min. Max ±10% ±10% ±30% ±30%
a b b b b b

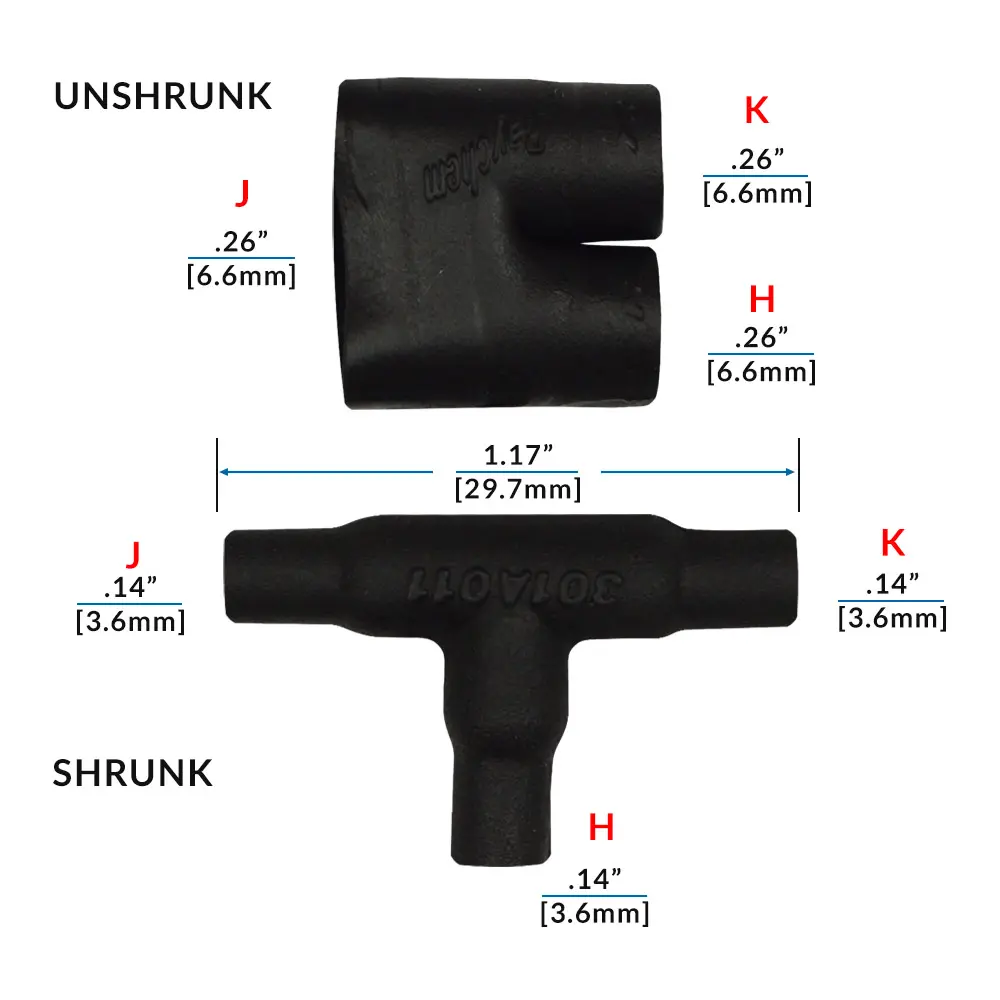

301A011 6.6 [.26] 3.6 [.14] 29.7 [1.17] 15.1 [.59] — 1.02 [.04]

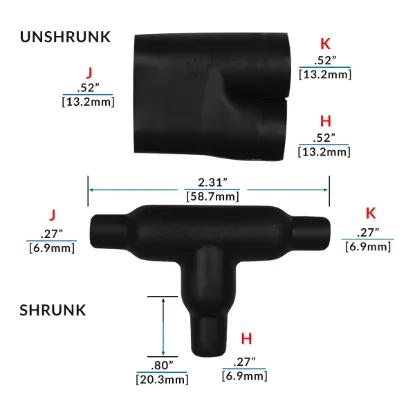

301A022 13.2[.52] 6.9 [.27] 58.7 [2.31] 29.5 [1.16] 17.5 [.69] 1.52 [.06]

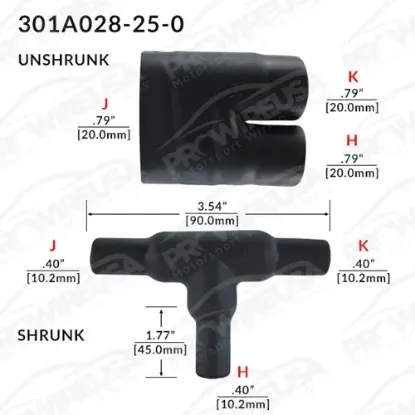

301A028 20.0[0.79] 10.2 [.40] 90 [3.54] 45 [1.77] 30 [1.18] 2.0 [.08]

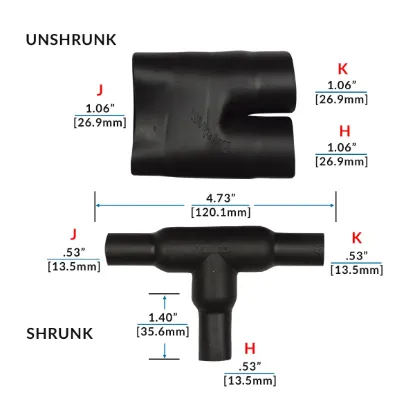

301A034 26.9[1.06] 13.5 [.53] 120.1 [4.73] 60.2 [2.37] 35.6 [1.40] 2.29 [.09]
301A048 55.6[2.19] 30.2 1.19] 246.4 [9.70] 123.2 [4.85] 70.9 [2.79] 3.05 [.12]
Note: Coating is optional. As supplied dimensions appearing in table are for uncoated parts. When coating is added, entry diameters will be reduced by 1.5 [.06] max.
