Bussman Mini Fuse Panel 15303-6-2-4

The EATON-Bussamn Series 15303-6-2-4 offers a main power distribution module capable of operating in harsh environment applications. Based on the industry standard 2.8mm (mini) footprint, the Eaton RFRM accepts plug-in fuses, relays, circuit breakers, resistors and diodes to meet numerous power management requirements. Fuses and relays sold separate.

• Plug-in component capacity: Up to 10 micro relays and a combination of 40 fuses/circuit breakers (2.8mm blade / 8.1mm center line)
• Material: 94V-0 thermoplastic, plated copper bus bar, silicone rubber gasket, EPDM - internal tether
• Mounting: #10-32,4 in-lbs max
• Wire size: Accepts #12-22 AWG wire sizes

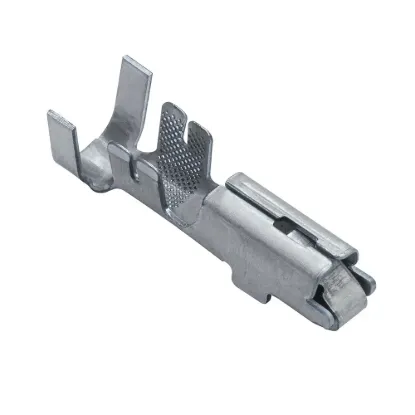

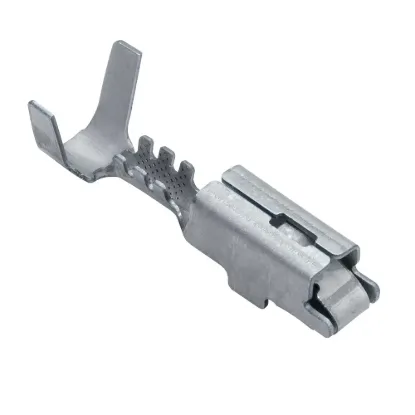

• Terminals: Delphi Packard 280 Series Metri-Pack® sealed/tangless terminals, see related items below
• Cavity plugs: Delphi Packard 280 Series cavity plug (where output wires are not used), see related items below
• Cover is tall enough for mini "plugin" style breakers
• Temperature rating: -40F (-40°C) to 185°F (85°C)
• Main Buss: 80 amps Max, 10-32 mounting stud
• Relays: (3) 280 mini relays or (5) 280 micro relays (not included)
