Raychem 202K111-25-0 is a very small-lipped boot, just over 1" long. The 202K series of lipped molded boots is used on connector backshells and straight harness transitions.
Raychem heat shrink boots used in conjunction with Raychem DR-25 sleeving and M22759/32 Tefzel Wire provide a proper motorsport/military-grade wiring loom. Need to seal your boots to your tubing? By far the best choice is ResinTech RT125 Adhesive.

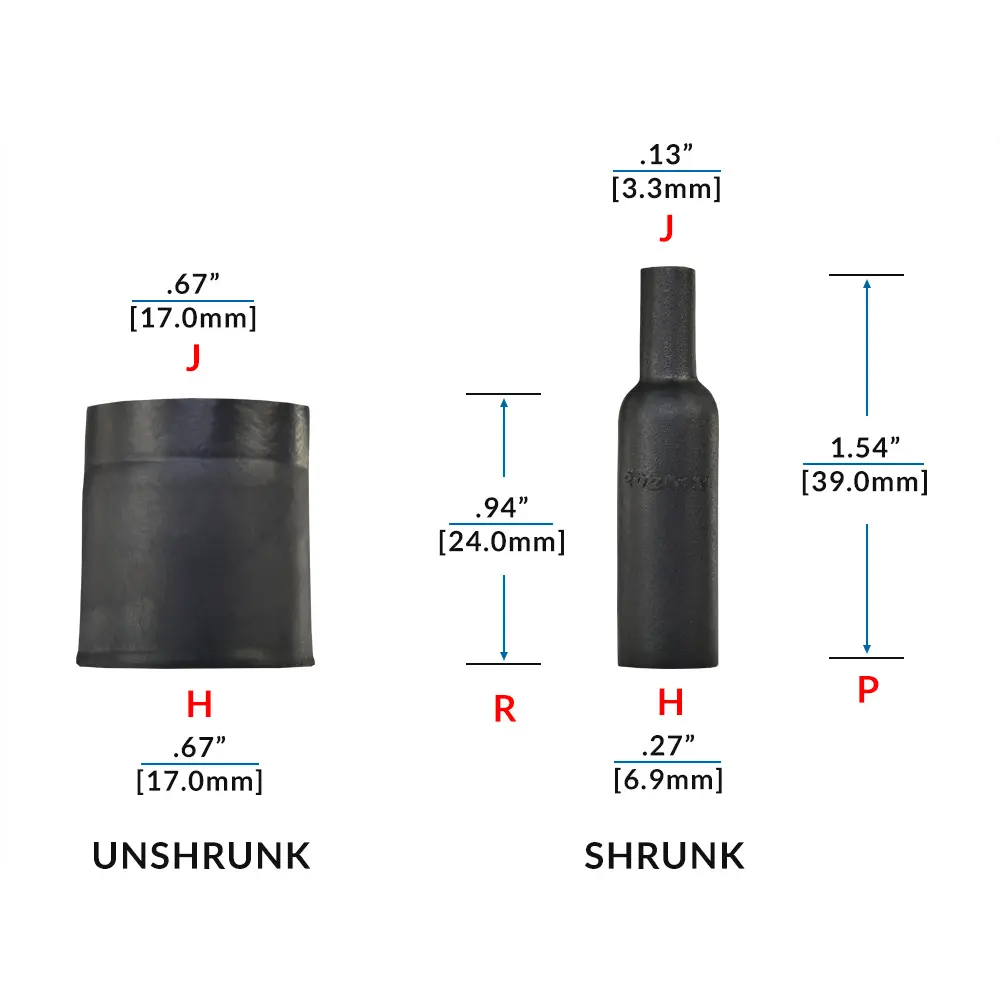

| Raychem 202K111-25-0 Boot Dimensions |
 |
Part Number | (H) Big End | ( J) Small End | P |
UN SHRUNK | SHRUNK | UN SHRUNK | SHRUNK | Total Length |
| 202K111-25-0 | 17mm [.67"] | 6.9mm [.27"] | 17mm [.67"] | 3mm [.12"] | 39mm [1.54"] |
