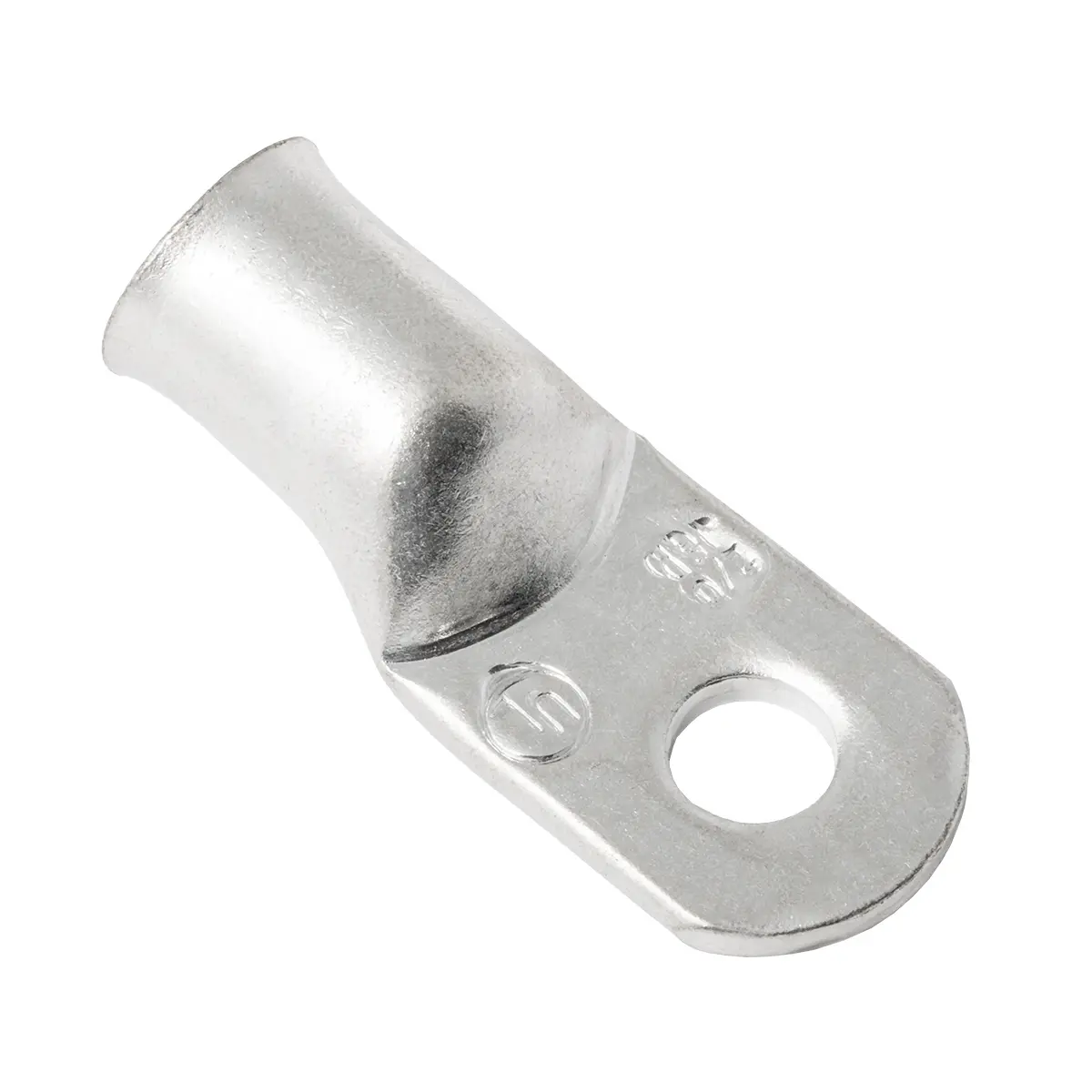

This heavy-duty battery cable lug has a seamless construction and is perfect for automotive and industrial applications. It is designed for all types of battery cables and Tefzel wire. See below for heat-shrink tubing options.
- Wire AWG: 2/0 AWG (stamped on the terminal)
- Stud Size: 5/16" (M8)
- Material: Tinned Copper
- UL/CUL Listed
- Work-hardened Tang
- Can be crimped or soldered
- Made in USA
Technical Information
- Barrel Flare (I): .595" (15.113 mm)
- Barrel I.D. (C): .46" (11.684 mm)
- Tang Width (W): .825" (20.955 mm)
- Tang Length (F): .9" (22.86 mm)
- Barrel Length (D): .65" (16.51 mm)
- Overall Length (E): 2.045" (51.943 mm)
- Tang Thickness (T): .108" (2.743 mm)
Heat-shrink options
Please see the Related Items, Crimp Tools tabs, or Documents section for more information.
