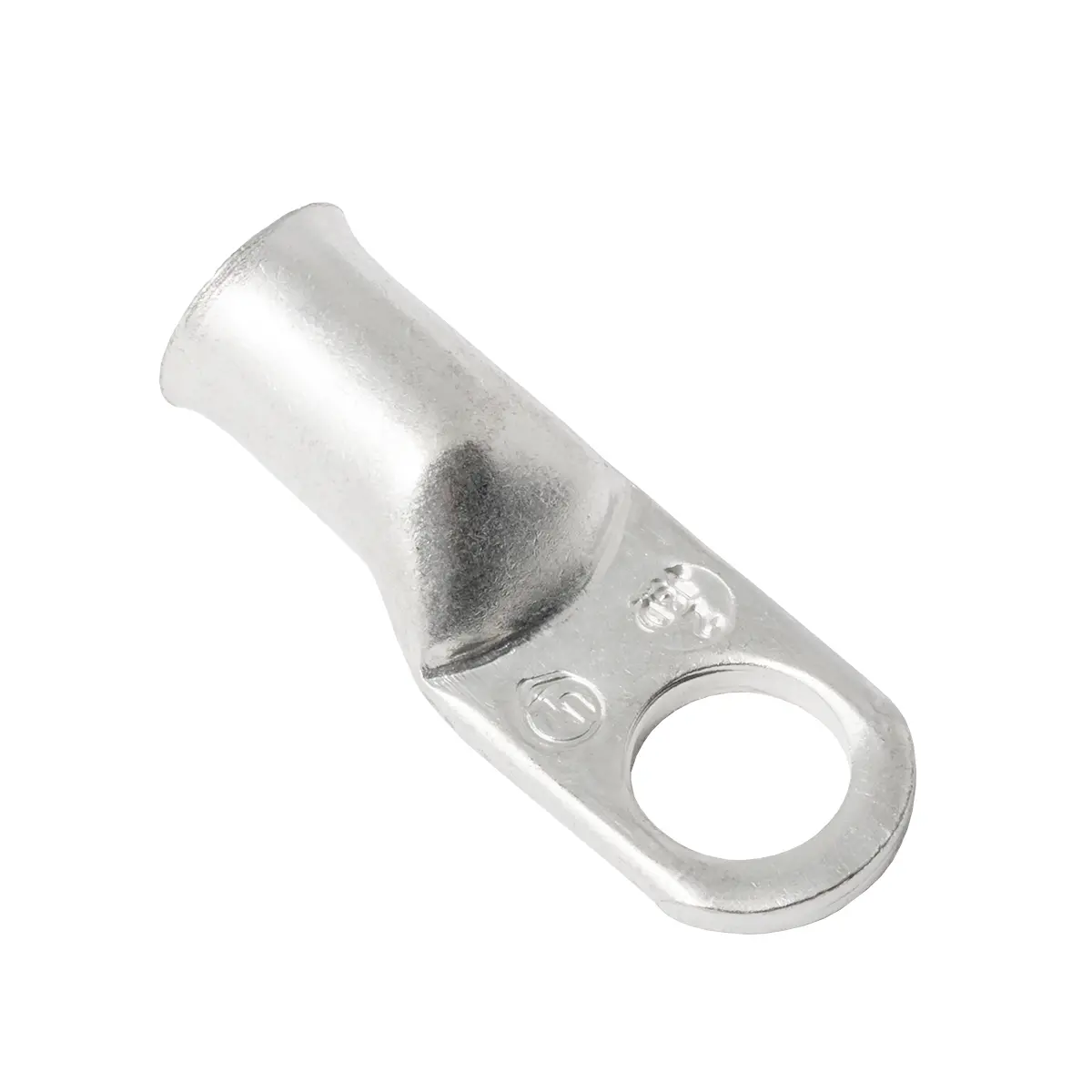

This heavy-duty battery cable lug has a seamless construction and is perfect for automotive and industrial applications. It is designed for all types of battery cables and Tefzel wire. See below for heat-shrink tubing options.
- Wire AWG: 2 AWG (stamped on the terminal)
- Stud Size: 3/8" (M9)
- Material: Tinned Copper
- UL/CUL Listed
- Work-hardened Tang
- Can be crimped or soldered
- Made in USA
Technical Information
- Barrel Flare (I): .472" (11.989 mm)
- Barrel I.D. (C): .336" (8.534 mm)
- Tang Width (W): .65" (16.51 mm)
- Tang Length (F): .69" (17.526 mm)
- Barrel Length (D): .525" (13.335 mm)
- Overall Length (E): 1.69" (42.92 mm)
- Tang Thickness (T): .1" (2.54 mm)
Heat-shrink options
Please see the Related Items, Crimp Tools tabs, or Documents section for more information.
