16-26-KIT 26 Way MIL SPEC Build Your Own Kit

Name: 26 WAY MIL SPEC BUILD YOUR OWN KIT
SKU: 16-26-KIT
Availability: InStock

Item No. 16-26-KIT

Features & details

26 way Mil-Spec connector kit comes complete with plug/receptacle connectors (with contacts), shrink boots and shrink boot adapters.

Connector Specifications 16-26

Contact Size	Qty	Wire Range	Amperage Per Contact
20	26	22-18*	7.5
*16 Ga wire can used in this connector with a special size 20 contact (non Mil-Spec), see below for part numbers. These would be purchased separately, no substitutions allowed for the contacts that are already supplied in the kit.
16 Ga Size 20 Contacts
Gold Socket	0462-005-2031	Gold Pin	0460-010-2031
Nickel Socket	0462-005-20141	Nickel Pin	0460-010-20141
Panel Cutouts (Shell Size 18)
4 Bolt Flange	.998"	Jam Nut	1.061"
Crimp Tooling
Mil-Spec	M22520/1-01 (AF8)	Required Turret	M22520/1-02 (TH1A)
Deutsch OEM	HDT-48-00	Econo Size 20	18890
Insert/Removal Tools
Metal (Insert Only)	(Size 20) DAK83-20B	Metal (Removal Only)	(Size 20) DRK83-20B

Product specification

Shell Size	16
Wire Range (AWG)	22-18

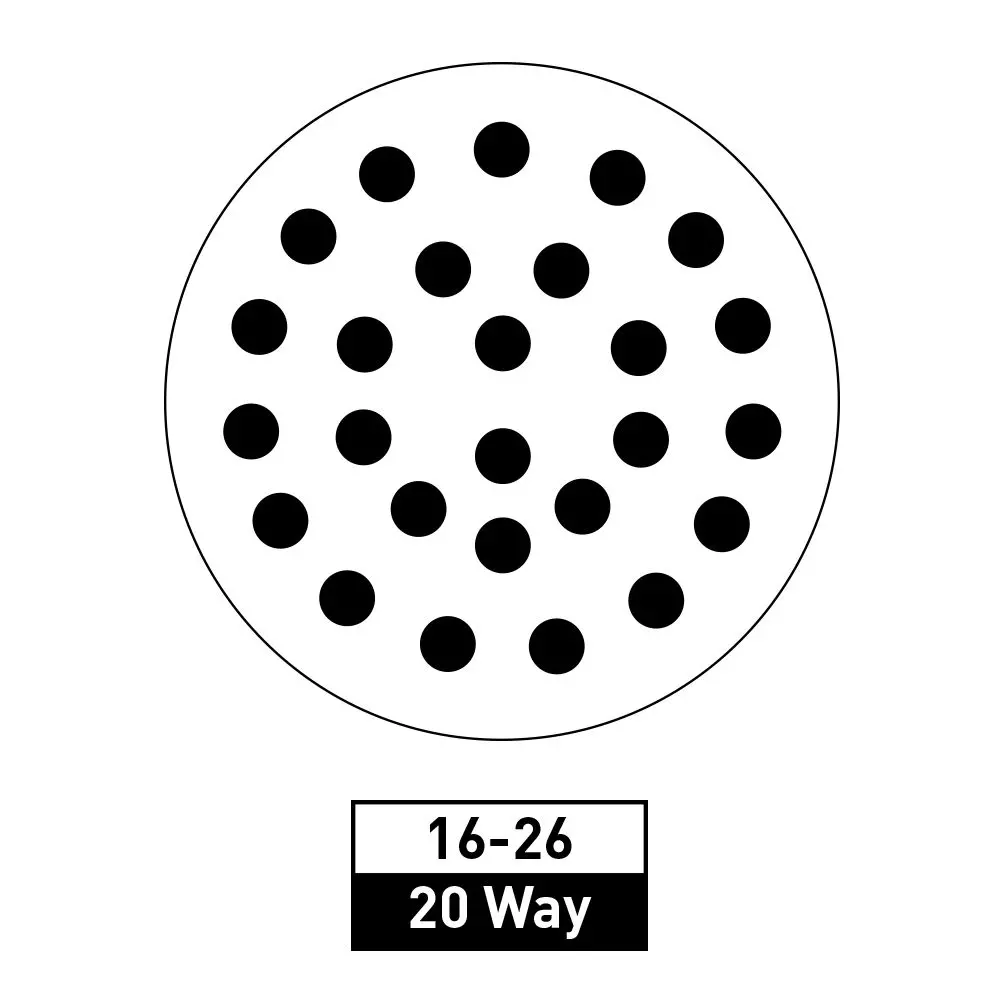

Insert Arrangement	16-26
No. Of Positions	26
Contact Size	20
Current Rating Per Contact	7.5 A
