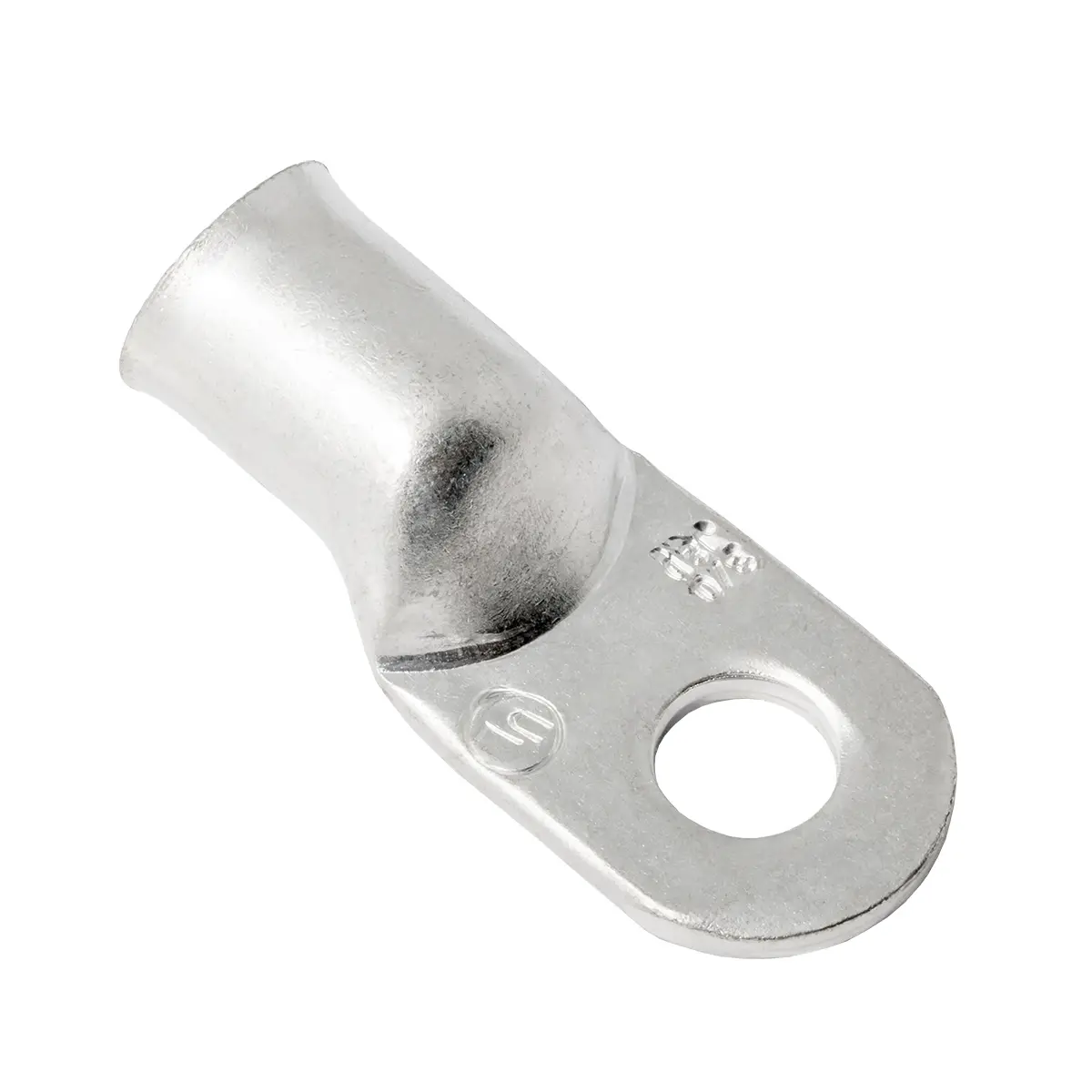

This heavy-duty battery cable lug has a seamless construction and is perfect for automotive and industrial applications. It is designed for all types of battery cables and Tefzel wire. See below for heat-shrink tubing options.
- Wire AWG: 3/0 AWG (stamped on the terminal)
- Stud Size: 3/8" (M9)
- Material: Tinned Copper
- UL/CUL Listed
- Work-hardened Tang
- Can be crimped or soldered
- Made in USA
Technical Information
- Barrel Flare (I): .655" (16.637 mm)
- Barrel I.D. (C): .51" (12.954 mm)
- Tang Width (W): .91" (23.114 mm)
- Tang Length (F): .99" (25.146 mm)
- Barrel Length (D): .675" (17.145 mm)
- Overall Length (E): 2.24" (56.896 mm)
- Tang Thickness (T): .125" (3.175 mm)
Heat-shrink options
Please see the Related Items, Crimp Tools tabs, or Documents section for more information.
