24-31-KIT 31 Way MIL SPEC Complete Kit

Name: 31 WAY MIL SPEC COMPLETE KIT
SKU: 24-31-KIT
Availability: InStock

Item No. 24-31-KIT

Features & details

31 way Mil-Spec connector kit comes complete with plug/receptacle connectors (with contacts), shrink boots and shrink boot adapters.

Connector Specifications 24-31

Contact Size	Qty	Wire Range	Amperage Per Contact
16	31	20-16**	13
**14 Ga wire can be used in the size 16 contacts if the wire is stripped perfectly
Panel Cutouts (Shell Size 24)
4 Bolt Flange	1.498"	Jam Nut	1.561"
Crimp Tooling
Mil-Spec	M22520/1-01 (AF8)	Required Turret	M22520/1-02 (TH1A)
Deutsch OEM	HDT-48-00	Econo Size 16	18880
Insert/Removal Tools
Metal (Insert Only)	(Size 16) DAK82-16B	Metal (Removal Only)	(Size 16) DRK83-16B

Product specification

Shell Size	24
Wire Range (AWG)	20-14

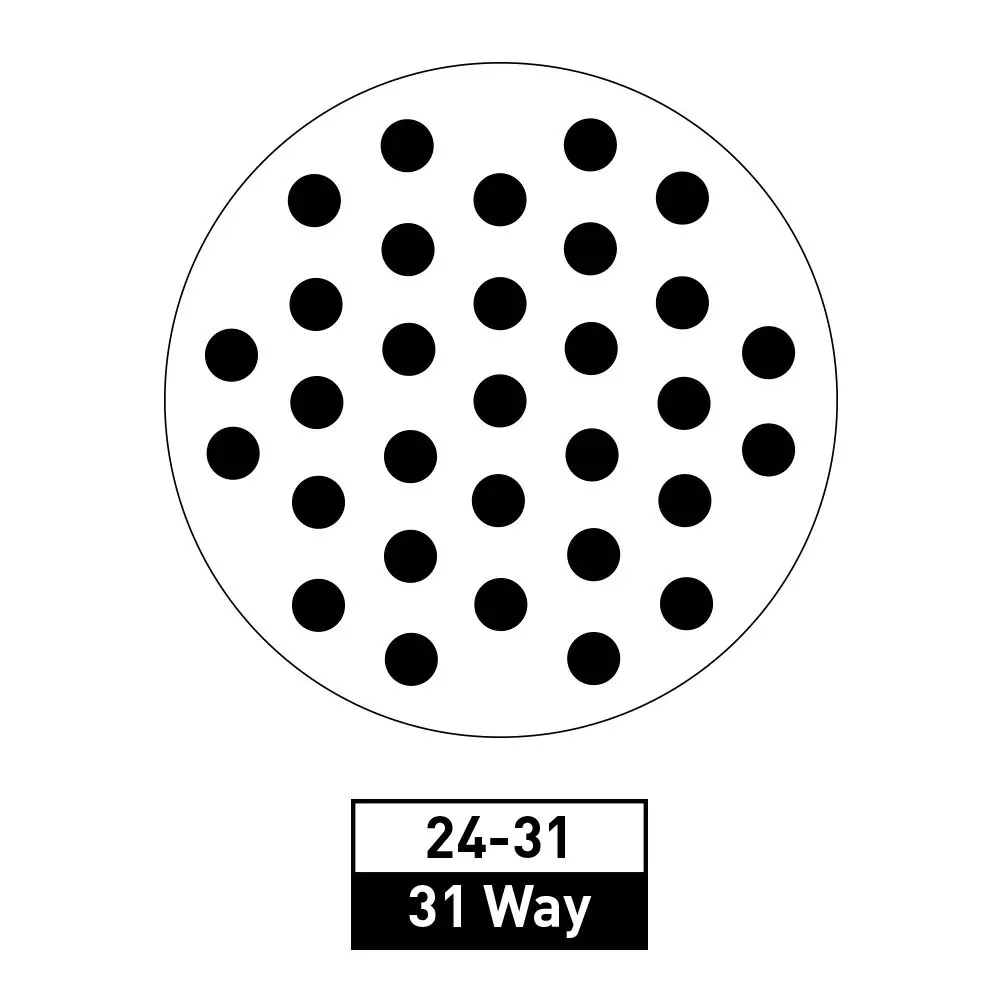

Insert Arrangement	24-31
No. Of Positions	31
Contact Size	16
Current Rating Per Contact	13 A
