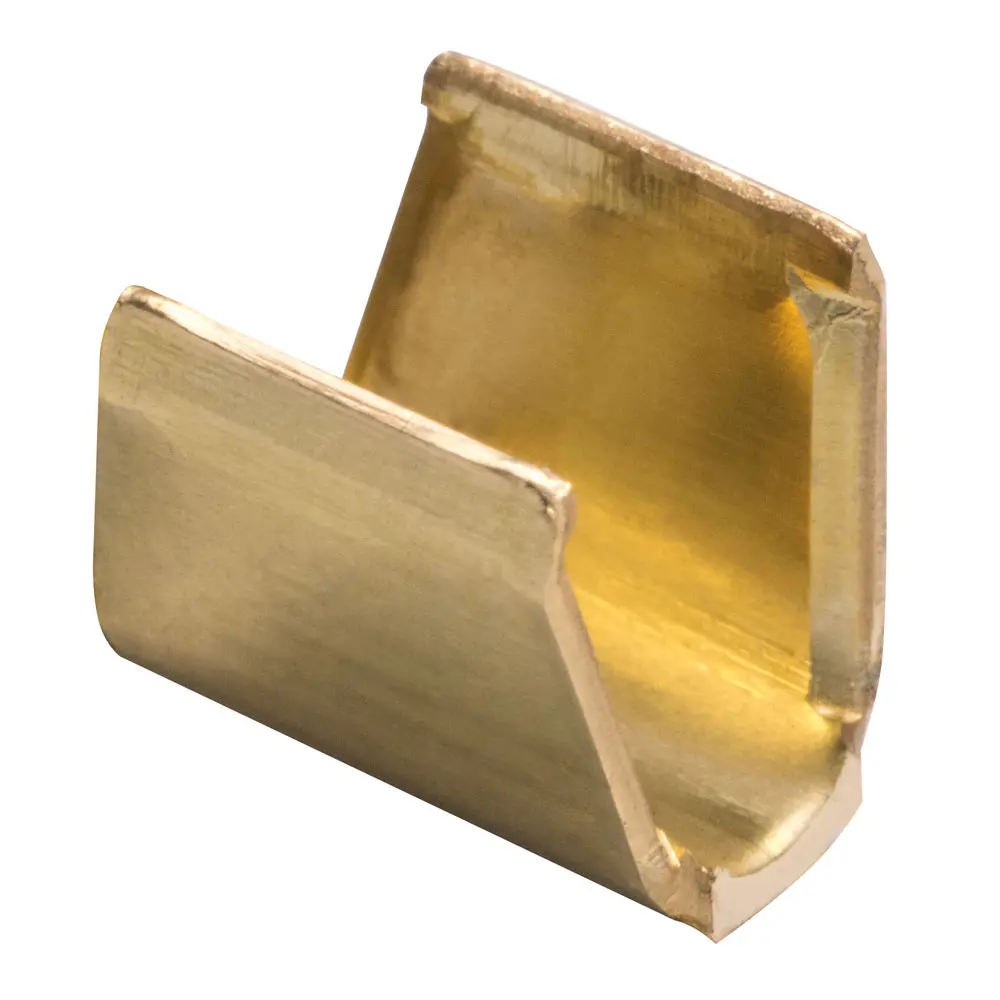

Open barrel splice for inline and parallel splicing of wire.
- Wire Size (mm²): 3.75-5.07
- Wire Size (AWG): 12-10
- Length: 6.3mm
- Material: Brass
- CMA: 4000-10,000
Crimp Tooling

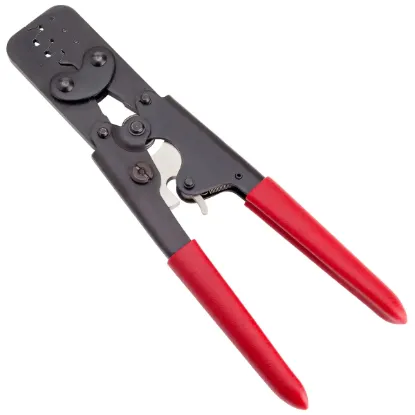

The factory-recommended crimp tool for this splice is an Ocean 2.0 crimping applicator. While most people won’t have access to this machine, we recommend using a 3187 CT crimp tool (see tooling tab below)
NOTES: The 3187 CT is the best all-around "generic" crimp tool for these types of splices. This may not work in some instances, but overall, this is a good option. We do not guarantee this tool will work for 100% of the applications, 100% of the time, as it was not purpose-built for these strip-mounted splices. Another tooling option for this splice is the Molex 63811-100. Use the 4.8mm setting for this particular splice.
