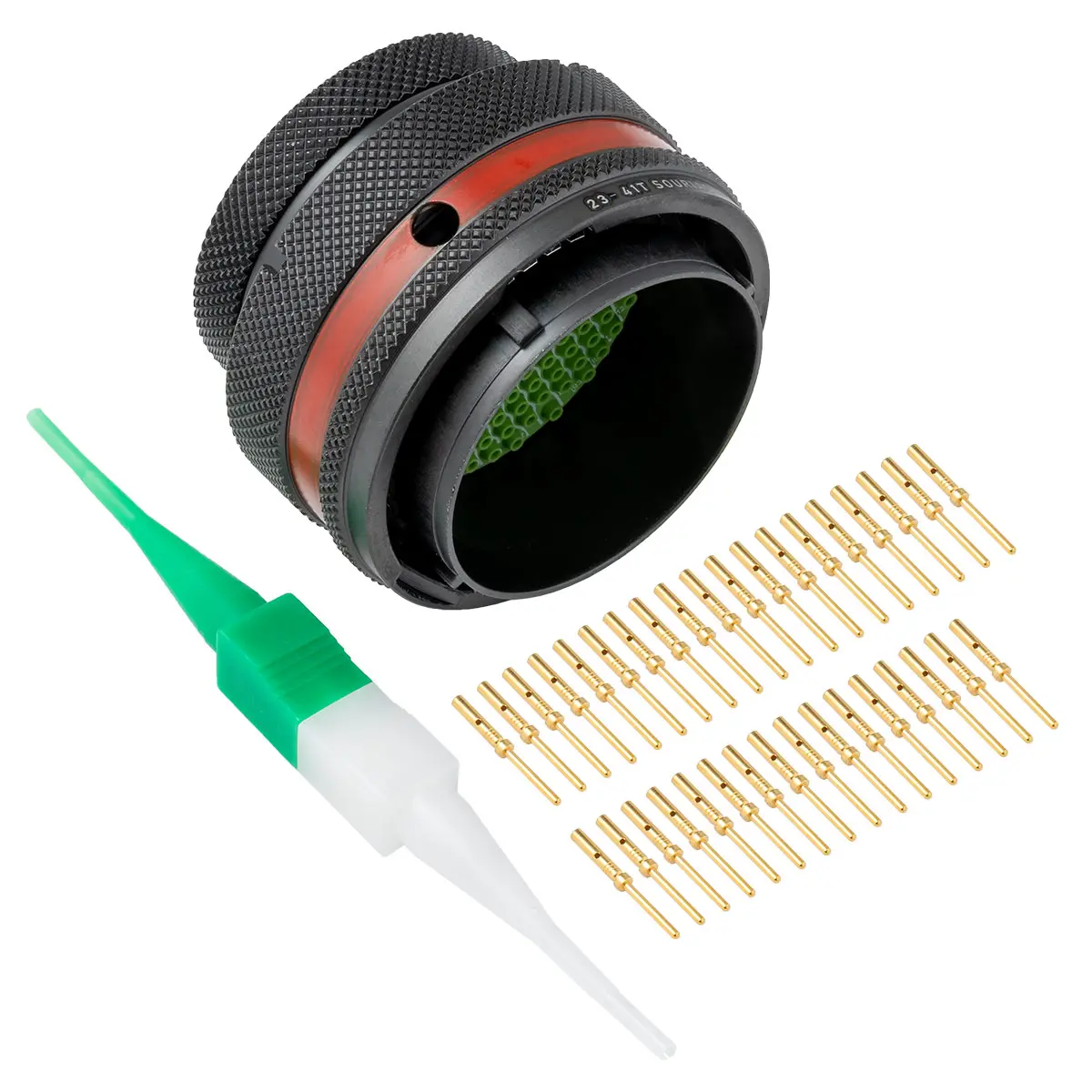

8STA6-24-35PN 8STA,128 Way,PLG,Pin,N Key,Red

Souriau
Item No. 8STA6-24-35PN
$214.30 / EA
Product specification
Keyway A (Yellow)
Series / Range AS
Shell Size 14
Wire Range (AWG) 24-14
Contact Gender Pin (Male)
Shell Style Flanged Oval Receptacle
Shell Plating Zinc (Black)
Replacement Contacts 38941-22,38941-16
Insert Arrangement 14-97
No. Of Positions 12
Contact Size 20 & 16
Mixed Contact Sizes YES
90º Shrink Boot 222K142-25-0
Connector O.D. 1.063" (27 mm)
DMC Crimp Frame M22520/2-01 & M22520/1-01
Current Rating Per Contact (20) 7.5 / (16) 20 A
Filler Plug 600300-20,600300-16
Receptacle Gasket GV-14
MFG. TE Connectivity
Mating Plug Connector AS614-97SA
Nut Plate AS-14
Panel Cutout .984" (25 mm)
Protective Cap AS914
DMC Positioner / Turret M22520/2-10 & M22520/1-04
Shell Material Aluminum
Souriau Part Nbr 8STA01497PA
Souriau Part Nbr_1 8STA0-14-97PA
Straight Shrink Boot 202K142-25-0
Alumel Contact 720102
Chromel Contact 720103
Termination Style Crimp
