AS012-35SC Deutsch AS Series 22-Way Receptacle Kit

Name: AS,22 WAY,FLG,SKT,C KEY,ORANGE
SKU: AS012-35SC
Availability: InStock

Deutsch

Item No. AS012-35SC

Special order item Price on request

Features & details

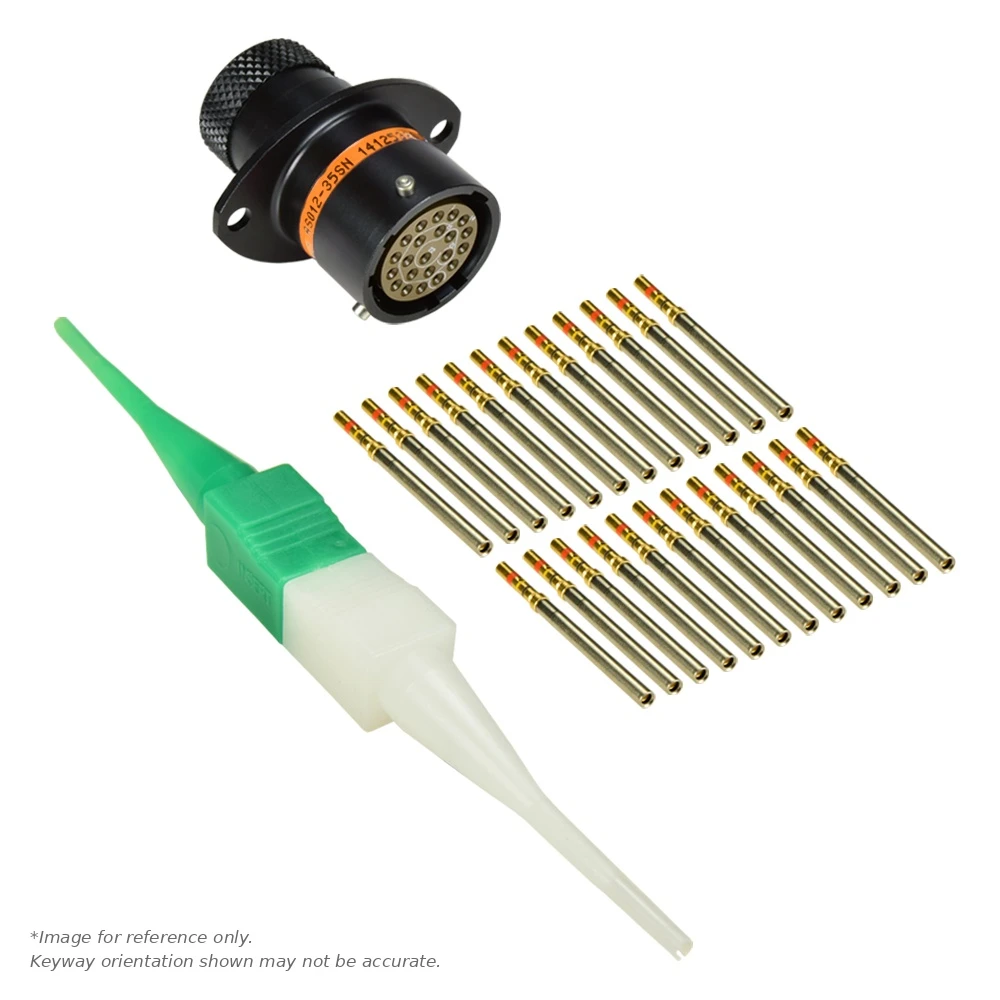

Deutsch Autosport AS012-35SC 22-way flanged receptacle connector kit with socket (female) contacts in the C (orange) key configuration.

The connector's orange band identifies the C keyway (only the same color keyways will mate together)

Kit Includes

(1) 22-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.
(22) Size 22 socket (female) contacts (26-22 AWG, 5 A each) 38943-22
(1) Insert/Removal Tool M81969/14-01

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-07

Shrink Boots

Straight202K142-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	C (Orange)
Series / Range	AS
Shell Size	12
Wire Range (AWG)	26-22
Contact Gender	Socket (Female)
Shell Style	Flanged Oval Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	38943-22
Insert Arrangement	49644
No. Of Positions	22
Contact Size	22
90º Shrink Boot	222K121-25-0
Connector O.D.	.945" (24 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	5 A
Filler Plug	600300-22

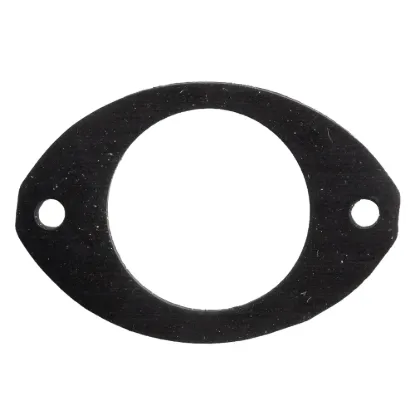

Receptacle Gasket	GV-12
Insert / Removal Tool	M81969/14-01
MFG.	TE Connectivity
Mating Plug Connector	AS612-35PC

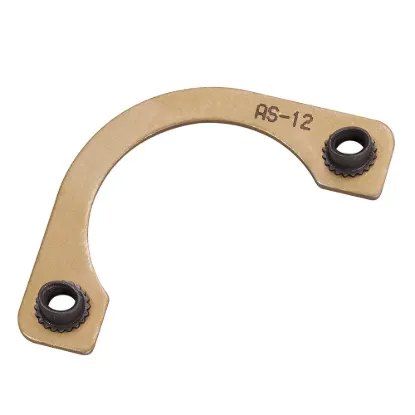

Nut Plate	AS-12
Panel Cutout	.862" (21.9 mm)

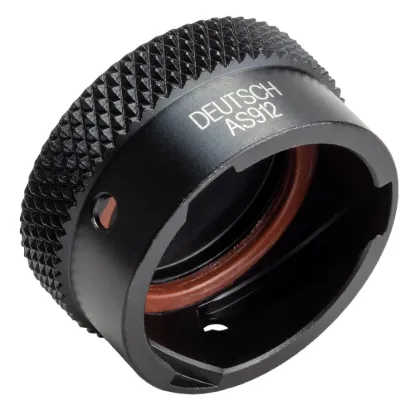

Protective Cap	AS912
DMC Positioner / Turret	M22520/2-07
Shell Material	Aluminum
Souriau Part Nbr	8STA01235SC
Souriau Part Nbr_1	8STA0-12-35SC
Straight Shrink Boot	202K142-25-0
Alumel Contact	605348
Chromel Contact	605346
Termination Style	Crimp

Shipping details

Special order item

This part isn't stocked. Tell us the quantity you need and we'll send pricing and lead time.
