AS024-29PA Deutsch AS Series 29-Way Receptacle Kit

Name: AS,29 WAY,FLG,PIN,A KEY,YELLOW
SKU: AS024-29PA
Availability: InStock

Deutsch

Item No. AS024-29PA

Special order item Price on request

Features & details

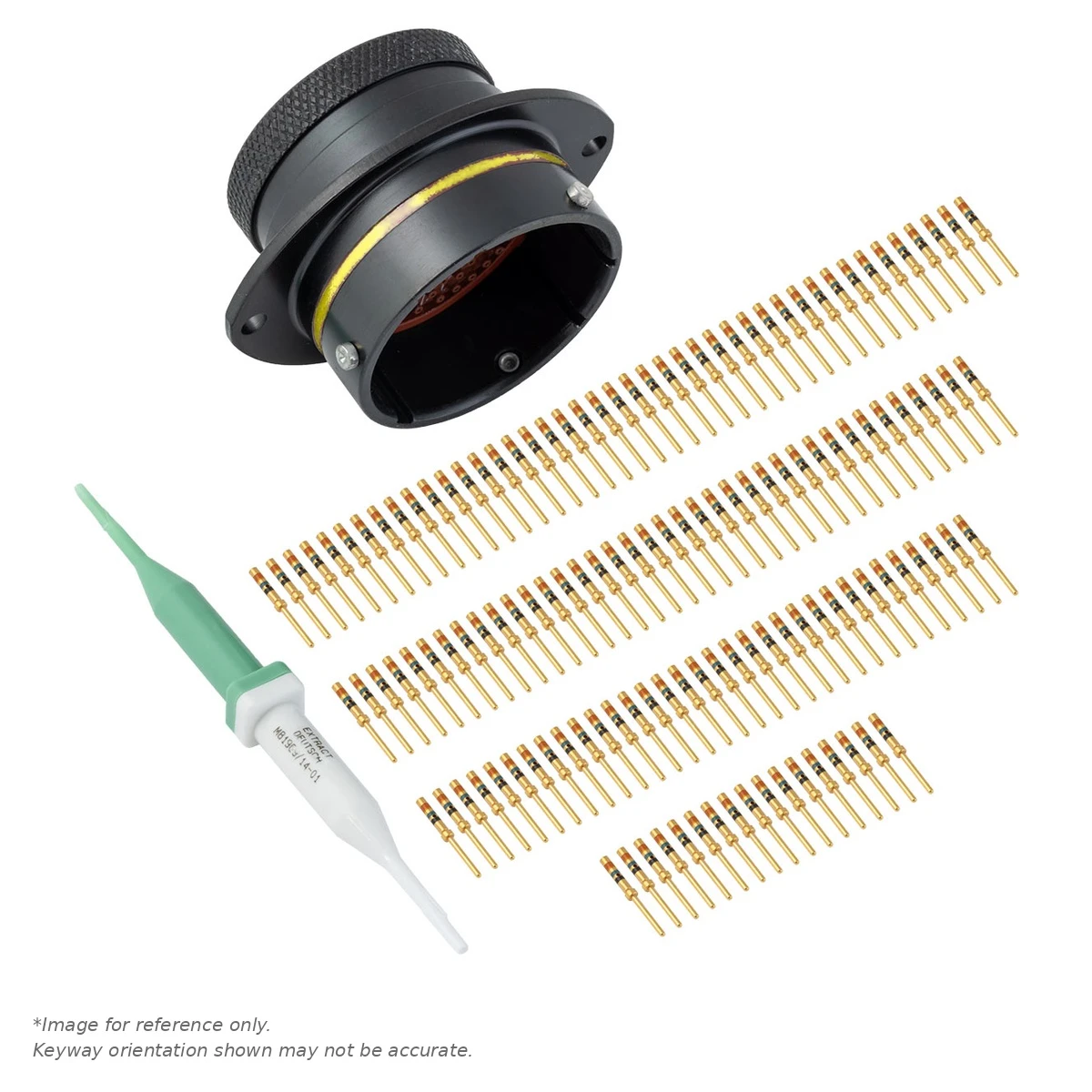

Deutsch AS024-29PA 29-way flanged receptacle connector kit with pin (male) contacts in the A (yellow) key configuration.

The connector's yellow band identifies the A keyway (only the same color keyways will mate together)

Kit Includes

(1) 29-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.
(29) Size 16 pin (male) contacts (20-14 AWG, 20 A each) 38941-16
(1) Insert/Removal Tool M81969/14-03

Required Crimp Tooling

Crimp FrameM22520/1-01
Positioner/TurretM22520/1-04

Shrink Boots

Straight202K163-25-0
90°222K163-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	A (Yellow)
Series / Range	AS
Shell Size	24
Wire Range (AWG)	20-14
Contact Gender	Pin (Male)
Shell Style	Flanged Oval Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	38941-16
Insert Arrangement	24-29
No. Of Positions	29
Contact Size	16
90º Shrink Boot	222K163-25-0
Connector O.D.	1.705" (43.3 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	20 A
Filler Plug	600300-16

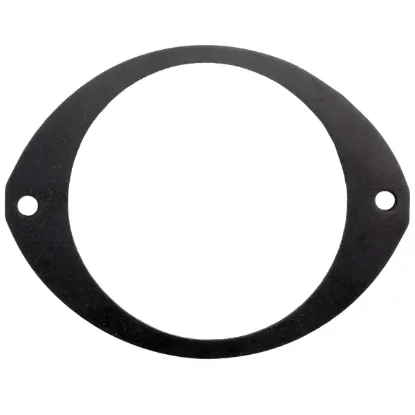

Receptacle Gasket	GV-24
Insert / Removal Tool	M81969/14-03
MFG.	TE Connectivity

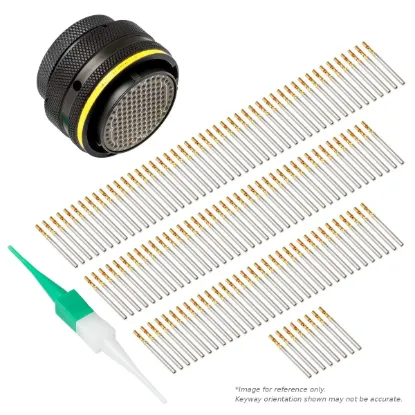

Mating Plug Connector	AS624-29SA

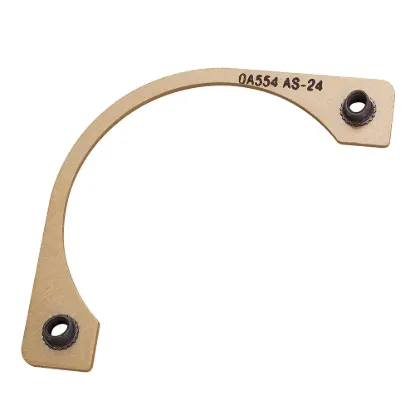

Nut Plate	AS-24
Panel Cutout	1.614" (41 mm)

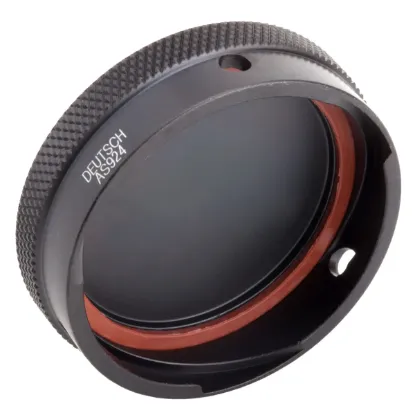

Protective Cap	AS924
DMC Positioner / Turret	M22520/1-04
Shell Material	Aluminum
Souriau Part Nbr	8STA02429PA
Souriau Part Nbr_1	8STA0-24-29PA
Straight Shrink Boot	202K163-25-0
Alumel Contact	N/A
Chromel Contact	N/A
Termination Style	Crimp

Shipping details

Special order item

This part isn't stocked. Tell us the quantity you need and we'll send pricing and lead time.

Documents

CAD File for AS024-29PA

Drawing AS024-29PA

Deutsch AS Series Catalog Pages
