AS120-16SN Deutsch AS Series 16-Way Receptacle Kit

Name: AS,16 WAY,INLINE,SKT,N KEY,RED
SKU: AS120-16SN
Price: 134.40 USD
Availability: InStock

Deutsch

Item No. AS120-16SN

$134.40 / EA

Features & details

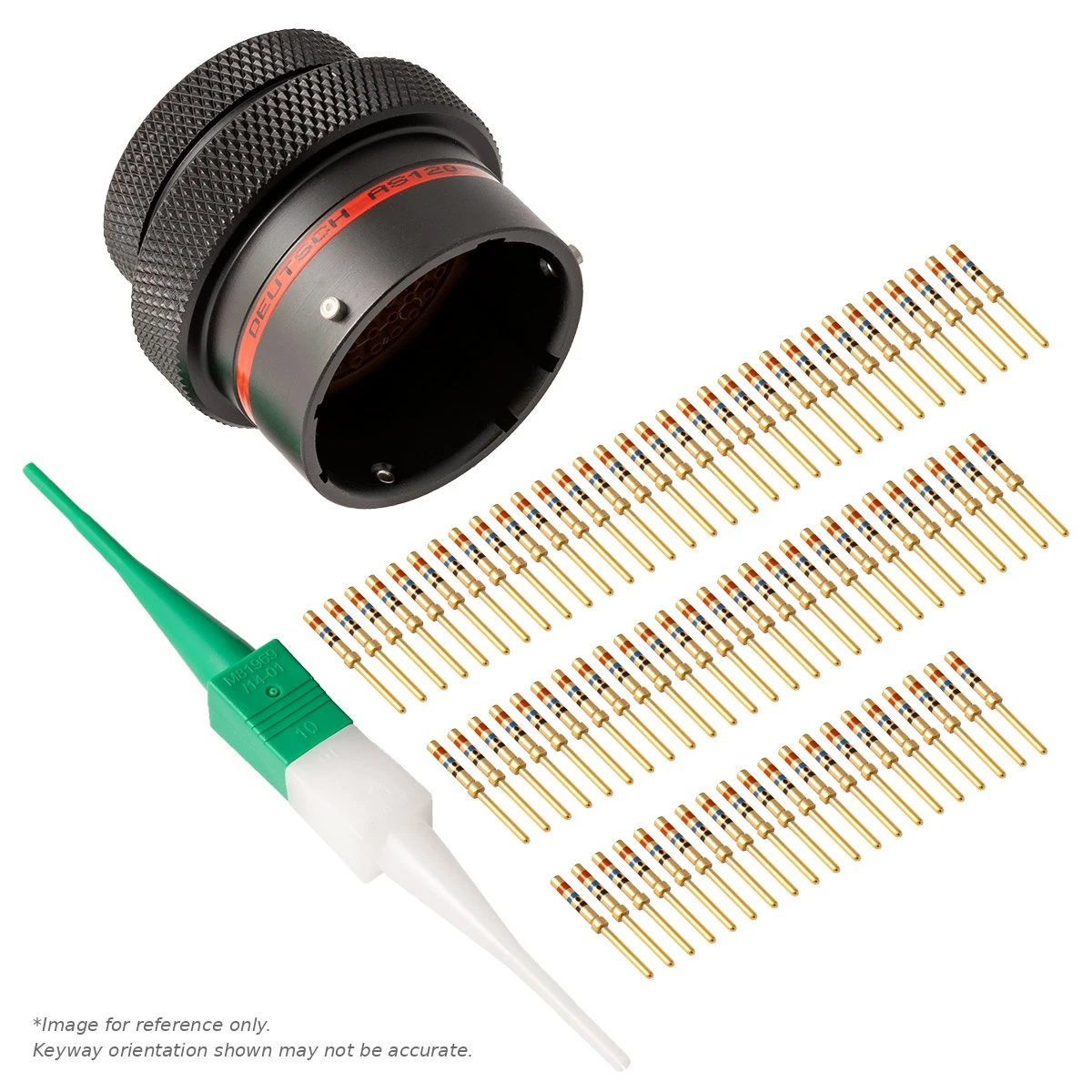

Deutsch AS120-16SN 16-way inline receptacle connector kit with socket (female) contacts in the N (red) key configuration.

The connector's red band identifies the N keyway (only the same color keyways will mate together)

Kit Includes

(1) 16-Way Inline Receptacle Connector Body with Screen and Boot Termination Feature.
(16) Size 16 socket (female) contacts (20-14 AWG, 20 A each) 38943-16
(1) Insert/Removal Tool M81969/14-03

Required Crimp Tooling

Crimp FrameM22520/1-01
Positioner/TurretM22520/1-04

Shrink Boots

Straight202K163-25-0
90°222K163-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	N (Red)
Series / Range	AS
Shell Size	20
Wire Range (AWG)	20-14
Contact Gender	Socket (Female)
Shell Style	Inline Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	38943-16
Insert Arrangement	20-16
No. Of Positions	16
Contact Size	16
90º Shrink Boot	222K163-25-0
Connector O.D.	1.504" (38.2 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	20 A
Filler Plug	600300-16
Insert / Removal Tool	M81969/14-03
MFG.	TE Connectivity
Mating Plug Connector	AS620-16PN
Protective Cap	AS920
DMC Positioner / Turret	M22520/1-04
Shell Material	Aluminum
Souriau Part Nbr	8STA12016SN
Souriau Part Nbr_1	8STA1-20-16SN
Straight Shrink Boot	202K163-25-0
Alumel Contact	N/A
Chromel Contact	N/A
Termination Style	Crimp

Price $134.40 / EA
