AS612-04PA Deutsch AS Series 4-Way Plug Kit

Name: AS,4 WAY,PLG,SKT,A KEY,YELLOW
SKU: AS612-04PA
Availability: InStock

Deutsch

Item No. AS612-04PA

Special order item Price on request

Features & details

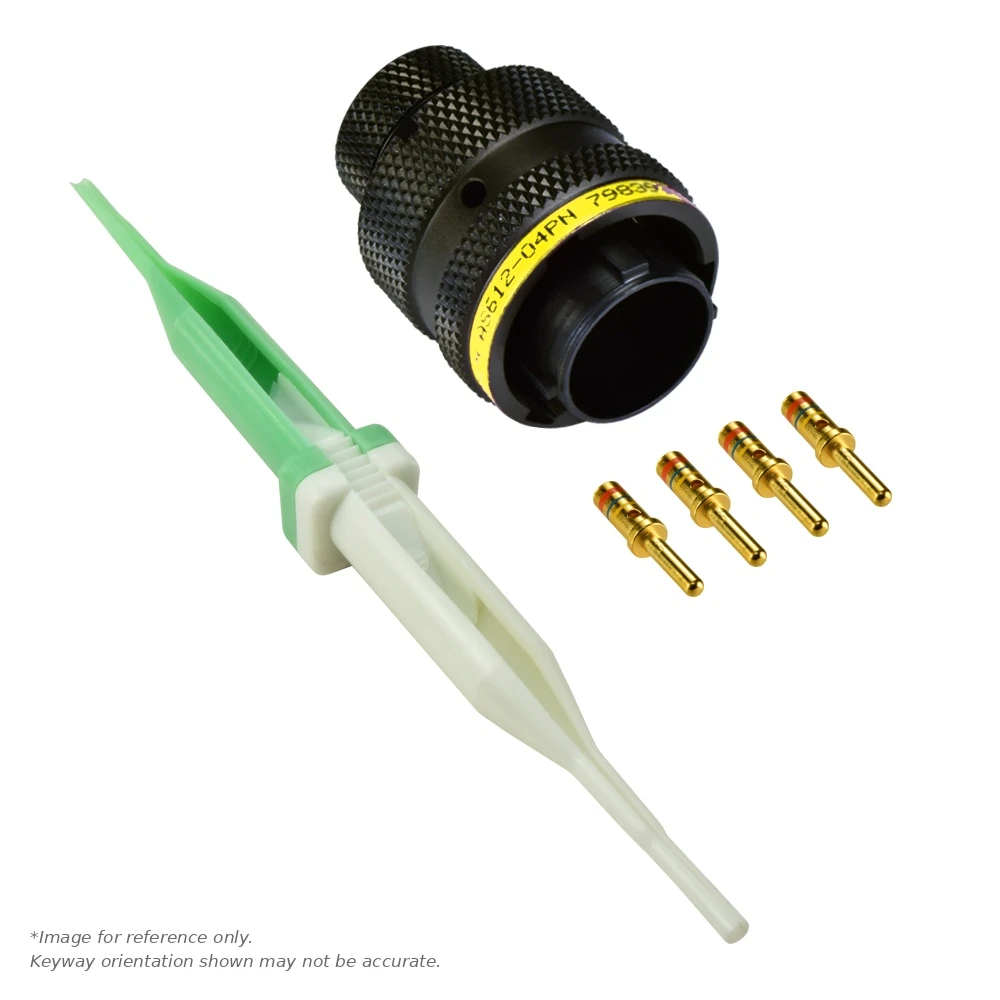

Deutsch AS612-04PA 4-way plug connector kit with pin (male) contacts in the A (yellow) key configuration.

The connector's yellow band identifies the A keyway (only the same color keyways will mate together)

Kit Includes

(1) 4-Way Plug Connector Body with Screen and Boot Termination Feature.
(4) Size 16 pin (male) contacts (20-14 AWG, 20 A each) 38941-16
(1) Insert/Removal Tool M81969/14-03

Required Crimp Tooling

Crimp FrameM22520/1-01
Positioner/TurretM22520/1-04

Shrink Boots

Straight202K142-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	A (Yellow)
Series / Range	AS
Shell Size	12
Wire Range (AWG)	20-14
Contact Gender	Pin (Male)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	38941-16
Insert Arrangement	46360
No. Of Positions	4
Contact Size	16
90º Shrink Boot	222K121-25-0
Connector O.D.	.992" (25.2 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	20 A
Filler Plug	600300-16
Insert / Removal Tool	M81969/14-03
MFG.	TE Connectivity

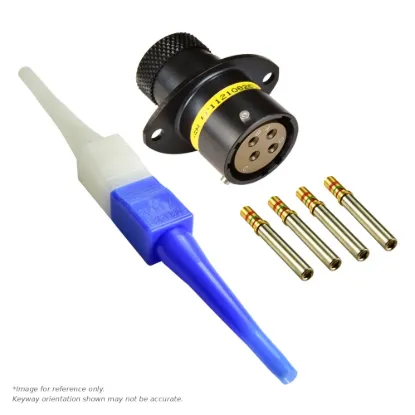

Mating Flange Connector	AS012-04SA

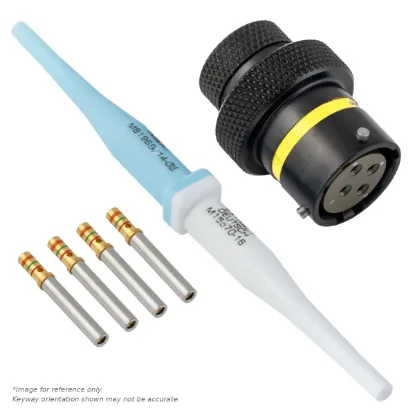

Mating Inline Connector	AS112-04SA
Mating PCB Connector	AS212-04SA
Protective Cap	AS812
DMC Positioner / Turret	M22520/1-04
Shell Material	Aluminum
Souriau Part Nbr	8STA61204PA
Souriau Part Nbr_1	8STA6-12-04PA
Straight Shrink Boot	202K142-25-0
Alumel Contact	N/A
Chromel Contact	N/A
Termination Style	Crimp
