AS620-41SN Deutsch AS Series 41-Way Plug Kit

Name: AS,41 WAY,PLG,PIN,N KEY,RED
SKU: AS620-41SN
Price: 230.38 USD
Availability: InStock

Deutsch

Item No. AS620-41SN

$230.376 / EA

Features & details

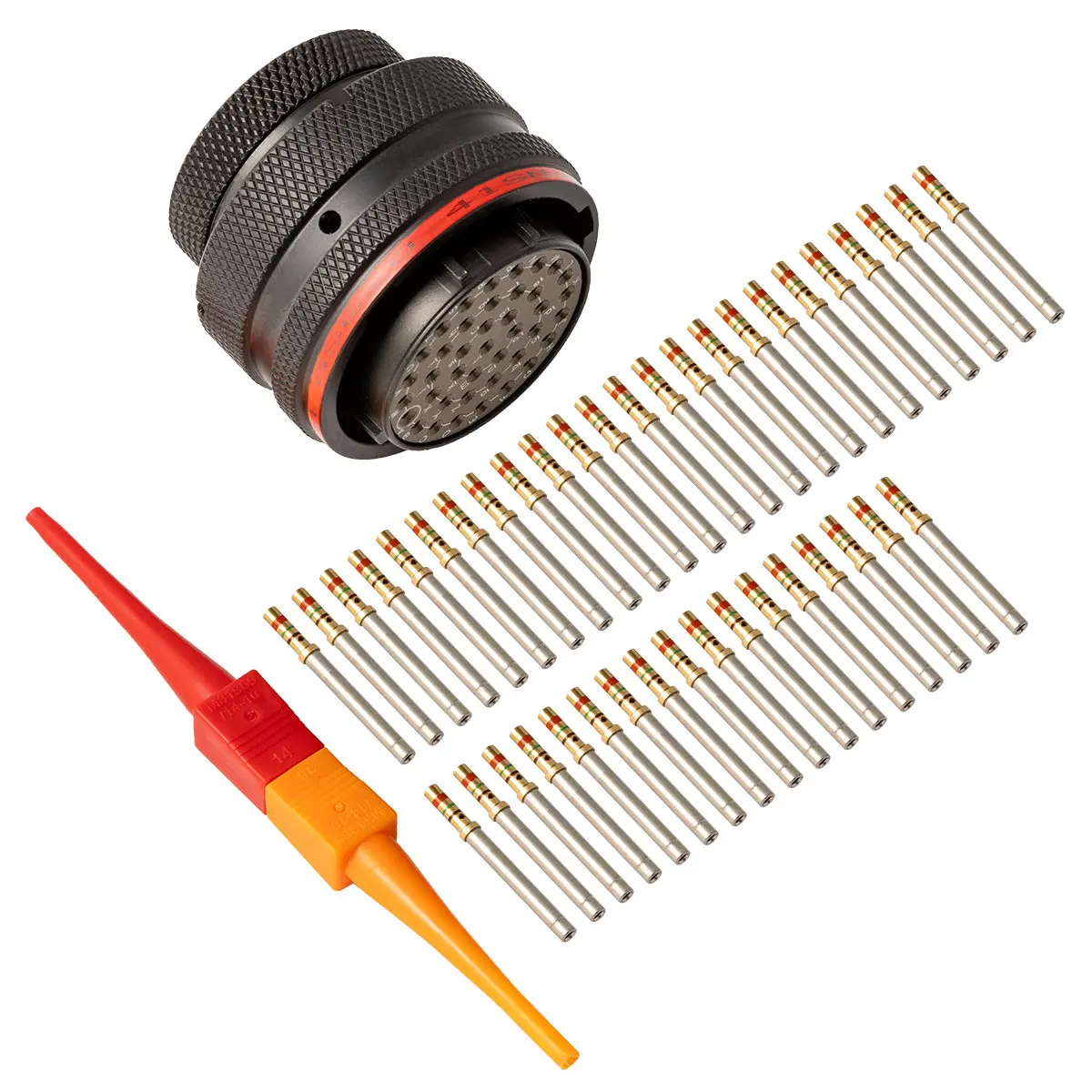

Deutsch AS620-41SN 41-way plug connector kit with socket (female) contacts in the N (red) key configuration.

The connector's red band identifies the N keyway (only the same color keyways will mate together)

Kit Includes

(1) 41-Way Plug Connector Body with Screen and Boot Termination Feature.
(41) Size 20 socket (female) contacts (24-18 AWG, 7.5 A each) 38943-20
(1) Insert/Removal Tool M81969/14-10

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-10

Shrink Boots

Straight202K163-25-0
90°222K163-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	N (Red)
Series / Range	AS
Shell Size	20
Wire Range (AWG)	24-18
Contact Gender	Socket (Female)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	38943-20
Insert Arrangement	20-41
No. Of Positions	41
Contact Size	20
90º Shrink Boot	222K163-25-0
Connector O.D.	1.504" (38.2 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	7.5 A
Filler Plug	600300-20
Insert / Removal Tool	M81969/14-10
MFG.	TE Connectivity

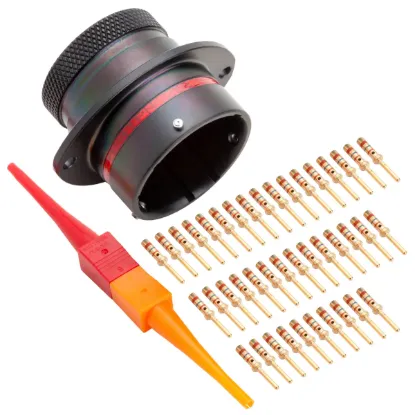

Mating Flange Connector	AS020-41PN

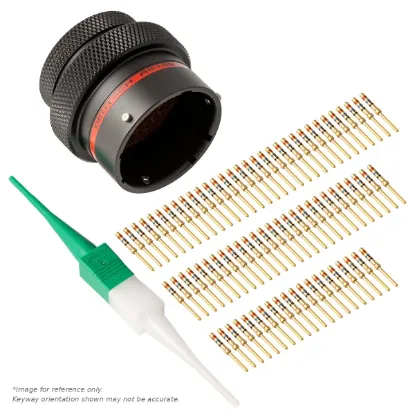

Mating Inline Connector	AS120-41PN
Mating PCB Connector	AS220-41PN
Protective Cap	AS820
DMC Positioner / Turret	M22520/2-10
Shell Material	Aluminum
Souriau Part Nbr	8STA62041SN
Souriau Part Nbr_1	8STA6-20-41SN
Straight Shrink Boot	202K163-25-0
Alumel Contact	720100
Chromel Contact	720101
Termination Style	Crimp

Price $230.376 / EA

Shipping details

Availability: 1 low stock

Quantity:

Documents

CAD File for AS620-41SN

Drawing AS620-41SN

Deutsch AS Series Catalog Pages
