AS622-21PA Deutsch AS Series 21-Way Plug Kit

Name: AS,21 WAY,PLG,SKT,A KEY,YELLOW
SKU: AS622-21PA
Availability: InStock

Deutsch

Item No. AS622-21PA

Special order item Price on request

Features & details

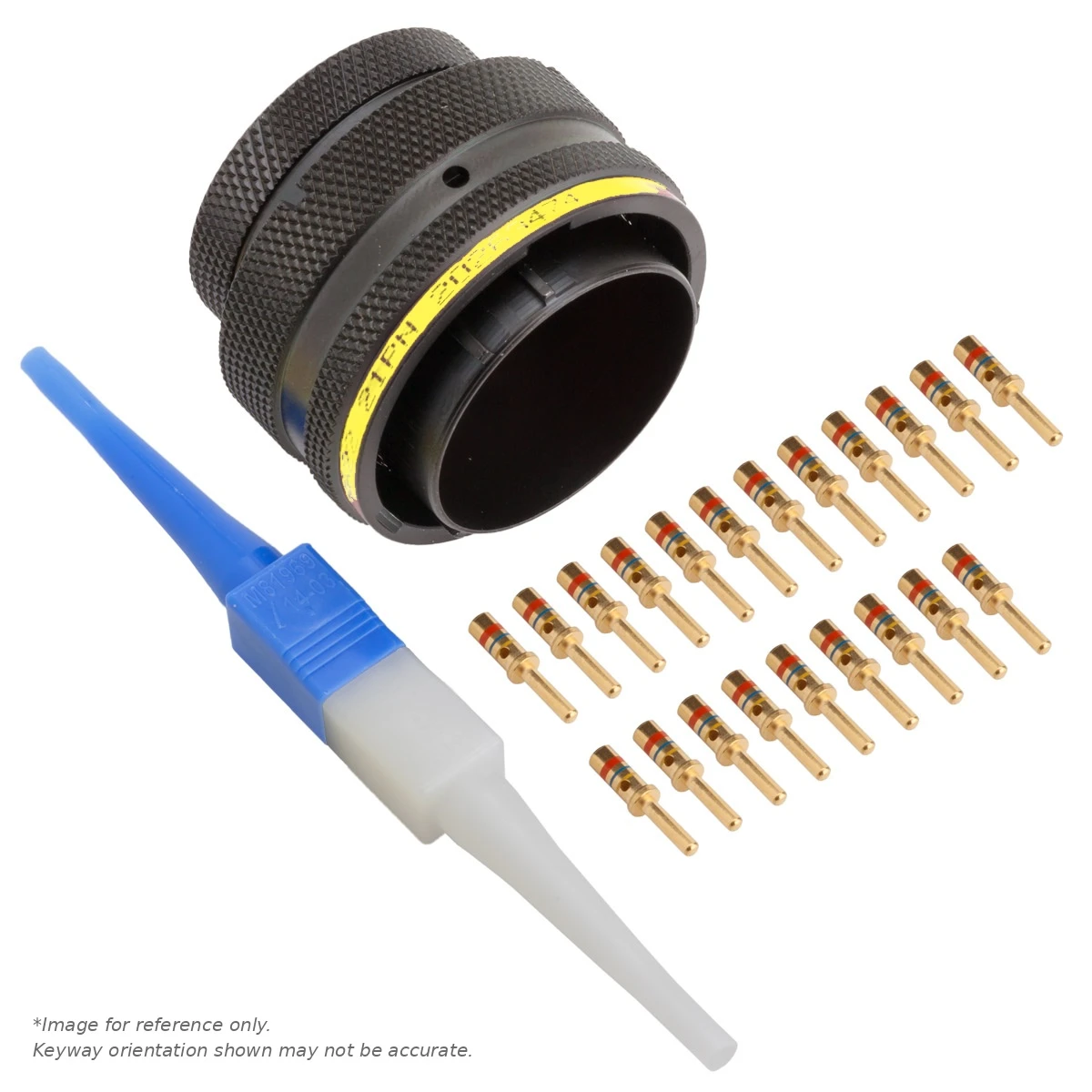

Deutsch AS622-21PA 21-way plug connector kit with pin (male) contacts in the A (yellow) key configuration.

The connector's yellow band identifies the A keyway (only the same color keyways will mate together)

Kit Includes

(1) 21-Way Plug Connector Body with Screen and Boot Termination Feature.
(21) Size 16 pin (male) contacts (20-14 AWG, 20 A each) 38941-16
(1) Insert/Removal Tool M81969/14-03

Required Crimp Tooling

Crimp FrameM22520/1-01
Positioner/TurretM22520/1-04

Shrink Boots

Straight202K163-25-0
90°222K163-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	A (Yellow)
Series / Range	AS
Shell Size	22
Wire Range (AWG)	20-14
Contact Gender	Pin (Male)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	38941-16
Insert Arrangement	22-21
No. Of Positions	21
Contact Size	16
90º Shrink Boot	222K163-25-0
Connector O.D.	1.626" (41.3 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	20 A
Filler Plug	600300-16
Insert / Removal Tool	M81969/14-03
MFG.	TE Connectivity

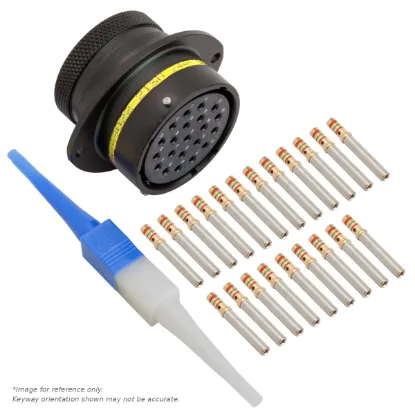

Mating Flange Connector	AS022-21SA

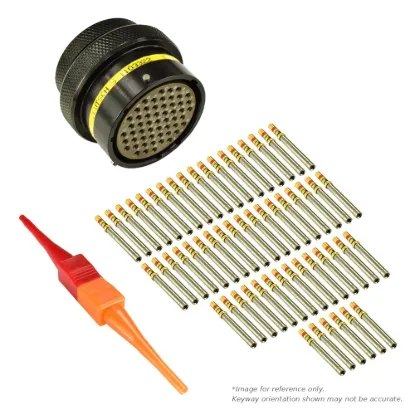

Mating Inline Connector	AS122-21SA
Mating PCB Connector	AS222-21SA
Protective Cap	AS822
DMC Positioner / Turret	M22520/1-04
Shell Material	Aluminum
Souriau Part Nbr	8STA62221PA
Souriau Part Nbr_1	8STA6-22-21PA
Straight Shrink Boot	202K163-25-0
Alumel Contact	N/A
Chromel Contact	N/A
Termination Style	Crimp
