AS624-61PC Deutsch AS Series 61-Way Plug Kit

Name: AS,61 WAY,PLG,SKT,C KEY,ORANGE
SKU: AS624-61PC
Availability: InStock

Deutsch

Item No. AS624-61PC

Special order item Price on request

Features & details

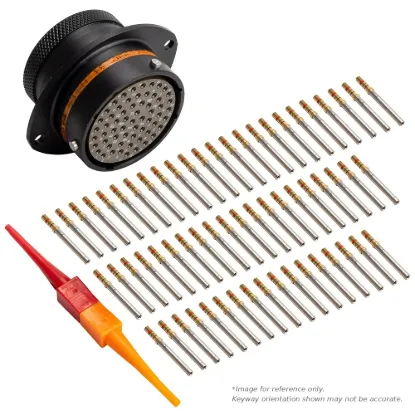

Deutsch AS624-61PC 61-way plug connector kit with pin (male) contacts in the C (orange) key configuration.

The connector's orange band identifies the C keyway (only the same color keyways will mate together)

Kit Includes

(1) 61-Way Plug Connector Body with Screen and Boot Termination Feature.
(61) Size 20 pin (male) contacts (24-18 AWG, 7.5 A each) 38941-20
(1) Insert/Removal Tool M81969/14-10

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-10

Shrink Boots

Straight202K163-25-0
90°222K163-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	C (Orange)
Series / Range	AS
Shell Size	24
Wire Range (AWG)	24-18
Contact Gender	Pin (Male)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	38941-20
Insert Arrangement	24-61
No. Of Positions	61
Contact Size	20
90º Shrink Boot	222K163-25-0
Connector O.D.	1.756" (44.6 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	7.5 A
Filler Plug	600300-20
Insert / Removal Tool	M81969/14-10
MFG.	TE Connectivity
Mating Flange Connector	AS024-61SC
Mating Inline Connector	AS124-61SC
Mating PCB Connector	AS224-61SC
Protective Cap	AS824
DMC Positioner / Turret	M22520/2-10
Shell Material	Aluminum
Souriau Part Nbr	8STA62461PC
Souriau Part Nbr_1	8STA6-24-61PC
Straight Shrink Boot	202K163-25-0
Alumel Contact	720102
Chromel Contact	720103
Termination Style	Crimp
