ASDD006-09SC Deutsch ASDD Series 9-Way Receptacle Kit

Name: ASDD,9 WAY,FLG,SKT,C KEY,ORANGE
SKU: ASDD006-09SC
Availability: InStock

Deutsch

Item No. ASDD006-09SC

Special order item Price on request

Features & details

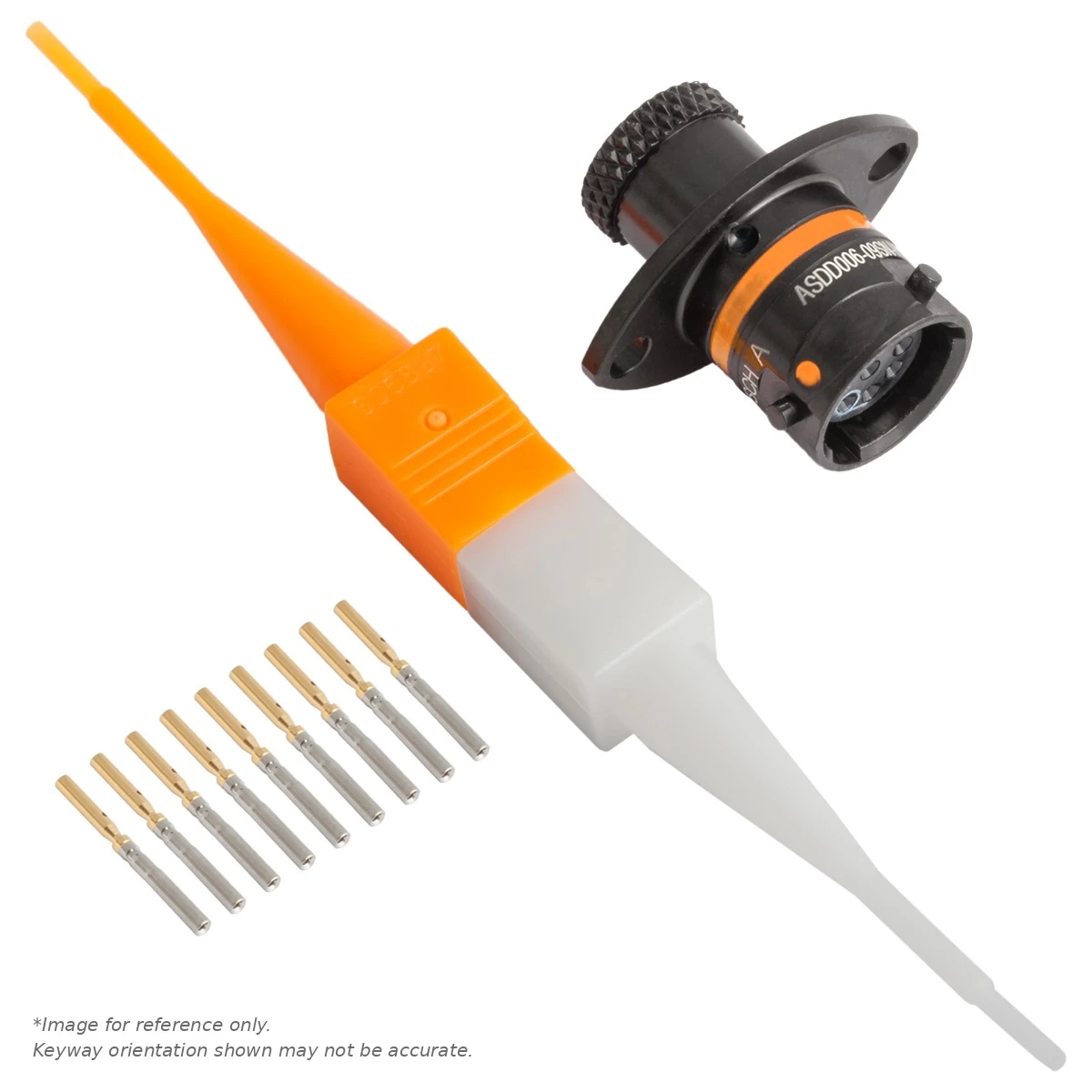

Deutsch Autosport Double Density ASDD006-09SC 9-way flanged receptacle connector kit with socket (female) contacts in the C (orange) key configuration.

The connector's orange band identifies the C keyway (only the same color keyways will mate together)

Kit Includes

(1) 9-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.

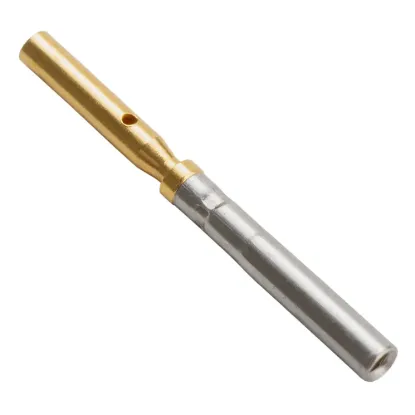

(9) Size 24 socket (female) contacts (30-24 AWG, 3 A each) 605704
(1) Insert/Removal Tool 605837

Required Crimp Tooling

Crimp FrameM22520/2-01

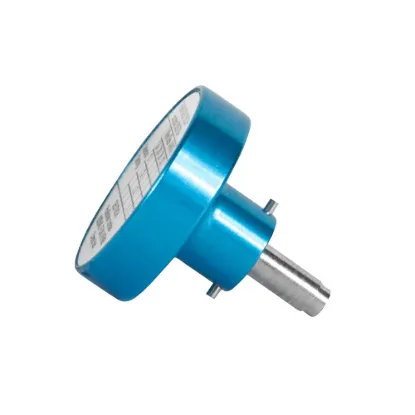

Positioner/TurretK1586

Shrink Boots

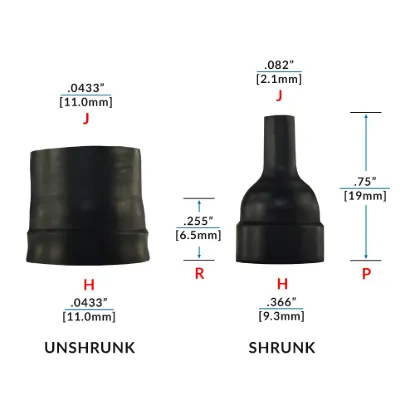

Straight204W221-25-0

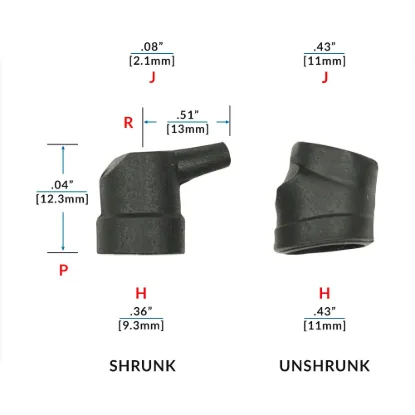

90°224W221-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	C (Orange)
Series / Range	ASDD
Shell Size	6
Wire Range (AWG)	30-24
Contact Gender	Socket (Female)
Shell Style	Flanged Oval Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	605704
Insert Arrangement	46182
No. Of Positions	9
Contact Size	24
90º Shrink Boot	224W221-25-0
Connector O.D.	.571" (14.5 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	3 A
Filler Plug	600300-24

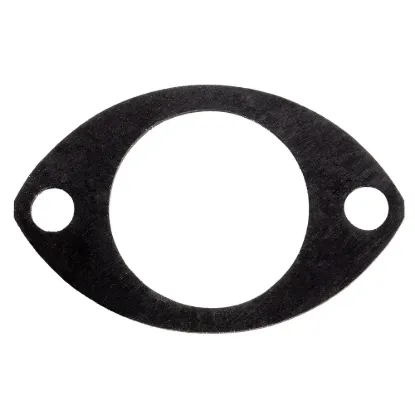

Receptacle Gasket	GV-6
Insert / Removal Tool	605837
MFG.	TE Connectivity

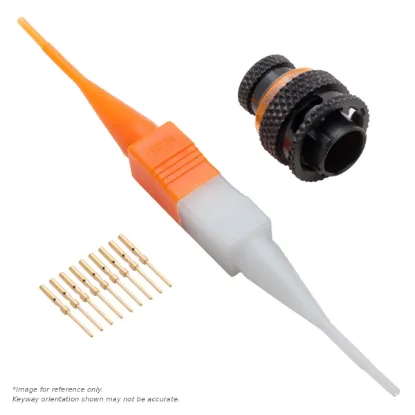

Mating Plug Connector	ASDD606-09PC

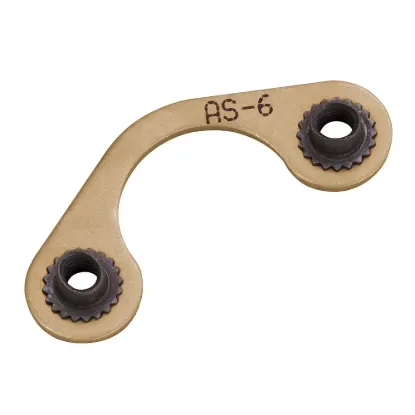

Nut Plate	AS-6

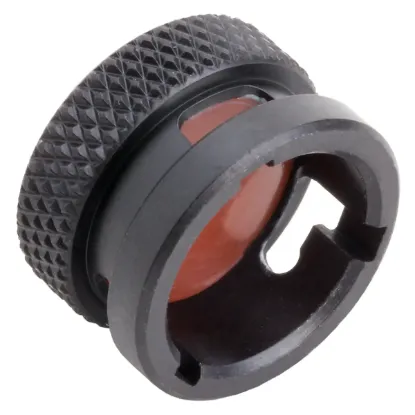

Protective Cap	604029
DMC Positioner / Turret	K1586
Shell Material	Aluminum
Straight Shrink Boot	204W221-25-0
Termination Style	Crimp

Shipping details

Special order item

This part isn't stocked. Tell us the quantity you need and we'll send pricing and lead time.
