ASDD010-23PD Deutsch ASDD Series 23-Way Receptacle Kit

Name: ASDD,23 WAY,FLG,PIN,D KEY,GREEN
SKU: ASDD010-23PD
Availability: InStock

Deutsch

Item No. ASDD010-23PD

Special order item Price on request

Features & details

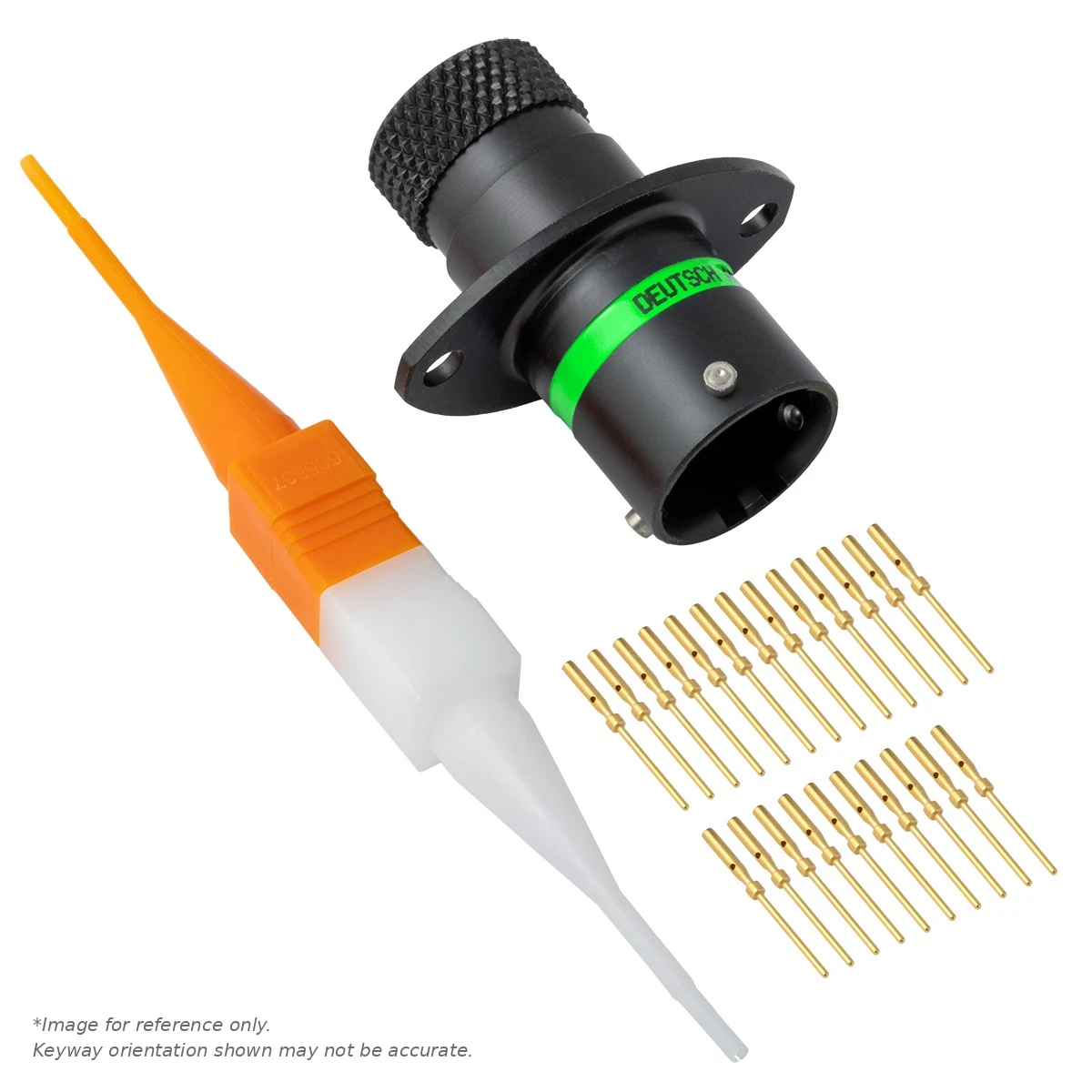

Deutsch Autosport ASDD010-23PD 23-way flanged receptacle connector kit with pin (male) contacts in the D (green) key configuration.

The connector's green band identifies the D keyway (only the same color keyways will mate together)

Kit Includes

(1) 23-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.
(23) Size 24 pin (male) contacts (30-24 AWG, 3 A each) 605719-31
(1) Insert/Removal Tool 605837

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretK1638

Shrink Boots

Straight202K132-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	D (Green)
Series / Range	ASDD
Shell Size	10
Wire Range (AWG)	30-24
Contact Gender	Pin (Male)
Shell Style	Flanged Oval Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	605719-31
Insert Arrangement	46318
No. Of Positions	23
Contact Size	24
90º Shrink Boot	222K121-25-0
Connector O.D.	.768" (19.5 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	3 A
Filler Plug	600300-24
Receptacle Gasket	GV-10
Insert / Removal Tool	605837
MFG.	TE Connectivity

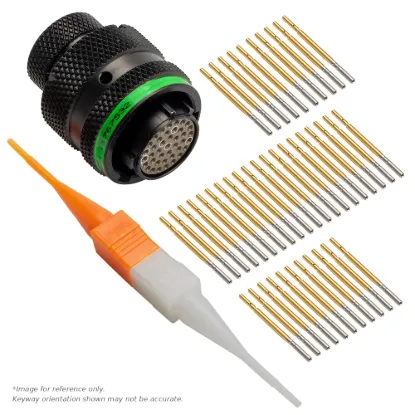

Mating Plug Connector	ASDD610-23SD
Nut Plate	AS-10
Panel Cutout	.685" (17.4 mm)
Protective Cap	AS910
DMC Positioner / Turret	K1638
Shell Material	Aluminum
Straight Shrink Boot	202K132-25-0
Termination Style	Crimp

Shipping details

Special order item

This part isn't stocked. Tell us the quantity you need and we'll send pricing and lead time.

Documents

CAD File for ASDD010-23PD

DRAWING ASDD010-23PD

Deutsch ASDD Series Catalog Page
