M22759/32-16-14 Mil-W-22759/32

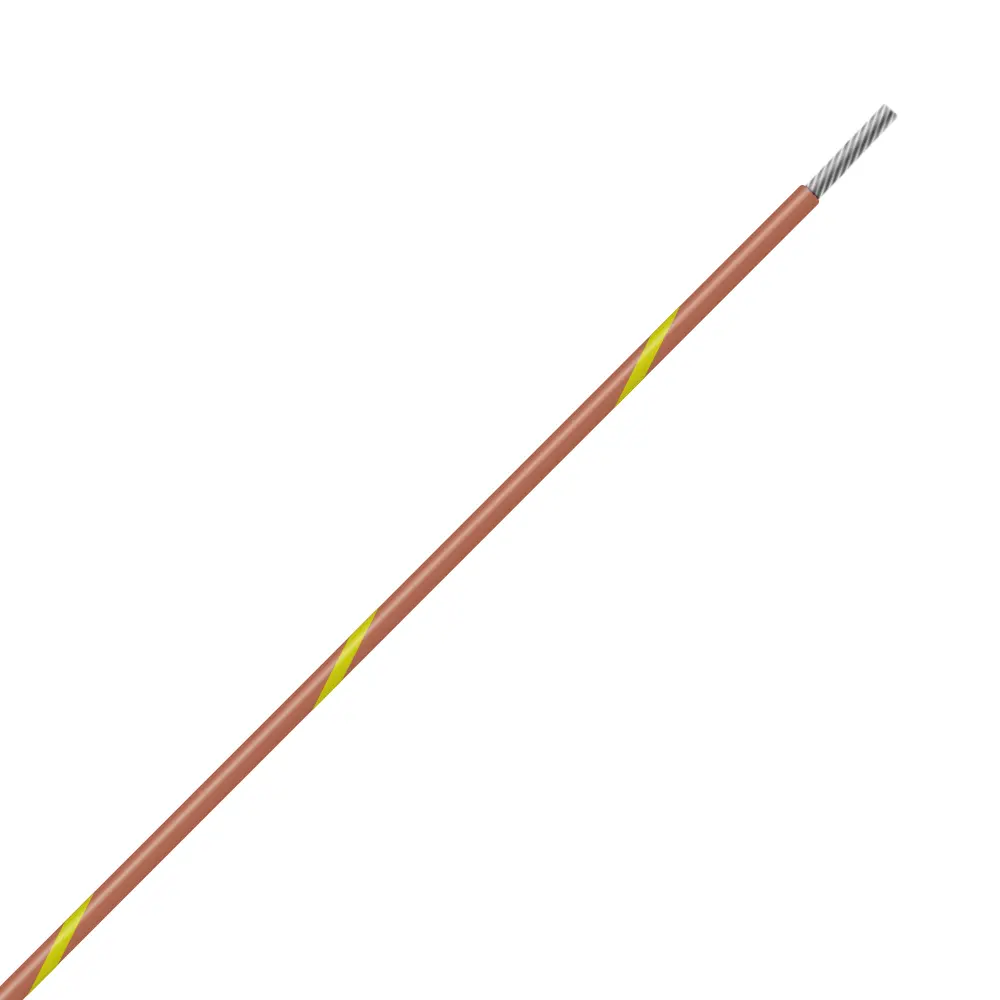

Name: Brown/Yellow Wire Tefzel 16 AWG
SKU: M22759/32-16-14
Price: 1.03 USD
Availability: InStock

Item No. M22759/32-16-14

$1.032 / FT

Price Breaks

PRICE BREAKS - The more you buy, the more you save

PKG	Quantity / FT	Price / FT	Ext. Price
Spooled	100	$1.032	$103.20
Spooled	250	$0.761	$190.25
Spooled	500	$0.617	$308.50
Spooled	1,000	$0.551	$551.00

Features & details

ALL WIRE IS CUT TO LENGTH — RETURNS ARE NOT ACCEPTED

Lightweight-wall airframe and avionics wire: a single layer of irradiation cross-linked, modified ETFE over tin-plated copper. The insulation resists high pH cleaning fluids, fuels, lubricating oils and many other chemicals, and the wire survives test extremes from a −65°C cold bend through 7 hours of ageing at 300°C. Mechanically tough, flame retardant, and lighter than standard-wall M22759/16. Also specified as SAE AS22759/32 and MS22759/32.

Specifications

Specification: MIL-W-22759/32, SAE AS22759/32, MS22759/32
Conductor: Soft annealed tin-plated copper, 19/29 stranding
Insulation: Single layer irradiation cross-linked extruded ETFE, lightweight wall
Voltage rating: 600 V
Temperature rating: 150°C conductor temperature (302°F)
Color coding: MIL-STD-104
Cabling: May be assembled to NEMA WC 27500 using Type SB components
RoHS: Compliant

16 AWG Dimensions and Electrical Data

Conductor area	1.23 mm² 2,427 circular mils
Stranding	19/29
Nominal diameter	.068 in 1.73 mm
Weight	8.3 lb/1000 ft 12.3 kg/1000 m
Conductor resistance @ 20°C	4.81 Ω/1000 ft 15.8 Ω/km

Nominal values unless stated otherwise.

Wire Identification

Green or white print on the insulation
Military part number including AWG size

Standard Uses

Aircraft wire
Marine wire
Automotive wire
Motorsport and race car wire
Data acquisition looms
Chassis looms

Mil-Spec Wiring Color Codes

0 Black	1 Brown	2 Red	3 Orange	4 Yellow
5 Green	6 Blue	7 Violet	8 Grey	9 White

Product specification

Wire Spec	M22759/32
Jacket Color	Brown
Stripe Color	Yellow
Min Purch Qty	100
Wire AWG	16

Price $1.032 / FT

Shipping details

Availability: 15,167 Feet In Stock, ready to be shipped

Made to order · ships in 2–3 business days

Wire and cable are supplied as continuous, unspliced lengths and are subject to Prowire's minimum cut-length policy. Click here for more details

This product has a minimum quantity of 100
