DTM400 Deutsch DTM Series MINI Master Kit

Name: DEUTSCH DTM MINI MASTER KIT
SKU: DTM400
Price: 210.35 USD
Availability: InStock

Item No. DTM400

$210.347 / EA

What's in this kit

Some items in this kit may not be listed below, as they may not be available for purchase separately.

Part	In kit	Price
WM-4S WM-4S 9,219 in stock	×4	$0.13
WM-2S WM-2S 10,552 in stock	×9	$0.13
WM-6P WM-6P 9,244 in stock	×4	$0.115
WM-12P WM-12P 4,210 in stock	×2	$0.225
WM-12S WM-12S 2,280 in stock	×2	$0.206
DTM04-2P DTM04-2P 8,330 in stock	×9	$0.785
0460-010-20141 PIN, SOLID, SIZE 20, 16-18 AWG, NI 4,737 in stock	×40	$0.423
DTM06-12SA DTM06-12SA 56 in stock	×2	$4.551
DTM04-08PA DTM04-08PA 690 in stock	×2	$3.208
DT-RT1 DT DTM DTP WEDGELOCK REMOVAL TOOL 34 in stock	×1	$23.60
1011-026-0205 CLIP, PA66, GRY, 508MM HOLE, ST 2,995 in stock	×5	$0.54
DTM06-3S DTM06-3S	×5	$0.81
DTM04-12PA DTM04-12PA 1,002 in stock	×2	$4.41
DTM06-08SA DTM06-08SA 391 in stock	×2	$3.407
0460-202-20141 PIN, SOLID, SIZE 20, 20AWG, NI 15,585 in stock	×100	$0.164
WM-8P WM-8P 891 in stock	×2	$0.339
WM-8S WM-8S 2,864 in stock	×2	$0.20
0462-005-20141 SOC, SOLID, SIZE 20, 16-18 AWG, NI 3,859 in stock	×40	$0.872
0413-204-2005 SEALING PLUG, SIZE 20, RED 13,641 in stock	×50	$0.089
0462-201-20141 SOC, SOLID, SIZE 20, 20 AWG, NI	×100	$0.958
WM-2P WM-2P 17,516 in stock	×9	$0.065
DTM04-6P DTM04-6P 2,350 in stock	×4	$2.958
DTM04-4P DTM04-4P 1,509 in stock	×4	$1.461
WM-3P WM-3P 1,731 in stock	×5	$0.128
DTM04-3P DTM04-3P 2,851 in stock	×5	$1.215
WM-3S WM-3S 3,894 in stock	×5	$0.073
WM-4P WM-4P 1,855 in stock	×4	$0.179
WM-6S WM-6S 8,409 in stock	×4	$0.124
DTM06-6S DTM06-6S 1,802 in stock	×4	$1.823
DTM06-4S DTM06-4S 183 in stock	×4	$1.265
DTM06-2S DTM06-2S 2,612 in stock	×9	$0.568

Scroll the list to see all 31 parts

Features & details

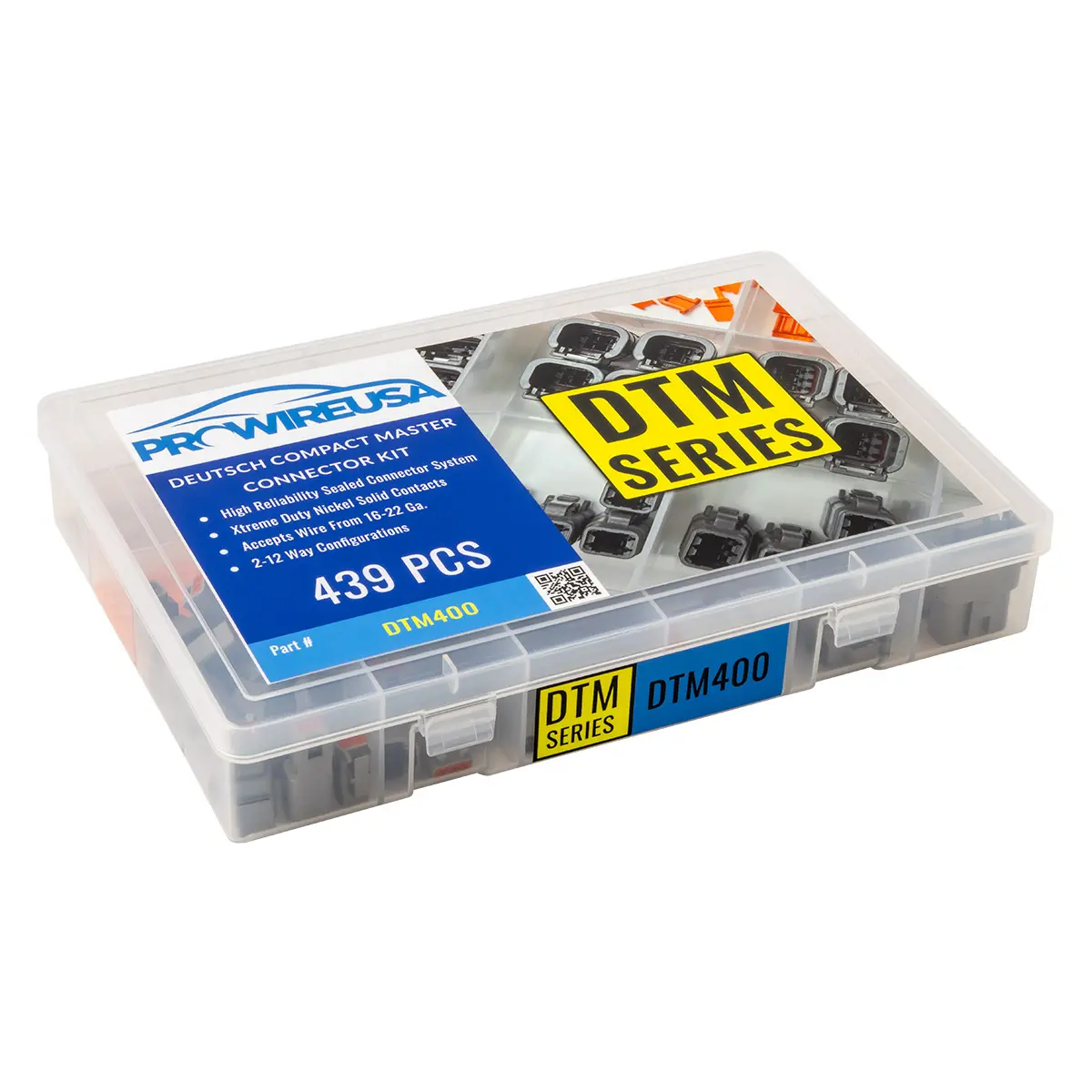

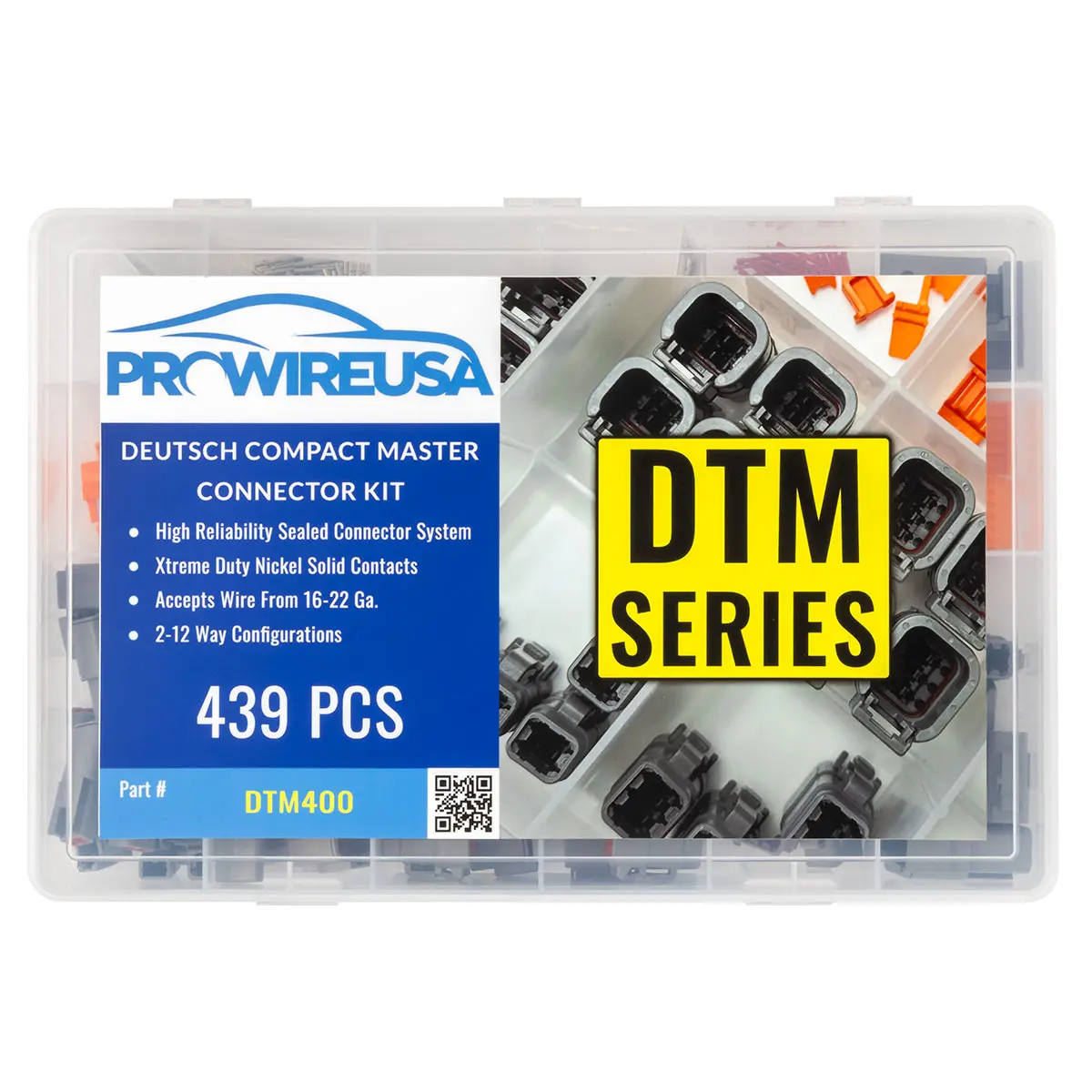

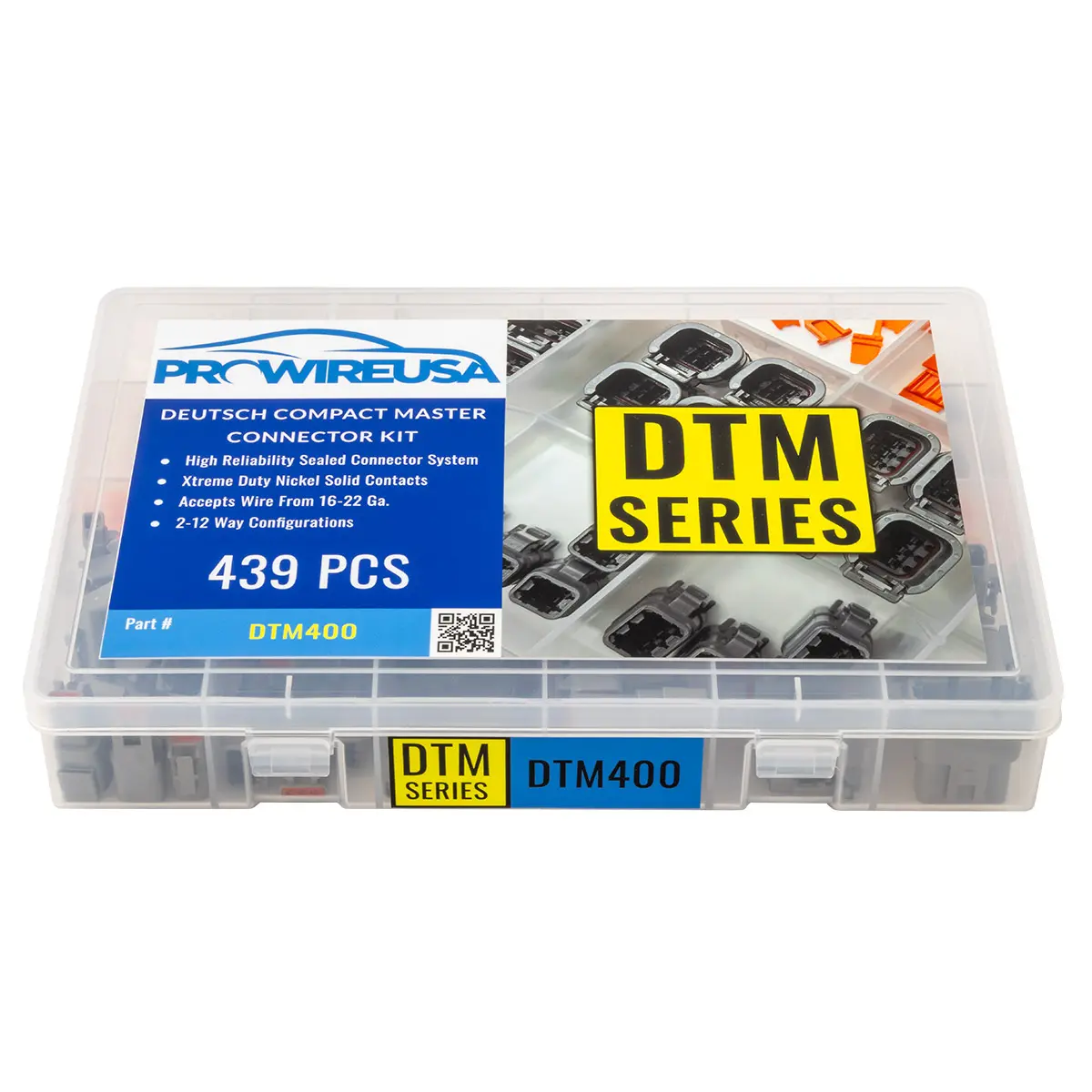

We are proud to offer our MINI Master DTM series kits. These connector kits come in a sturdy plastic box with genuine TE/Deutsch components. This mini DT series kit is a miniature version of our DTM Monster Master Kit-1 with over 400 pieces. Add a crimper, and you are good to go. See the tooling section below for crimp tool recommendations.

DT M series connectors and contacts are compatible with size 20 contacts and tooling and are not cross-compatible with either DT or DTP series connectors. The size 20 contact is rated for 7.5 amps continuous.

Box dimensions: 13-1/8 x 9 x 2-5/16

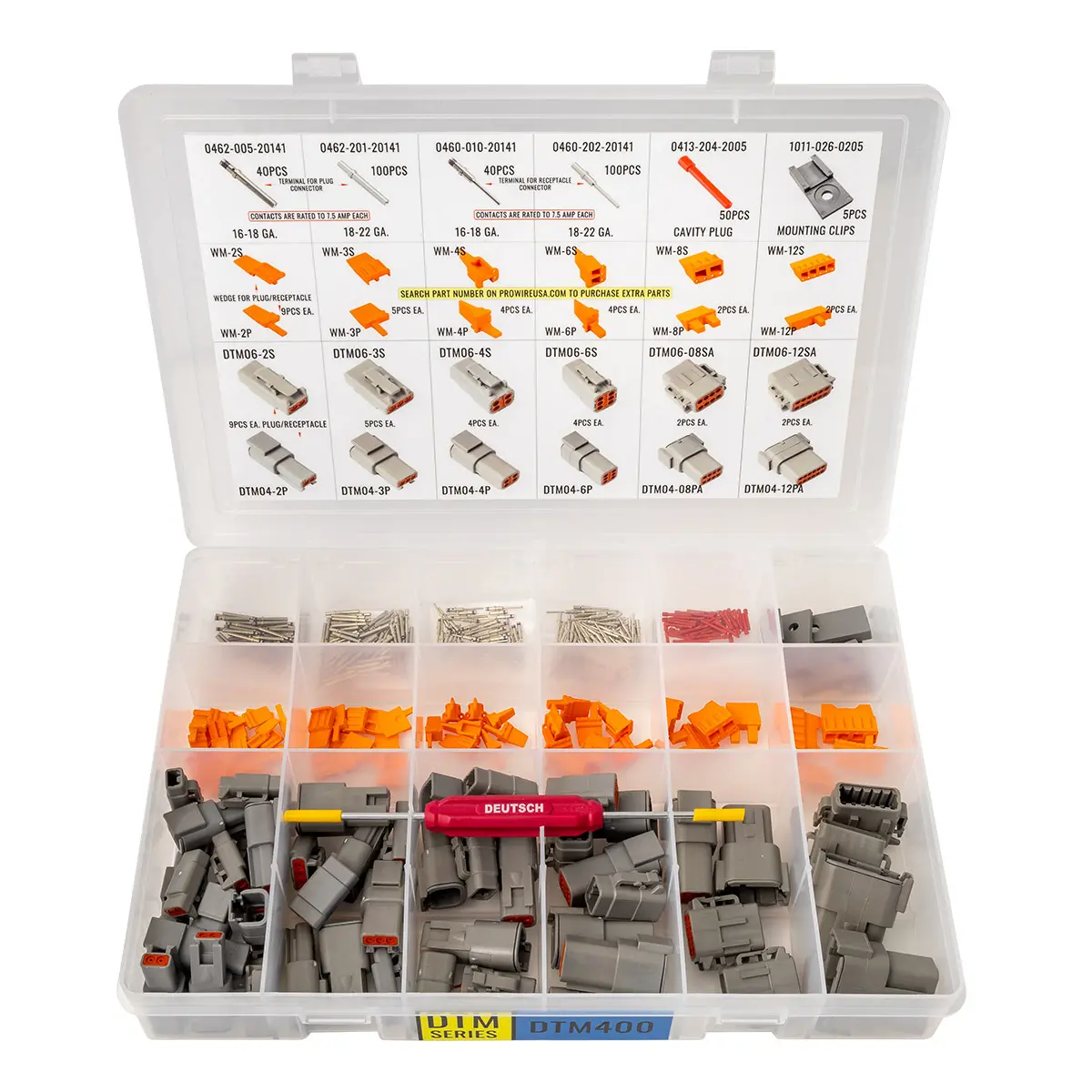

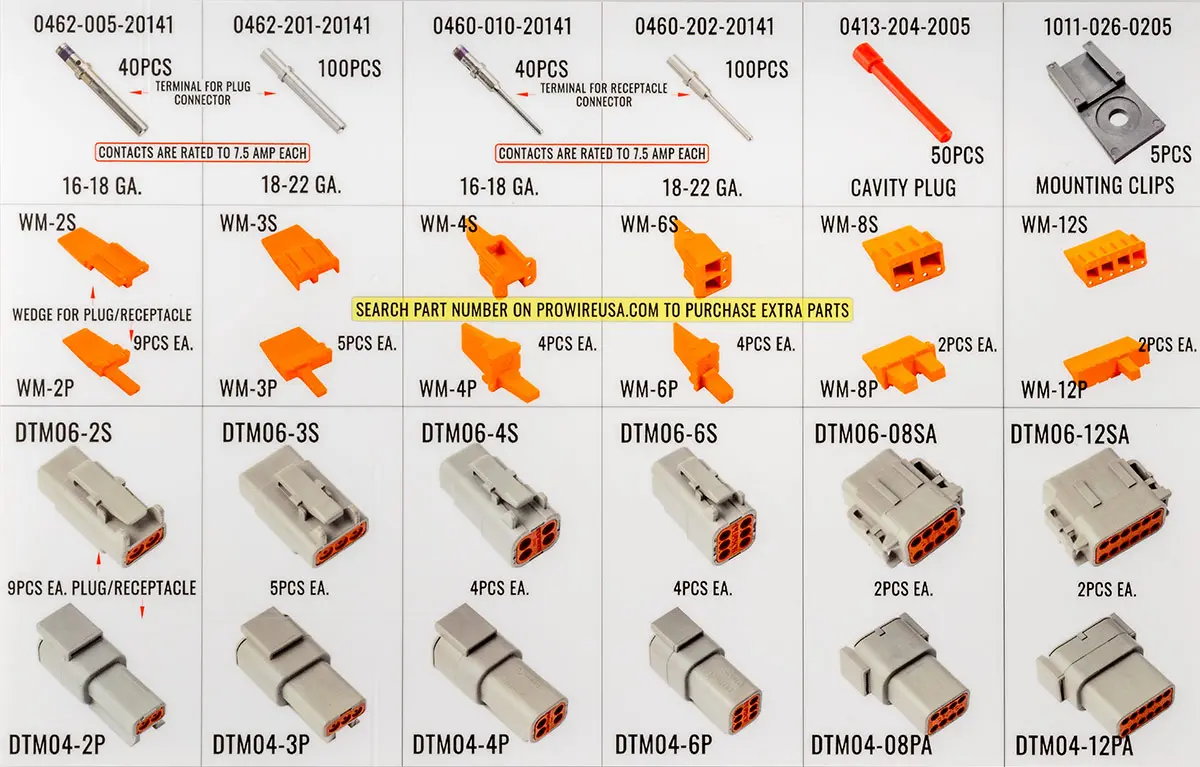

What's in the Kit?

(9) 2-way kits with corresponding wedgelocks
(5) 3-way kits with corresponding wedgelocks
(4) 4-way kits with corresponding wedgelocks
(4) 6-way kits with corresponding wedgelocks
(2) 8-way kits with corresponding wedgelocks
(2) 12-way kits with corresponding wedgelocks
(40) 0462-005-20141 contacts 18-16ga
(100) 0462-201-20141 contacts 18-22ga
(40) 0460-010-20141 contacts 18-16ga
(100) 0460-202-20141 contacts 18-22ga
(50) 0413-204-2005 cavity plugs
(5) 1011-026-0205 mounting brackets
(1) DT-RT1 wedgelock removal tool
This kit is available with black connector housings.
