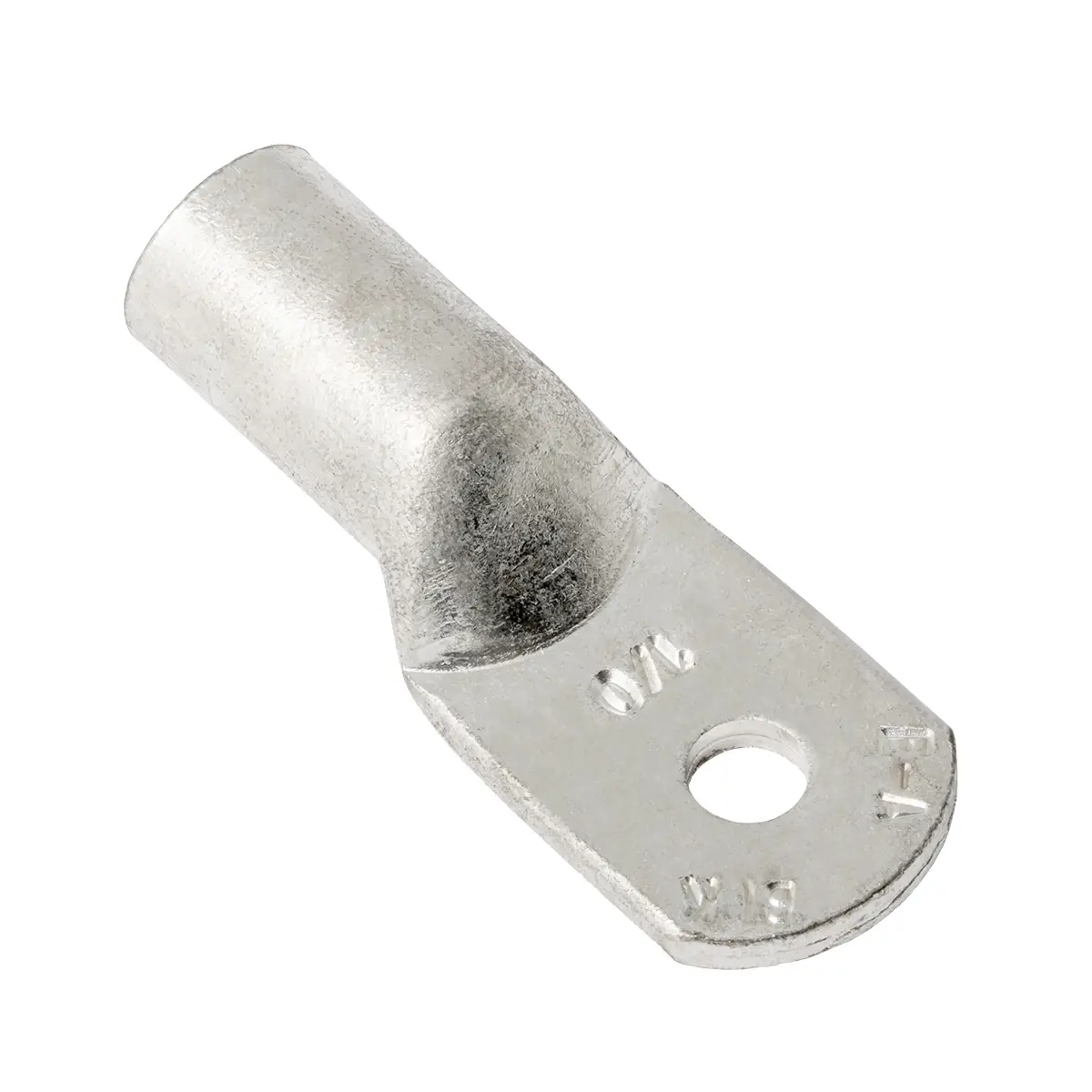

DL1014 Dura Lug, Extra Heavy Duty, Tinned Copper, 1/0 AWG, 1/4" (M6) Stud, Eyelet

ASK
Item No. DL1014
$4.82 / EA

Price Breaks

PRICE BREAKS - The more you buy, the more you save
Quantity / EA Price / EA Ext. Price
1 $4.82 $4.82
10 $4.717 $47.17
25 $4.573 $114.33
50 $4.347 $217.35
100 $4.017 $401.70
250 $3.79 $947.50
500 $3.564 $1782.00
1,000 $3.317 $3317.00
Features & details

This extra-heavy-duty battery cable lug has a seamless construction and is perfect for automotive and industrial applications. It is designed for all types of battery cables and Tefzel wire. See below for heat-shrink tubing options.

  • Wire AWG: 1/0 AWG (stamped on the terminal)
  • Stud Size: 1/4" (M6)
  • Material: Tinned Copper
  • UL/CUL Listed
  • Work-hardened Tang
  • Can be crimped or soldered
  • Made in USA
Crimp tool options
  • Hex Crimp Tool18840 (use BLACK die)
Technical Information
  • Barrel O.D.: .580" (14.732 mm)
  • Barrel I.D. (C): .445" (11.303 mm)
  • Tang Width (W): .86" (21.844 mm)
  • Tang Length (F): .96" (24.384 mm)
  • Barrel Length (D): .85" (21.59 mm)
  • Overall Length (E): 2.24" (56.896 mm)
  • Tang Thickness (T): .133" (3.378 mm)
Heat-shrink options

Please see the Related Items, Crimp Tools tabs, or Documents section for more information.

Product specification
Stud Tab Size 46026
TERMINAL PLATING Tinned Copper
STYLE Extra Heavy Duty
TERMINAL TYPE Eyelet
SERIES DURA-LUG
MANUFACTURER ASK
STUD SIZE 1/4" (M6)
WIRE SIZE / RANGE 1/0 AWG
BARREL TYPE Tublar
THICKNESS Extra Heavy Duty
