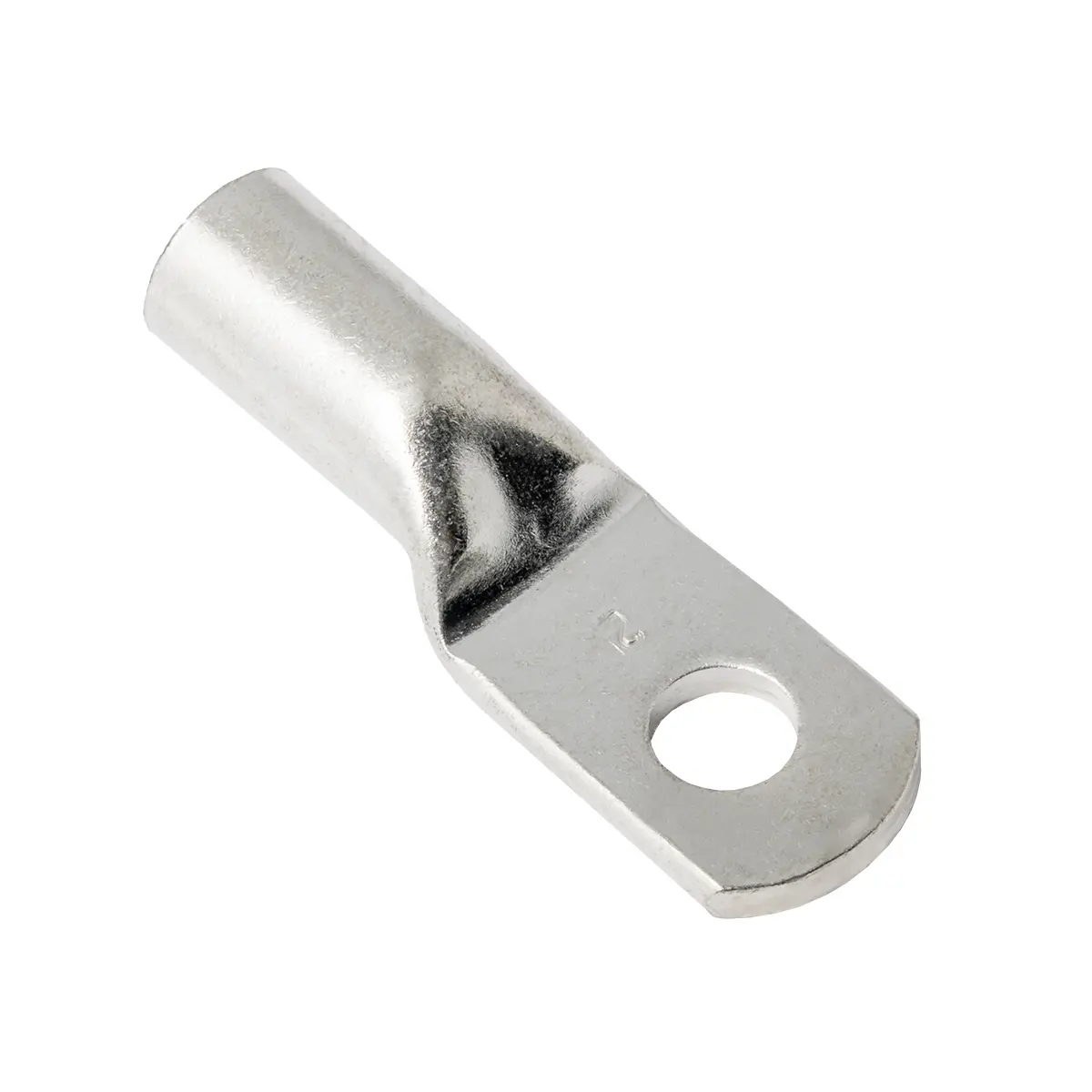

This extra-heavy-duty battery cable lug has a seamless construction and is perfect for automotive and industrial applications. It is designed for all types of battery cables and Tefzel wire. See below for heat-shrink tubing options.
- Wire AWG: 2 AWG (stamped on the terminal)
- Stud Size: 5/16" (M8)
- Material: Tinned Copper
- UL/CUL Listed
- Work-hardened Tang
- Can be crimped or soldered
- Made in USA
Crimp tool options
- Hex Crimp Tool18840 (use PINK die)
Technical Information
- Barrel O.D.: .480" (12.192 mm)
- Barrel I.D. (C): .385" (9.779 mm)
- Tang Width (W): .69" (17.526 mm)
- Tang Length (F): .86" (21.844 mm)
- Barrel Length (D): .6" (15.24 mm)
- Overall Length (E): 2.13" (54.102 mm)
- Tang Thickness (T): .121" (3.073 mm)
Heat-shrink options
Please see the Related Items, Crimp Tools tabs, or Documents section for more information.
