MS3474A16-14S Mil-Spec Circular Connector 14-Way Receptacle Kit

Name: 14 WAY FLANGED RECEPTACLE-SKT
SKU: MS3474A16-14S
Price: 76.72 USD
Availability: InStock

Aero-Electric

Item No. MS3474A16-14S

$76.72 / EA

Features & details

The MS3474A16-14S is a 14-way jam nut receptacle circular connector kit with socket (female) contacts. The connector housing is black anodized over aluminum. To create a mated pair, a plug connector kit is required.

This connector features a mixed arrangement, utilizing two different contact sizes.

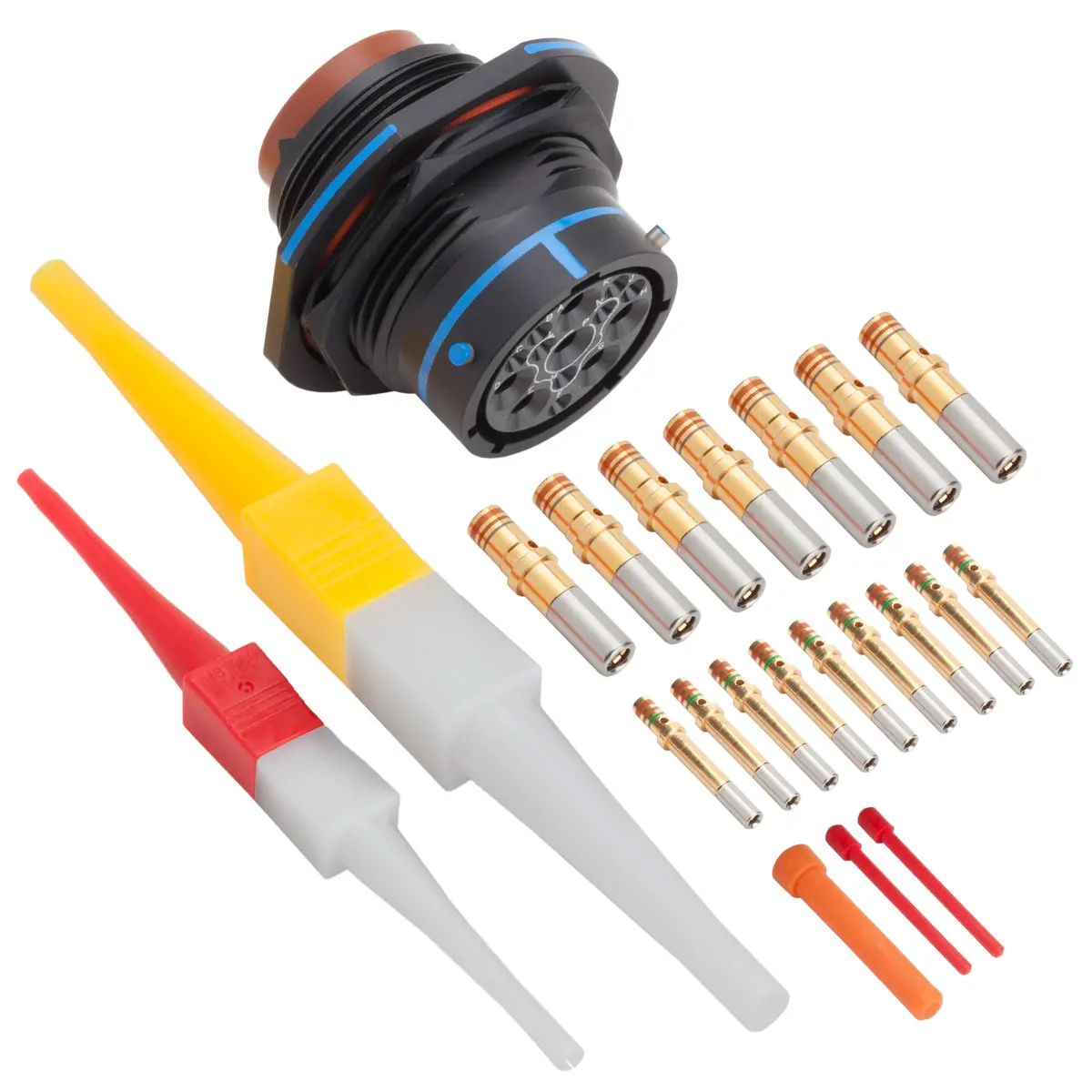

MS3474A16-14S Kit Includes

(1) 14-Way Jam Nut Receptacle Connector Body.

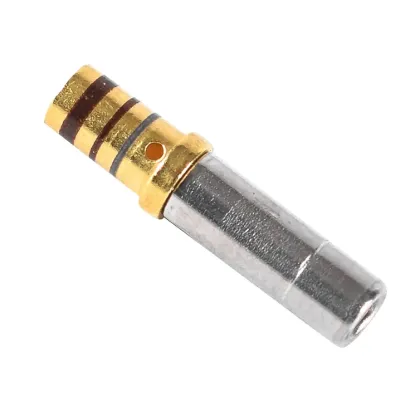

(6) Size 12 socket (female) contacts, 14-12 AWG, 23 A ea. M39029/5-118

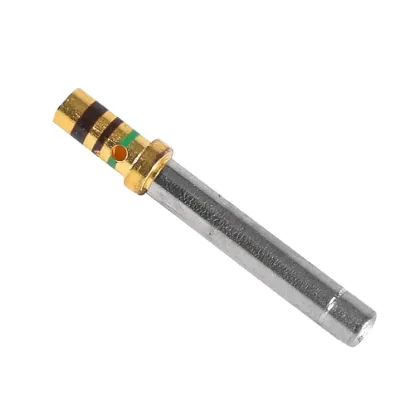

(8) Size 20 socket (female) contacts, 18-22 AWG, 7.5 A ea. M39029/5-115
(1) Insert/Removal Tool M81969/14-02
(1) Insert/Removal Tool M81969/14-04
(1) Cavity Plug MS27488-20-2 The quantity included varies.
(1) Cavity Plug MS27488-12-2 The quantity included varies.

Mating Connector

Please refer to the Mating Connectors tab on this page.

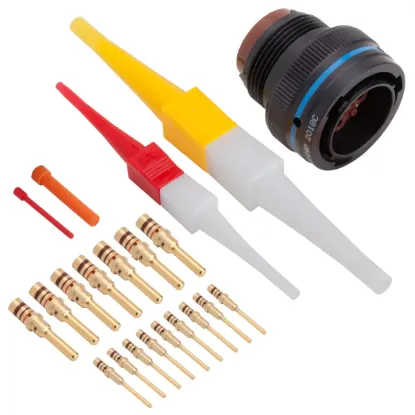

PlugMS3476A16-14P

Required Crimp Tooling

DMC Crimp FrameM22520/1-01 (AF8) requires TH1A
DMC TurretM22520/1-02 (TH1A) requires AF8
DMC PositionerK1S requires AFM8 (size 20 contacts only)
DeutschHDT-48-00 all-in-1 tool.
Econo Tool18860 size 20 contacts only.
Econo Tool18890 size 12 contacts only.

Shrink Boots

Straight202K153-25-0
90°222K152-25-0

Shrink Boot Adapter

M85049/60-2G16A

Technical Information

The Specifications tab lists technical data as well as other useful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.

Product specification

Mounting Type	Jam Nut
Contact Gender	Socket, Socket (Female)
Plating	Black
Boot 90	222K142-25-0
Shrink Boot Adapter	M85049/60-2G16A, M85049/60-2G16A
Shrink Boot Finish	Black
Straight Boot	202K142-25-0
Receptacle Type	Jam Nut/Socket
Series / Range	Mil-Spec
Shell Size	14
Wire Range (AWG)	8 x 22-18GA & 6 x 14-12GA
Shell Style	Jam Nut
Shell Plating	Black Anodized
Replacement Contacts	M39029/5-118 & M39029/5-115
Insert Arrangement	14-9
No. Of Positions	9
Contact Size	20 & 12
Mixed Contact Sizes	YES
90º Shrink Boot	222K152-25-0
Connector O.D.	1.516" (38.51 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	8 x 7.5 A / 6 x 23 A
Metal Insert Tool	DAK83-20B & DAK83-12B
Metal Removal Tool	DRK83-20B & DRK83-12B
Filler Plug	MS27488-20-2 & MS27488-12-2
Insert / Removal Tool	M81969/14-02 & M81969/14-04
Mating Plug Connector	MS3476A16-14P
Panel Cutout	1.135" (28.83 mm)
DMC Positioner / Turret	M22520/1-02
Shell Material	Aluminum
Straight Shrink Boot	202K153-25-0
