MS3476A20-16P Mil-Spec Circular Connector 16-Way Plug Kit

Name: MS3476A20-16P PLUG CONNECTOR BLACK
SKU: MS3476A20-16P
Price: 59.80 USD
Availability: InStock

Aero-Electric

Item No. MS3476A20-16P

$59.796 / EA

Features & details

The MS3476A20-16P is a 16-way plug circular connector kit with pin (male) contacts. The connector housing is black anodized aluminum. To create a mated pair, a receptacle connector kit is required.

MS3476A20-16P Kit Includes

(1) 16-Way Plug Connector Body.
(16) Size 16 pin (male) contacts, 20-14 AWG, 13 A ea. M39029/4-111
(1) Insert/Removal Tool M81969/14-03
(1) Cavity Plug MS27488-16-2 The quantity included varies.

Mating Connector

Please refer to the Mating Connectors tab on this page.

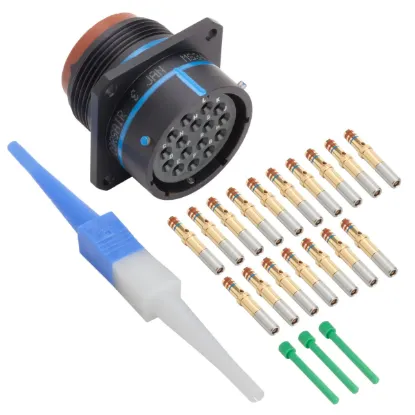

4-Bolt Flanged ReceptacleMS3470A20-16S
Jam-Nut ReceptacleMS3474A20-16S

Required Crimp Tooling

DMC Crimp FrameAF8 requires TH1A
DMC TurretTH1A requires AF8
DeutschHDT-48-00 all-in-1 tool.
Econo Tool18880 size, 16 contacts only.

Shrink Boots

Straight202K153-25-0
90°222K152-25-0

Shrink Boot Adapter

M85049/60-2G20A

Deutsch Autosport Variant (will not mate with Mil-Spec connectors)

AS620-16PN

Technical Information

The Specifications tab lists technical data as well as other useful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please refer to the Mating Connectors, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.

Product specification

Series / Range	Mil-Spec
Shell Size	20
Wire Range (AWG)	20-14
Contact Gender	Pin (Male)
Shell Style	Plug
Shell Plating	Black Anodized
Replacement Contacts	M39029/4-111
Insert Arrangement	20-16
No. Of Positions	41
Contact Size	16
Mixed Contact Sizes	No
90º Shrink Boot	222K152-25-0
Shrink Boot Adapter	M85049/60-2G20A
Connector O.D.	1.531" (38.89 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	13 A
Metal Insert Tool	DAK83-16B
Metal Removal Tool	DRK83-16B
Filler Plug	MS27488-16-2
Insert / Removal Tool	M81969/14-03
Mating Flange Connector	MS3470A20-16S
Mating Jam Nut Connector	MS3474A20-16S
DMC Positioner / Turret	M22520/1-02
Shell Material	Aluminum
Straight Shrink Boot	202K153-25-0
Termination Style	Crimp

Price $59.796 / EA
