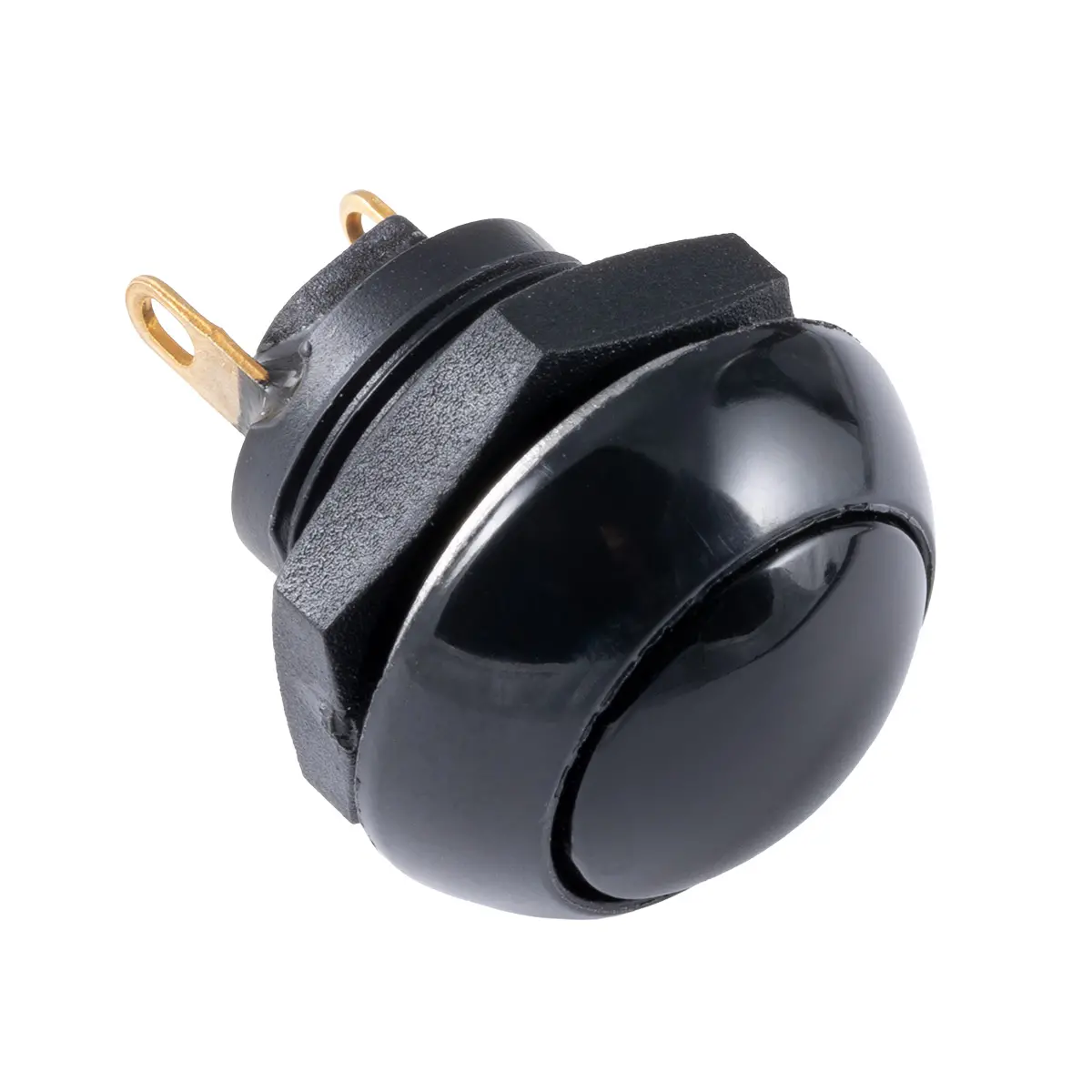

OTTO P9-111122 Black Latching Push Button Switch

Momentary on/off panel mount push button switch. The normally open (N.O.) circuit remains active until the switch button is released.

Want to add a shrink boot?

• Boot AdapterP7-SW-ADAPTER
• 90º Shrink Boot222D921-25-0

• Cap Color: Black
• Rolling Sleeve Button Design: Improved sealing against external elements.
• Enhanced Sealing: Strong protection at casing and terminal connections from environmental factors.
• Moisture and Dust Resistance: Complies with IP64 and MIL-PRF-8805 standards.
• Electrical Capacity: Handles low-level circuits to a max of 5A resistive, 3A inductive.
• Consistent aesthetic with OTTO's range: matches OTTO's push-button switches in appearance.
• Environmental and Safety Compliance: Meets RoHS, WEEE, and REACH standards.
• Mounting Threads: 15/32-32
• Panel Cutout: .505"
• Panel Thickness: .024"-.125"
• Mounting Hardware: Nut and washer included
• See documents section for the P9 datasheet

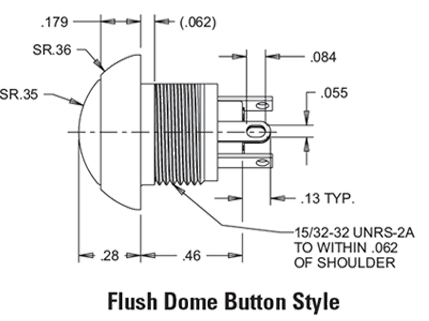

P9 Switch Dimensions
