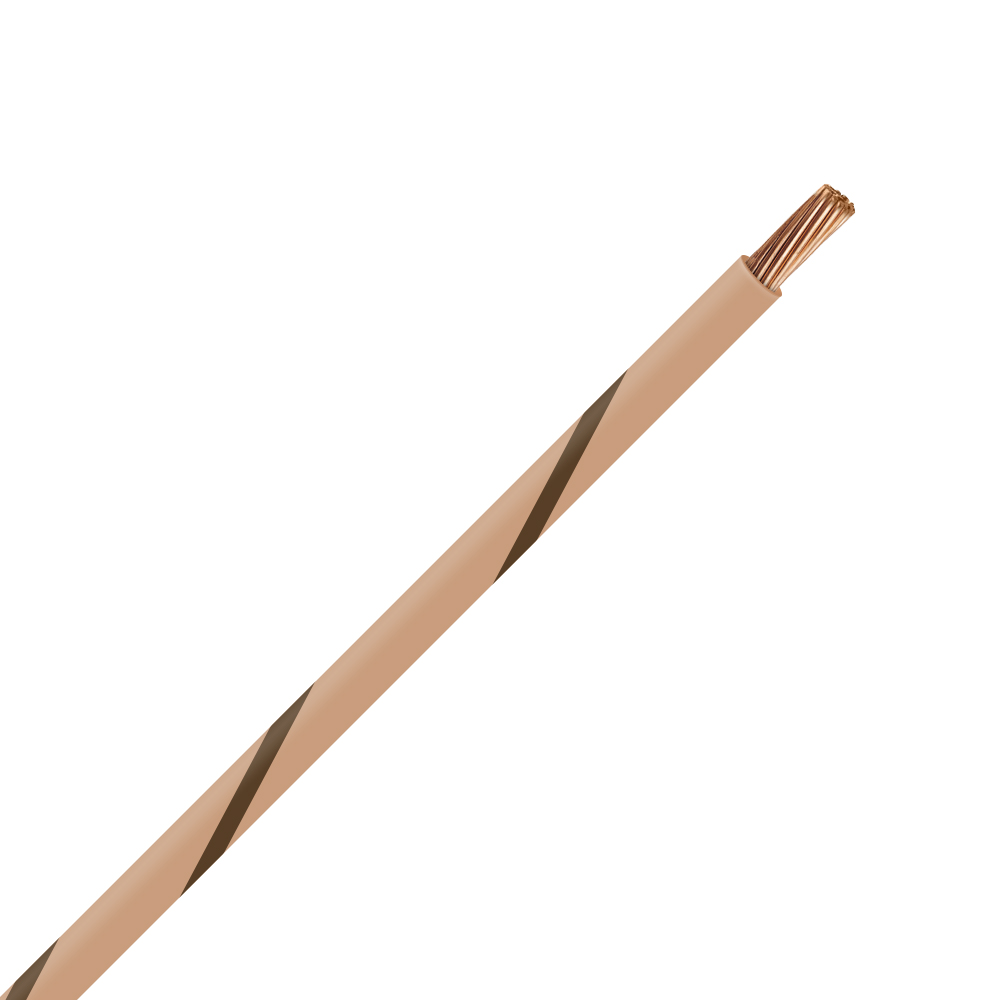

Images are for reference only. Jacket and stripe colors (hues) may differ from the image shown.

Questions about this part?

Fitment, mating parts, tooling, certs: a wire specialist will get back to you.

TXL-10-T1 10 Ga. Tan/Brown TXL Automotive Wire SAE J1128

Name: TXL 10 TAN/BROWN STRIPED WIRE
SKU: TXL-10-T1
Price: 1.28 USD
Availability: InStock

Item No. TXL-10-T1

$1.28 / FT

Price Breaks

PRICE BREAKS - The more you buy, the more you save

PKG	Quantity / FT	Price / FT	Ext. Price
Spooled	100	$1.28	$128.00
Spooled	250	$1.035	$258.75
Spooled	500	$0.798	$399.00
Spooled	1,000	$0.624	$624.00

Features & details

Extra-thin-wall cross-linked polyolefin over bare copper, for automotive work where reduced diameter and weight matter. A good choice where heat and flame resistance are stringent requirements, such as the engine compartment, and a lower cost alternative to Tefzel.

Specifications

Specification: SAE J1128 TXL
Conductor: Bare copper per ASTM B3
Insulation: Cross-linked polyolefin, extra thin wall
Temperature rating: −40°C to 125°C (−40°F to 257°F)
Voltage: Low voltage, 60 V DC or less
RoHS: Compliant

10 AWG Dimensions

Conductor area, minimum	9,343 circular mils 4.73 mm²
Insulation thickness, nominal	.020 in 0.50 mm
Insulation thickness, minimum	.014 in 0.35 mm
Cable OD, maximum	.157 in 4.00 mm

Inch equivalents are converted from the published metric values.

Automotive Specifications

SAE: J1128
Chrysler: MS-8288
Ford: M1L-123A

Applications

Low tension automotive cable, −40°C to 125°C
Engine compartment and chassis harnesses
Motorsport and race car wiring
Trailer, marine and general 12 V wiring

Price $1.28 / FT

Shipping details

Availability: Out of Stock - on backorder and will be dispatched once in stock.

Wire and cable are supplied as continuous, unspliced lengths and are subject to Prowire's minimum cut-length policy. Click here for more details

This product has a minimum quantity of 100

Quantity:

Documents

SAE TXL Wire Table 22GA-8GA

AS9120B & ISO 9001 certified
Genuine components
We only sell genuine components and have a strict counterfeit policy.
How we prevent counterfeits
- Vetted suppliers only. We buy from thoroughly vetted suppliers, and every receipt is inspected and stored securely.
- Manufacturer markings kept. Where the manufacturer brands or marks its parts, those markings stay on them. Not every manufacturer marks its parts.
- Suspect parts are quarantined. If we encounter a suspect part, it's quarantined and investigated, and reported to the relevant authorities.
Our processes are audited under AS9120B. Buying from the gray market carries a real counterfeit risk, even when lead times are long. If you suspect a counterfeit, quarantine it and contact us. Read more
