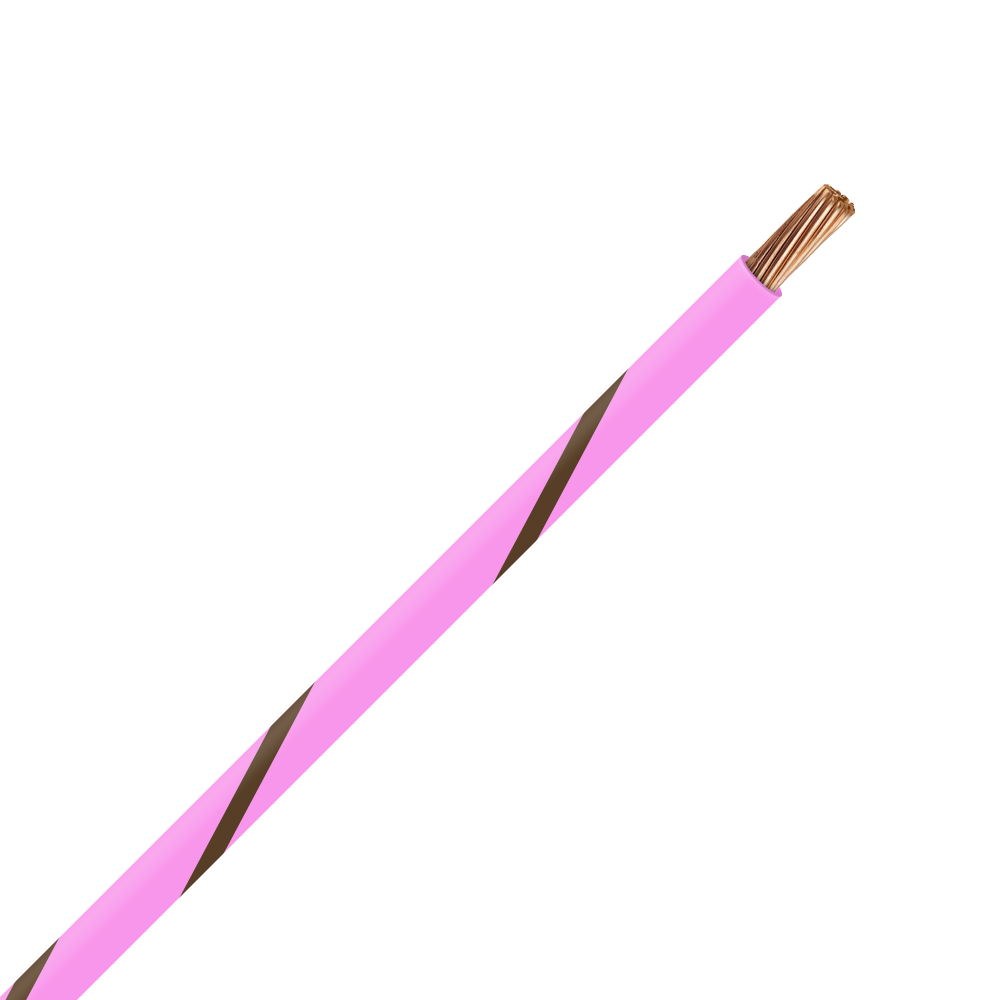

TXL-12-P1 12 Ga. Pink/Brown TXL Automotive Wire SAE J1128

Name: TXL 12 PINK/BROWN STRIPED WIRE
SKU: TXL-12-P1
Price: 1.14 USD
Availability: InStock

Item No. TXL-12-P1

$1.14 / FT

Price Breaks

PRICE BREAKS - The more you buy, the more you save

PKG	Quantity / FT	Price / FT	Ext. Price
Spooled	100	$1.14	$114.00
Spooled	250	$0.922	$230.50
Spooled	500	$0.711	$355.50
Spooled	1,000	$0.556	$556.00

Features & details

Extra-thin-wall cross-linked polyolefin over bare copper, for automotive work where reduced diameter and weight matter. A good choice where heat and flame resistance are stringent requirements, such as the engine compartment, and a lower cost alternative to Tefzel.

Specifications

Specification: SAE J1128 TXL
Conductor: Bare copper per ASTM B3
Insulation: Cross-linked polyolefin, extra thin wall
Temperature rating: −40°C to 125°C (−40°F to 257°F)
Voltage: Low voltage, 60 V DC or less
RoHS: Compliant

12 AWG Dimensions

Conductor area, minimum	5,833 circular mils 2.96 mm²
Insulation thickness, nominal	.018 in 0.46 mm
Insulation thickness, minimum	.013 in 0.32 mm
Cable OD, maximum	.130 in 3.30 mm

Inch equivalents are converted from the published metric values.

Automotive Specifications

SAE: J1128
Chrysler: MS-8288
Ford: M1L-123A

Applications

Low tension automotive cable, −40°C to 125°C
Engine compartment and chassis harnesses
Motorsport and race car wiring
Trailer, marine and general 12 V wiring

Price $1.14 / FT

Shipping details

Availability: 1,630 Feet In Stock, ready to be shipped

Wire and cable are supplied as continuous, unspliced lengths and are subject to Prowire's minimum cut-length policy. Click here for more details

This product has a minimum quantity of 100

Quantity:

Documents

SAE TXL Wire Table 22GA-8GA
