AS012-04PB Deutsch AS Series 4-Way Receptacle Kit

Name: AS,4 WAY,FLG,PIN,B KEY,BLUE
SKU: AS012-04PB
Availability: InStock

Deutsch

Item No. AS012-04PB

Special order item Price on request

Features & details

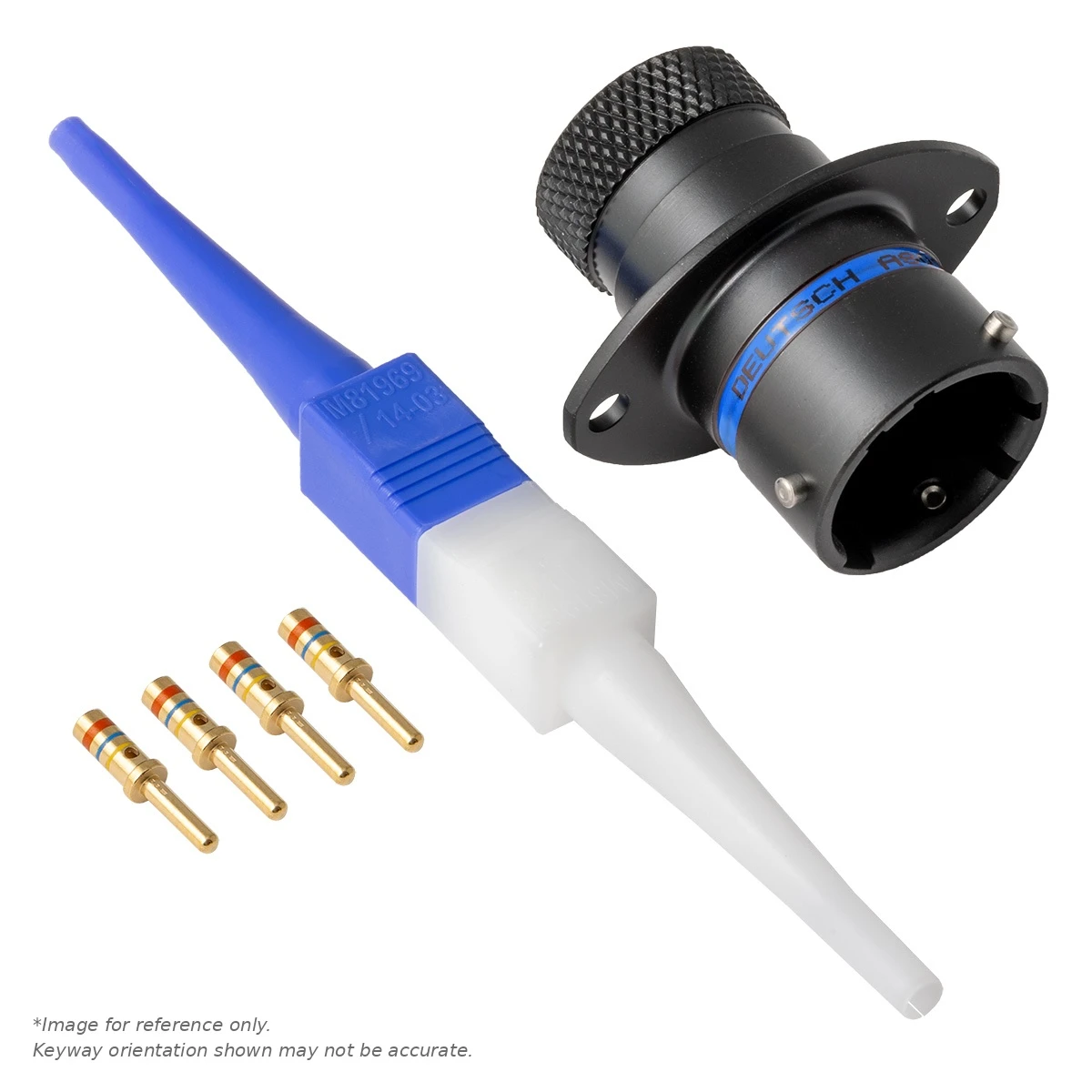

Deutsch AS012-04PB 4-way flanged receptacle connector kit with pin (male) contacts in the B (blue) key configuration.

The connector's blue band identifies the B keyway (only the same color keyways will mate together)

Kit Includes

(1) 4-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.
(4) Size 16 pin (male) contacts (20-14 AWG, 20 A each) 38941-16
(1) Insert/Removal Tool M81969/14-03

Required Crimp Tooling

Crimp FrameM22520/1-01
Positioner/TurretM22520/1-04

Shrink Boots

Straight202K142-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	B (Blue)
Series / Range	AS
Shell Size	12
Wire Range (AWG)	20-14
Contact Gender	Pin (Male)
Shell Style	Flanged Oval Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	38941-16
Insert Arrangement	46360
No. Of Positions	4
Contact Size	16
90º Shrink Boot	222K121-25-0
Connector O.D.	.945" (24 mm)
DMC Crimp Frame	M22520/1-01
Current Rating Per Contact	20 A
Filler Plug	600300-16
Receptacle Gasket	GV-12
Insert / Removal Tool	M81969/14-03
MFG.	TE Connectivity
Mating Plug Connector	AS612-04SB
Nut Plate	AS-12
Panel Cutout	.862" (21.9 mm)
Protective Cap	AS912
DMC Positioner / Turret	M22520/1-04
Shell Material	Aluminum
Souriau Part Nbr	8STA01204PB
Souriau Part Nbr_1	8STA0-12-04PB
Straight Shrink Boot	202K142-25-0
Alumel Contact	N/A
Chromel Contact	N/A
Termination Style	Crimp

Shipping details

Special order item

This part isn't stocked. Tell us the quantity you need and we'll send pricing and lead time.
