AS112-98PD Deutsch AS Series 10-Way Receptacle Kit

Name: AS,10 WAY,INLINE,PIN,D KEY,GREEN
SKU: AS112-98PD
Availability: InStock

Deutsch

Item No. AS112-98PD

Special order item Price on request

Features & details

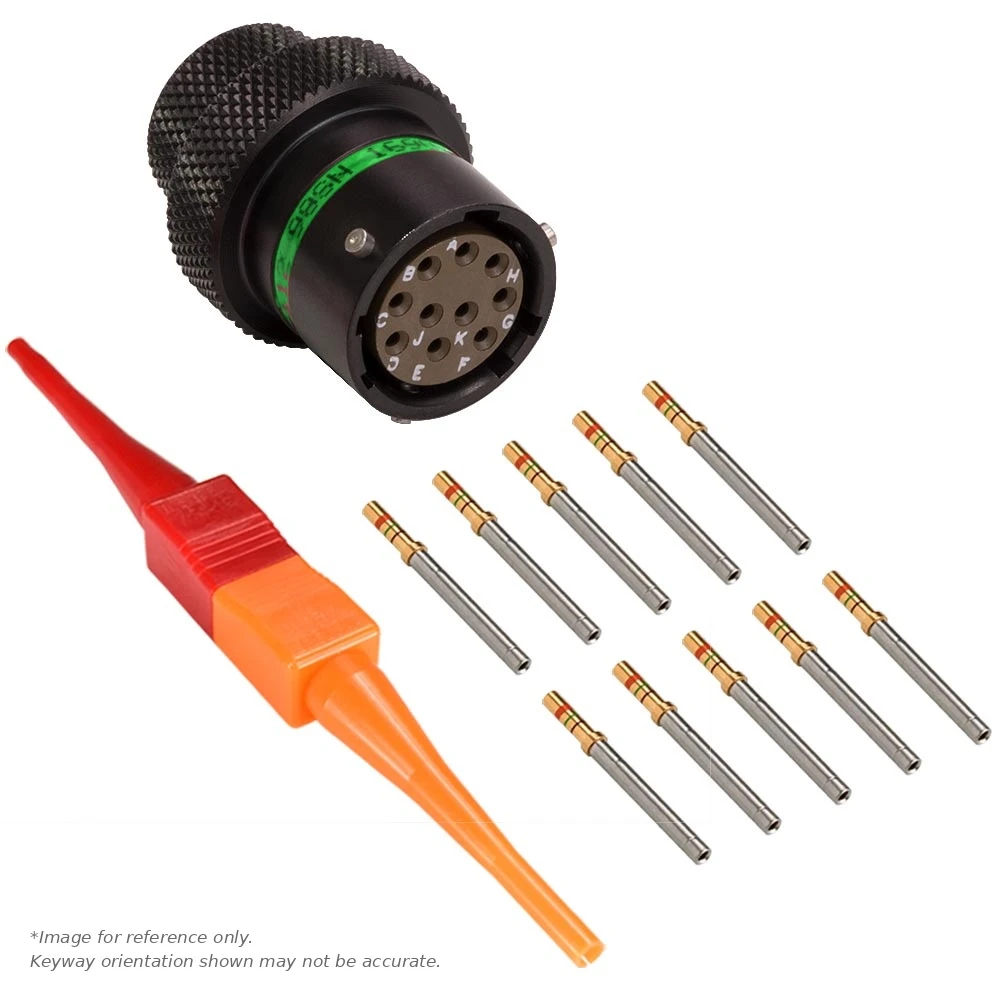

Deutsch AS112-98PD 10-way inline receptacle connector kit with pin (male) contacts in the D (green) key configuration.

The connector's green band identifies the D keyway (only the same color keyways will mate together)

Kit Includes

(1) 10-Way Inline Receptacle Connector Body with Screen and Boot Termination Feature.
(10) Size 20 pin (male) contacts (24-18 AWG, 7.5 A each) 38941-20
(1) Insert/Removal Tool M81969/14-10

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-10

Shrink Boots

Straight202K142-25-0
90°222K121-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	D (Green)
Series / Range	AS
Shell Size	12
Wire Range (AWG)	24-18
Contact Gender	Pin (Male)
Shell Style	Inline Receptacle
Shell Plating	Zinc (Black)
Replacement Contacts	38941-20
Insert Arrangement	36130
No. Of Positions	10
Contact Size	20
90º Shrink Boot	222K121-25-0
Connector O.D.	.992" (25.2 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	7.5 A
Filler Plug	600300-20
Insert / Removal Tool	M81969/14-10
MFG.	TE Connectivity
Mating Plug Connector	AS612-98SD
Protective Cap	AS912
DMC Positioner / Turret	M22520/2-10
Shell Material	Aluminum
Souriau Part Nbr	8STA11298PD
Souriau Part Nbr_1	8STA1-12-98PD
Straight Shrink Boot	202K142-25-0
Alumel Contact	720102
Chromel Contact	720103
Termination Style	Crimp

Shipping details

Special order item

This part isn't stocked. Tell us the quantity you need and we'll send pricing and lead time.

Documents

Drawing AS112-98PD

Deutsch AS Series Catalog Pages
