AS114-97SD Deutsch AS Series 12-Way Receptacle Kit

Name: AS,12 WAY,INLINE,SKT,D KEY,GREEN
SKU: AS114-97SD
Availability: InStock

Deutsch

Item No. AS114-97SD

Special order item Price on request

Features & details

The Deutsch Autosport AS114-97SD 12-way inline receptacle connector kit with socket (female) contacts in the D (green) key configuration.

The connector's green band identifies the D keyway (only the same color keyways will mate together).

This connector features a mixed arrangement, utilizing two different contact sizes.

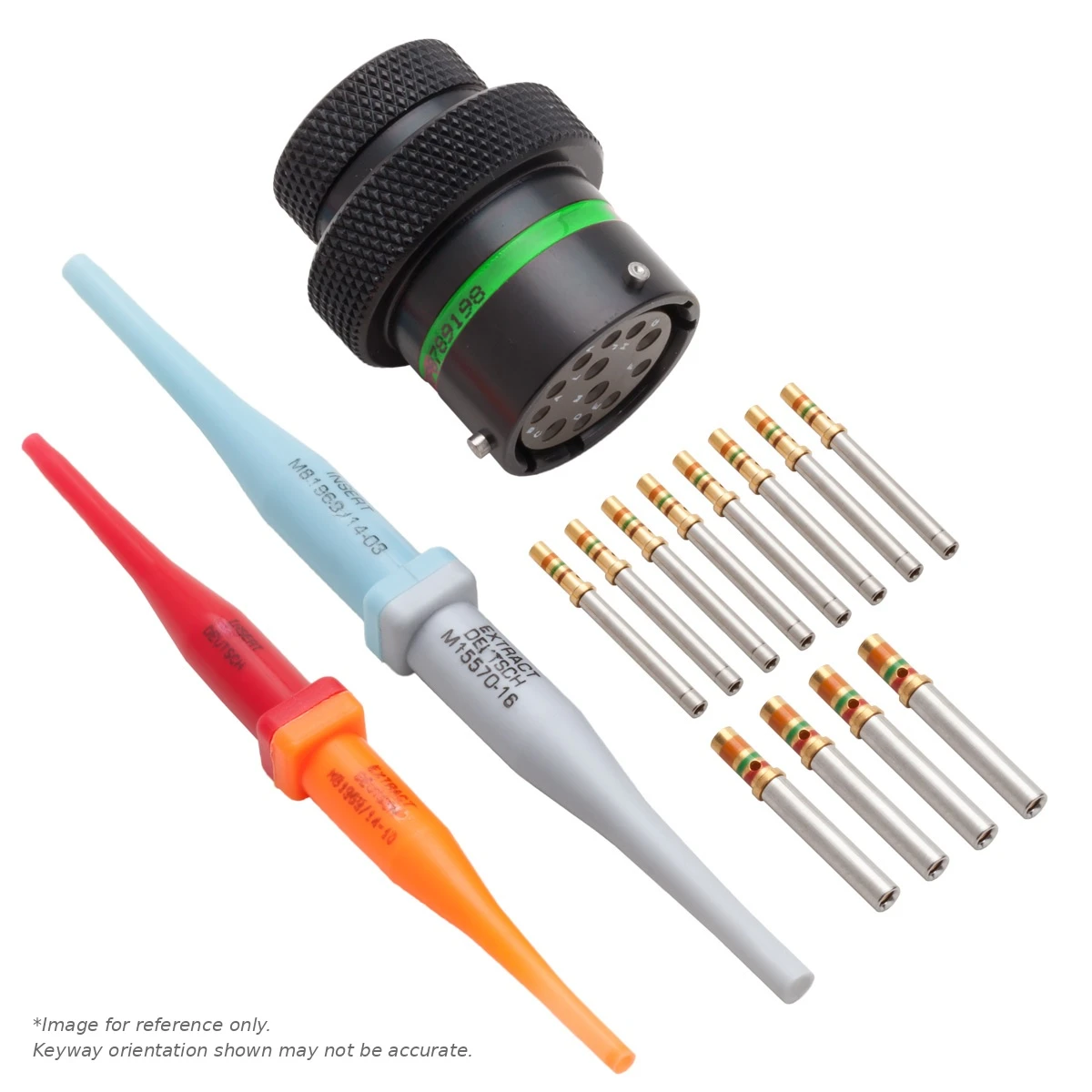

AS114-97SD Kit Includes

(1) 12-Way Inline Receptacle Connector Body with Screen and Boot Termination Feature.
(8) Size 20 socket (female) contacts (22-18 AWG, 7.5 A each) 38943-20
(4) Size 16 socket (female) contacts (20-16 AWG, 13 A each) 38943-16
(1) Insert/Removal Tool M81969/14-03
(1) Insert/Removal Tool M81969/14-10
(1) Cavity Plug 600300-20 qty varies by part number.
(1) Cavity Plug 600300-16 qty varies by part number.

Required crimp tooling

Shrink Boots

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat-shrink boots, and accessories.
Size 16 contacts can accept 14-AWG Tefzel wire if the stripped wire is perfect without stray conductor strands. The current rating remains the same at 13 amps each.
