AS614-19SA Deutsch AS Series 19-Way Plug Kit

Name: AS,19 WAY,PLG,PIN,A KEY,YELLOW
SKU: AS614-19SA
Price: 115.48 USD
Availability: InStock

Deutsch

Item No. AS614-19SA

$115.476 / EA

Features & details

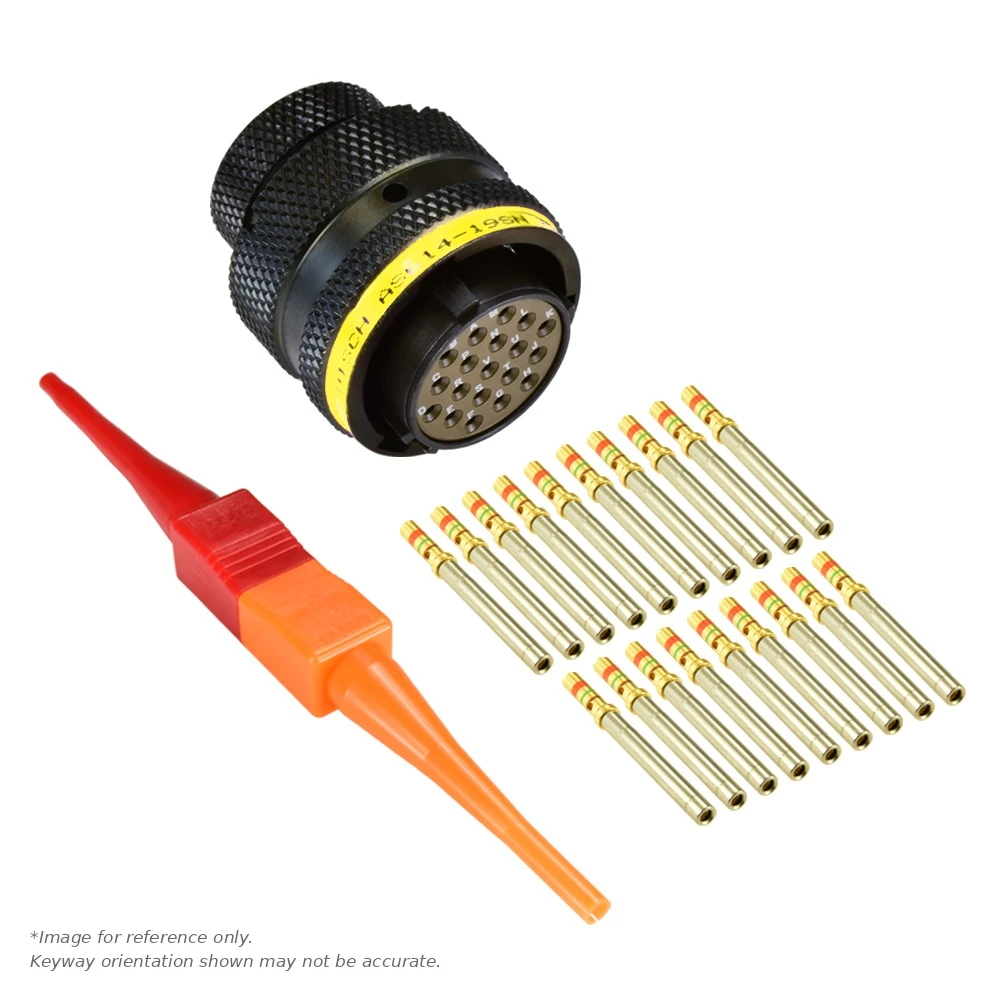

Deutsch AS614-19SA 19-way plug connector kit with socket (female) contacts in the A (yellow) key configuration.

The connector's yellow band identifies the A keyway (only the same color keyways will mate together)

Kit Includes

(1) 19-Way Plug Connector Body with Screen and Boot Termination Feature.
(19) Size 20 socket (female) contacts (24-18 AWG, 7.5 A each) 38943-20
(1) Insert/Removal Tool M81969/14-10

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-10

Shrink Boots

Straight202K142-25-0
90°222K142-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	A (Yellow)
Series / Range	AS
Shell Size	14
Wire Range (AWG)	24-18
Contact Gender	Socket (Female)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	38943-20
Insert Arrangement	14-19
No. Of Positions	19
Contact Size	20
90º Shrink Boot	222K142-25-0
Connector O.D.	1.118" (28.4 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	7.5 A
Filler Plug	600300-20
Insert / Removal Tool	M81969/14-10
MFG.	TE Connectivity

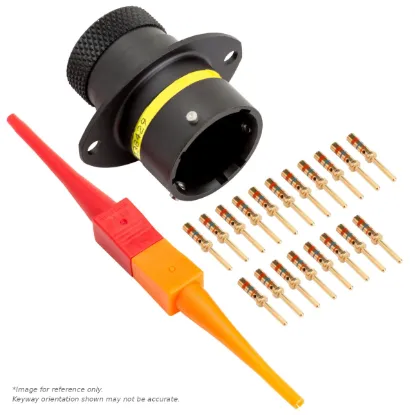

Mating Flange Connector	AS014-19PA

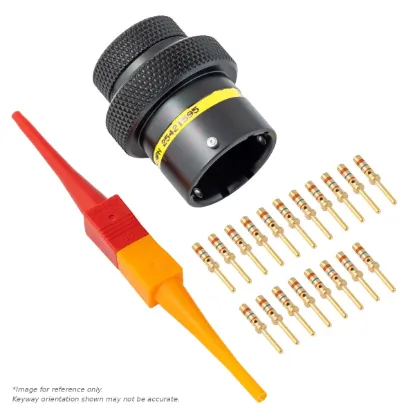

Mating Inline Connector	AS114-19PA
Mating PCB Connector	AS214-19PA
Protective Cap	AS814
DMC Positioner / Turret	M22520/2-10
Shell Material	Aluminum
Souriau Part Nbr	8STA61419SA
Souriau Part Nbr_1	8STA6-14-19SA
Straight Shrink Boot	202K142-25-0
Alumel Contact	720100
Chromel Contact	720101
Termination Style	Crimp

Price $115.476 / EA
