AS616-26PD Deutsch AS Series 26-Way Plug Kit

Name: AS,26 WAY,PLG,SKT,D KEY,GREEN
SKU: AS616-26PD
Availability: InStock

Deutsch

Item No. AS616-26PD

Special order item Price on request

Features & details

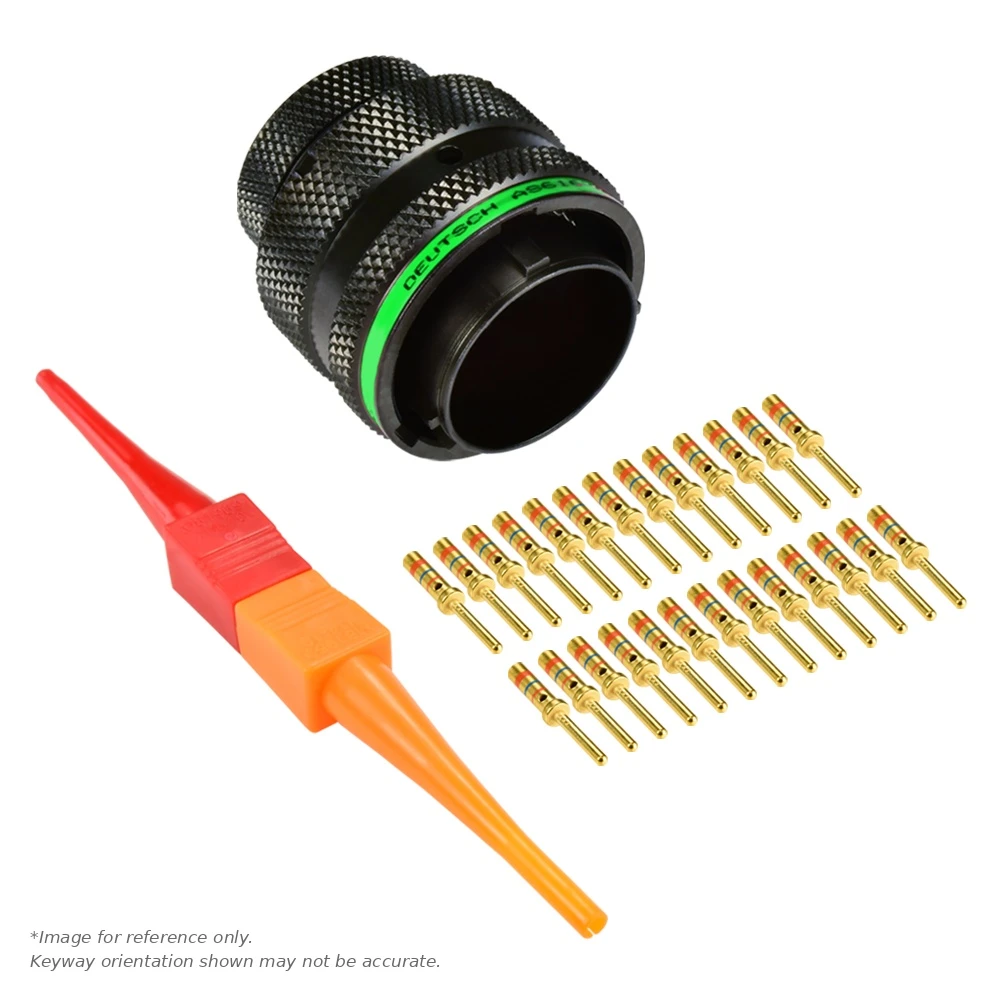

Deutsch AS616-26PD 26-way plug connector kit with pin (male) contacts in the D (green) key configuration.

The connector's green band identifies the D keyway (only the same color keyways will mate together)

Kit Includes

(1) 26-Way Plug Connector Body with Screen and Boot Termination Feature.
(26) Size 20 pin (male) contacts (24-18 AWG, 7.5 A each) 38941-20
(1) Insert/Removal Tool M81969/14-10

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-10

Shrink Boots

Straight202K153-25-0
90°222K152-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	D (Green)
Series / Range	AS
Shell Size	16
Wire Range (AWG)	24-18
Contact Gender	Pin (Male)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	38941-20
Insert Arrangement	16-26
No. Of Positions	26
Contact Size	20
90º Shrink Boot	222K152-25-0
Connector O.D.	1.24" (31.5 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	7.5 A
Filler Plug	600300-20
Insert / Removal Tool	M81969/14-10
MFG.	TE Connectivity

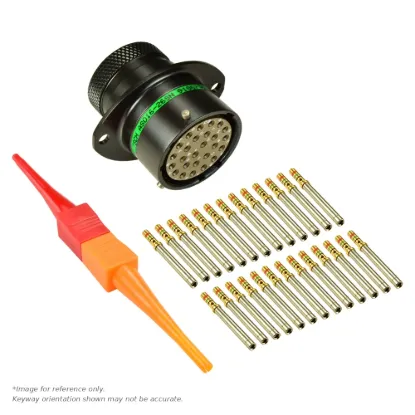

Mating Flange Connector	AS016-26SD

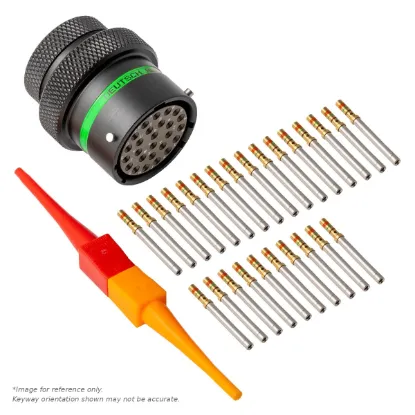

Mating Inline Connector	AS116-26SD
Mating PCB Connector	AS216-26SD
Protective Cap	AS816
DMC Positioner / Turret	M22520/2-10
Shell Material	Aluminum
Souriau Part Nbr	8STA61626PD
Souriau Part Nbr_1	8STA6-16-26PD
Straight Shrink Boot	202K153-25-0
Alumel Contact	720102
Chromel Contact	720103
Termination Style	Crimp

Shipping details

Special order item

This part isn't stocked. Tell us the quantity you need and we'll send pricing and lead time.

Documents

CAD File for AS616-26PD

Drawing AS616-26PD

Deutsch AS Series Catalog Pages
