AS620-35SB Deutsch AS Series 79-Way Plug Kit

Name: AS,79 WAY,PLG,PIN,B KEY,BLUE
SKU: AS620-35SB
Availability: InStock

Deutsch

Item No. AS620-35SB

Special order item Price on request

Features & details

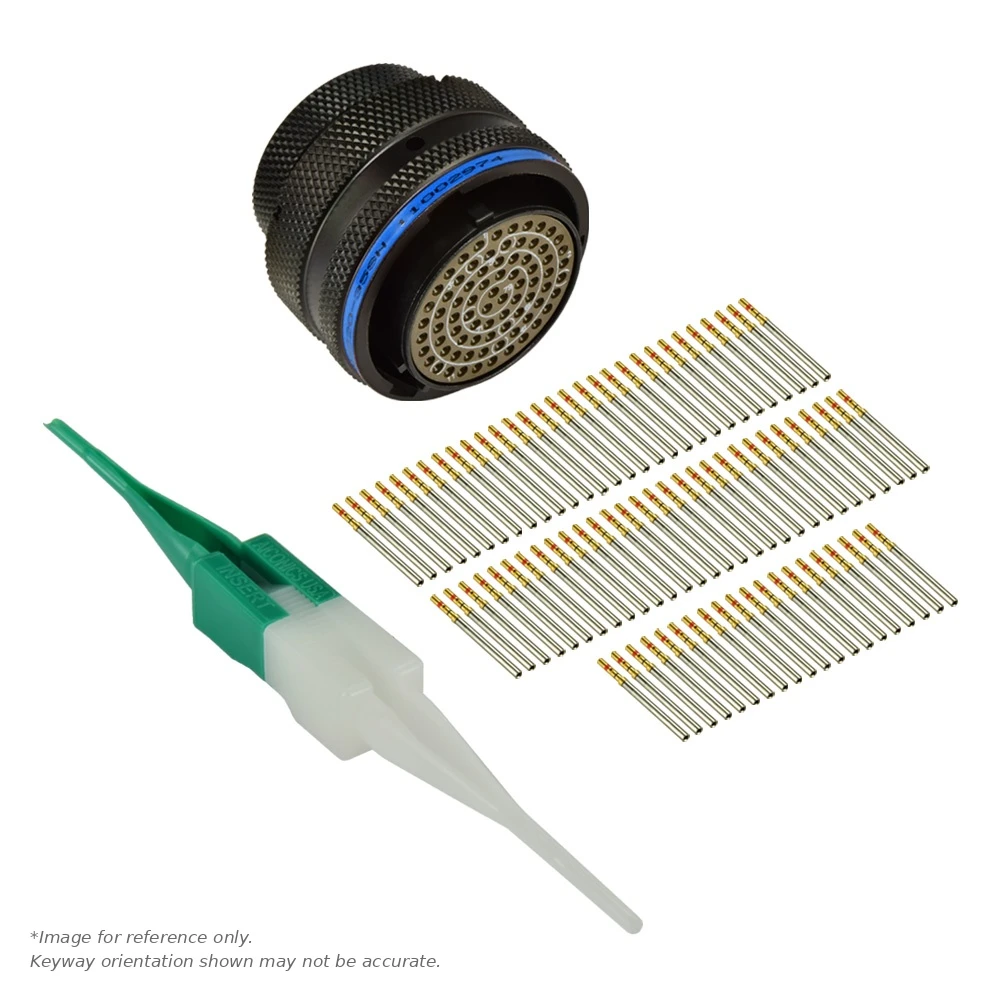

Deutsch Autosport AS620-35SB 79-way plug connector kit with socket (female) contacts in the B (blue) key configuration.

The connector's blue band identifies the B keyway (only the same color keyways will mate together)

Kit Includes

(1) 79-Way Plug Connector Body with Screen and Boot Termination Feature.
(79) Size 22 socket (female) contacts (26-22 AWG, 5 A each) 38943-22
(1) Insert/Removal Tool M81969/14-01

Required Crimp Tooling

Crimp FrameM22520/2-01
Positioner/TurretM22520/2-07

Shrink Boots

Straight202K163-25-0
90°222K163-25-0

Technical Information

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.

Notes

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.

Product specification

Keyway	B (Blue)
Series / Range	AS
Shell Size	20
Wire Range (AWG)	26-22
Contact Gender	Socket (Female)
Shell Style	Plug
Shell Plating	Zinc (Black)
Replacement Contacts	38943-22
Insert Arrangement	20-35
No. Of Positions	79
Contact Size	22
90º Shrink Boot	222K163-25-0
Connector O.D.	1.504" (38.2 mm)
DMC Crimp Frame	M22520/2-01
Current Rating Per Contact	5 A
Filler Plug	600300-22
Insert / Removal Tool	M81969/14-01
MFG.	TE Connectivity

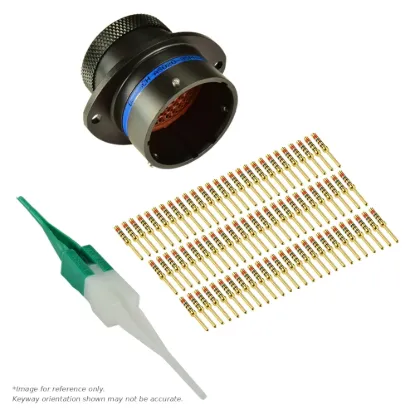

Mating Flange Connector	AS020-35PB

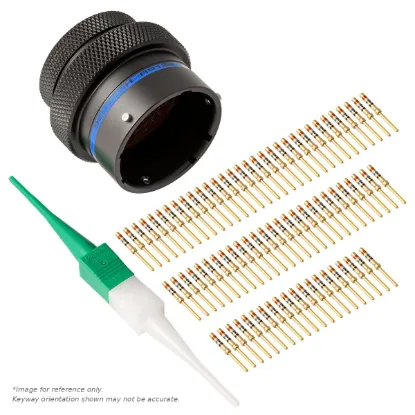

Mating Inline Connector	AS120-35PB
Mating PCB Connector	AS220-35PB
Protective Cap	AS820
DMC Positioner / Turret	M22520/2-07
Shell Material	Aluminum
Souriau Part Nbr	8STA62035SB
Souriau Part Nbr_1	8STA6-20-35SB
Straight Shrink Boot	202K163-25-0
Alumel Contact	605348
Chromel Contact	605346
Termination Style	Crimp

Shipping details

Special order item

This part isn't stocked. Tell us the quantity you need and we'll send pricing and lead time.

Documents

CAD File for AS620-35SB

Drawing AS620-35SB

Deutsch AS Series Catalog Pages
