ASDD118-118SC Deutsch ASDD Series 118-Way Receptacle Kit

Deutsch
Item No. ASDD118-118SC
Special order item Price on request
Features & details

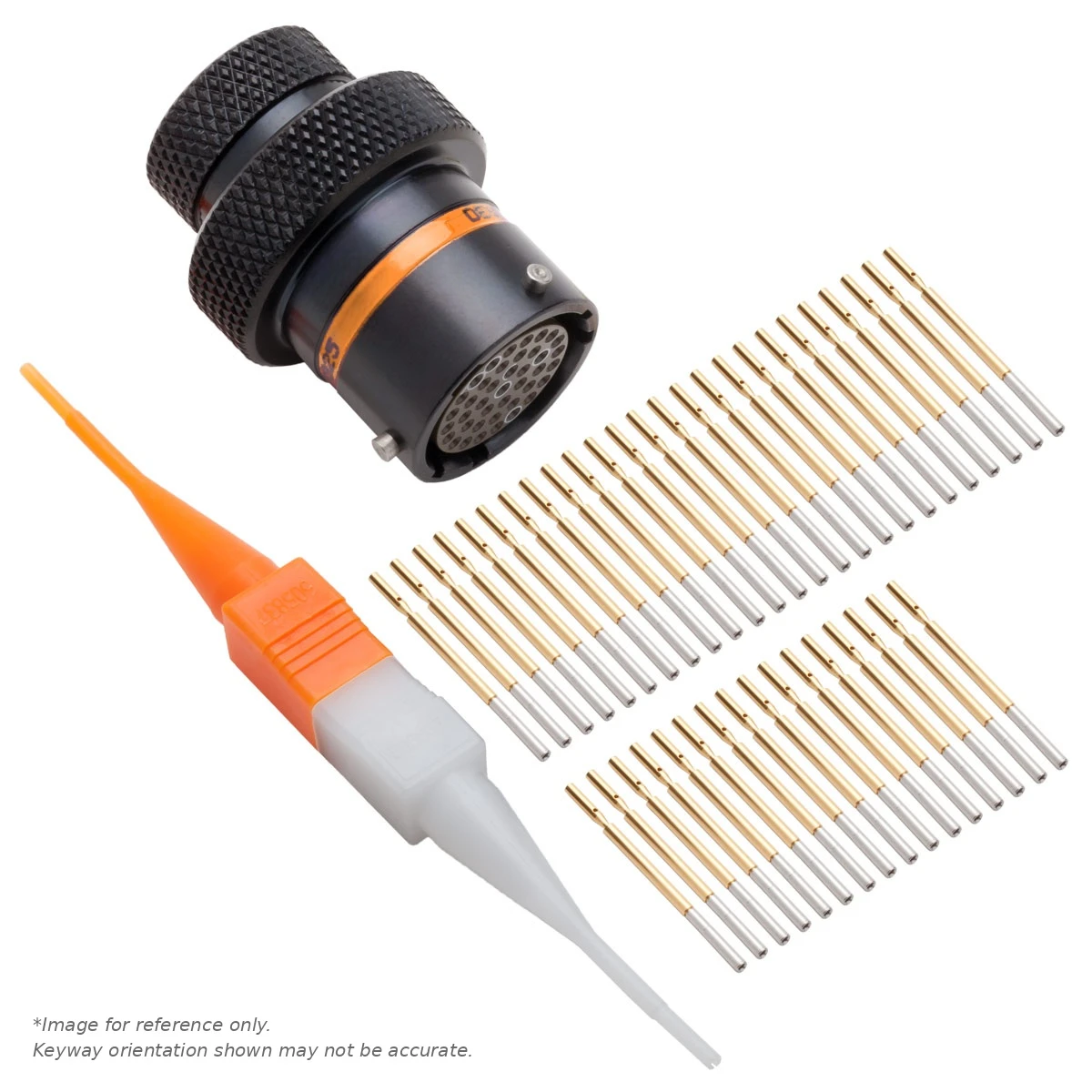

Deutsch Autosport ASDD118-118SC 118-way flanged receptacle connector kit with socket (female) contacts in the C (orange) key configuration.

The connector's orange band identifies the C keyway (only the same color keyways will mate together)

Kit Includes
  • (1) 118-Way Flanged Receptacle Connector Body with Screen and Boot Termination Feature.
  • (118) Size 24 socket (female) contacts (30-24 AWG, 3 A each) 605721
  • (1) Insert/Removal Tool 605837
Required Crimp Tooling
Shrink Boots
Technical Information
  • The Specifications Tab lists technical data as well as other helpful information.
  • The Documents section lists CAD models, technical drawings, and catalog pages when available.
Notes
  • Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
Product specification
Keyway C (Orange)
Series / Range ASDD
Shell Size 18
Wire Range (AWG) 30-24
Contact Gender Socket (Female)
Shell Style Inline Receptacle
Shell Plating Zinc (Black)
Replacement Contacts 605721
Insert Arrangement 18-118
No. Of Positions 118
Contact Size 24
90º Shrink Boot 222K152-25-0
Connector O.D. 1.37" (34.8 mm)
DMC Crimp Frame M22520/2-01
Current Rating Per Contact 3 A
Filler Plug 600300-24
Insert / Removal Tool 605837
MFG. TE Connectivity
Mating Plug Connector ASDD618-118PC
Protective Cap AS918
DMC Positioner / Turret K1639
Shell Material Aluminum
Straight Shrink Boot 202K153-25-0
Termination Style Crimp
