Deutsch ASU



Deutsch ASX Micro Xtra Lite Series Connectors

Deutsch Autosport ASU, small compact and lightweight connector series offered in either a 3-way version or a 5 way version.

Specifications:

  • No. Of Positions: 3 or 5 way
  • Shell Size: 3
  • Contact Size: 22 (5 Amp), 24 (3Amp)
  • Wire Range: 30-22
  • Eviromentally sealed to IP67
  • Built In Shrink Boot Lip
  • Conductive Black Finish

Shrink Boot Options:

  • Straight: 2204W221-25-0
  • 90º: 224W221-25-0

Housing Types:

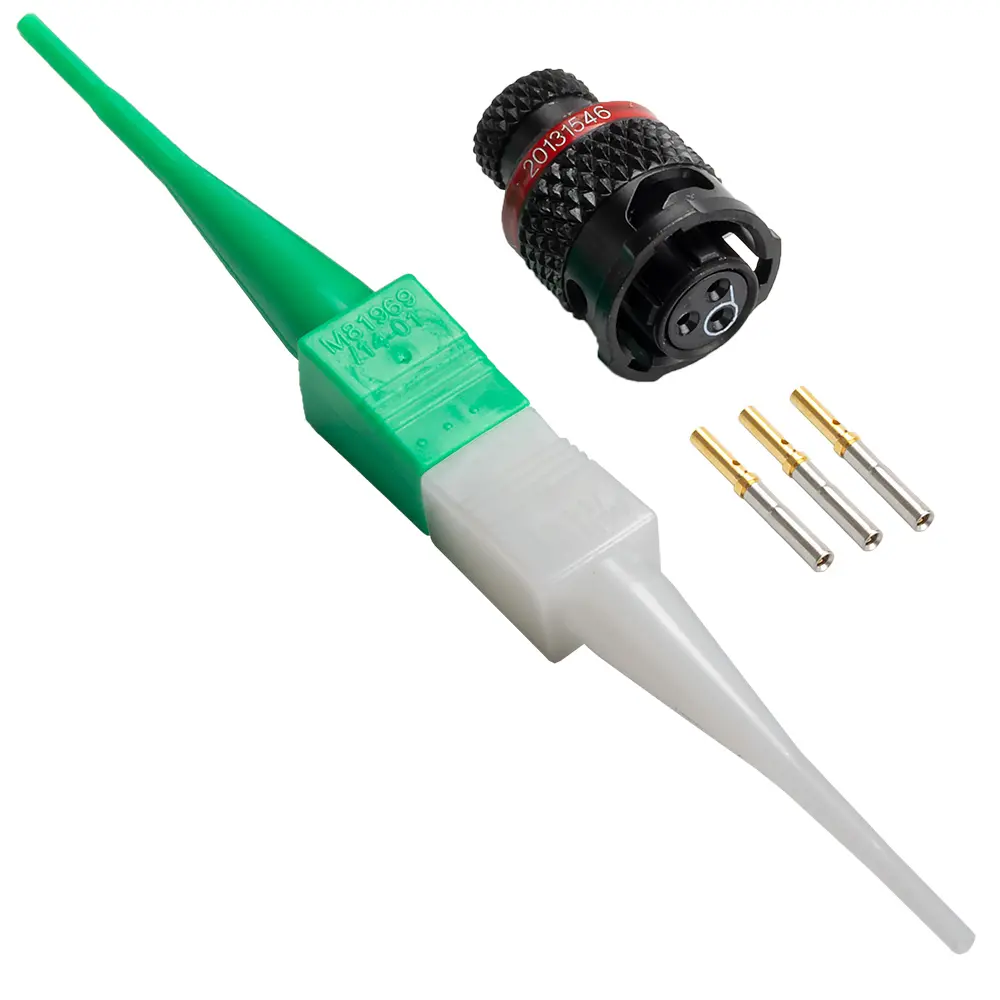

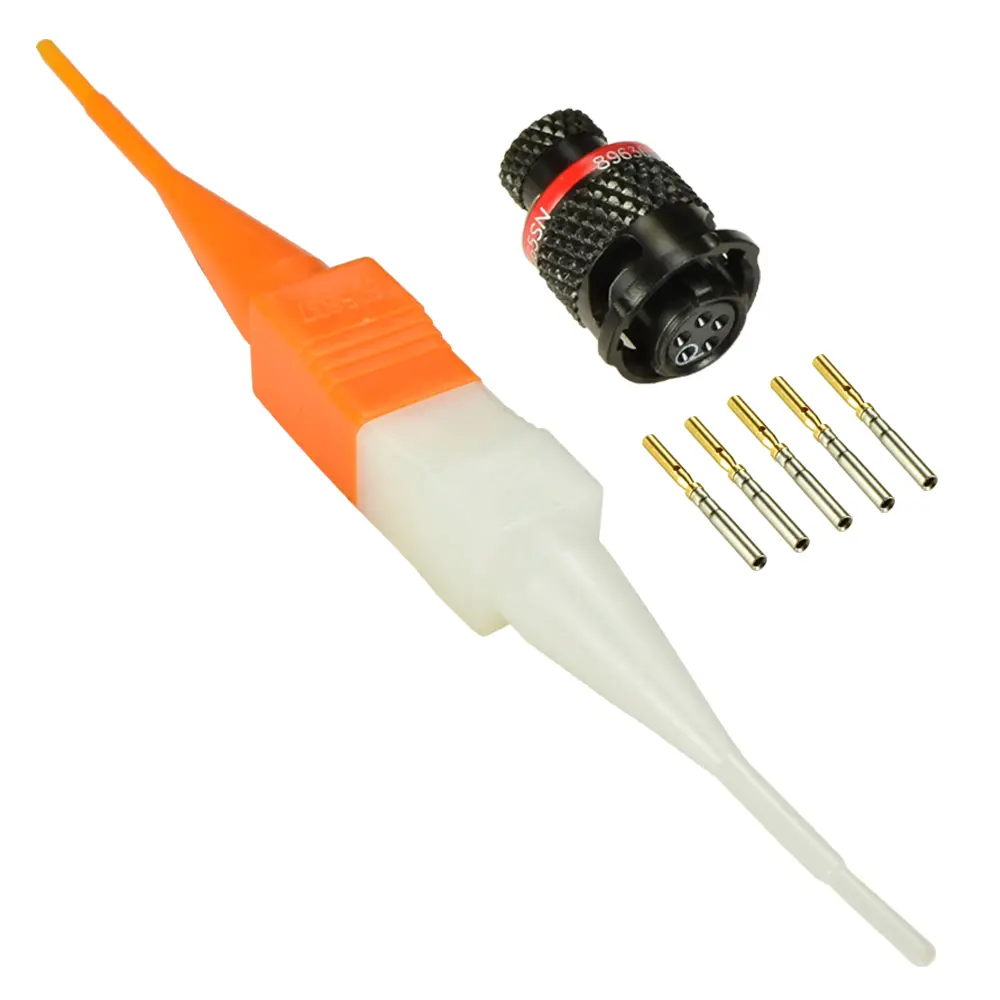

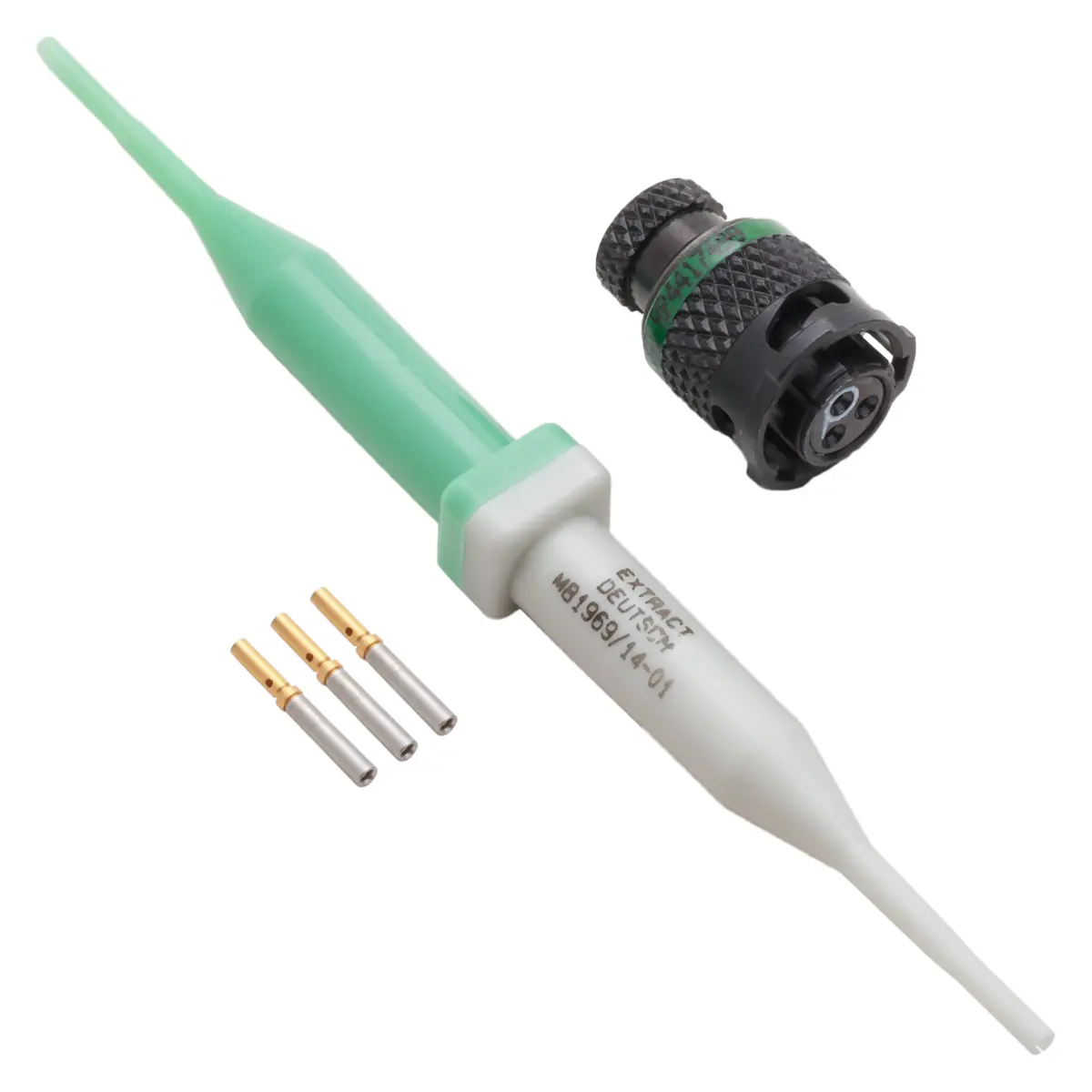

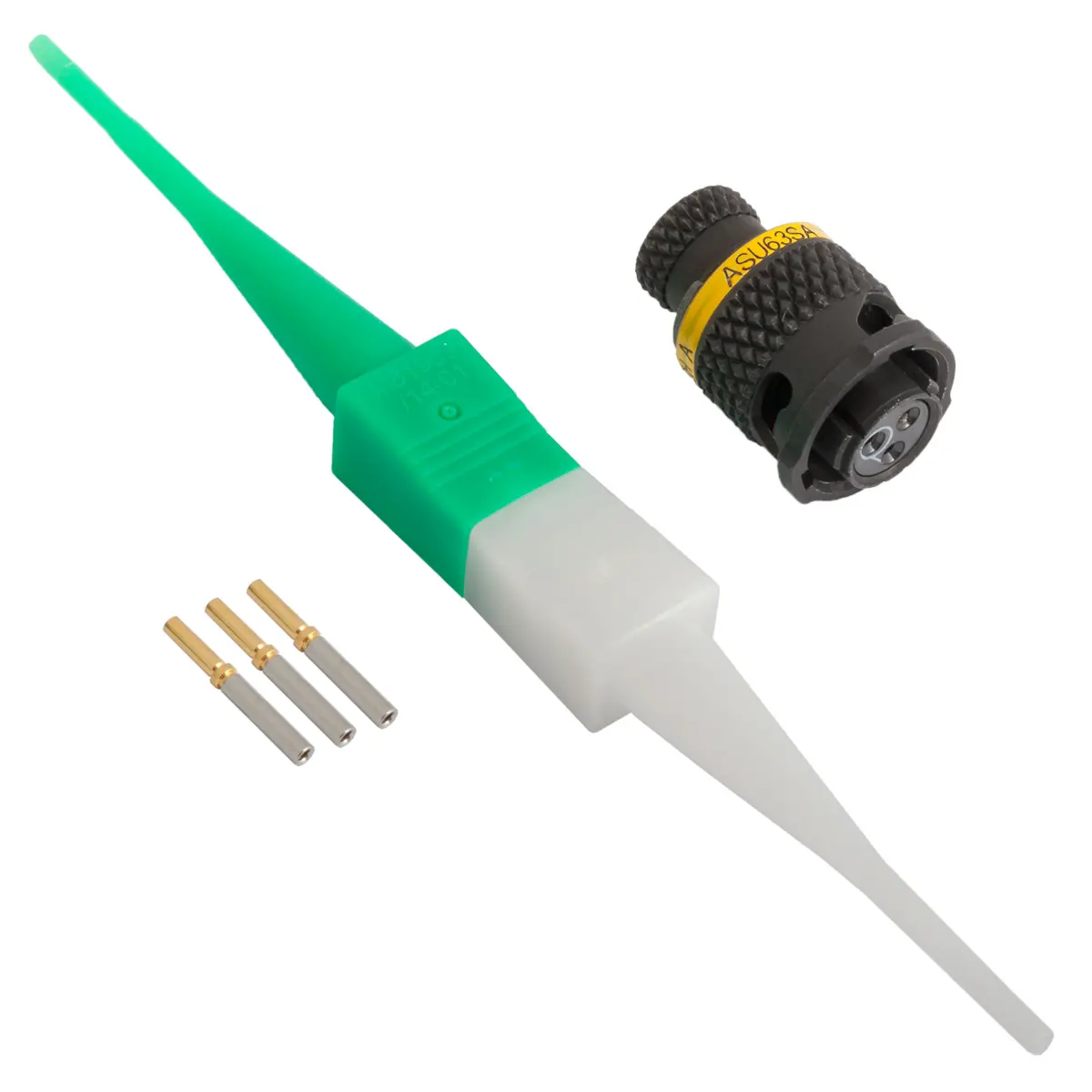

  • Plug ASU6: Male connector avialable in either pin or socket. Mates to ASU1 or ASU0

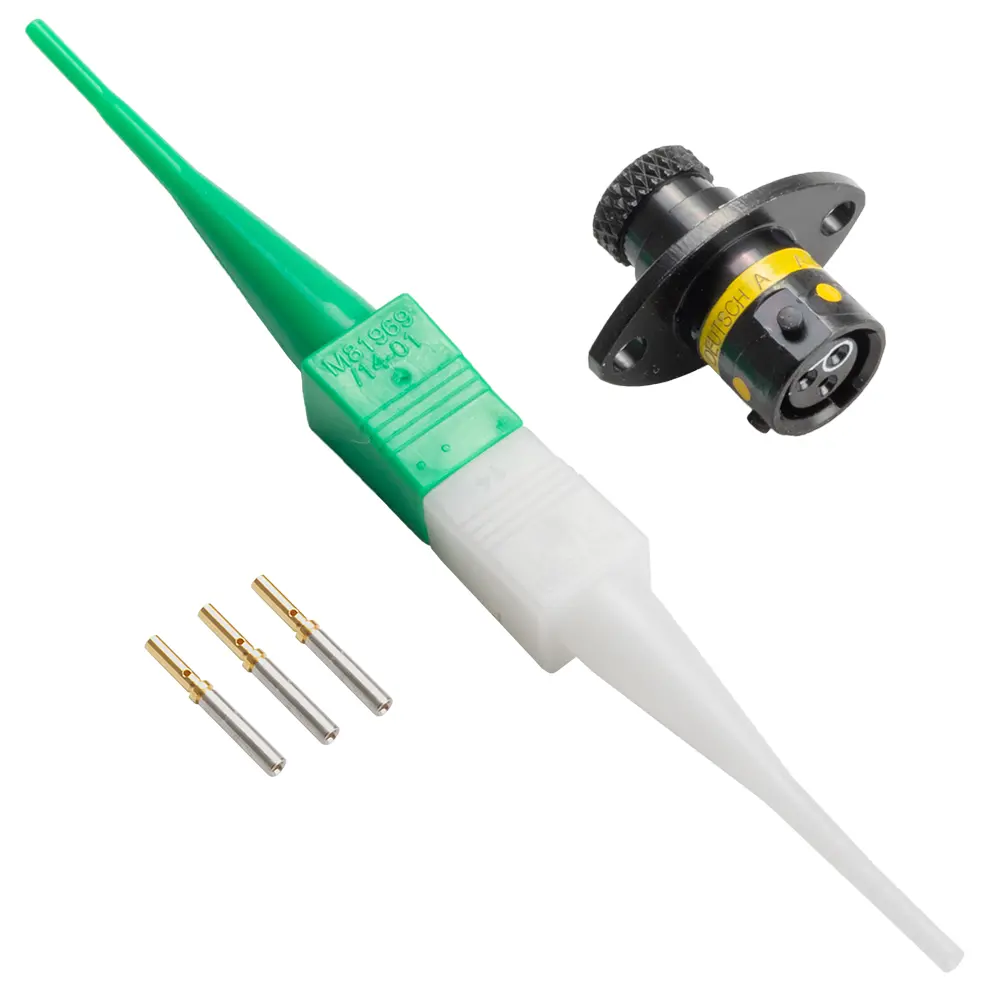

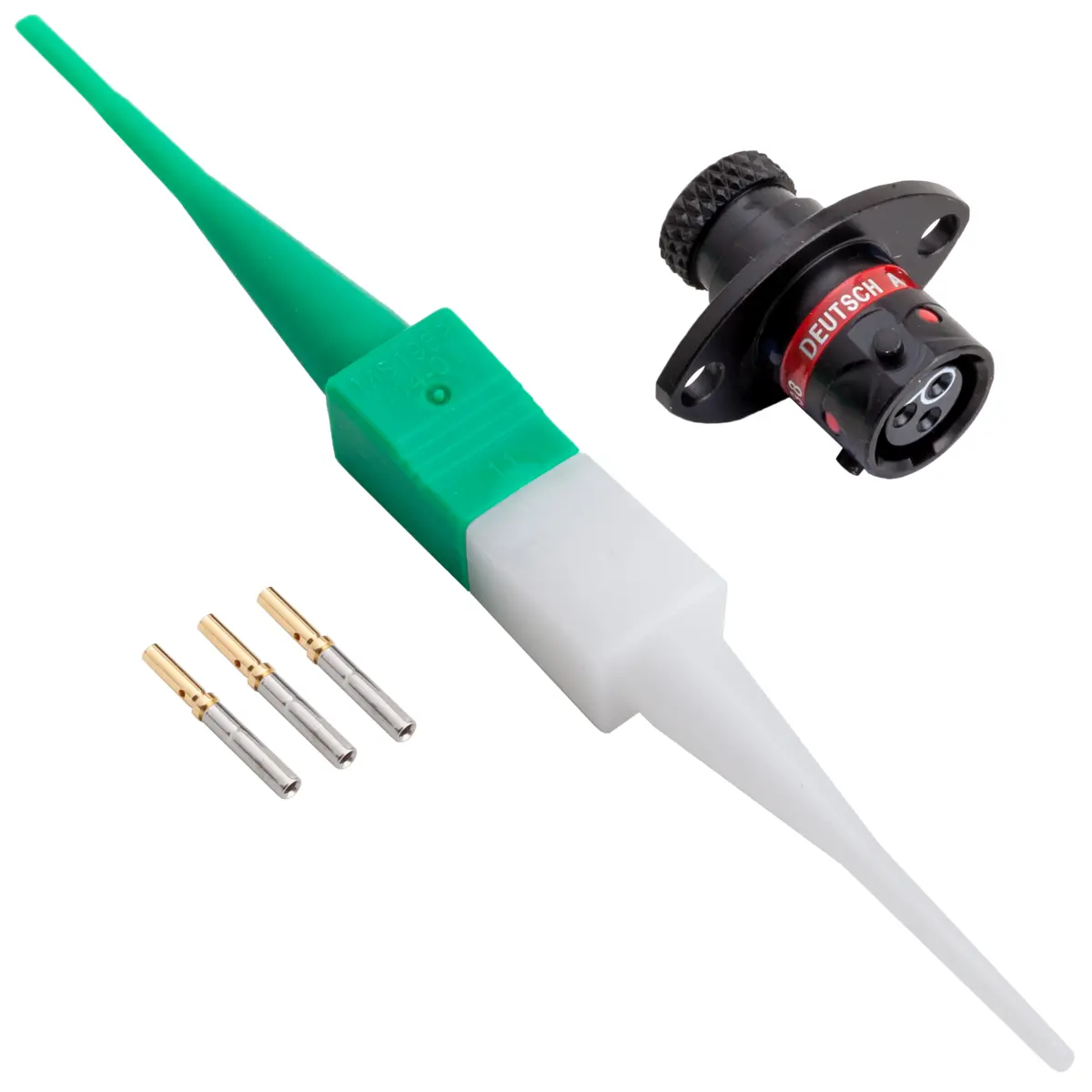

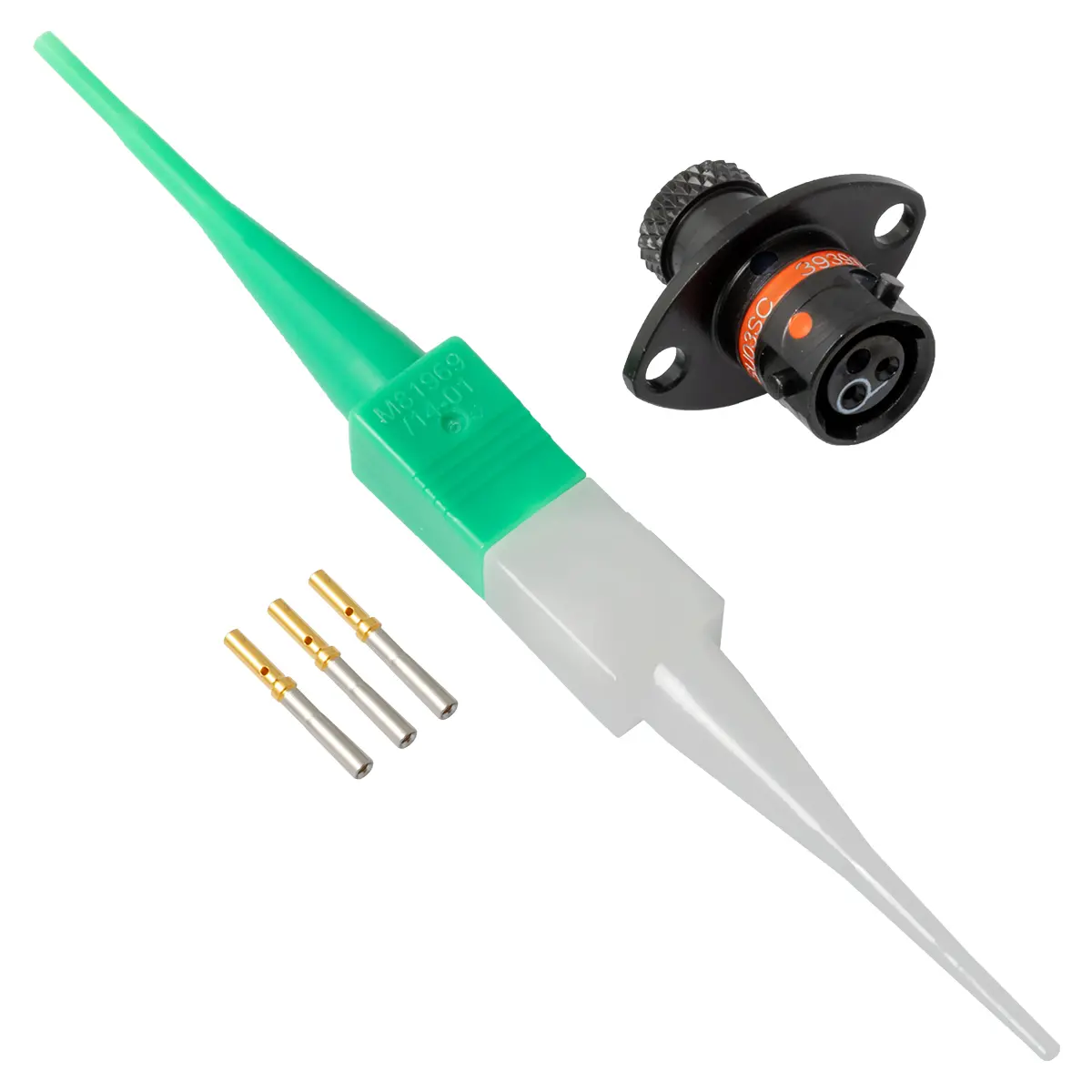

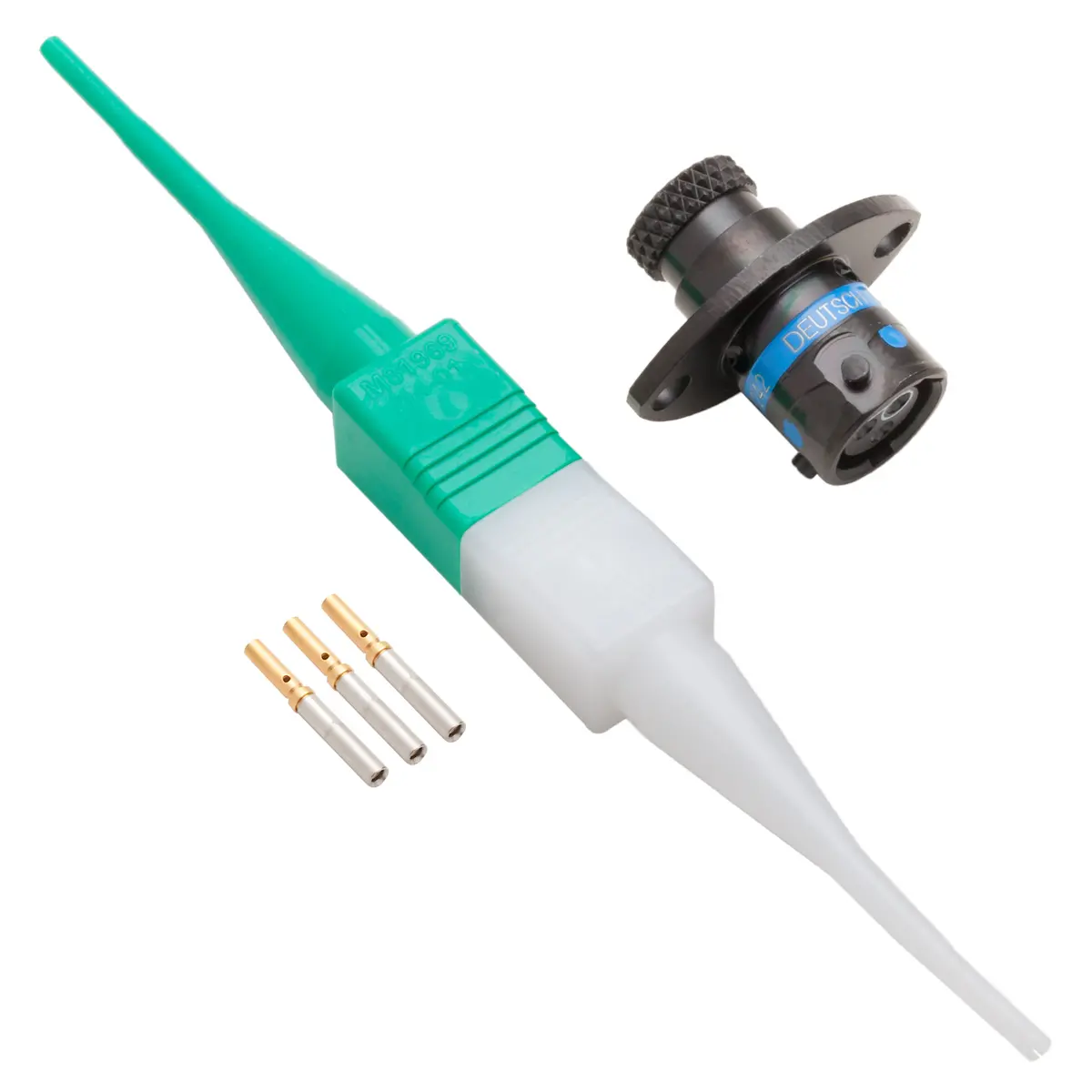

  • Flange Receptacle ASU0: Female 2 bolt flanged receptacle available in either pin or socket. Mates to ASU6

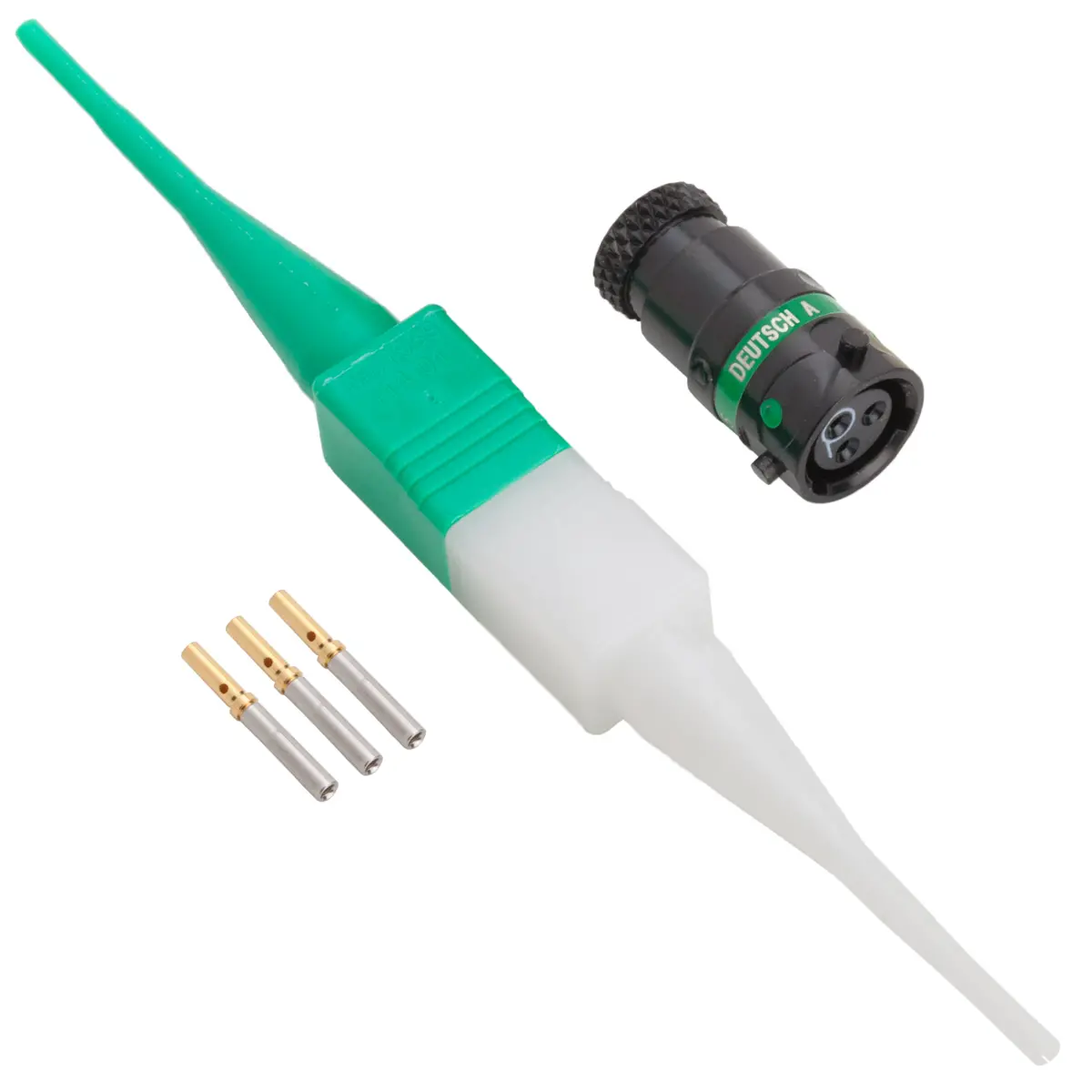

  • Inline Receptacle ASU1: Female inline receptacle available in either pin or socket.Mates to ASU6

Keyway Colors:

  • N = Red
  • A = Yellow
  • B = Blue
  • C = Orange
  • D = Green
  • E = Gray
  • U = Violet (Universal for test harness only available on plug side only)
Tooling/Acessories
Part Number
Remarks
Crimp Frame
M22520/2-01
ASU 3 & 5 Way
Pin Postioner
K1493
ASU 3 Way
Socket Postioner
K1494
ASU 3 Way
Insert/Removal Tool
M81969/14-01
ASU 3 Way
Replacement Pins
604946-31
ASU 3 Way
Replacement Sockets
604984
ASU 3 Way
Filler Plug
600300-22
ASU 3 Way
Pin Postioner K1587 ASU 5 Way
Socket Postioner K1586 ASU 5 Way
Insert/Removal Tool 605837 ASU 5 Way
Replacement Pins 605705-31 ASU 5 Way
Replacement Sockets 605704 ASU 5 Way
Filler Plug
600300-24
ASU 5 Way
Gasket
GV-3
 ASU 3 & 5 Way
Protective Cap-Plug
611546
 ASU 3 & 5 Way
Protective Cap-Recep
611545
 ASU 3 & 5 Way
Set Ascending Direction
View as Grid List

19 items

Page
per page
  1. 3 WAY ASU INLINE CONN KIT-PIN
    Part Number : ASU103-03PN
    was $65.000 Special Price $32.500
    In stock
    Quantity:
    EA
    Add to Wishlist

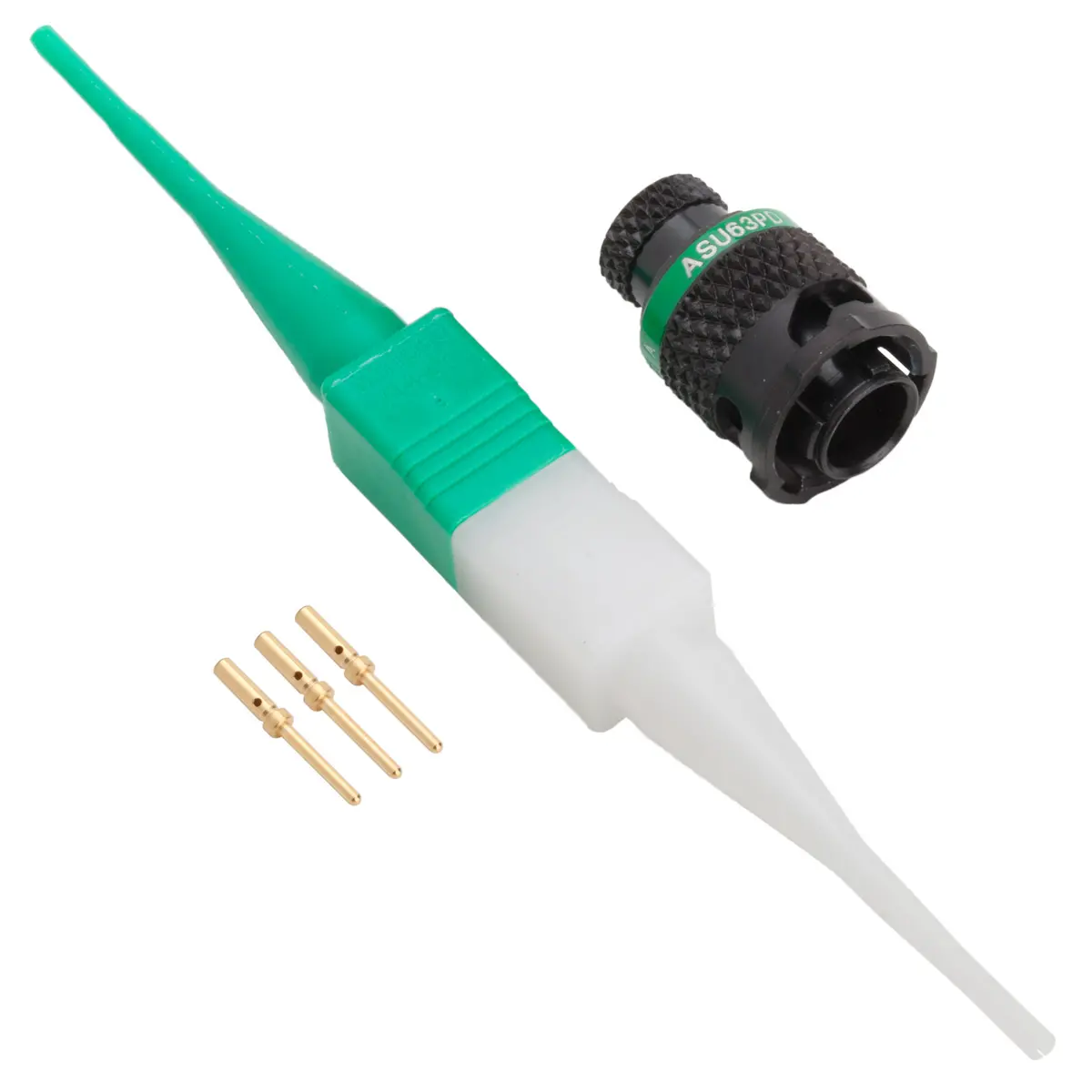

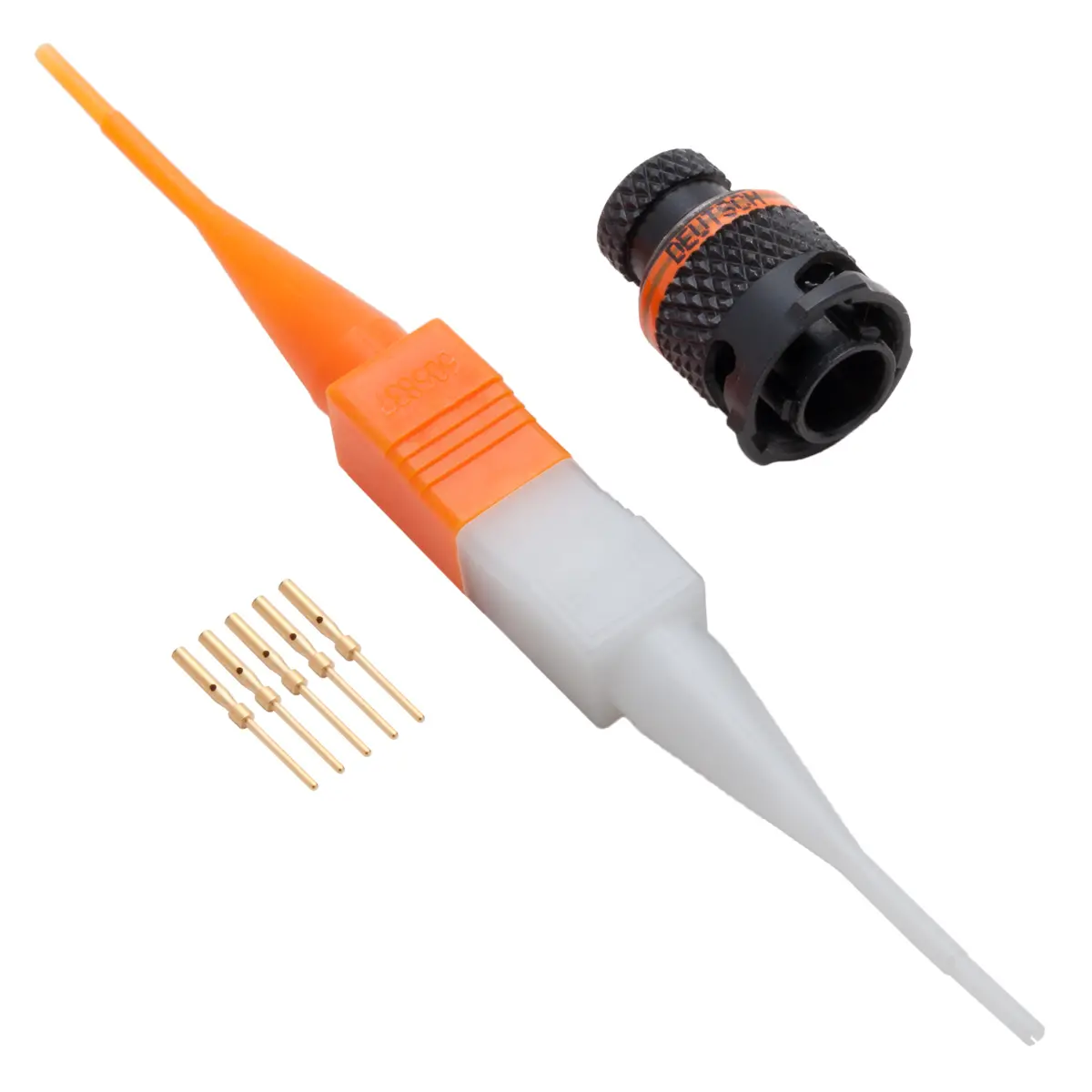

  2. 5 Way ASU Connector Plug-PIN D KEY
    Part Number : ASU603-03PD
    $33.120
    In stock
    Quantity:
    EA
    Add to Wishlist

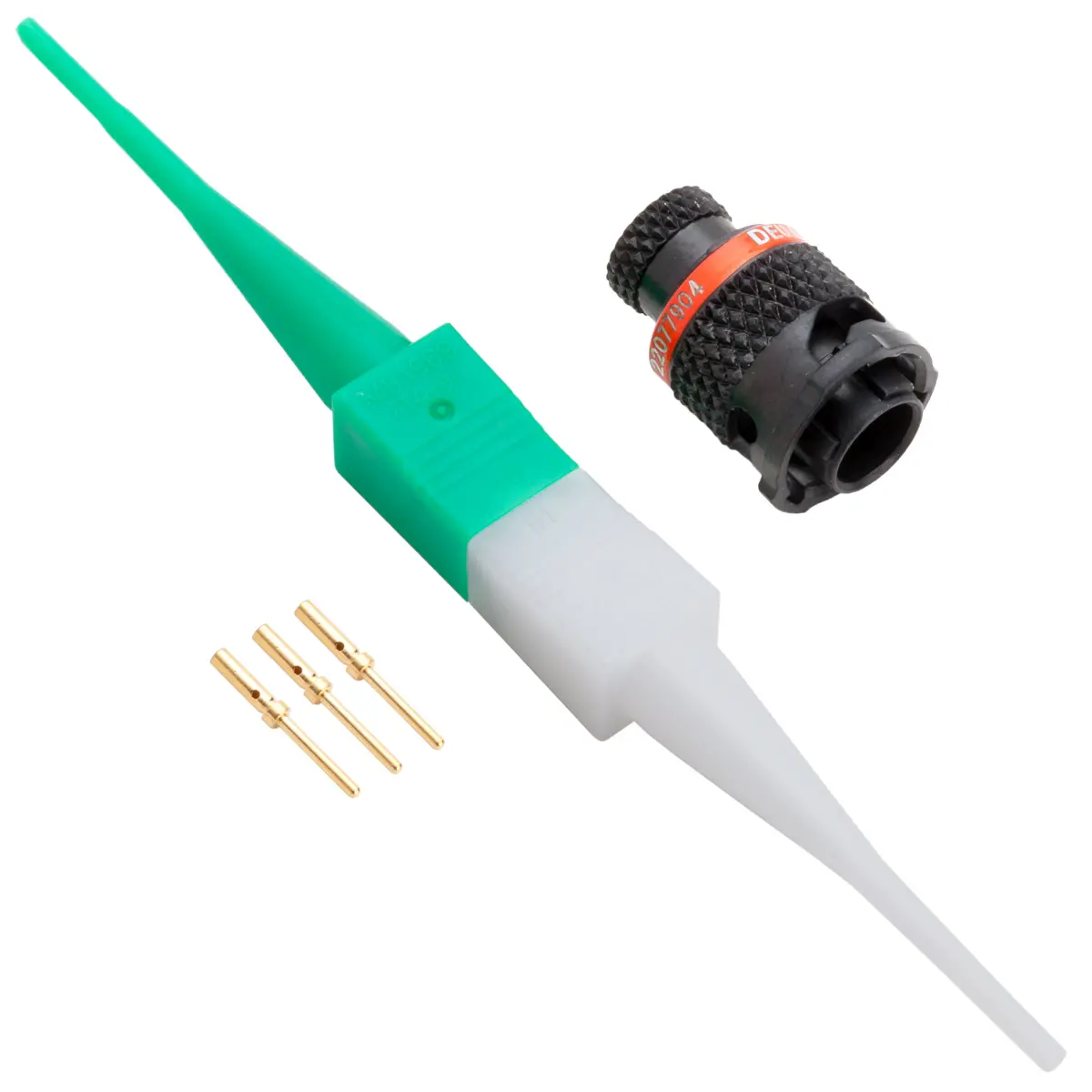

  3. 5 Way ASU Connector Plug-PIN C KEY
    Part Number : ASU603-03PC
    $33.120
    In stock
    Quantity:
    EA
    Add to Wishlist
  4. 5 WAY CONNECTOR PLUG-PIN
    Part Number : ASU603-03PA-HE
    was $69.600 Special Price $34.800
    In stock
    Quantity:
    EA
    Add to Wishlist

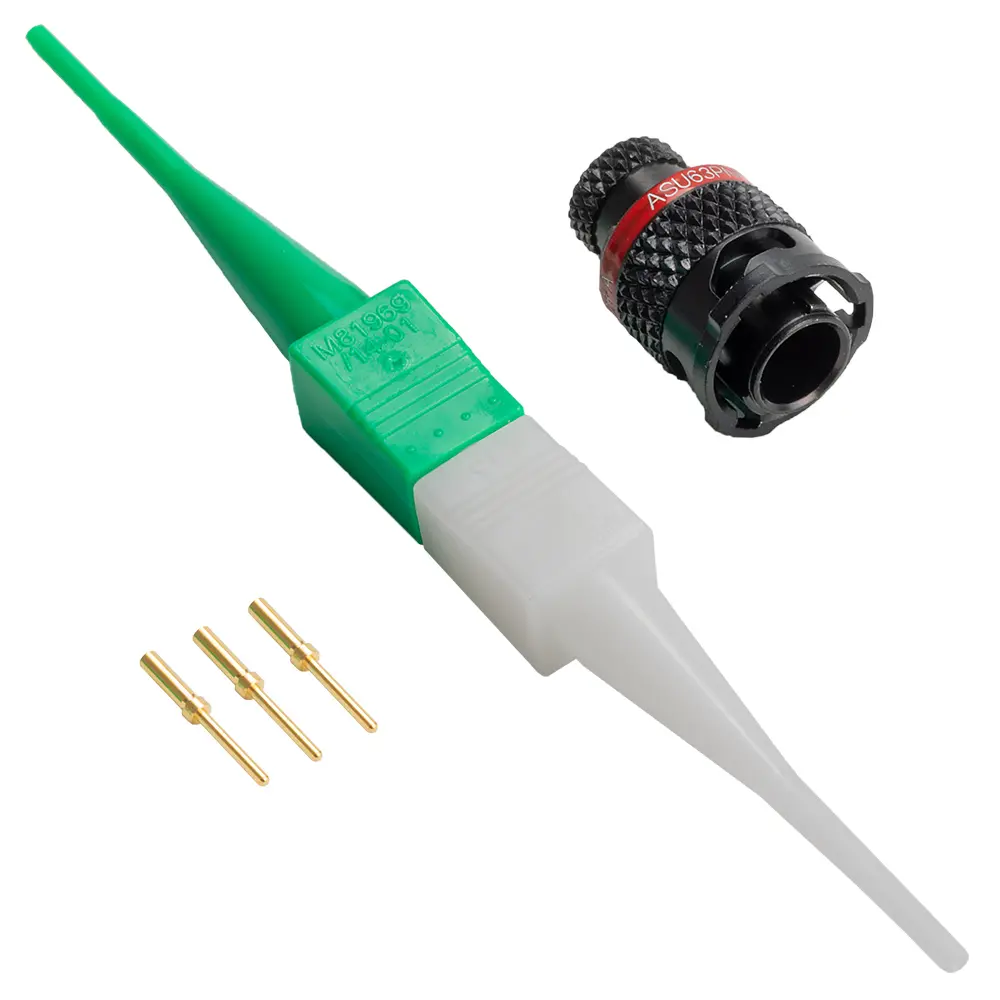

  5. 5 WAY ASU CONNECTOR PLUG-PIN
    Part Number : ASU603-03PN
    was $69.600 Special Price $37.700
    Out of stock
    Out of stock

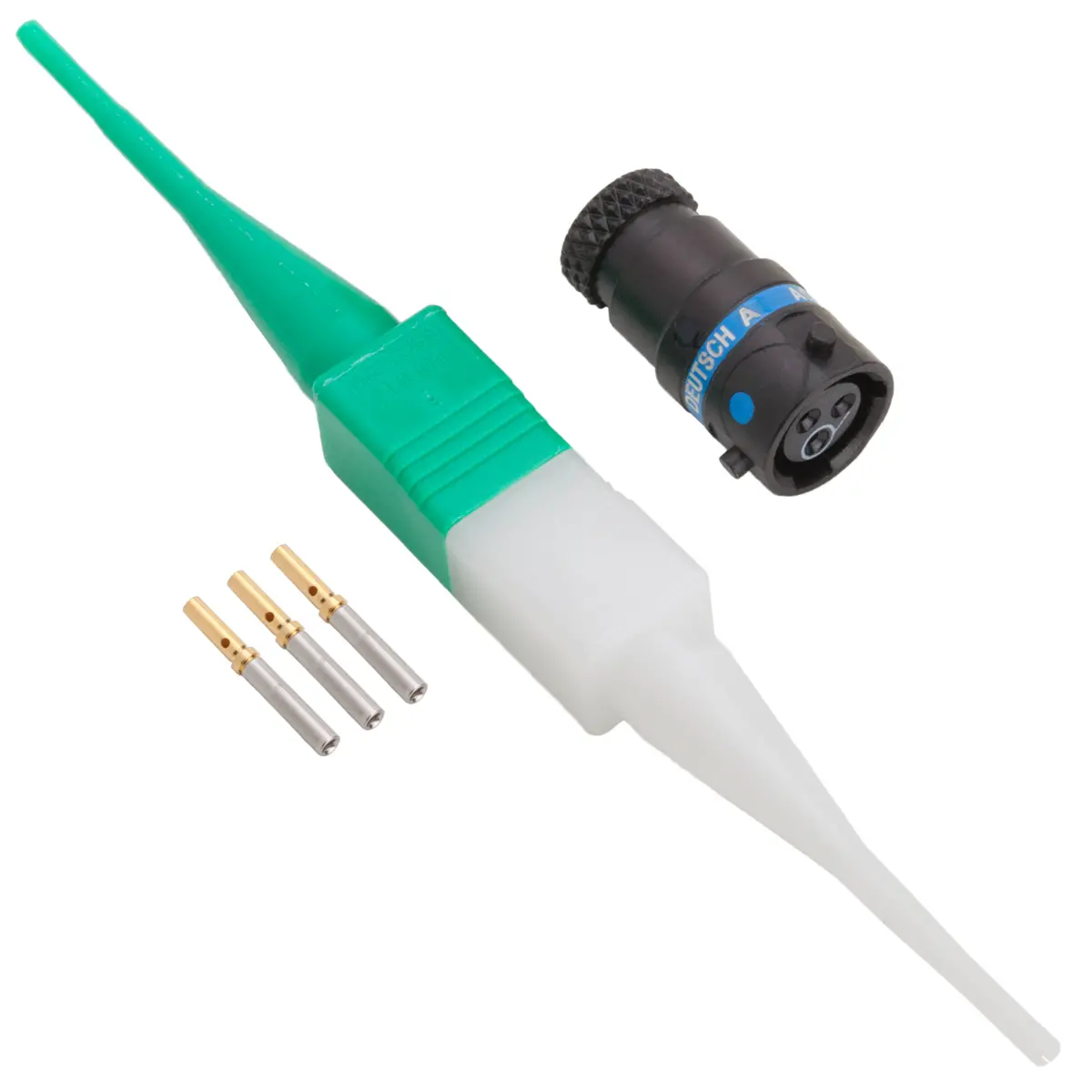

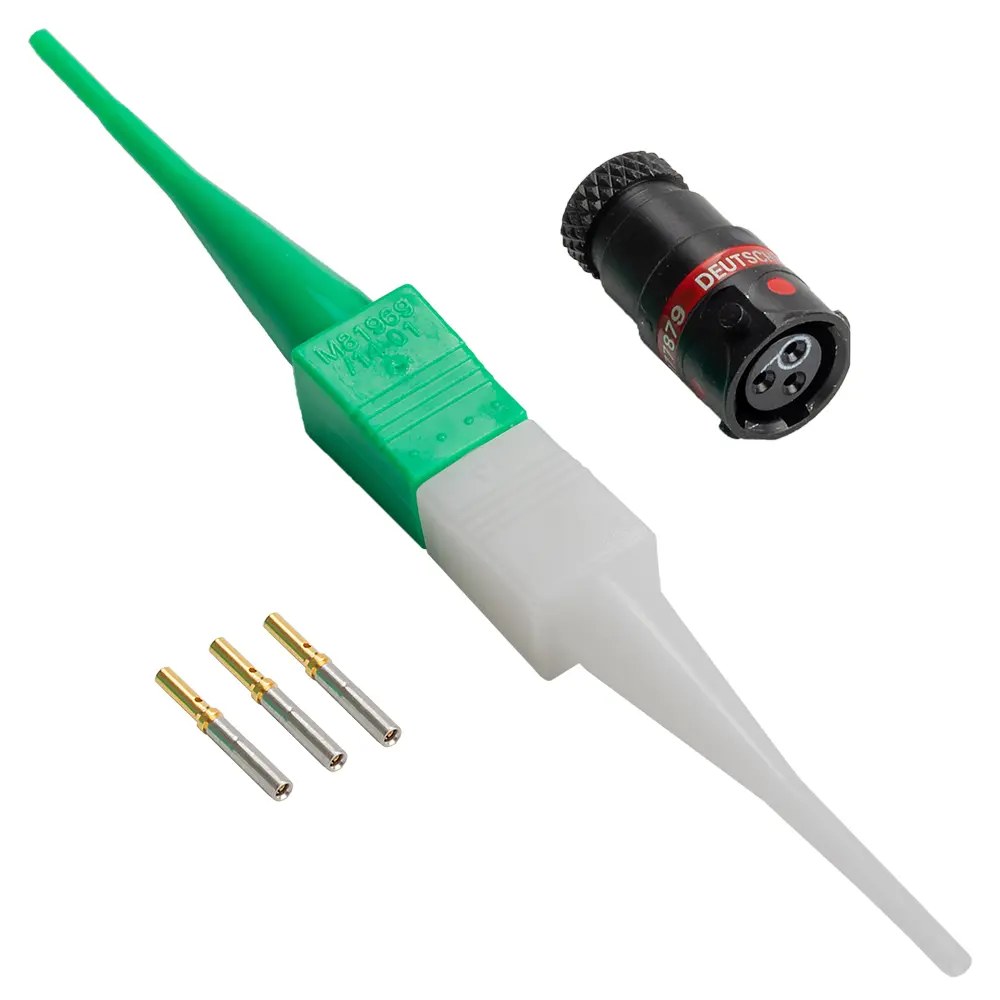

  6. 3 WAY ASU INLINE CONN KIT-SKT
    Part Number : ASU103-03SN
    was $80.600 Special Price $37.700
    Out of stock
    Out of stock

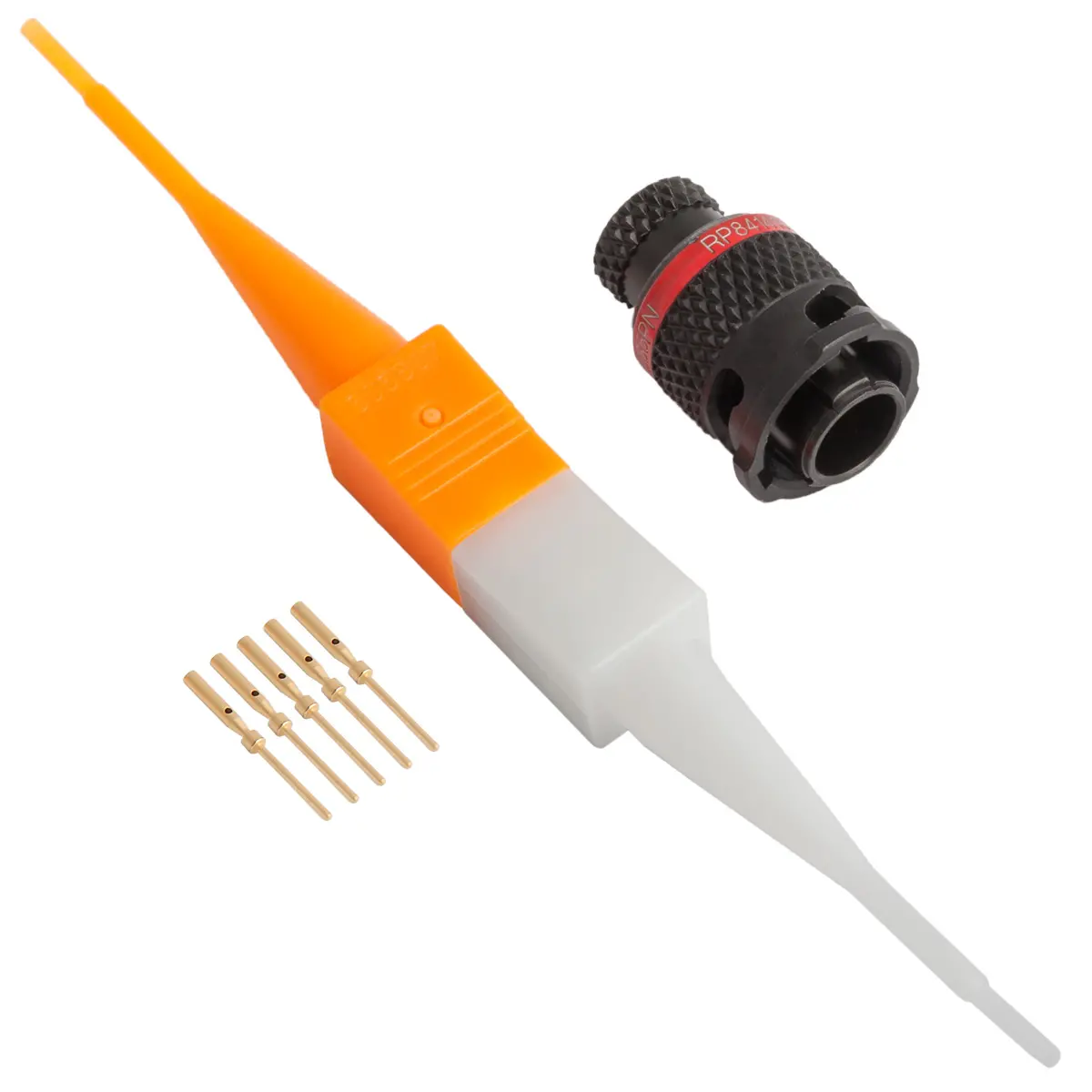

  7. 5 WAY CONNECTOR PLUG-PIN
    Part Number : ASU603-05PN-HE
    was $78.000 Special Price $39.000
    Out of stock
    Out of stock

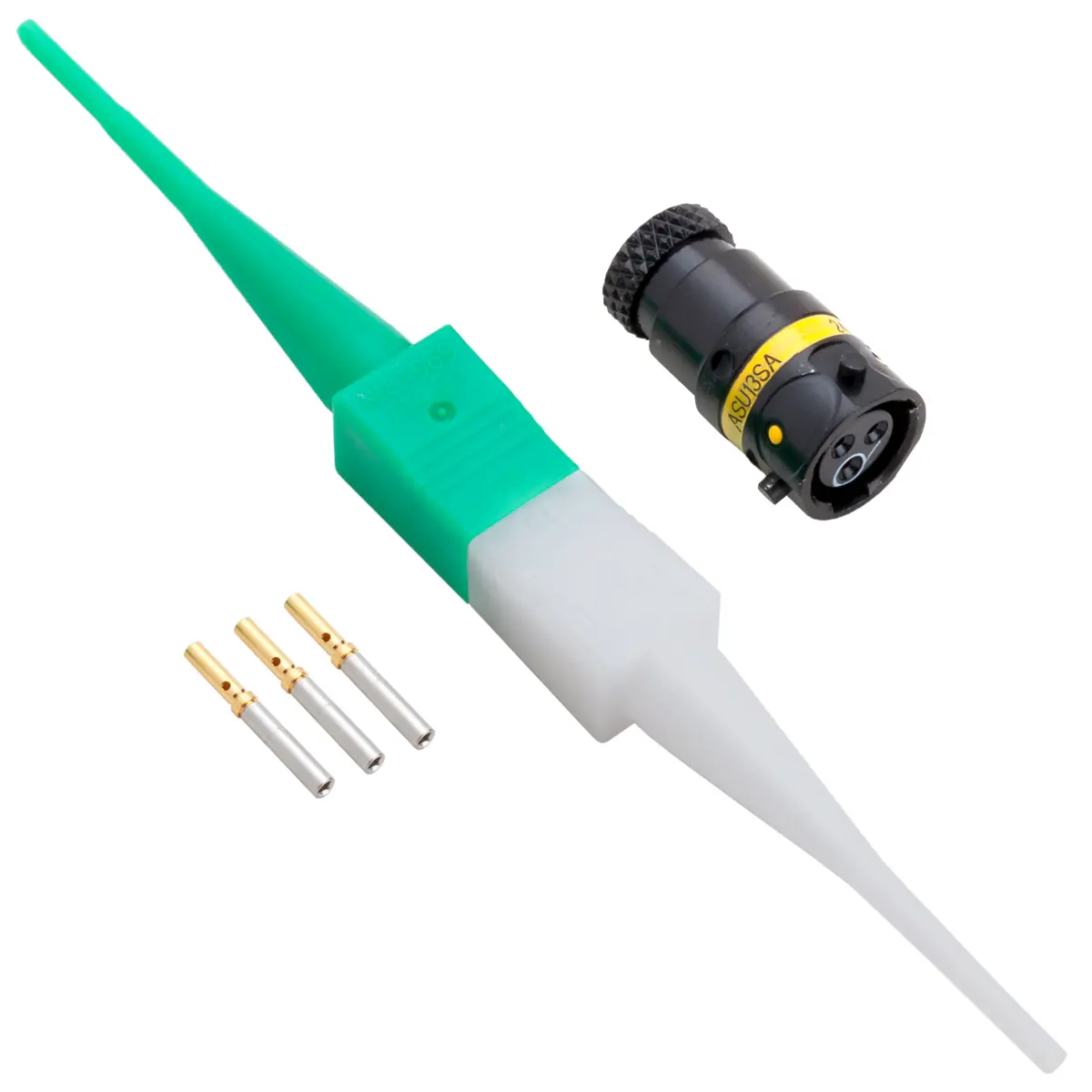

  8. 3 WAY ASU INLINE CONN KIT-SKT A KEY
    Part Number : ASU103-03SA
    was $80.600 Special Price $40.300
    In stock
    Quantity:
    EA
    Add to Wishlist

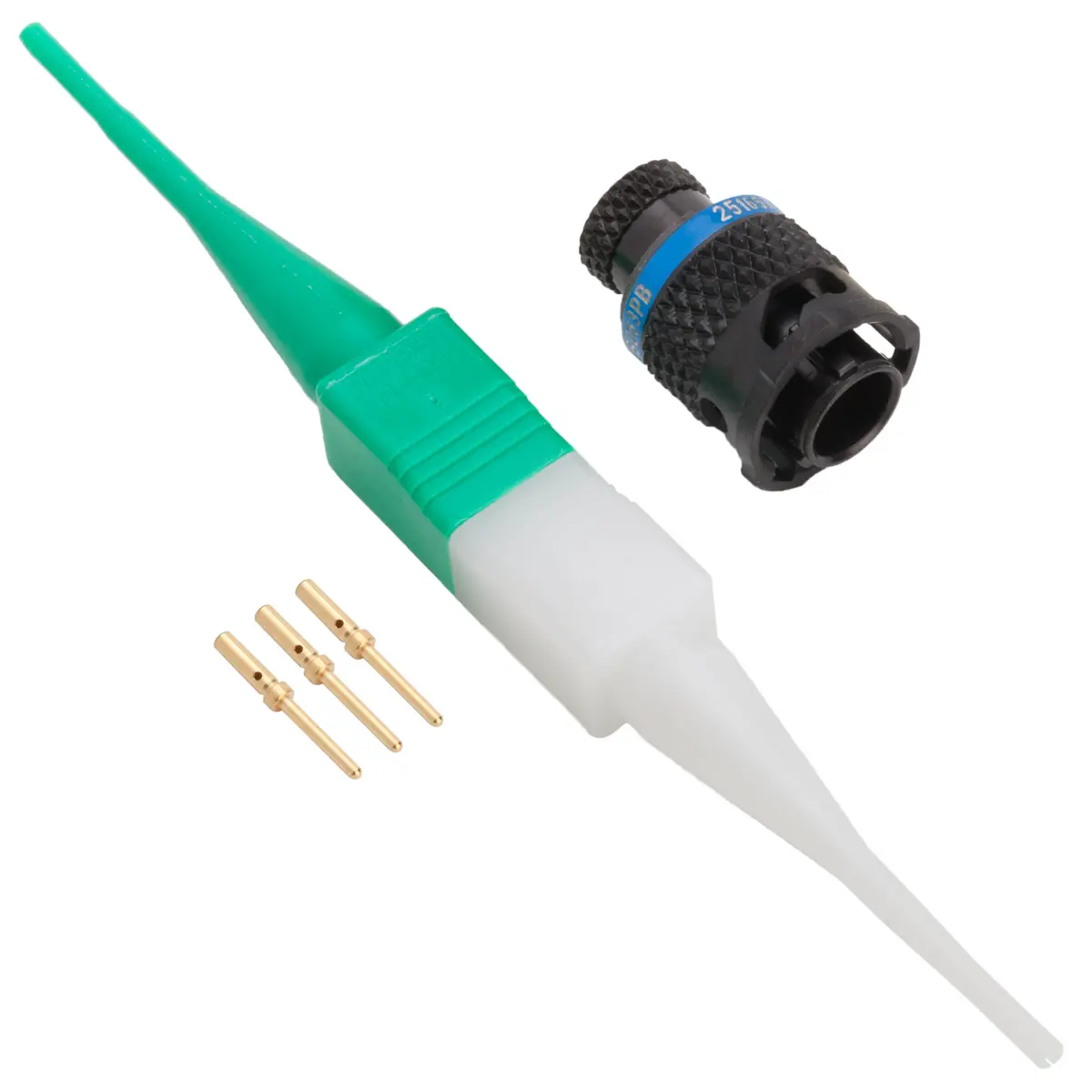

  9. 5 WAY ASU CONNECTOR PLUG-PIN B KEY
