DT Kit Configurable Item

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Item Number : DTKIT

Be the first to review this product

Availability: In stock

As low as $1.103 was $1.103

Qty:

As low as $1.103 was $1.103

Series

7.5 amps max per contact
Uses size 20 contact
Available in black or gray housing colors
Up to 12 way configurations
Wire range 22-16 gauge

Series

13 amps max per contact
Uses size 16 contact
Available in black or gray housing colors
Up to 12 way configurations
Wire range 20-14 gauge

Series

25 amps max per contact
Uses size 12 contact
Available in black or gray housing colors
2 and 4 way configurations only
Wire range 14-10 gauge

Series

25-100 amps max per contact
Uses size 12,8,4 contacts
Single way configuration only
Wire range 12-4 gauge

No. Of Positions

This is number of positions available in the connector, for instance 2 positions will take 2 wires.

No. Of Positions

This is number of positions available in the connector, for instance 2 positions will take 2 wires.

No. Of Positions

This is number of positions available in the connector, for instance 2 positions will take 2 wires.

No. Of Positions

The DTP series is only offered in a single way configuration used to connect only 1 wire.

Kit Type

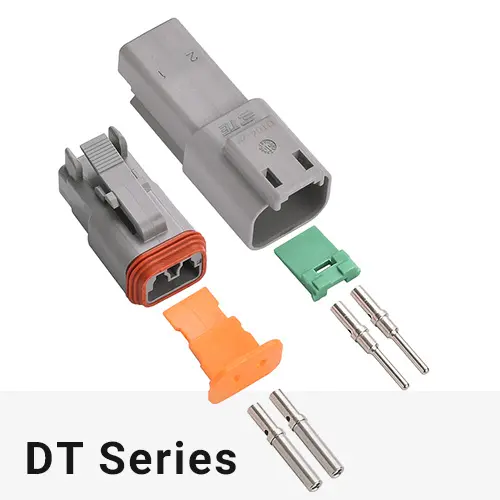

Full Kit: complete male / female connector kit with terminals and wedgelocks
Plug Kit: complete male connector kit with terminals and wedgelocks
Receptacle Kit: complete female connector kit with terminals and wedgelocks
Flanged Receptacle Kit: complete female connector kit with 4 bolt flange mounting with terminals and wedgelocks. Only available in 12 way
Flanged Kit: complete male / female connector kit with 4 bolt flange mounting, terminals and wedgelock. Only available in 12 way

Notes:

Receptacle connector would be considered the female side and uses male terminals
Plug connector would be considered the male side and uses female terminals
Flanged connector only available in 12 way

Kit Type

Full Kit: complete male / female connector kit with terminals and wedgelocks
Plug Kit: complete male connector kit with terminals and wedgelocks
Receptacle Kit: complete female connector kit with terminals and wedgelocks
Flanged Receptacle Kit: complete female connector kit with 4 bolt flange mounting with terminals and wedgelocks
Flanged Kit: complete male / female connector kit with 4 bolt flange mounting, terminals and wedgelocks

Notes:

Receptacle connector would be considered the female side and uses male terminals
Plug connector would be considered the male side and uses female terminals

Kit Type

Full Kit: complete male / female connector kit with terminals and wedgelocks
Plug Kit: complete male connector kit with terminals and wedgelocks
Receptacle Kit: complete female connector kit with terminals and wedgelocks
Flanged Receptacle Kit: complete female connector kit with 4 bolt flange mounting with terminals and wedgelocks. Flange only availabline in 4 way
Flanged Kit: complete male / female connector kit with 4 bolt flange mounting, terminals and wedgelocks. Flange only availabline in 4 way

Notes:

Receptacle connector would be considered the female side and uses male terminals
Plug connector would be considered the male side and uses female terminals

Kit Type

Full Kit: complete male / female connector kit with terminals and wedgelocks
Plug Kit: complete male connector kit with terminals and wedgelocks
Receptacle Kit: complete female connector kit with terminals and wedgelocks

Notes:

Receptacle connector would be considered the female side and uses male terminals
Plug connector would be considered the male side and uses female terminals

Terminal Plating

Gold Plated: Terminals are gold plated over nickel - motorsport / aerospace grade
Nickle Plated Terminals are nickel plated - most common

Notes:

Gold plated contacts are more commonly used in motorsport, military and aerospace applications.
Nickle plated contacts are by far the most popular for all around automotive and industrial applications.
Both gold and nickel terminals are steel construction.

Terminal Plating

Gold Plated: Terminals are gold plated over nickel - motorsport / aerospace grade
Nickle Plated Terminals are nickel plated - most common

Notes:

Gold plated contacts are more commonly used in motorsport, military and aerospace applications.
Nickle plated contacts are by far the most popular for all around automotive and industrial applications.
Both gold and nickel terminals are steel construction.

Terminal Plating

Gold Plated: Terminals are gold plated over nickel - motorsport / aerospace grade
Nickle Plated Terminals are nickel plated - most common

Notes:

Gold plated contacts are more commonly used in motorsport, military and aerospace applications.
Nickle plated contacts are by far the most popular for all around automotive and industrial applications.
Both gold and nickel terminals are steel construction.

Terminal Plating

Gold Plated: Terminals are gold plated over nickel - motorsport / aerospace grade
Nickle Plated Terminals are nickel plated - most common

Notes:

Gold plated contacts are more commonly used in motorsport, military and aerospace applications.
Nickle plated contacts are by far the most popular for all around automotive and industrial applications.
Both gold and nickel terminals are steel construction.

Housing Color

Gray : Gray is the most commonly used Deutsch connector as it is the non-keyed version
Black : Black is normally considered the A key and in some instances will not mate with similar gray connectors.

Notes:

Gray: Most commonly used
Black: another popular choice but may not mate with other gray connectors you may already own or use, A keyway in some instances.

Housing Color

Gray : Gray is the most commonly used Deutsch connector as it is the non-keyed version
Black : Black is normally considered the A key and in some instances will not mate with similar gray connectors.

Notes:

Gray: Most commonly used
Black: another popular choice but may not mate with other gray connectors you may already own or use, A keyway in some instances.

Housing Color

Gray : Gray is the most commonly used Deutsch connector as it is the non-keyed version
Black : Black is normally considered the A key and in some instances will not mate with similar gray connectors.

Notes:

Gray: Most commonly used
Black: another popular choice but may not mate with other gray connectors you may already own or use, A keyway in some instances.

Housing Color

Black : Black is the only color option offered in the DTP series.

Shrink Boot Lip

Shrink Boot Lip: selecting this option will give you a lip on the plug side only to allow for installation of either heat shrink or a Raychem heat shrink boot. The receptacle side of the connector will not have a similar lip as the connector already has a nice area to allow for heat shrink installation.

Commonly used heat shrink tubing would be:

CPA-100: Glue lined 3:1 semi flexible
ATUM: Glue lined either 3:1 or 4:1 semi flexible
SCL: Glue lined rigid heat shrink
Click Here to checkout our selection of glue lined heat shrink tubing

Shrink Boot Lip

Shrink Boot Lip: selecting this option will give you a lip on the plug side only to allow for installation of either heat shrink or a Raychem heat shrink boot. The receptacle side of the connector will not have a similar lip as the connector already has a nice area to allow for heat shrink installation.

Commonly used heat shrink tubing would be:

CPA-100: Glue lined 3:1 semi flexible
ATUM: Glue lined either 3:1 or 4:1 semi flexible
SCL: Glue lined rigid heat shrink
Click Here to checkout our selection of glue lined heat shrink tubing

Shrink Boot Lip

Shrink boot lip is not currently an available option in the DTP series.

Shrink Boot Lip

Shrink boot lip is not offered in this connector series.

Terminal Type

Solid Terminals: The solid terminals use an 8-way indent crimp tool to install the terminals to the wire. this is the most popular terminal type due to its heavy duty machined quality.
Stamped Terminals: The stamped terminals are also known as the open barrel crimp type. This type of terminal is used by most all automotive OEM's. Stamped terminals are easier to crimp since you can use most any universal open barrel crimper to install terminal to the wire.

Notes:

7.5 amps max per contact, size 20 contact.
Solid terminals uses 8-way indent crimp tooling which can be found below in the Tooling tab of this page once your kit is selected.
Stamped terminals uses open barrel crimp tooling which can be found below in the Tooling tab of this page once your kit is selected.

Terminal Type

Solid Terminals: The solid terminals use an 8-way indent crimp tool to install the terminals to the wire. this is the most popular terminal type due to its heavy duty machined quality.
Stamped Terminals: The stamped terminals are also known as the open barrel crimp type. This type of terminal is used by most all automotive OEM's. Stamped terminals are easier to crimp since you can use most any universal open barrel crimper to install terminal to the wire.

Notes:

13 amps max per contact, size 16 contact.
Solid terminals uses 8-way indent crimp tooling which can be found below in the Tooling tab of this page once your kit is selected.
Stamped terminals uses open barrel crimp tooling which can be found below in the Tooling tab of this page once your kit is selected.

Terminal Type

Solid Terminals: The solid terminals use an 8-way indent crimp tool to install the terminals to the wire. this is the most popular terminal type due to its heavy duty machined quality.
Stamped Terminals: The stamped terminals are also known as the open barrel crimp type. This type of terminal is used by most all automotive OEM's. Stamped terminals are easier to crimp since you can use most any universal open barrel crimper to install terminal to the wire.

Notes:

25 amps max per contact, size 12 contact.
Solid terminals uses 8-way indent crimp tooling which can be found below in the Tooling tab of this page once your kit is selected.
Stamped terminals uses open barrel crimp tooling which can be found below in the Tooling tab of this page once your kit is selected.

Terminal Type

Solid Terminals: The solid terminals use either an 8-way indent crimp for the size 12 contacts or a single way indent tool on the larger size 8 and 4 contacts.
Stamped Terminals: The stamped terminals are also known as the open barrel crimp type. This type of terminal is used by most all automotive OEM's. Stamped terminals are easier to crimp since you can use most any universal open barrel crimper to install terminal to the wire.

Notes:

Size 12 Contact: 25 amps max,wire range 12-14 gauge.
Size 8 Contact: 60 amps max wire range 10-8 gauge. solid contact only
Size 4 Contact : 100 amps max, wire range 6 gauge. solid contact only
While it is possible to solder the size 8 and 4 contacts it is not recommended to do so.

Unit Measure: EA

Qty:

Request Qty not available

Kit Specifications

Mating Connectors

Crimp Tools

Kit List
