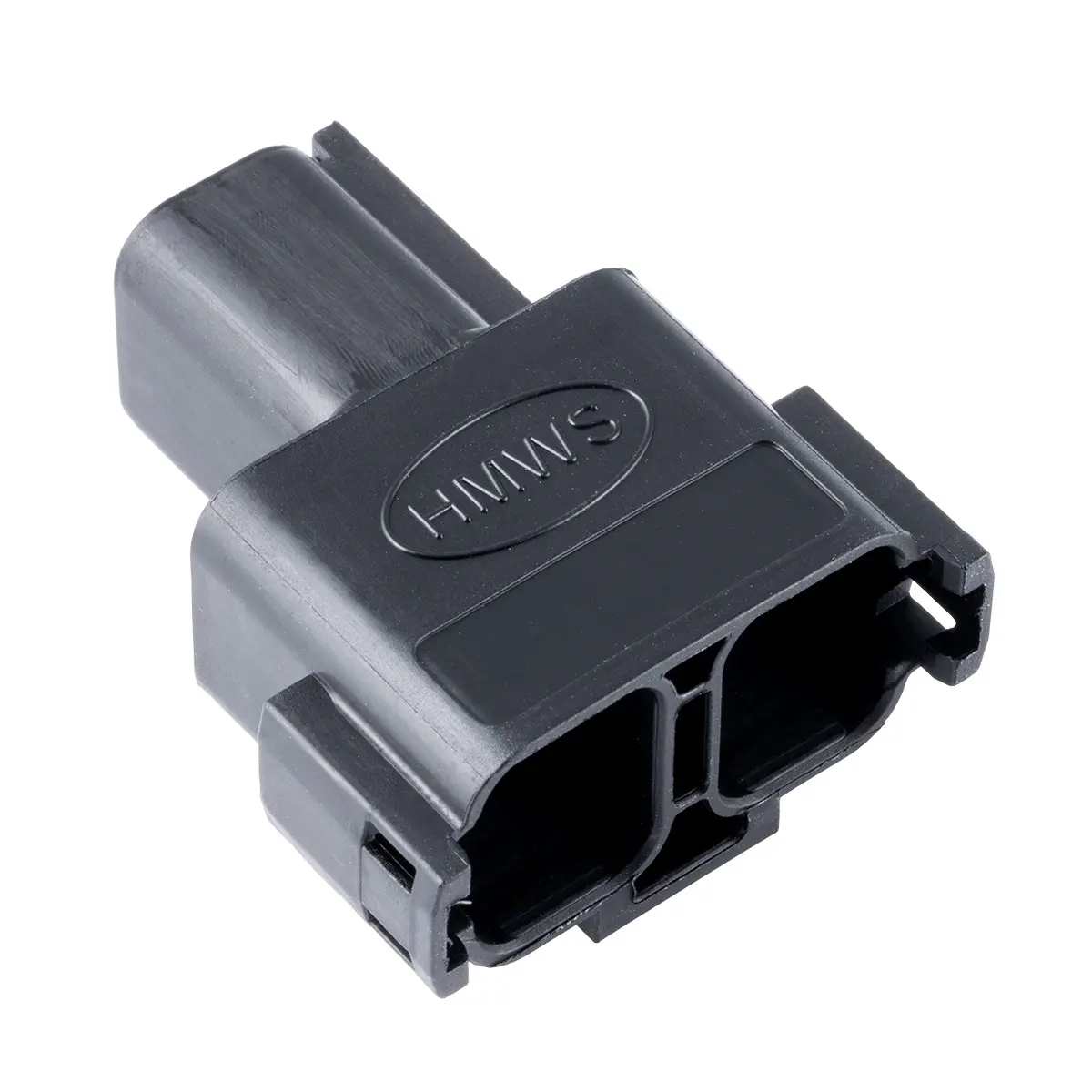

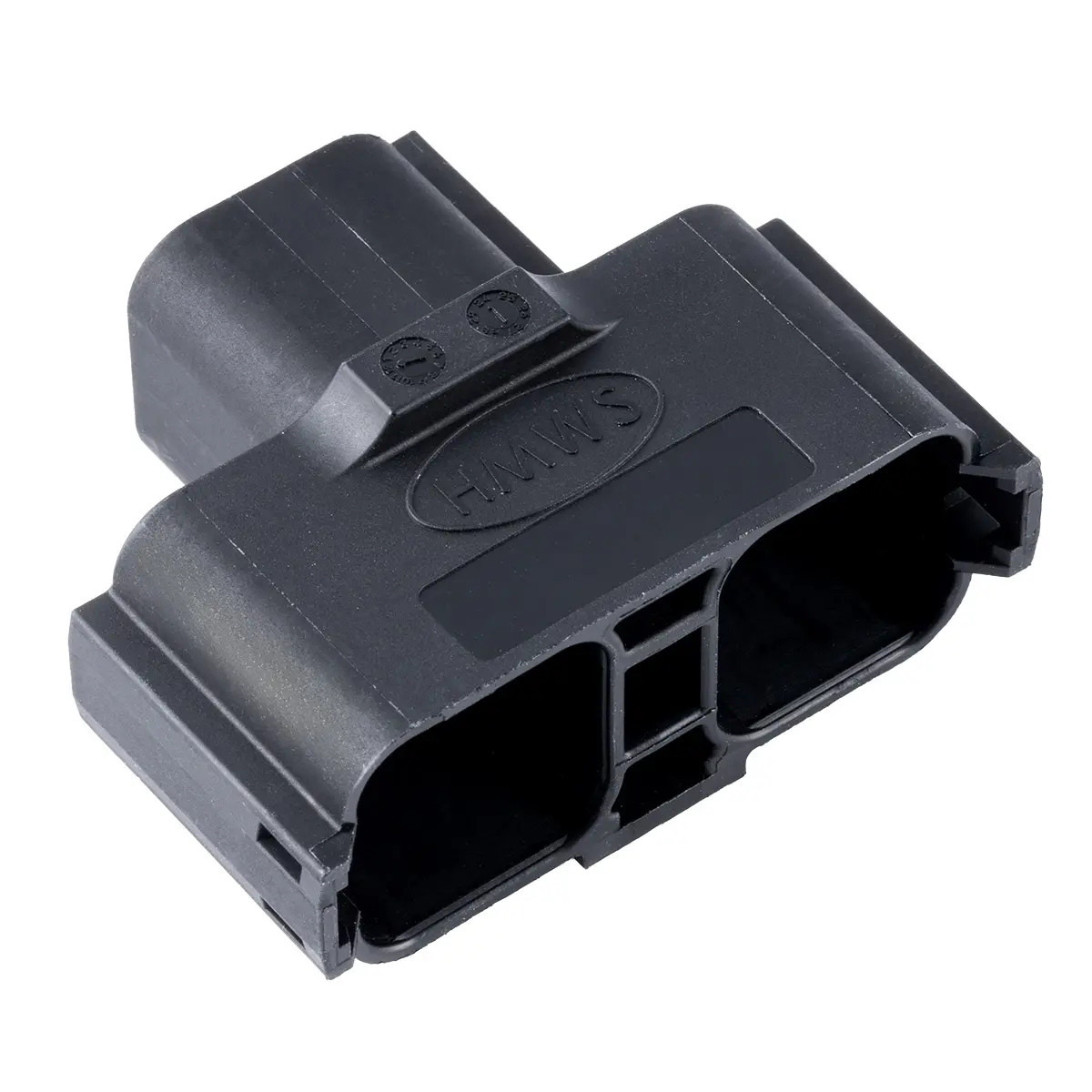

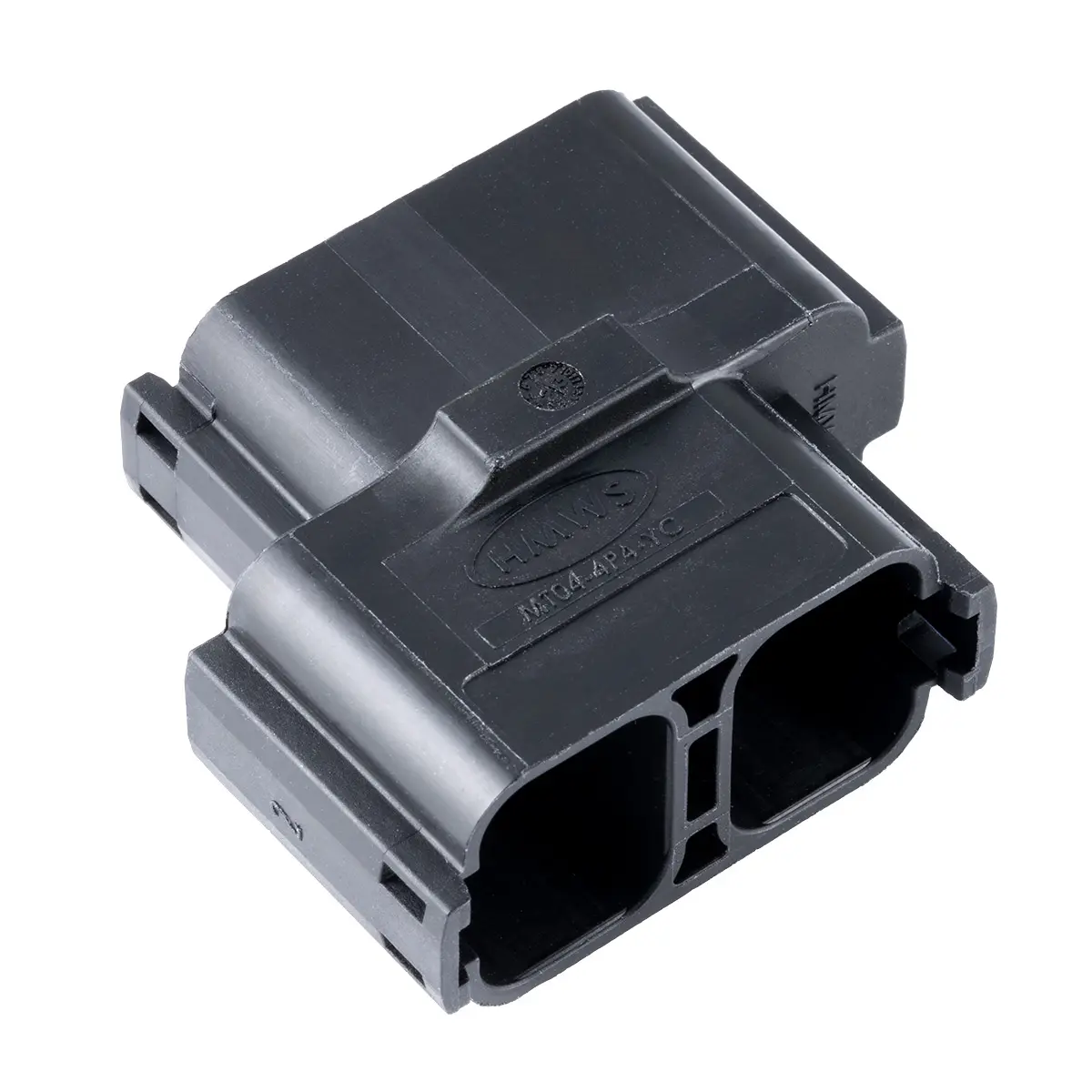

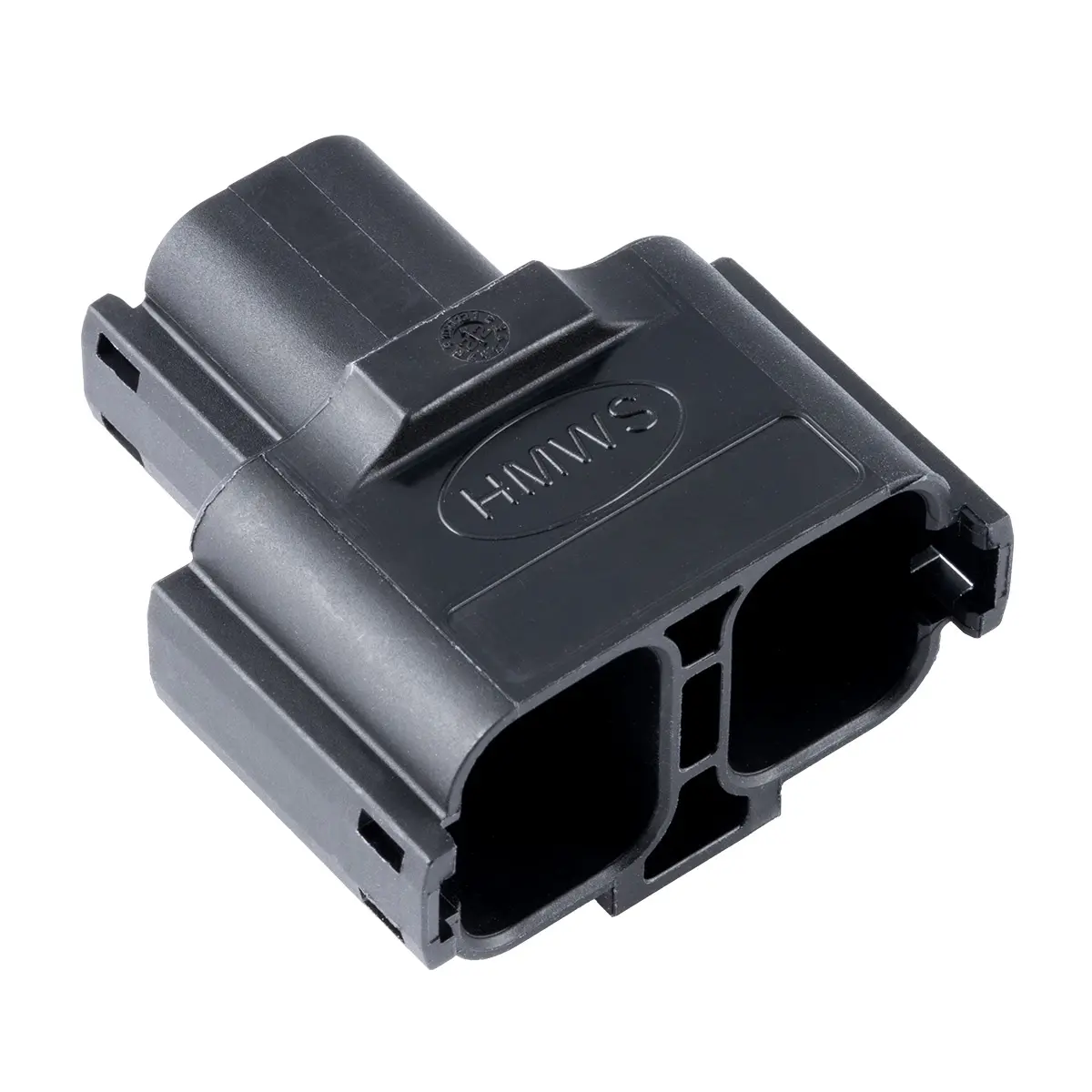

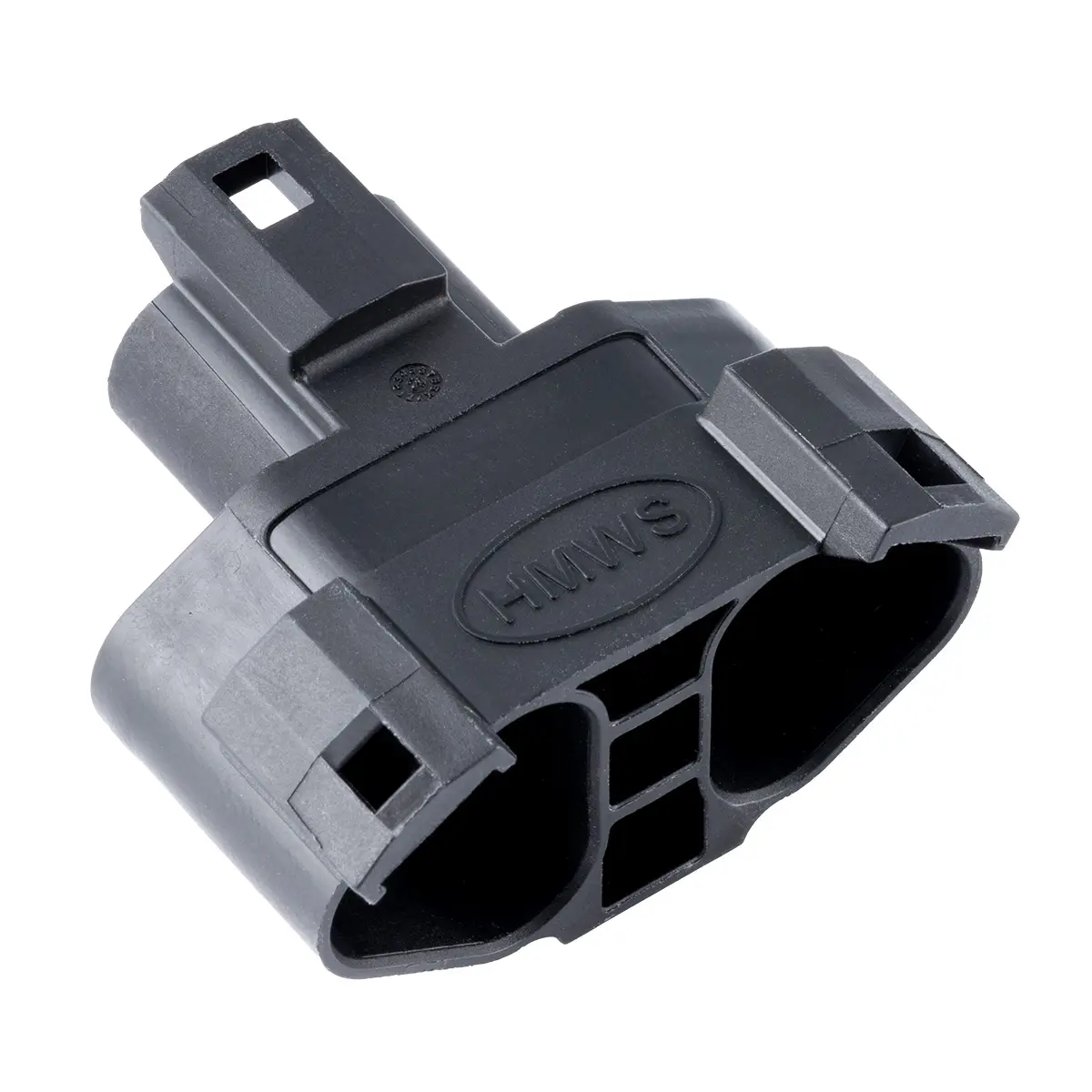

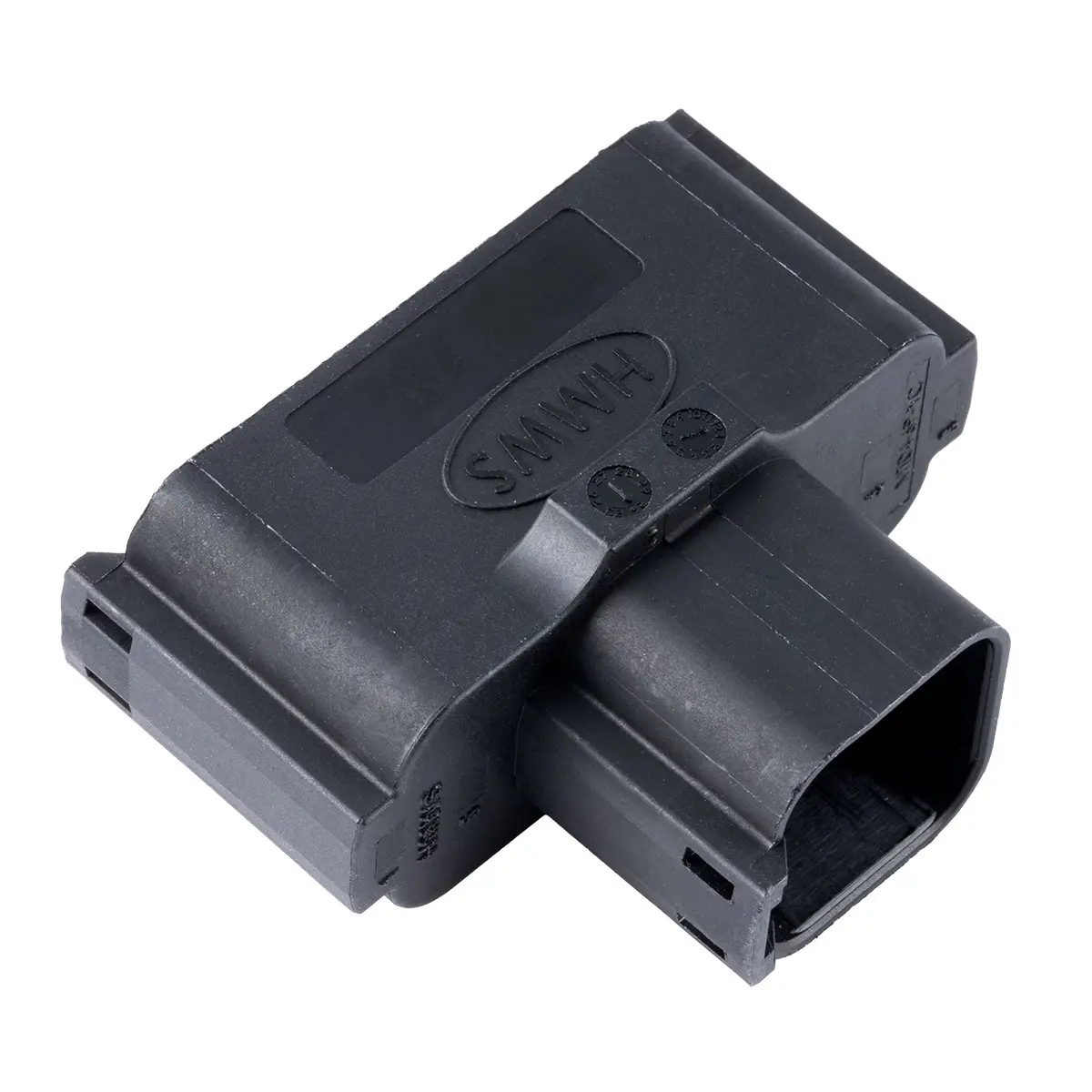

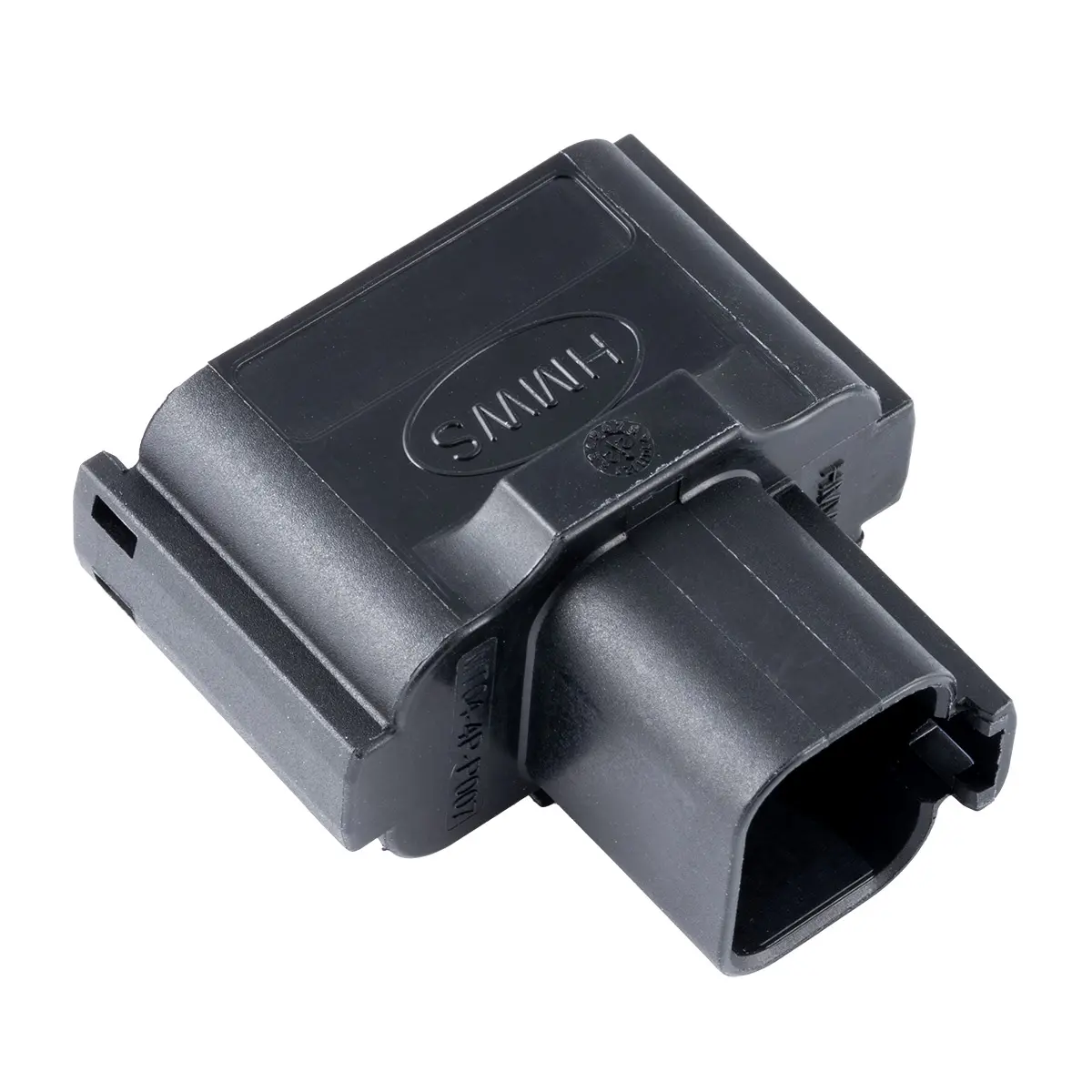

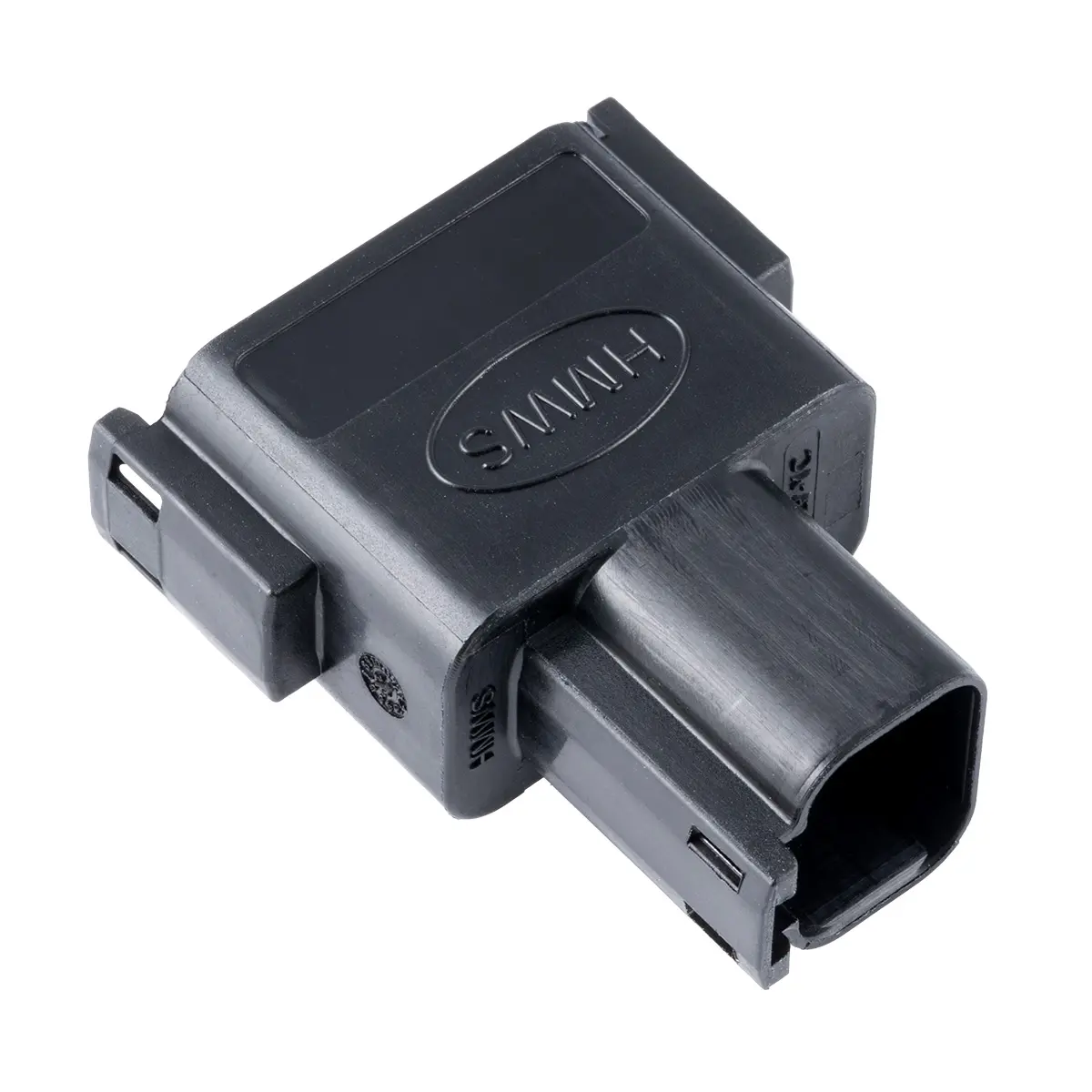

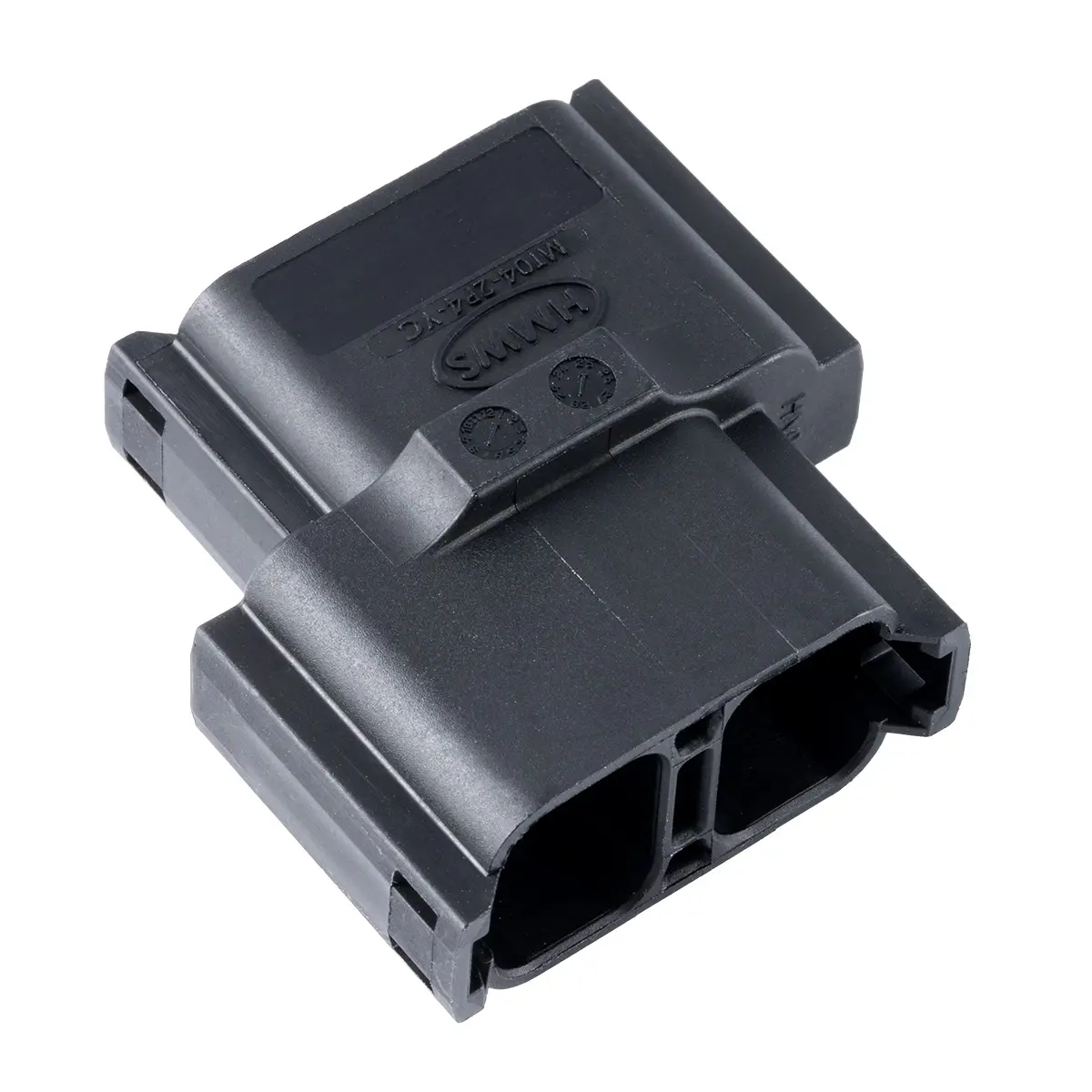

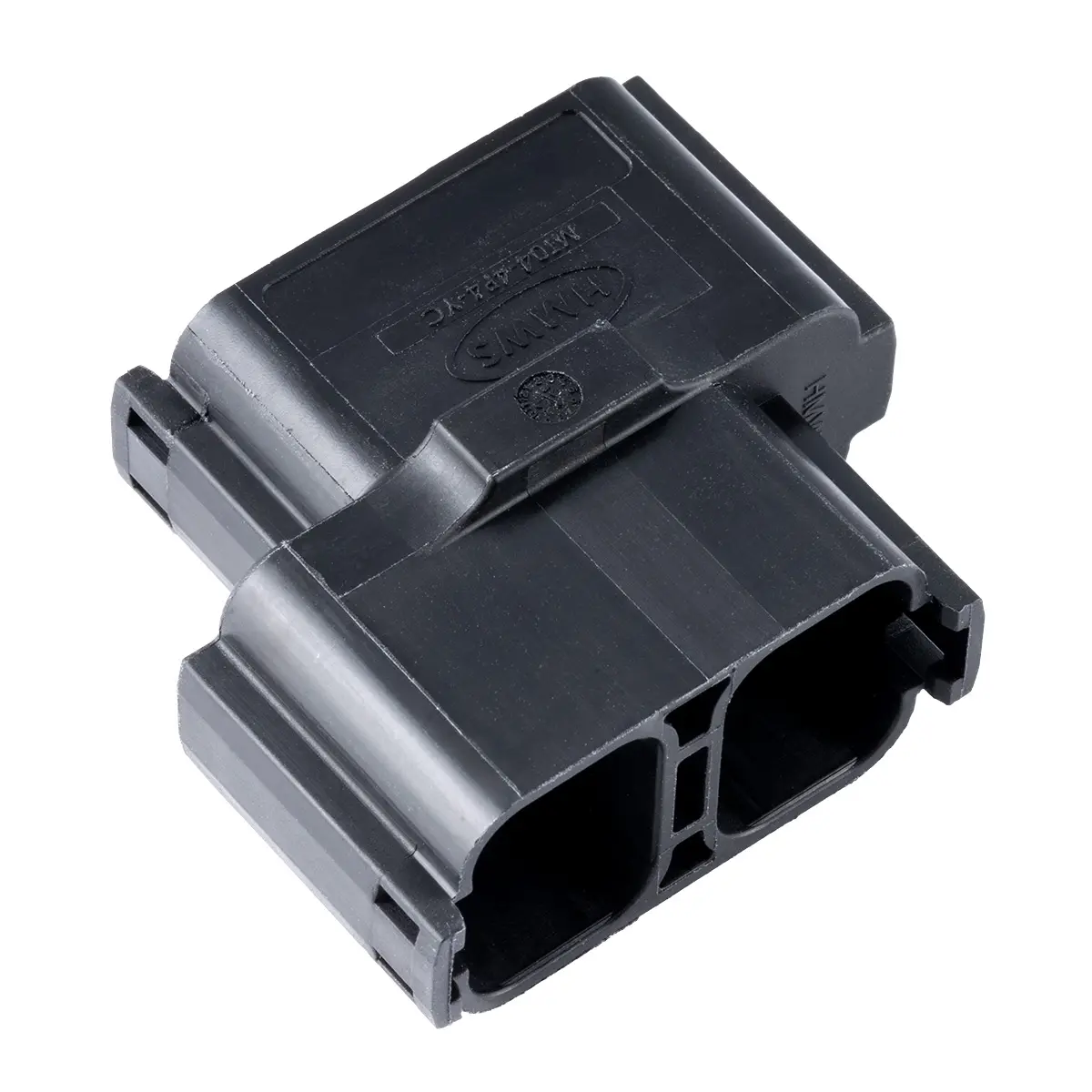

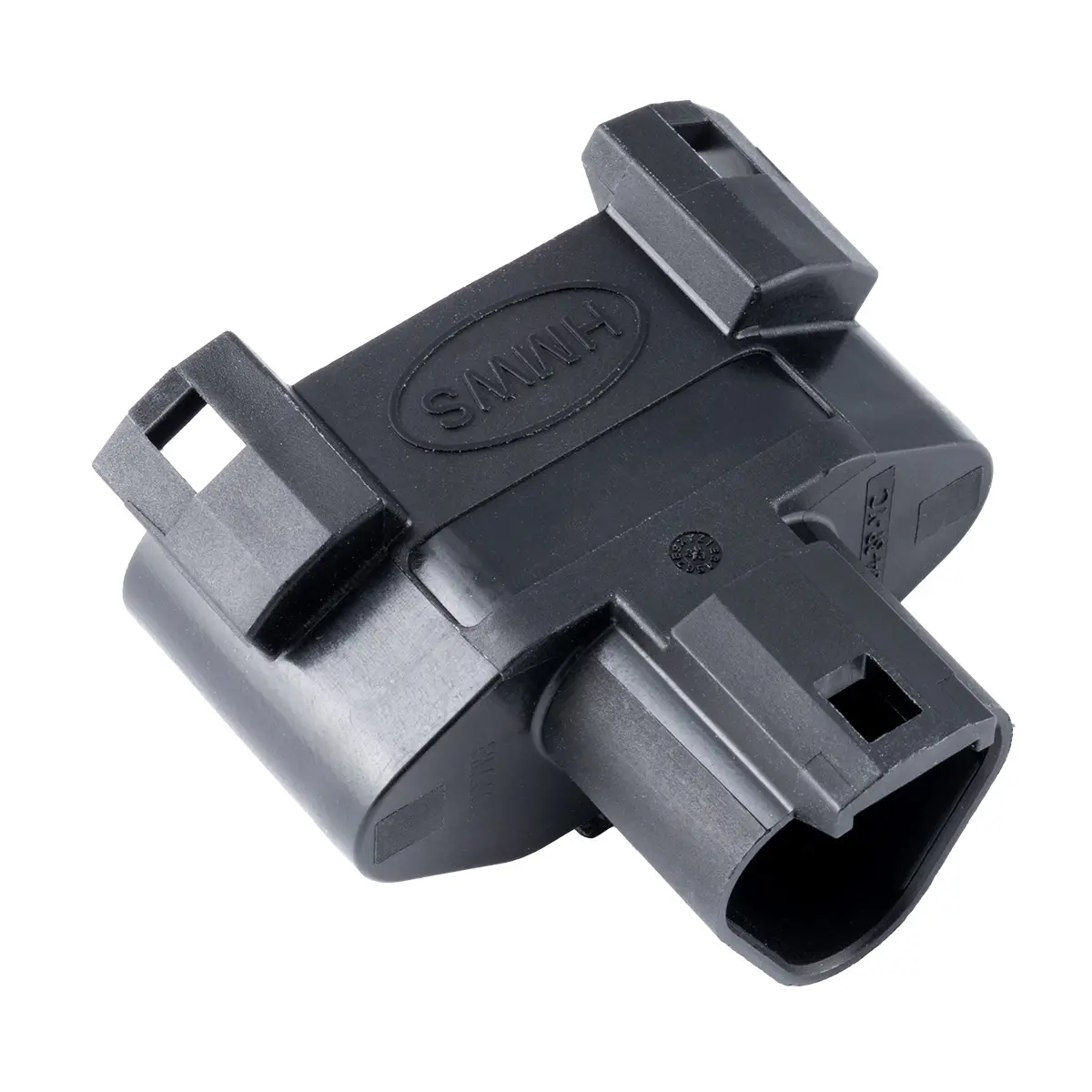

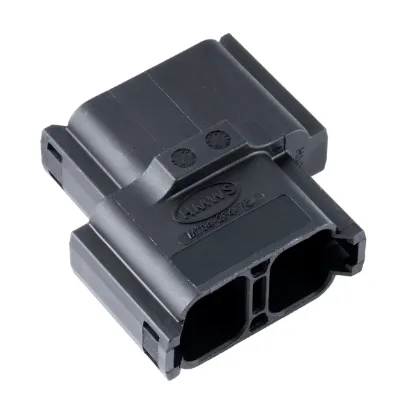

Deutsch DT Series Splitter Receptacle Connector

Designed for streamlined connectivity and effortless integration, the Deutsch DT Series Splitter Receptacle Connector enables quick, plug-and-play installation. This innovative solution simplifies wiring layouts while offering versatile configuration options.

These splitters are compatible with Deutsch DT06-XX and Amphenol AT06-XX plug connectors (sold separately).
Note: The contacts are molded directly into the housing—no additional contacts are required.

Features:

• Recessed housing area to accommodate labeling
• Clip-mount design compatible with standard industry clips
• Optional power indicator LEDs available (contact us for details)
• Contact plating options: nickel and gold for enhanced data transmission
• Clearly labeled part numbers for easy identification
• Tested to meet MIL-STD-202H and SAE J2030 standards

Technical Specifications:

• Housing Material: PA66-GF15
• Contact Size: #16 (molded into housing)
• Current Rating: 13 Amps @ 125°C
• Operating Temperature Range: -55°C to +125°C
• Ingress Protection: IP68 when mated with HMWS connectors

Please refer to the product datasheet (PDF) for more detailed information.
