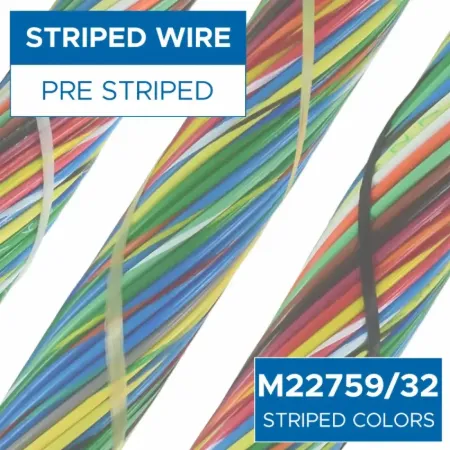

On The Shelf Striped Wire
28AWG SOLID COLOR
26AWG SOLID COLOR
24AWG SOLID COLOR
22AWG SOLID COLOR
20AWG SOLID COLOR
18AWG SOLID COLOR
16AWG SOLID COLOR
14AWG SOLID COLOR
12AWG SOLID COLOR

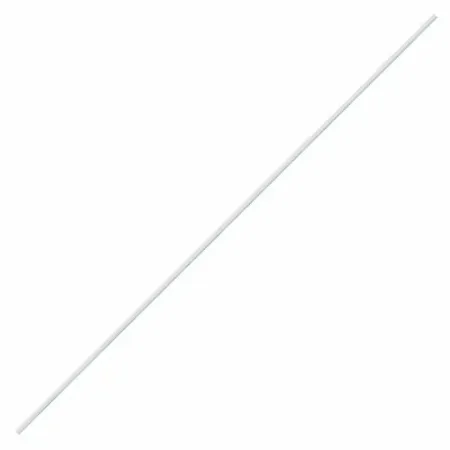

Raychem/TE Filler

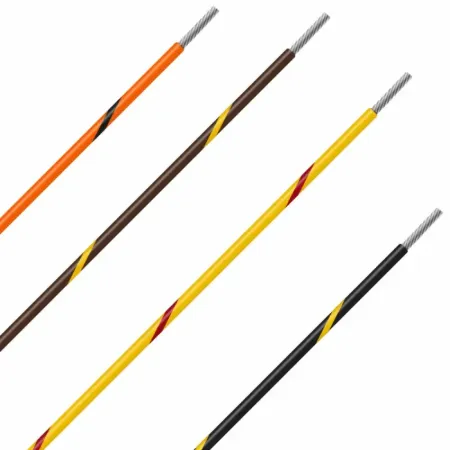

Striped Wire Configurator
M22759/32 Lightweight Wall Cross-Linked ETFE Tefzel Wire
This lightweight, high-temperature airframe and avionics wires utilize insulation of cross-linked, modified ethylene tetrafluoroethylene copolymer (ETFE). The insulation resists high PH cleaning fluids, fuels, lubricating oils, and many other chemicals. The wires can withstand temperature test extremes ranging from cold bend (-65°C) through (150°C). These wires are a mechanically tough, flame retardant, and weight-saving solution for many aerospace applications.
 M22759/32 Tezfel Wire Datasheet (PDF, 790 KB) |
See below for more data on M22759/32 Tefzel wire.
Applications
MIL-W-22759/32 wires have crosslinked extruded ETFE insulation for aerospace and other applications requiring light weight, tight diameter tolerances, and enhanced mechanical toughness. Crosslinked ETFE insulation also provides exceptional resistance to radiation and chemicals.
What to learn more about Crosslinked Tefzel® ETFE? Click Here
How many amps can M22759/32 carry? Tefzel ampacity chart here
Construction Details
- Conductor: Tin-plated copper (TC)
- Operating Temperature: 150°C
- Insulation: Single layer irradiation crosslinked extruded ETFE
So what's the difference between /32 and /16 wire?
The significant difference between these two specifications of wire is the outer jacket. Both/16 and /32 offer the same temp and voltage rating. Where these two differ are the types and amounts of Tefzel used.
M22759/16- Ethylene Tetrafluoroethylene (ETFE) 24 AWG - 2/0 AWG
- Slightly larger O.D over /32 wire by roughly 15%*
- Slightly heavier compared to /32 wire by roughly 20%*
M22759/32- Fluoropolymer Cross-linked Modified (ETFE) 30 AWG -12 AWG
- Slightly smaller O.D over /16 wire by roughly 15%*
- Slightly lighter compared to /16 wire by roughly 20%*
* Weight and O.D. comparisons based on 24 ga.
|
Part
Number |
Conductor
|
Conductor
Resistance @20ºC |
Nom.
Diameter |
Weight
|
||||||
|
Size
|
Stranding | Material | ||||||||
| AWG | mm2 | Ω/kft | Ω/km | Inch | mm | lbs/kft | kg/km | |||
| M22759/32-30-X |
30
|
.05
|
7/38
|
TC**
|
108.4
|
33.0
|
.024
|
.61
|
.66
|
.98
|
| M22759/32-28-X |
28
|
.09
|
7/36
|
68.6
|
225
|
.027
|
.68
|
.91
|
1.35
|
|
| M22759/32-26-X |
26
|
.15
|
19/38
|
41.3
|
136
|
.032
|
.81
|
1.4
|
2.08
|
|
| M22759/32-24-X |
24
|
.24
|
19/36
|
26.2
|
86.0
|
.037
|
.94
|
2.0
|
2.98
|
|
| M22759/32-22-X |
22
|
.38
|
19/34
|
16.2
|
53.2
|
.043
|
1.09
|
2.8
|
4.17
|
|
| M22759/32-20-X |
20
|
.62
|
19/32
|
9.88
|
32.4
|
.050
|
1.27
|
4.3
|
6.40
|
|
| M22759/32-18-X |
18
|
.96
|
19/30
|
6.23
|
20.4
|
.060
|
1.52
|
6.5
|
9.67
|
|
| M22759/32-16-X |
16
|
1.23
|
19/29
|
4.81
|
15.8
|
.068
|
1.73
|
8.3
|
12.3
|
|
| M22759/32-14-X |
14
|
1.94
|
19/27
|
3.06
|
10.0
|
.085
|
2.16
|
13.0
|
19.0
|
|
| M22759/32-12-X |
12
|
3.08
|
37/28
|
2.02
|
6.63
|
.103
|
2.62
|
19.7
|
29.0
|
|
** Tinned-coated copper
